Home of 12 Volt offers an extensive range of power packs, control boxes, cables and accessories to help with all types of 12 volt installations.
All control boxes are internally soldered and wired with 4mm and 6mm automotive twin sheathed oxygen free cable. These quality control boxes will truly last the test of time and will not tarnish (go green) after many years of use in harsh environments. The use of oxygen free cable means that voltage drop will be greatly reduced when using these control boxes.

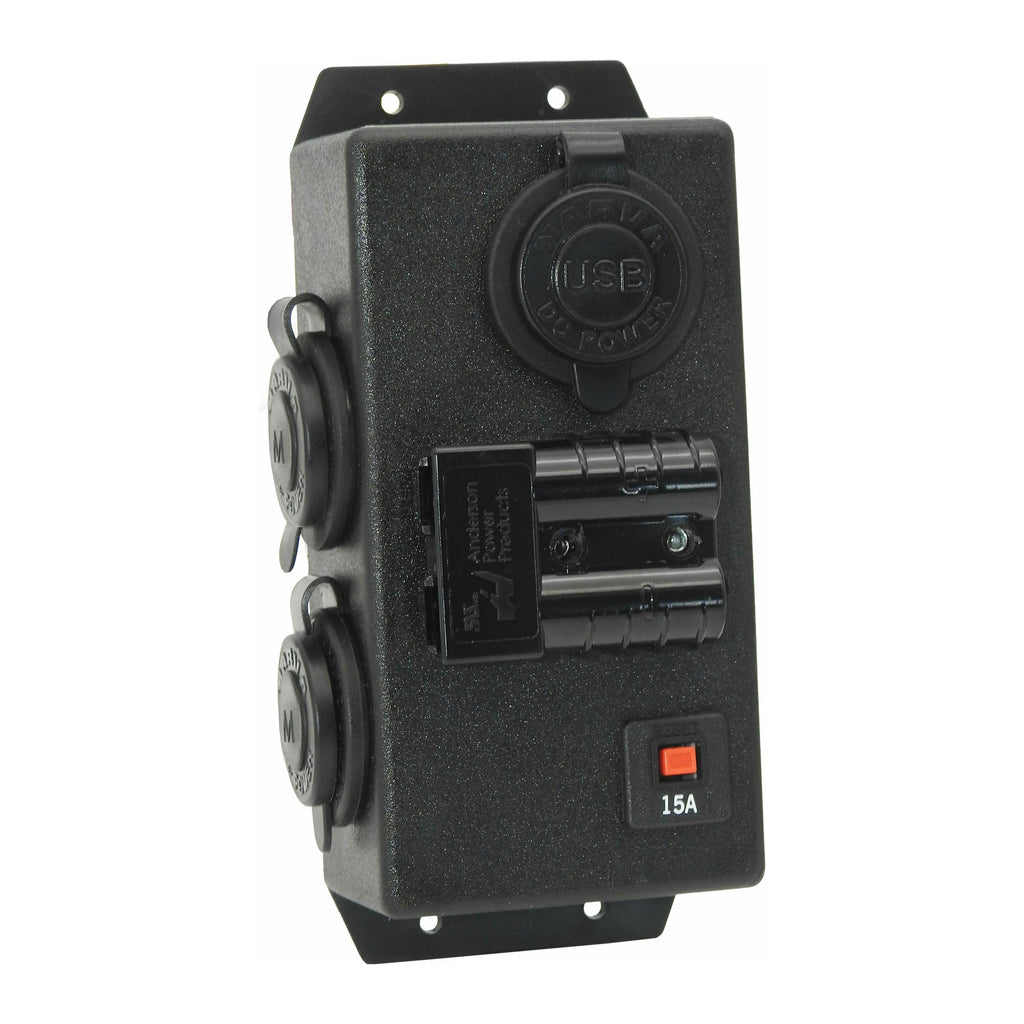

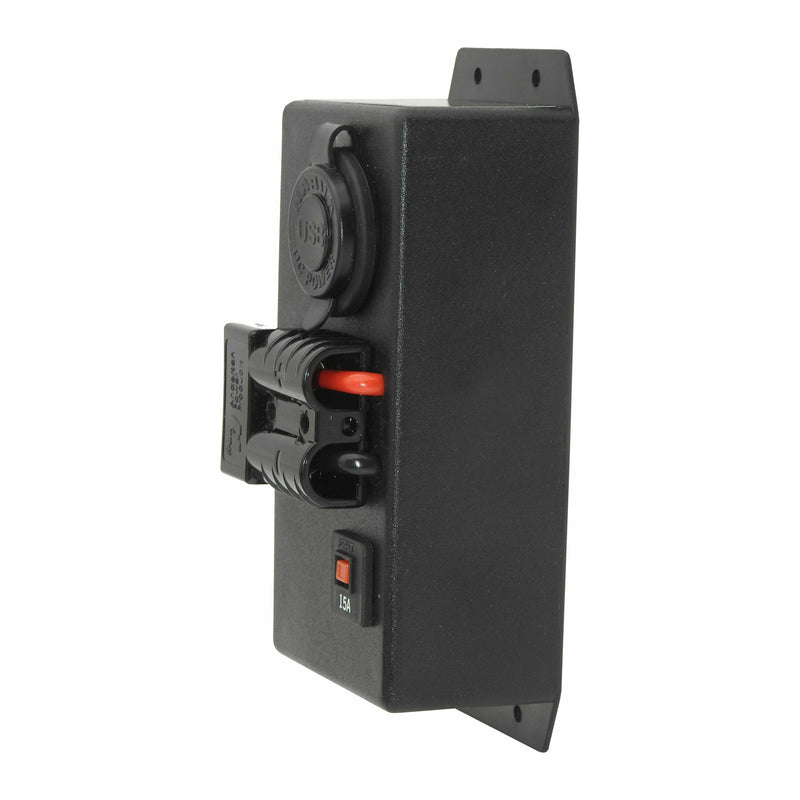

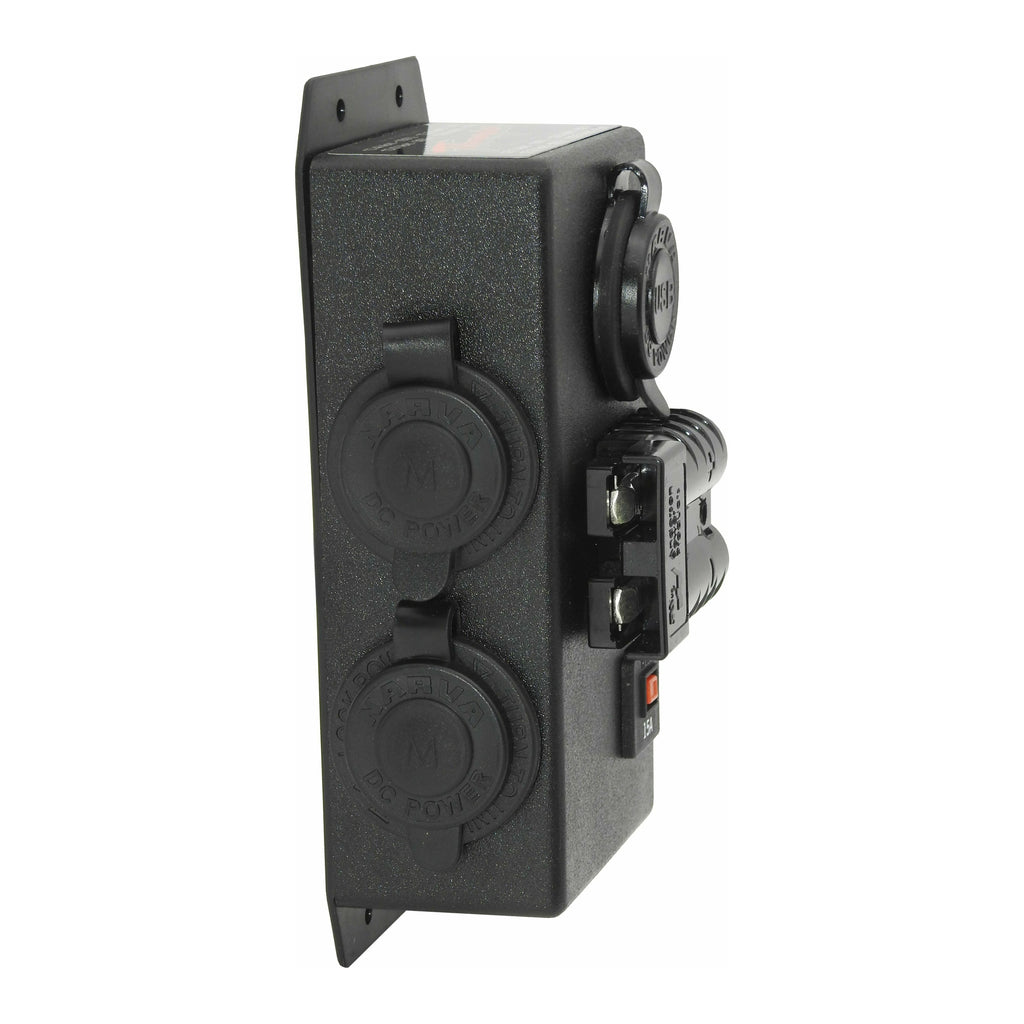

Specifications per outlet box: LEFT MOUNT
- 2 x Merit / Hella type socket - rated to 15 Amps (Note: this is not a cigarette socket)
- 1 x Dual USB socket - rated to 2.4 Amps at 5 Volts
- 1 x Genuine 50 Amp Anderson connector
- 1 x In built 15 Amp circuit breaker - wired to protect the twin outlets
- 1 x approx. 250mm length 6mm Twin core cable with yellow crimp joiners
Length - 54 mm
Depth - 35 mm
Height - 160 mm
** All measurements include sockets
2 Year Warranty
