Description

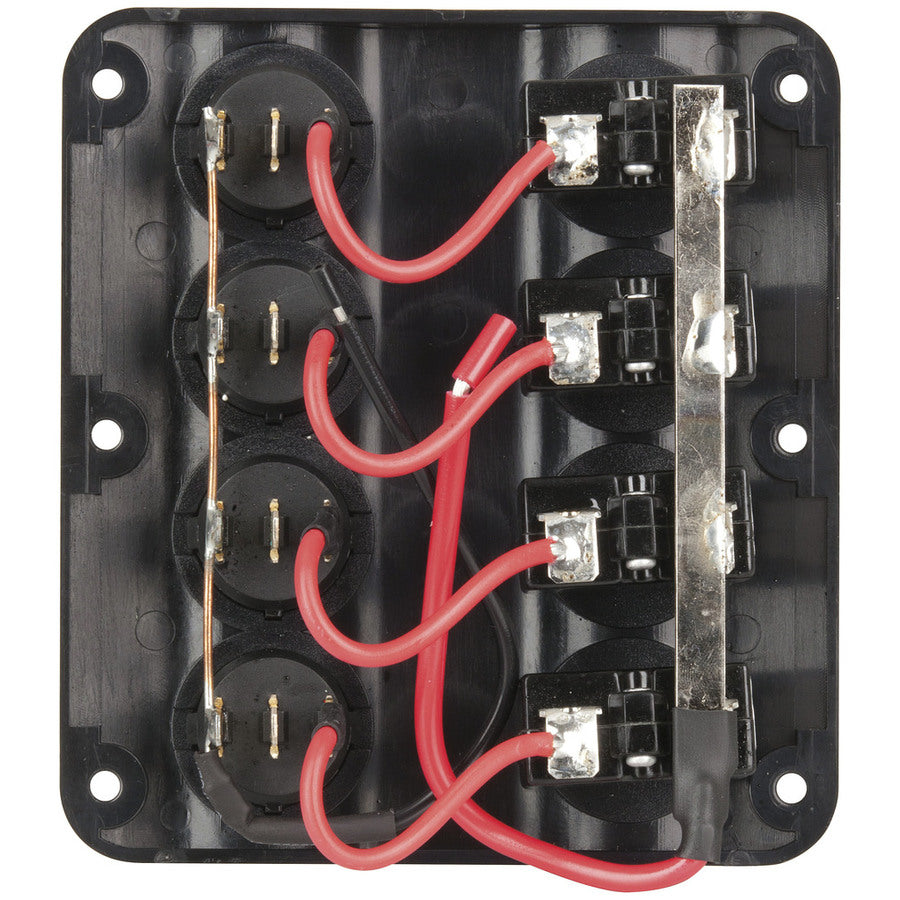

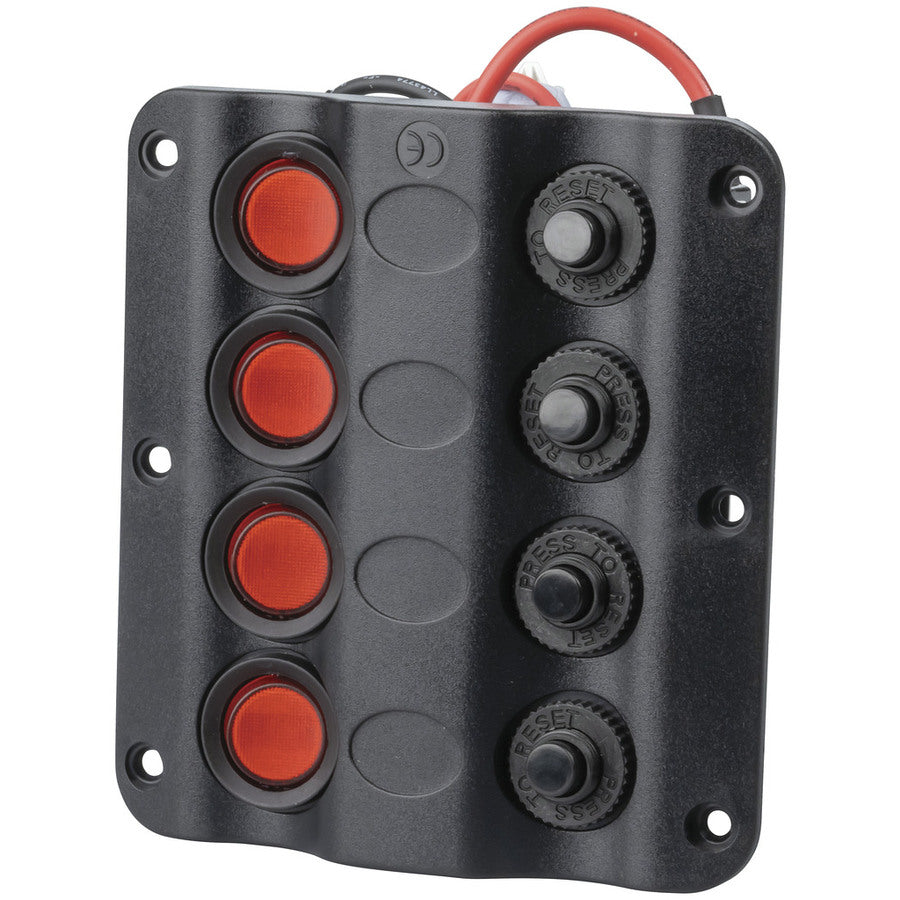

This panel measures 100 x 110 overall and can be mounted either vertically or horizontally. The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector. They are then soldered to a 10A rated illuminated rocker switch. The rocker switches have 4.8 QC tabs and are single pole type. The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.
There is a negative common bus to the switches which when connected, enables the actuator to glow red when 'on'.
Multiple Switch Gang / Bank
| Number of Switches |
4pc |
| Individual Circuit Breakers |
10A |
Electromechanical Switch
| Switch Function |
Locking On/Off |
| Pole Throw Type |
SPST |
| Switch Connection |
Spade Terminals |
| Switch Type |
Rocker |
| Throws / Positions |
1pos |
| Poles / Contacts |
1 pole |
| Mechanism Material |
ABS Plastic (Acrylonitrile Butadiene Styrene) |
Product Mounting
| Attachment / Securing Method |
Screw Down |
| Square Mount Hole Width |
76mm |
| Mounting Method |
Panel |
| Square Mount Hole Height |
97mm |
DC Voltage Rating
| DC Voltage |
12V |
DC Current Rating
| DC current rating |
35A |
In-built Illumination
| Type |
Incandescent |
| Illumination Colour |
Red |
| Illumination Position |
Top |
| Nominal Voltage |
12V |
Product Dimensions
| Height |
110mm |
| Width |
100mm |
| Depth |
45mm |
