Description
Hobbyist multimeters provide exceptional value for money, and good features for a range of applications.

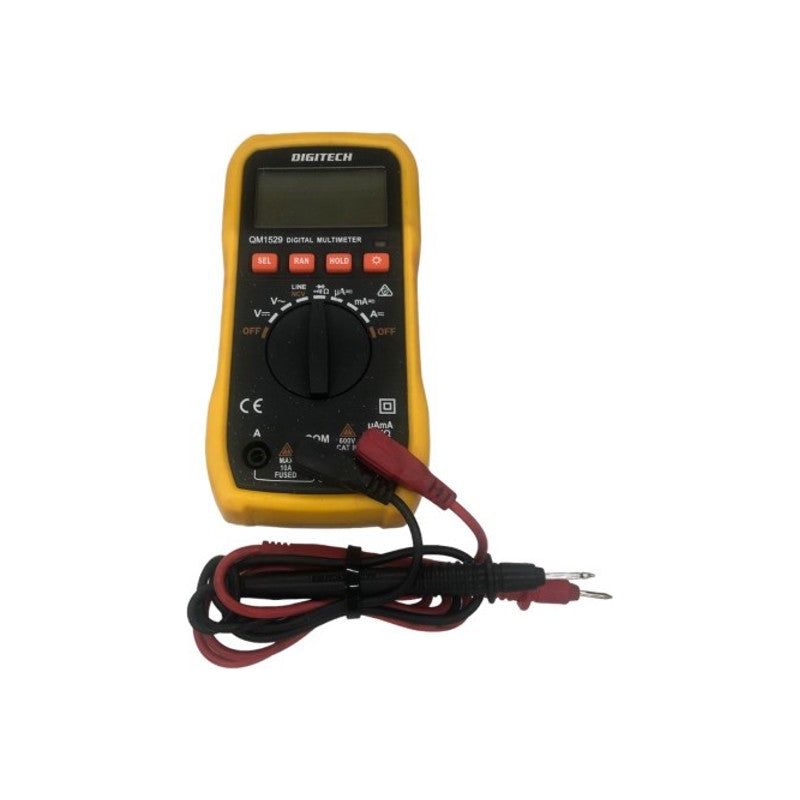

This practical multimeter measures both DC and AC voltages and currents. The default autoranging setting automatically selects the best range for your measurements. If a different range is preferred, simply switch it to manual. A built-in buzzer and LED warning light alert you to low resistance, detected voltage and live wires. In low light conditions you can activate the 10 second backlight to view measurements. Use the data hold button to lock them on screen for data capture and analysis.
Specifications
| Batteries can be replaced by user : true |
| Measures transistor : false |
| Compartment location : Back |
| How is battery compartment kept closed : Screw |
| Foldout Stand : true |
| Casing : Plastic |
| Carry Case Included : false |
| Display Type : LCD |
| AC Current Ranges : 200µA, 2mA, 20mA, 200mA, 10A |
| DC Voltage Ranges : 200mV, 2V, 20V, 600V |
| Safety Rating Cat : Cat III |
| Probe rating voltage : 600V |
| Display Backlight : LED Backlit |
| Data Hold : true |
| Continuity buzzer : true |
| AC Voltage Accuracy : ±1% |
| Safety Rating Max Volt : 600V |
| DC Voltage Accuracy : ±0.8% |
| AC Current Accuracy : ±3% |
| DC Current Accuracy : ±3% |
| Continuity indicator : On Panel |
| AC Voltage Ranges : 200µV, 2mV, 20mV, 200V, 600V |
| Connection to meter : Shrouded 4mm Banana Plug |
| Measures diode : true |
| Batteries can be replaced : true |
| Batteries included : true |
| Battery used for : Main Product |
| Led Indicator Display : false |
| Resistance Accuracy : ±1.5% |
| Input Protection Fuse : 500mA, 10A |
| DC Current Ranges : 200µA, 2mA, 20mA, 200mA, 10A |
| Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ |
| Size / Shape : AAA |
| Size / Shape : AAA |
| Probe Type : High Grade Meter Probes |
| Meter Input Impedence : 10MΩ |
| Measures dwell : false |
| Measures duty cycle : false |
| Optical Sensor : false |
| Autorange : true |
| True RMS : false |
| Count Maximum Reading : 2000 count |
| Weight : 200g |
| Battery quantity : 2pc |
| Height : 32mm |
| Width : 70mm |
| Length : 144mm |
