Blue Apple Thumper Dual Battery system wiring loom BAKIT50

Save 29%

Price:
Sale price$99 Regular price$139

Description

BAKIT50
BLUE APPLE Thumper 50 AMP Charging kit
VEHICLE KIT

Originally designed for the THUMPER batteryPicture

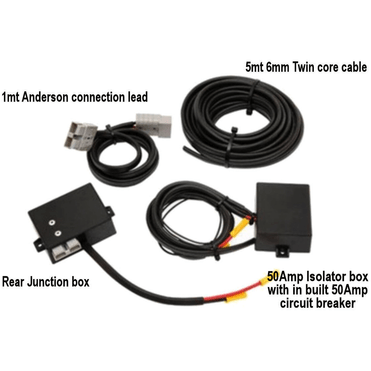

Components:

-  1 x Front module (50 Amp Isolator box) - includes in built automatic reset circuit breaker
-  1 x 5.5mt length of 6mm twin sheathed oxygen free cable (suitable cable length for 90% of vehicles including Landcrusier, Patrol, Triton, etc.)
-  1 x Rear junction box with 50Amp Anderson connector
-  1 x 1 mt 6mm 50 Amp Anderson to 50 Amp Anderson connection lead

Description:


The Blue Apple vehicle charging system has been designed for the Thumper range of portable dual battery systems; however this kit is still very much suited to a standard dual battery installation.
The charging kit comprises of a 50Amp isolator (designed to be mounted close to the location of the main vehicle battery).
The isolator is connected to a live ignition feed from the vehicle, meaning that the charging system will only activate when the vehicle's ignition is on. Once the ignition has been switched off, the secondary battery will be completely isolated from the main cranking battery (reserving the main battery for the sole purpose of starting the vehicle).

The charging system comes included with a 5.5mt length of 6mm twin sheathed oxygen free cable, which will be a suitable length for 90% of vehicles including the larger Landcrusiers and Patrols.
The 6mm twin core cable connects the isolator (front module) to the rear junction box.

The rear junction box comprises of a 50Amp Anderson connector, which will connect to the Thumper (through the use of the provided 1mt 6mm connection lead).
Position the rear module somewhere within the vehicle close to where you would like to have your Thumper or secondary battery located (keeping in mind that the provided Anderson connecting lead is only 1mt - so try to mount the rear junction box in a location in which will allow for this distance to be adequate).

The final component is simply the Anderson connecting lead, which will simply connect from the rear junction box directly into the Thumper.

The Vehicle charging system will allow for a continuous 50Amps to be harnessed from the vehicle.
Keep in mind that the Thumper battery packs will charge at a max of a third of their capacity (E.G The 75 AH will accept 25Amps per hour, leaving a massive 25Amps reserve from the charging system to account for running of other appliances such as fridges, inverters, etc).

As this charging system provides a continuous 50Amps from the alternator, it allows for a charging system suitable for batteries up to a 150 AH in capacity.

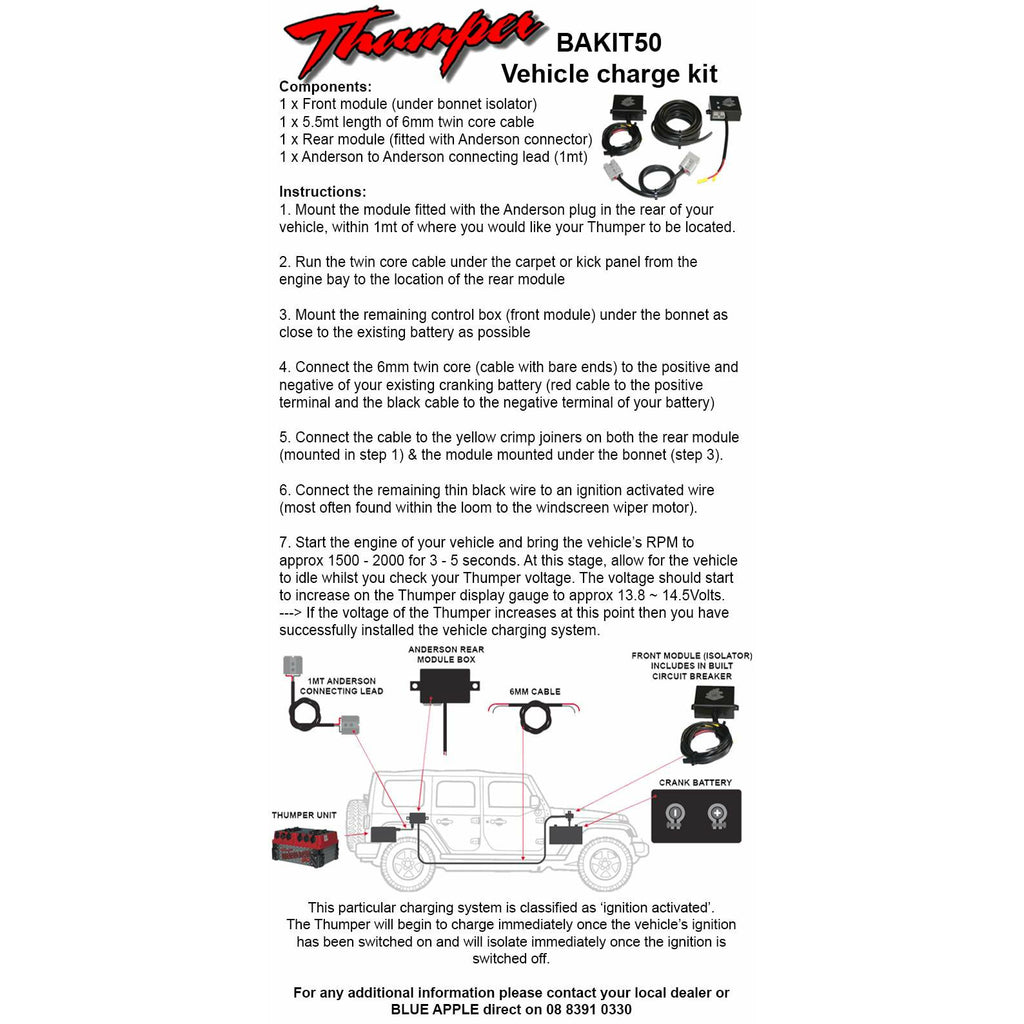

The system comes included with step by step wiring instructions.

R.R.P $ 139.00



If you have any further questions or queries regarding this package or any other information, please feel free to contact us directly on 08 8391 3121.
