Description
This package is designed for an under bonnet dual battery system to suit:
-
Prado 150 Series 08, 2.8Lt Turbo Diesel (not suitable for Kakadu Version) Sept 2016 onwards
_______________________________________________________

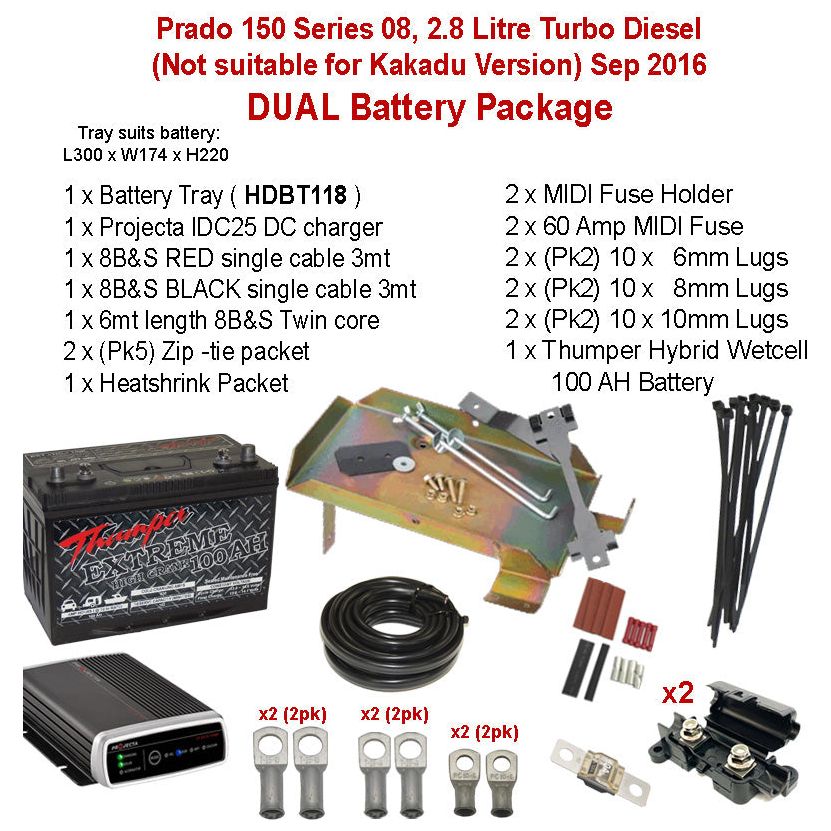

This package is worth over $ 1,258.00 and Includes the following:

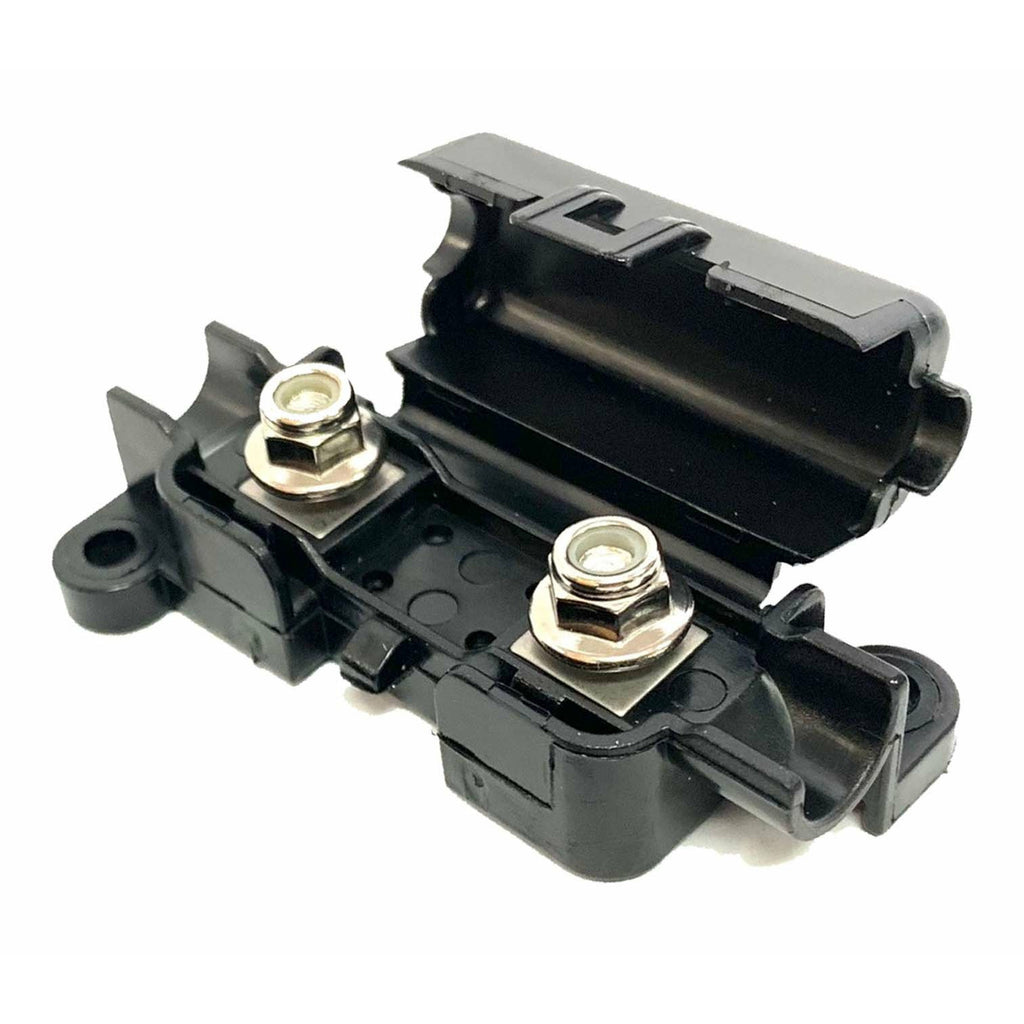

| 1 x HDBT118 Battery Tray | 2 x MIDI Fuse Holder |

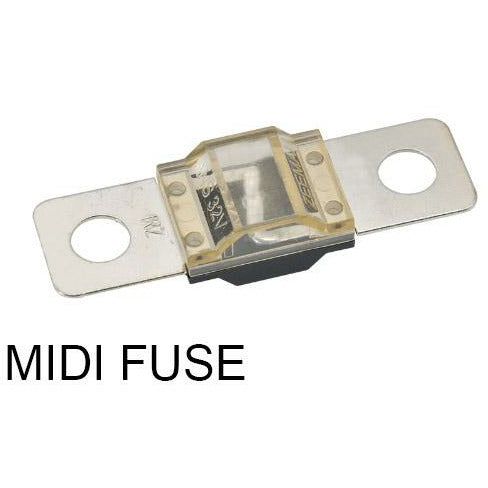

| 1 x Projecta IDC25 25 Amp DC charger | 2 x MIDI Fuse - rated 60 Amps |
| 1 x 8B&S single RED 3mt length cable | 2 x (Pk2) Cable lugs 10 x 6mm |
| 1 x 8B&S single RED 3mt length cable | 2 x (Pk2) Cable lugs 10 x 8mm |
| 1 x 8B&S TWIN core cable - 6mt length | 2 x (Pk2) Cable lugs 10 x 10mm |
| 2 x (Pk5) Zip-tie pack | 1 x Heat-shrink pack |
| 1 x Thumper Hybrid Wetcell 100 AH |

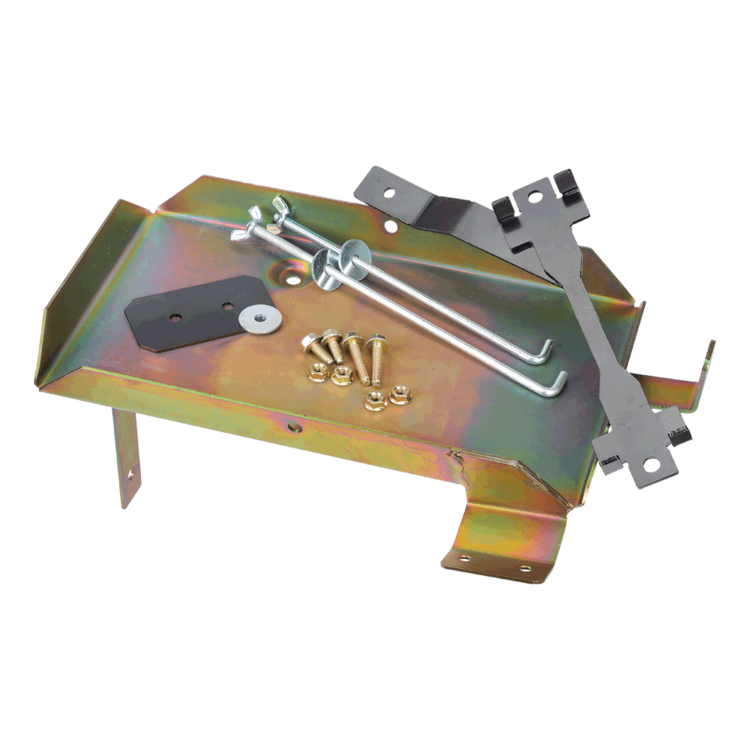

PART NO. HDBT118
Suits: Prado 150 Series 08, 2.8 Litre Turbo Diesel
(Not suitable for Kakadu Version)
Models: Auto/Manual
Years: Sep 2016 Onwards
Location: Engine Bay
Max Battery Size (mm): L300 x W174 x H220
Max Battery Weight: 23Kg
Suits Battery: N70
Click HERE to download Instruction Manual

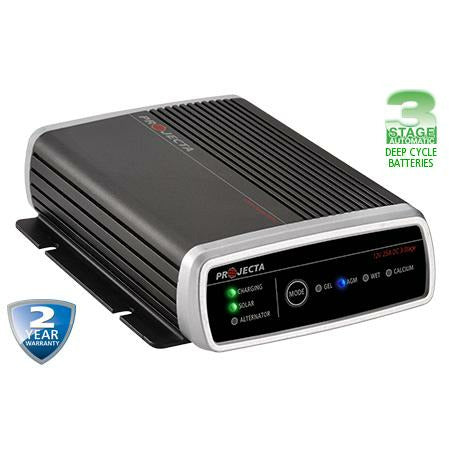

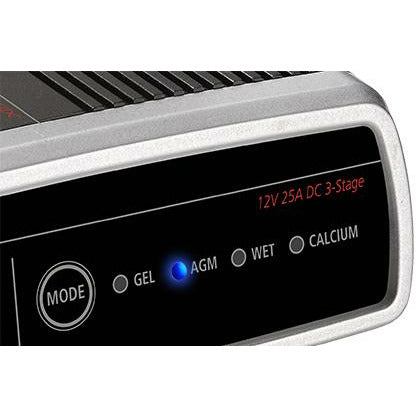

IDC25
Projecta 25 Amp DC Charger / Solar
Projecta 25 Amp DC Charger / Solar
Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.
|
Dual Charging Modes /
Dual Input Operation Simultaneous dual battery charging from both solar and alternator inputs |

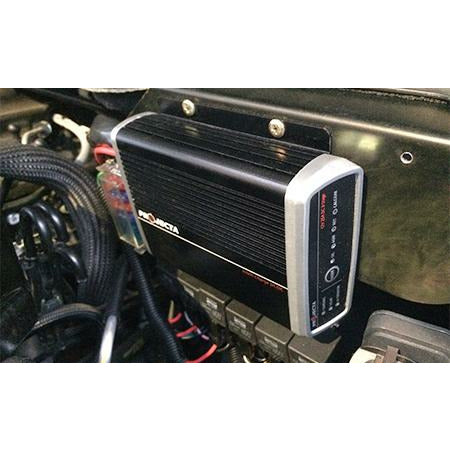

Engine Bay Installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C |
|
4WD installation
A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators. |
Caravan installation
Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and performance. |
8mm (8B&S) SINGLE CORE AUTOMOTIVE CABLE
Rated to approx 75 Amps over 5mt
Rated to approx 50 Amps over 10mt
Rated to approx 50 Amps over 10mt
The 8mm SINGLE & TWIN core automotive cable is the perfect option for running to fuse boxes, accessory sockets or a charge line for your secondary (AUX) battery.
Rated at approx. 75 Amps over a 5mt distance.
Thumper Extreme High Crank (EXT-HC)
Thumper have recently launched a new range of heavy duty cranking batteries; perfect for the off-road caravan and camping industry.
The "EXT-HC" (Extreme High Crank) hybrid battery is designed as a bonded element sealed lead acid; perfect for the use of everyday cranking as a primary starter battery. Whilst the marine nature of this hybrid battery offers heavy cranking ability, the battery is also the perfect choice for the use of a deep cycle alternative to that of an AGM.
The EXT-HC range is classified as a wet-cell Deep cycle.
The primary use of this battery would suit the following operations:
The "EXT-HC" (Extreme High Crank) hybrid battery is designed as a bonded element sealed lead acid; perfect for the use of everyday cranking as a primary starter battery. Whilst the marine nature of this hybrid battery offers heavy cranking ability, the battery is also the perfect choice for the use of a deep cycle alternative to that of an AGM.
The EXT-HC range is classified as a wet-cell Deep cycle.
The primary use of this battery would suit the following operations:
- Use in an under bonnet dual battery system as either the primary starter battery or as the secondary battery (for running fridges, etc)
- Use in the marine industry as a hybrid "starter" battery whilst also being used to run appliances such as GPS systems, fish finders, small fridges, etc.
- Use in Caravan / Motorhome / Camper Trailer where the battery is located in the boot / outside container or in a battery box on the frame of the vehicle.
- Use in the marine industry as a hybrid "starter" battery whilst also being used to run appliances such as GPS systems, fish finders, small fridges, etc.
- Use in Caravan / Motorhome / Camper Trailer where the battery is located in the boot / outside container or in a battery box on the frame of the vehicle.
It is important to consider the TYPE of battery you are choosing for both the application and environment in which it will be used. The EXT-HC range of batteries are not completely sealed, resulting in this model not being the best option for mounting within the enclosed cabin of a vehicle or under the bed within the Caravan or Motor-home, etc. Wet-cell type batteries do omit a small level of gasses when charging making them not ideal for enclosed and non-ventilated environments. Please instead look at the sealed range of AGM battery that Home12volt offer in the battery link on this website.
In stating the above, the use of the EXT-HC range within the boot of a caravan, under the bonnet of a vehicle and within the boat is perfect and completely safe!
The EXT-HC range of Thumper batteries include a 3 year nationwide warranty and are available in a number of sizes
In stating the above, the use of the EXT-HC range within the boot of a caravan, under the bonnet of a vehicle and within the boat is perfect and completely safe!
The EXT-HC range of Thumper batteries include a 3 year nationwide warranty and are available in a number of sizes
