Dual Battery Package Tray SBI1212 cables and more | Prado 150 Diesel, 3.0 Litre Turbo Diesel Jan 2010–Aug 2016 (HDBT112)

Save 23%

Price:
Sale price$519 Regular price$675

Description

This package is designed for an under bonnet dual battery system to suit:
  • Prado 150 Diesel, 3.0Lt Turbo Diesel Jan 2010 - August 2016

____________________________________________

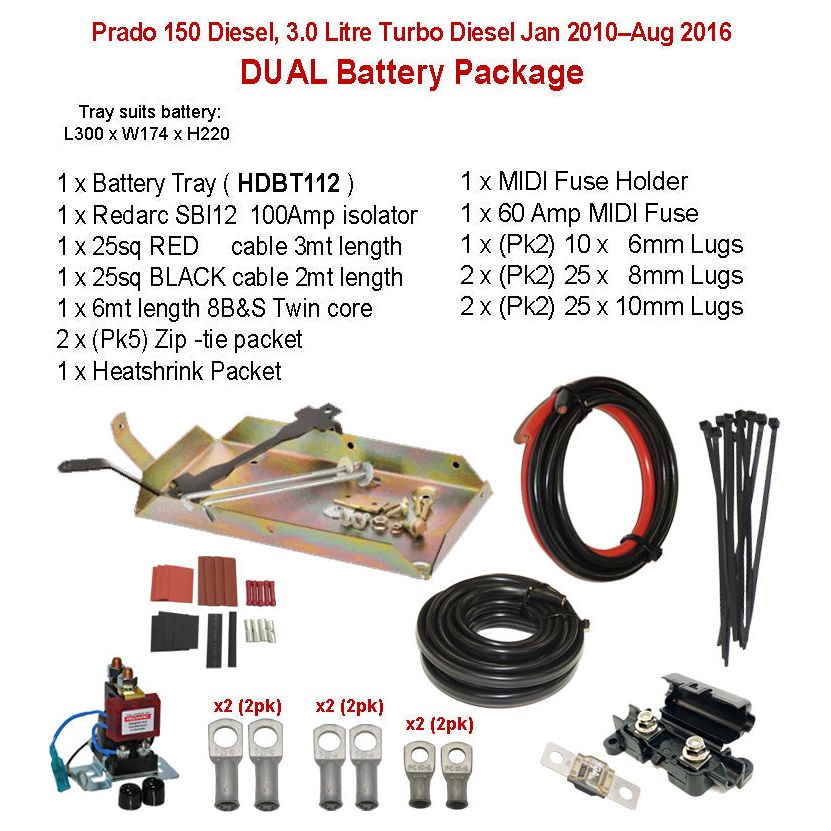

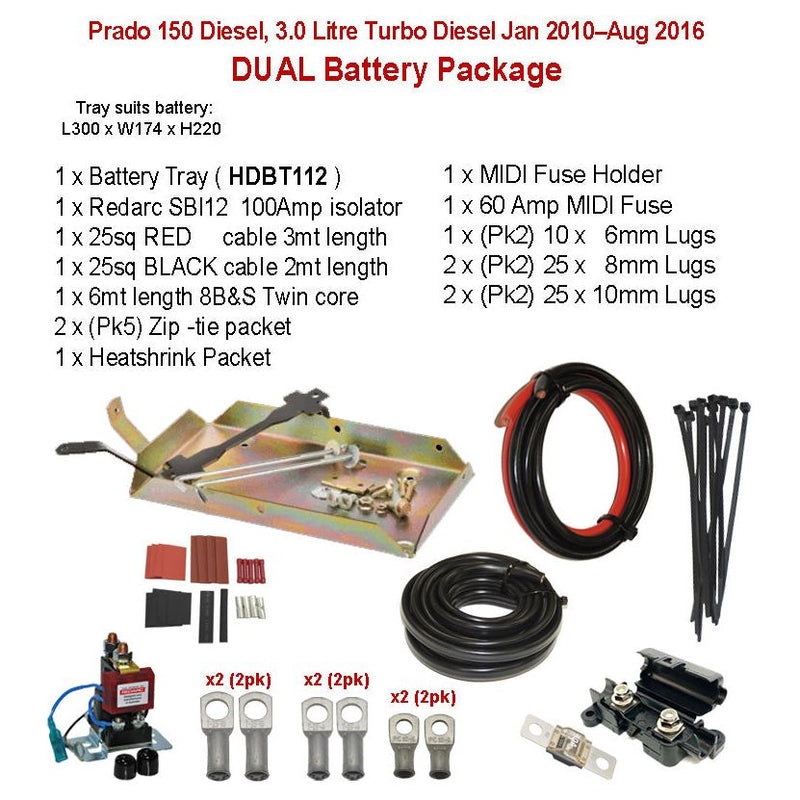

This package is worth over $ 675.00 and Includes the following:

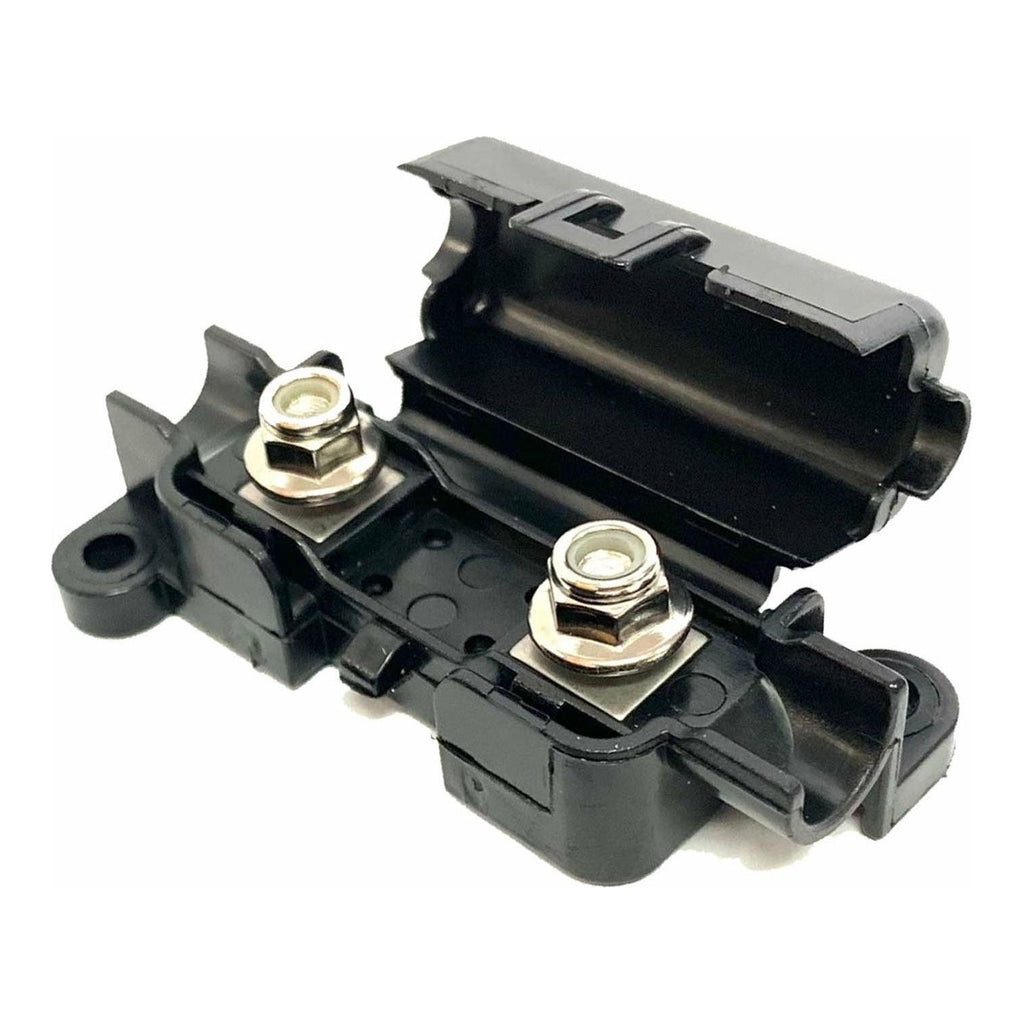

1 x HDBT112 Battery Tray 1 x MIDI Fuse Holder
1 x Redarc SBI1212 Isolator 100 Amp

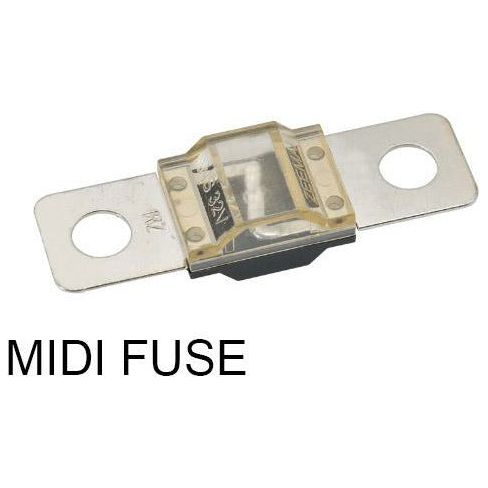

1 x MIDI Fuse - rated 60 Amps
1 x 25sq cable - Single RED     - 3mt length
1 x (Pk2) Cable lugs 10 x 6mm
1 x 25sq cable - Single BLACK - 2mt length 2 x (Pk2) Cable lugs 25 x 8mm
1 x 8B&S TWIN core cable       - 6mt length 2 x (Pk2) Cable lugs 25 x 10mm
2 x (Pk5) Zip-tie pack 1 x Heat-shrink pack

Note:    No battery included in this package



Description

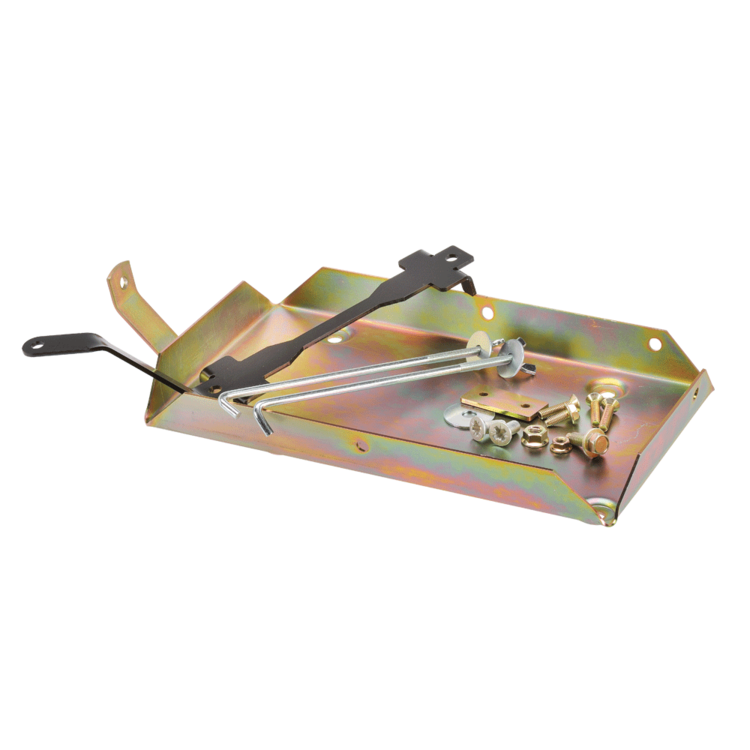

PART NO HDBT112

Suits: Prado 150 Diesel 1KD–FTV, 3.0 Litre Turbo Diesel
Models: Auto/Manual
Years: January 2010–August 2016
Location: Engine Bay
Max Battery Size (mm): L300 x W174 x H220
Max Battery Weight: 23Kg
Suits Battery: N70

Click HERE to download the instruction Manual




8mm (8B&S) SINGLE CORE AUTOMOTIVE CABLE

Rated to approx 75 Amps over 5mt
Rated to approx 50 Amps over 10mt


The 8mm SINGLE & TWIN core automotive cable is the perfect option for running to fuse boxes, accessory sockets or a charge line for your secondary (AUX) battery.

Rated at approx. 75 Amps over a 5mt distance.

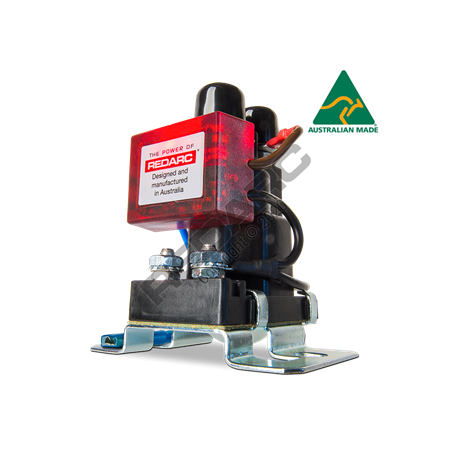

SBI1212
REDARC100 Amp Voltage Sensitive Relay
(Battery Isolator)

The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications.

SPECIFICATIONS

PRODUCT DETAILS:

PART NO.

VOLTAGE

CHARGING CURRENT


CUT - IN VOLTAGE

CUT - OUT VOLTAGE


MINIMUM OPERATING VOLTAGE

CHARGE TYPE

CONTROL

MOUNTING

CURRENT DRAW

SURGE PROTECTION

INGRESS PROTECTION

OVERRIDE

RECOMMENDED FUSE

MINIMUM CABLE SIZE

APPROVALS



L.E.D CHARGE INDICATION


SBI1212

12 VOLT

100 AMPS CONTINUOUS (not recommended for winching)

13.2 - 13.4 VOLTS

12.6 - 12.7 VOLTS


10 VOLTS


PARALLEL

MCU

SURFACE / FIREWALL

CHARGING 550mA (Standby 10mA)

BUILT - IN

IP66 RATING

REQUIRES MINIMUM 10 VOLTS

150 AMPS

14mm2 (6 B&S)

EMC


POWER ON
