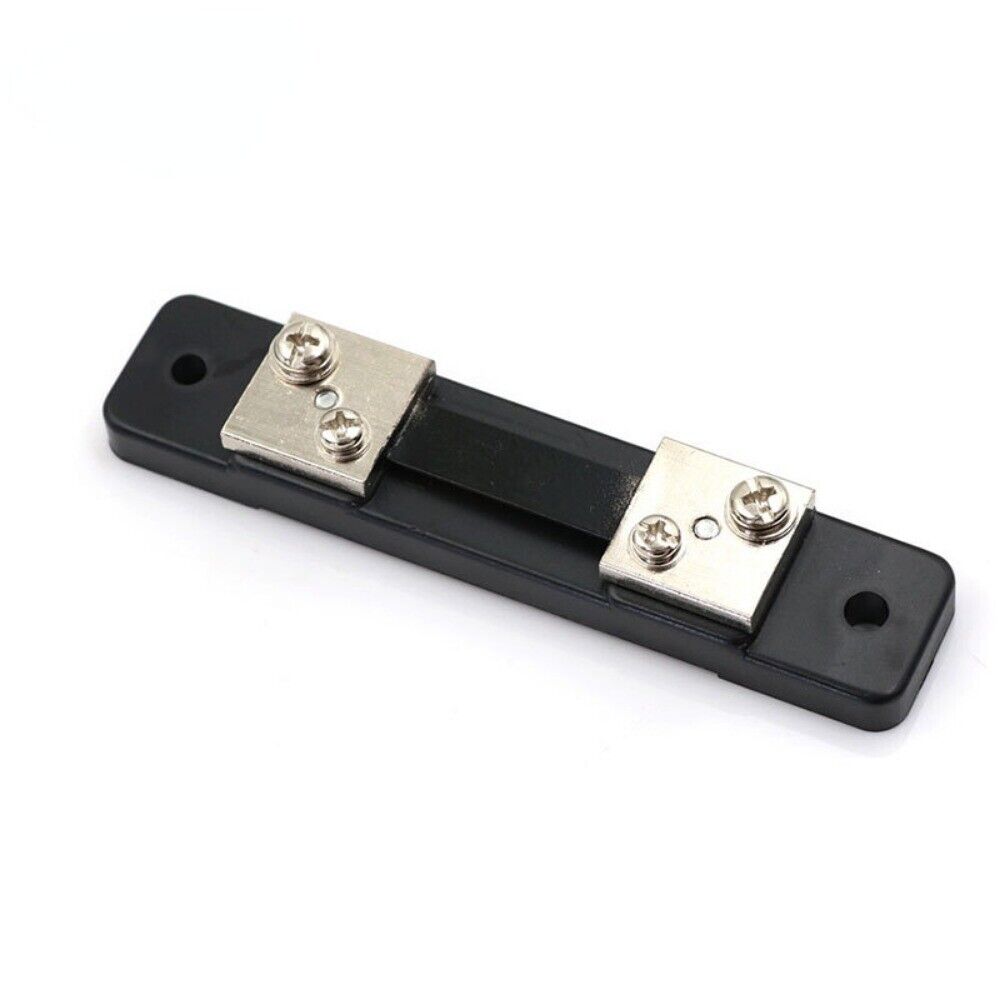

External Shunt Resistor | SP-50A

Specifications:

Current: 50A/100A
Voltage drop: 75mV
Environmental conditions: -40~+60c
Relative humidity: le95% (35c)
Impact resistance frequency: 80-120 times/minute
Overreaction capacity: 120% (rated current)
Size (L * W * H): 12x2.5x1.8cm/4.72 "x0.98" x0.70 "(approximately)

Main technical parameters
1. Accuracy level: 2-4000A; Level 0.5: 5000-10000A; Level 1.
2. Environmental conditions: -40~+60 ℃, relative temperature ≤ 95% (35 ℃).
3. Overload performance: rated current 120%, 2 hours.
4. Voltage drop: 75mV
5. Heating under load: After the temperature rise stabilizes, the rated current below 50A shall not exceed 80 ℃; The rated current above 50A shall not exceed 120 ℃.
