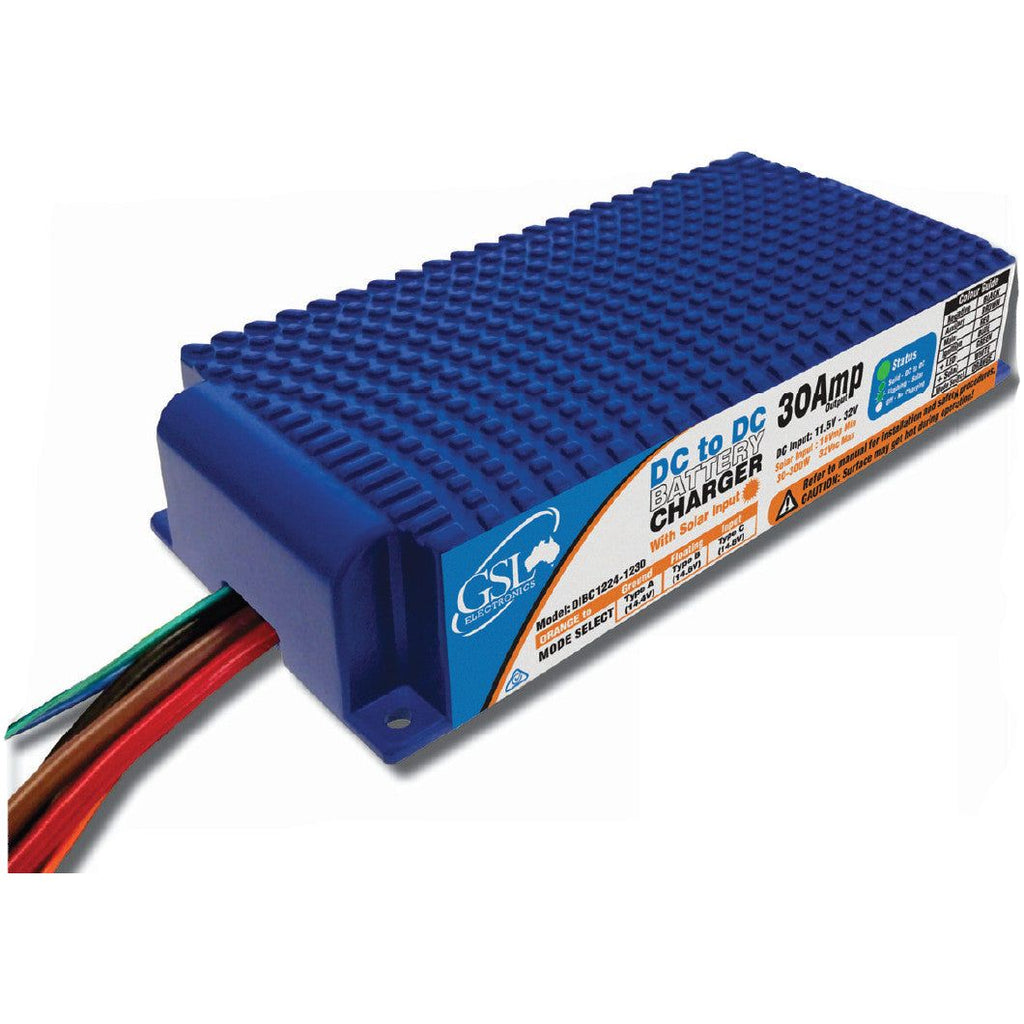

Description
• 30A outpuit capability
• Unique solar charging mode to suit long-term vehicle storage
• 30A from a 374cm3 package
(32.3mm(H) x 71.5mm(W) x 162mm(L)) giving it the smallest footprint in its class.
• All solid state constuction. No moving parts ontop of our polymer encapsulation to protect against vibration, water and dust.
• Dual-mode solar controller optimises the PWM function for dusk and dawn situations. Then automatically changes to MPPT mode to maximise output in peak solar periods.
• Compatable with smart alternators.
• Solar input reverse polarity protection
• Supplied with a connector for easy connection to our DBM-12 external monitoring range.
|
|
Product |
||
|
|
Lowest Operating Voltage |
11.5V |
|
|
|
Maximum Operating Voltage |
32V |
|
|
|
Maximum Current at Bulk Charge |
30A | |
|
|
Charge Voltage for Type A |
14.4V |
|
|
|
Charge Voltage for Type B |
14.6V |
|
|
|
Charge Voltage for Type C |
14.8V |
|
| Solar Panel Power | 30W-300W | ||
|
|
Stand By Current | 30mA |
|
|
|
Maximum Operating Temperature |
70°C |
|
|
|
Dimensions mm (HxWxL) |
32.3mm x 71.5mm x 162mm |
|
|
|
Weight |
560g |
|
