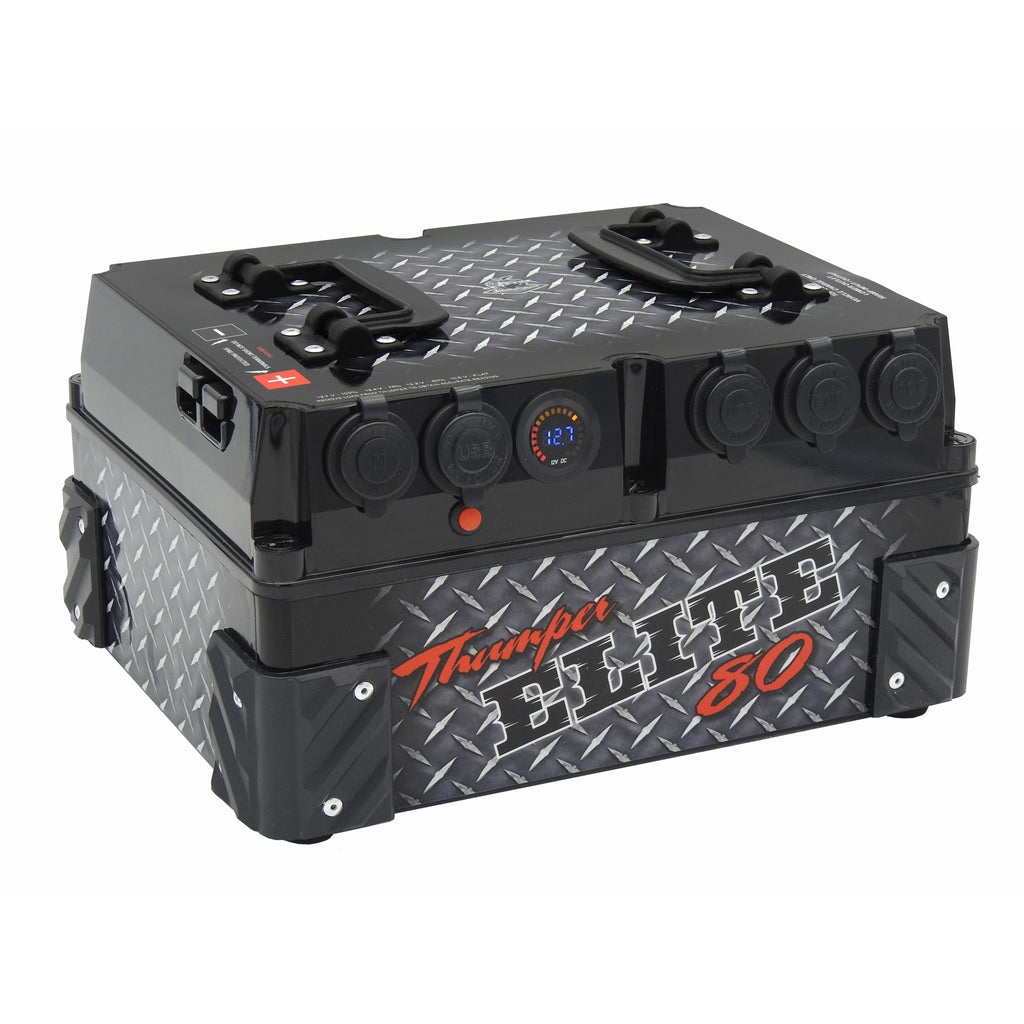

- Thumper ELITE 80 AH Battery Pack
- Complete vehicle installation kit

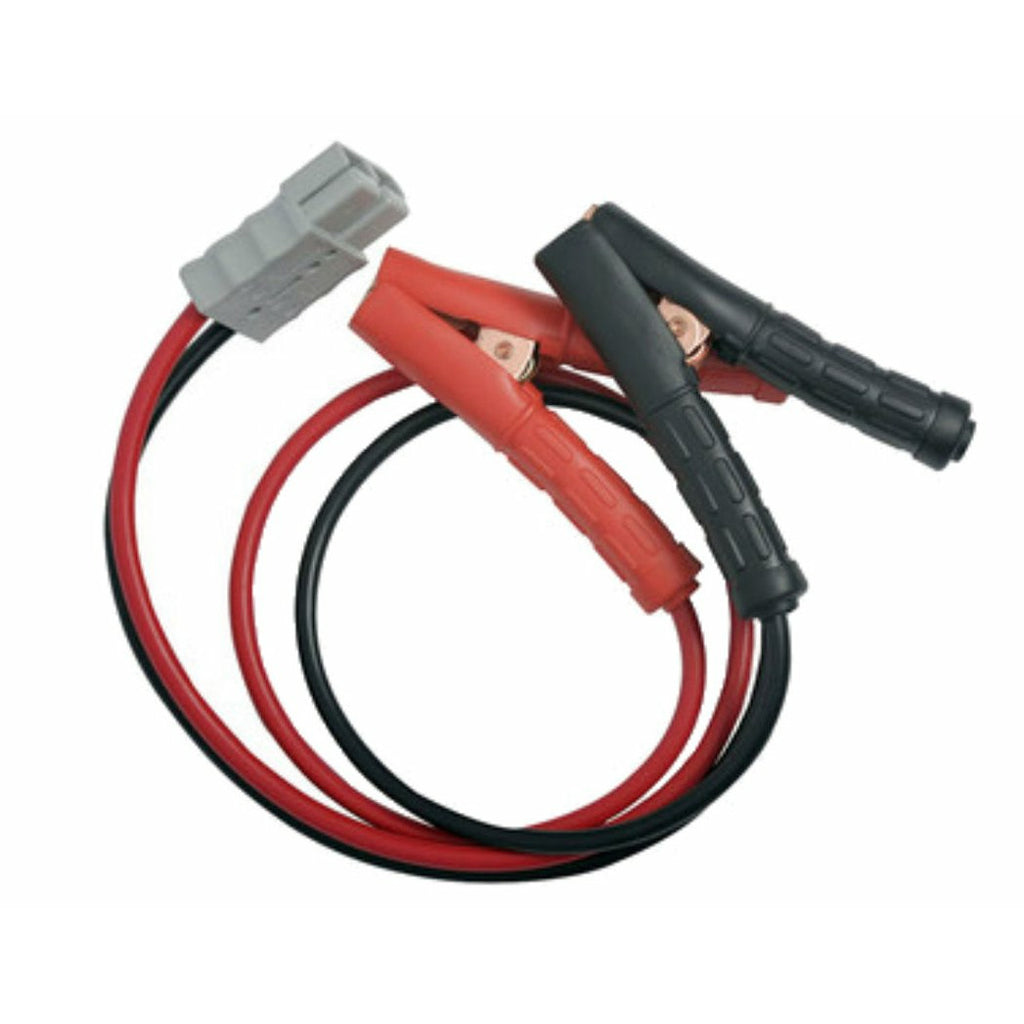

- Jump leads
- 240 Volt mains battery charger - rated to 8 Amp with Anderson fitted

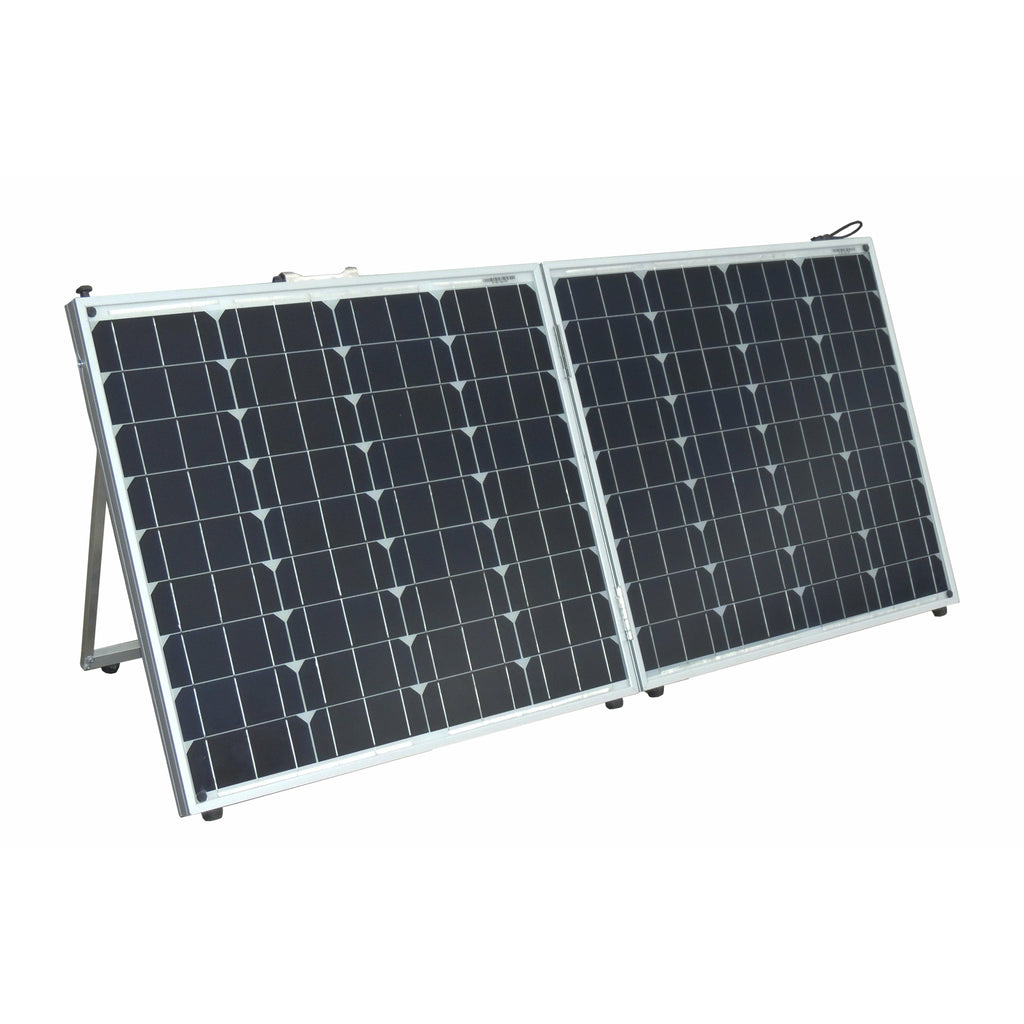

- 120 watt Split Fold solar panel

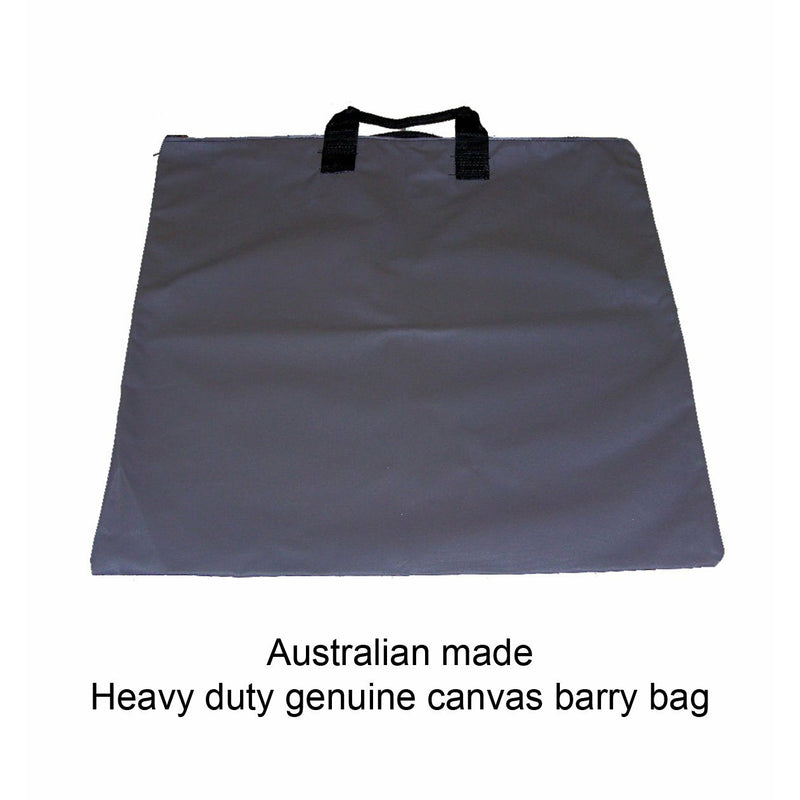

- Canvas Carry bag for solar panel

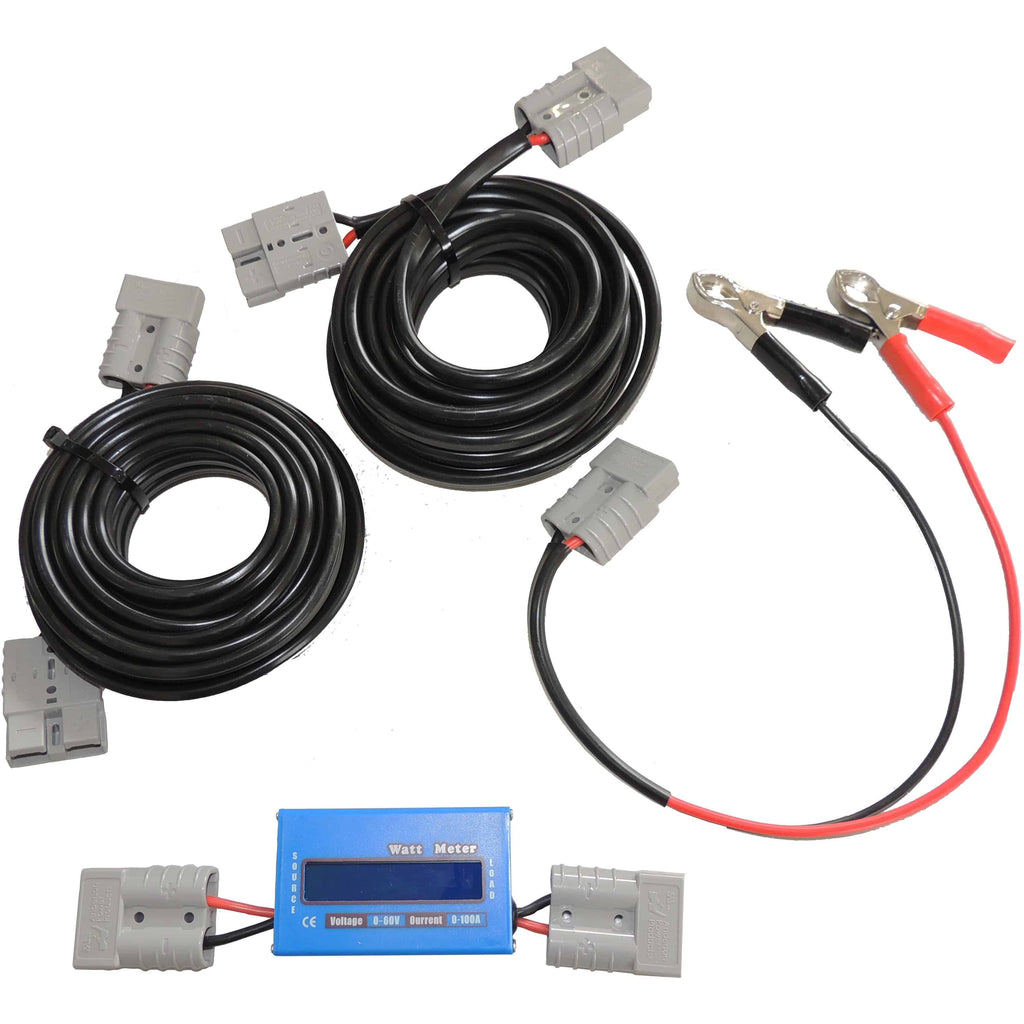

- Complete solar leads (2 x 5mt leads with in line Amp meter)
The Elite Thumper is equipped with every possible outlet you would need for a battery system
2 x Marine grade Cigarette outlets, 1 x Merit outlet, 1 x Dual USB outlet, 1 x Engel fridge outlet, 1 x 50Amp Anderson (input / output), 1 x 175 Amp Anderson and a unique 50Amp Anderson outlet used solely for vehicle charging.
The unique battery pack offers an INTERNAL isolator built within the unit, which will eliminate the need to install an under bonnet isolator in your vehicle for charging.
The Thumper is designed to run perfectly within vehicles with voltage sensitive alternators, or even low alternator outputs (suited for vehicles up to 2016 and prior)
Simply run a 6mm / 8mm charge lead (supplied) through the vehicle to the location of your Thumper ELITE with an in line fuse/circuit breaker and your job is done!
The Elite will isolate itself completely from the main cranking battery without the need of installing an additional under bonnet isolator to the vehicle. This feature is a perfect option for company vehicles or newer vehicles where it is difficult to locate or link into an ignition activated source.
Unrivaled in its field - there is no better battery system than the THUMPER ELITE.
(unit supplied with complete wiring and jumper leads)
This unit is perfect for vehicles dated 2016 and prior. *Some later model vehicles will also suit this model, however, we would advise you to phone our store direct on 08 8391 3121 to discuss your needs and the compatibility of the Elite and your vehicle.
Do you have a later model vehicle? No worries! Check out the Thumper Outback instead!
FEATURES:
DUAL USB
The Thumper Elite is fitted with 1 x Dual USB outlet rated to min 2.5Amps at 5Volts. This socket will allow for fast recharge of any USB compatible appliances. Please note: The USB will only be powered when the volt meter gauge is on.
ENGEL FRIDGE OUTLET
The Thumper Elite is fitted with an Engel Fridge socket.
Whilst the Engel socket is designed primarily for Engel fridges due to the 2prong connection, this plug is now readily available on the market and can be used to adapt your existing appliance or fridge in order to utilise this connection. The Engel socket can be used as both an inlet or an outlet and is rated to approx 15Amp at 12V.
THE BEST FEATURE YET!
“50AMP VEHICLE CHARGE ONLY” ANDERSON
– Fitted with In built isolator – rated to 50Amps
This 50Amp Anderson connector is linked to its very own internal isolator, built inside the Thumper Elite itself!
The Elite will have a disconnect voltage of approx 12.7 Volts – it is at this point that the Elite will isolate itself from the charging source.
The reconnect voltage of the Elite is approx 13.2Volts – making it the perfect companion for the newer vehicles with low alternator voltage or voltage sensitive alternators.
The “50Amp Vehicle charge only” line can be used with a DC charger if required, however, we have found with experience that many vehicles up to 2016 do not require the use of DC Chargers.
Whilst a battery that is rated to 30AHin capacity can charge through a Cigarette socket, these sockets will only provide approx 5 – 10Amps at maximum and this is usually due to the factory fitted cable. We do not recommend charging permanently through a cigarette socket and would instead recommend to fit the provided charging kit included with the Thumper.
50AMP INPUT / OUTPUT ANDERSON
This 50Amp Anderson can be used to directly link the Elite to another battery without isolation. The line will provide a continuous link to whatever it is connected to. This connection will allow you the option to parallel link batteries to allow them to charge and discharge together as one. This connection may be used for running all accessories such as fridges, lighting, air compressors and anything 12 Volt.
Weight: 25kg
Length: 355mm
Width: 265mm
Height: 187mm
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 120 watt SPLIT fold has the ability to harness over 7.5 Amps per hour (with an average output of 6.5 - 7.5 Amps)

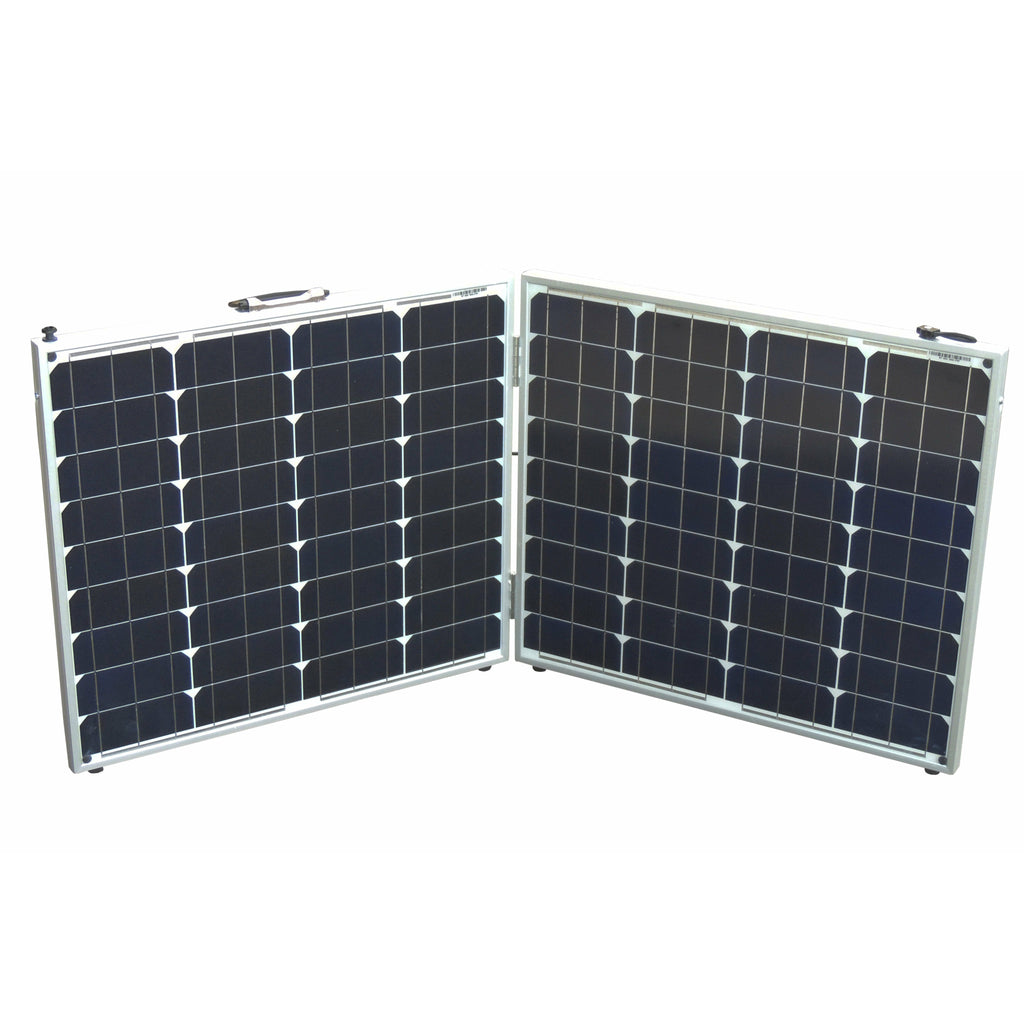

This neat design consists of 2 x 60 watt panels hinged together, so when folded the glass panels will fold in facing one another; adding extra protection to the panel. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 120 watt split fold panel CAN produce up to 80 Amps per day! In most cases the 120 watt split fold panel would allow the user to continuously keep up with the draw of a 60Lt compressor type fridge (when combined with approx a 60 Ah battery).
The input power of a portable panel is largely dependent on the user of the panel.
**Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.

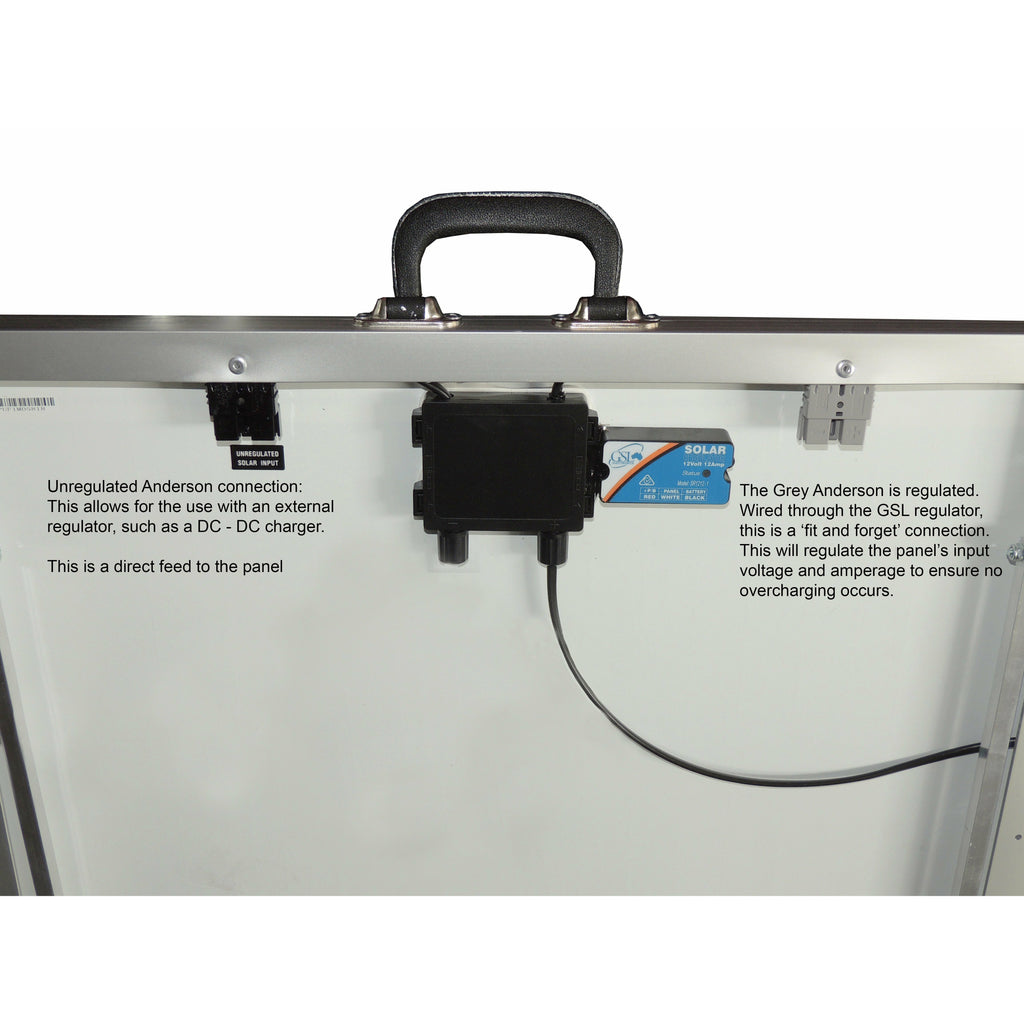

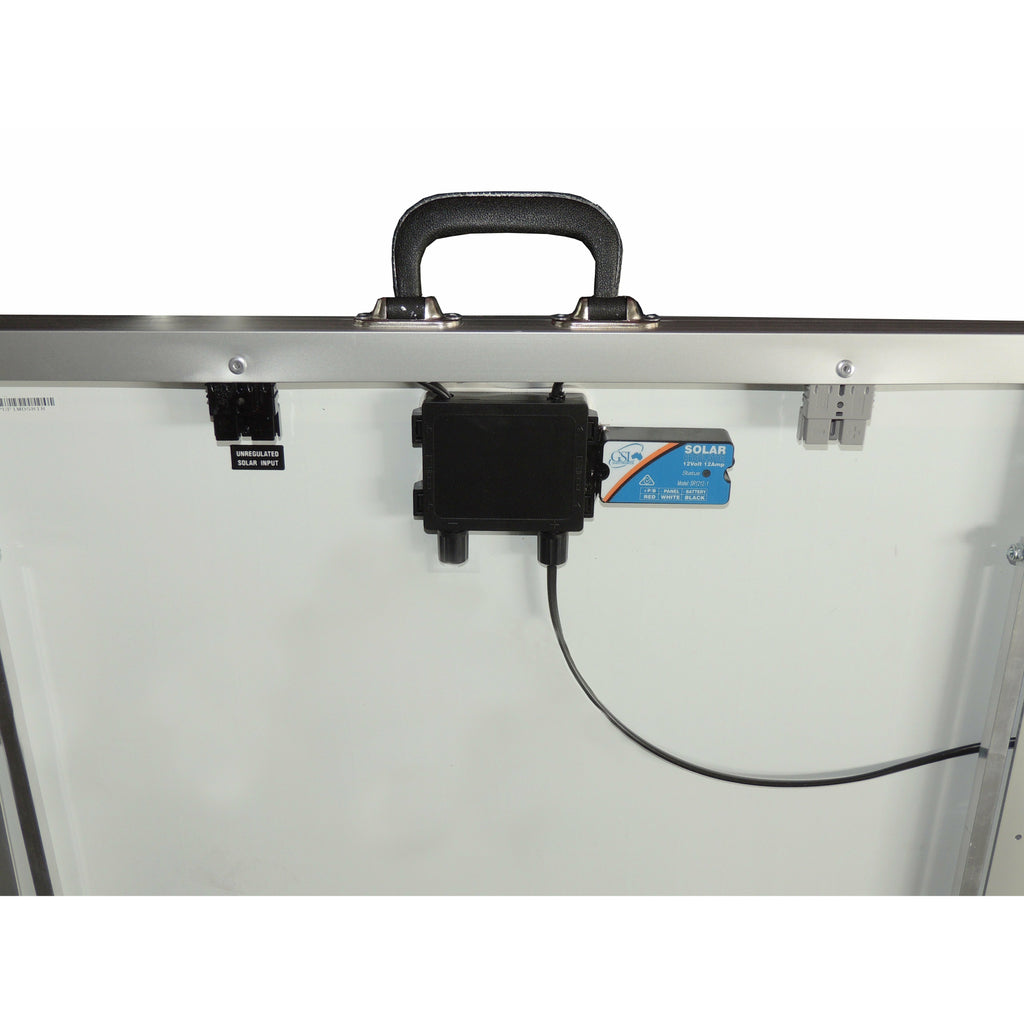

The 120 watt split fold panel is fitted with BYPASS Andersons.

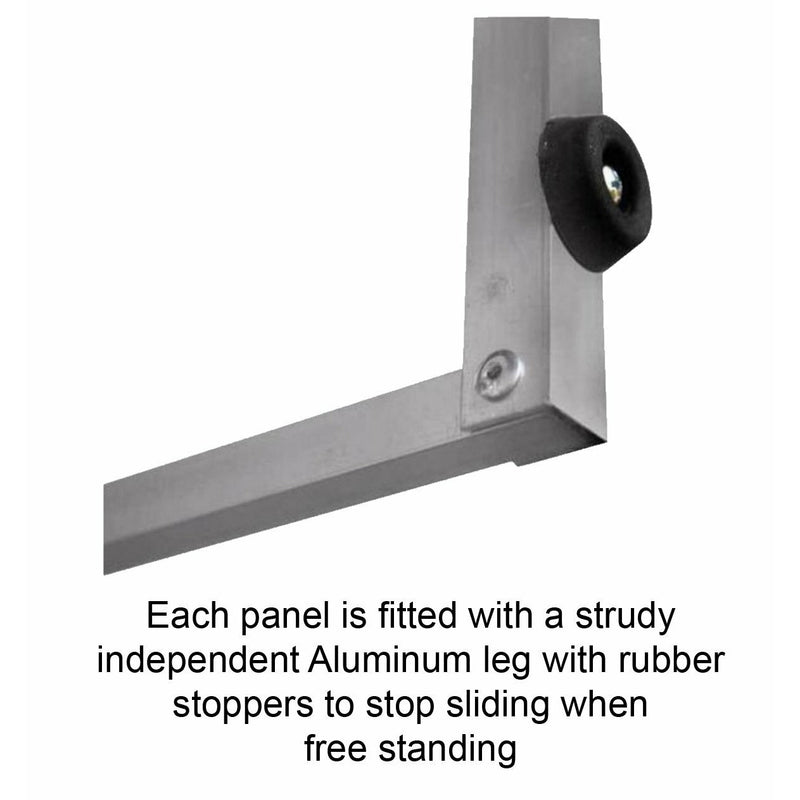

Each panel is equipped with its own set of heavy duty anodized aluminum legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminum leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.
|
Panel Type BA - 120SF Maximum Power (Pmax) 120W Voltage at Pmax (Vmp) 19.5V Current at Pmax (Imp) 6.44A Open Circuit Voltage (Voc) 21.50V Short Circuit Current (Isc) 7.38A Normal Operating Cell Temp(NOCT) 48±2⁰C Max System Voltage 1000V |
Package includes:
All adaptors are available to convert to another connection. |
