This is the ultimate camping package:
- Thumper 60 AH Battery Pack

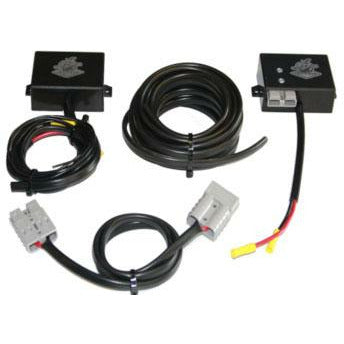

- Complete vehicle installation kit

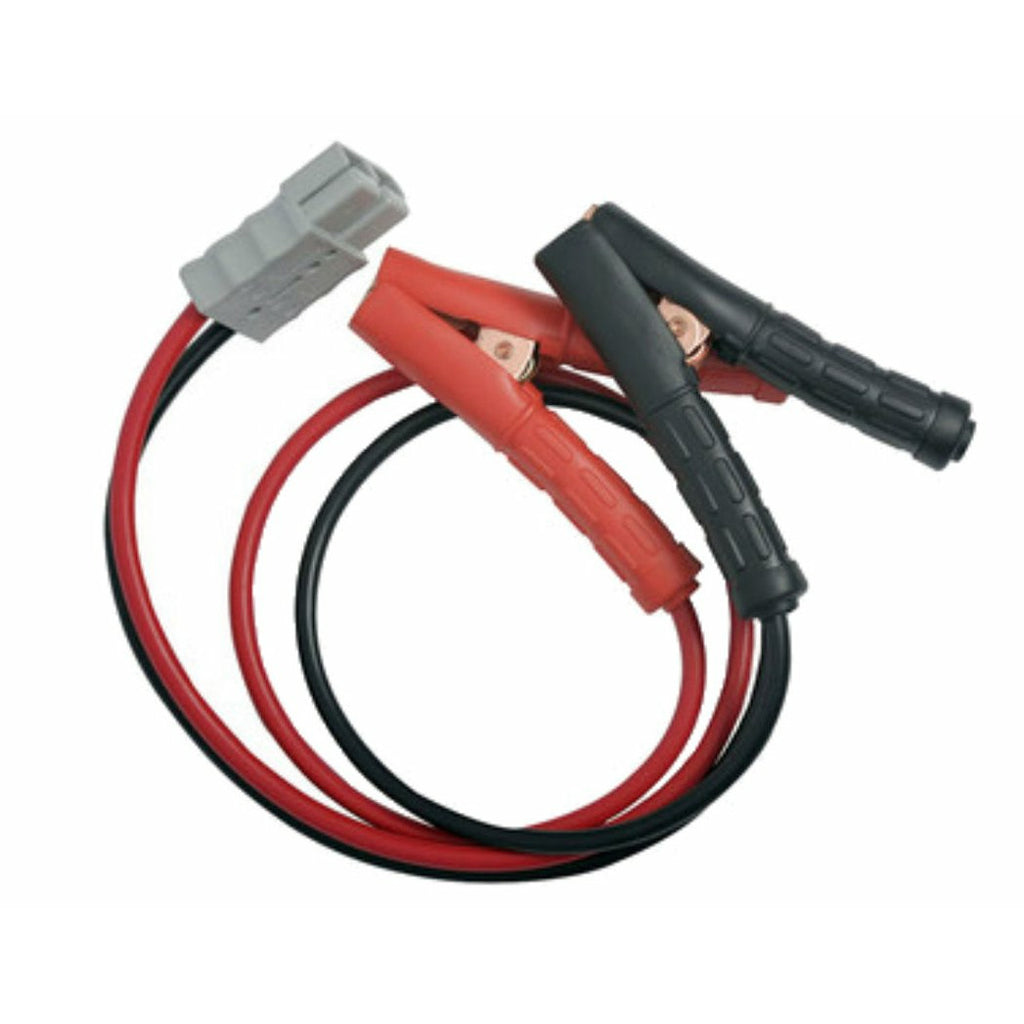

- Jump leads
- 240 Volt mains battery charger - rated to 8 Amp with Anderson fitted
- 120 watt Split Fold solar panel

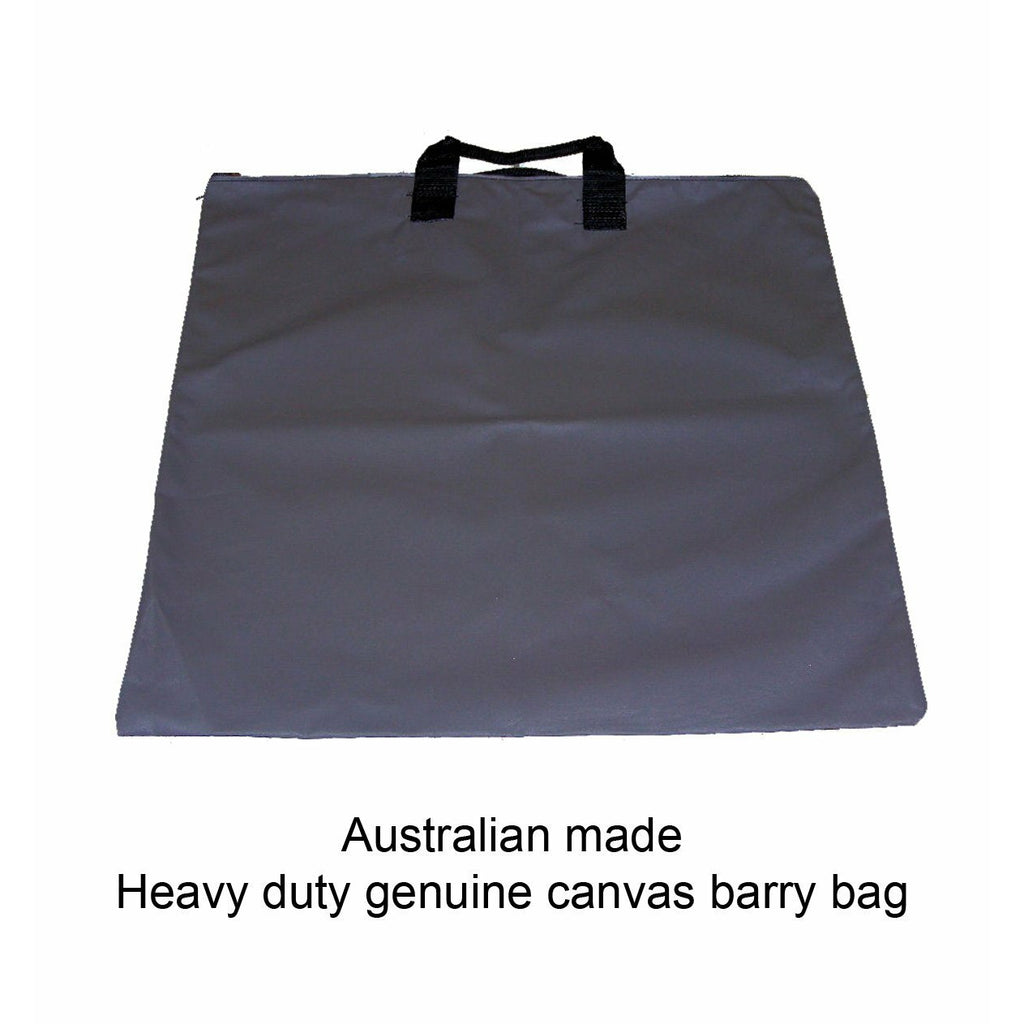

- Canvas Carry bag for solar panel

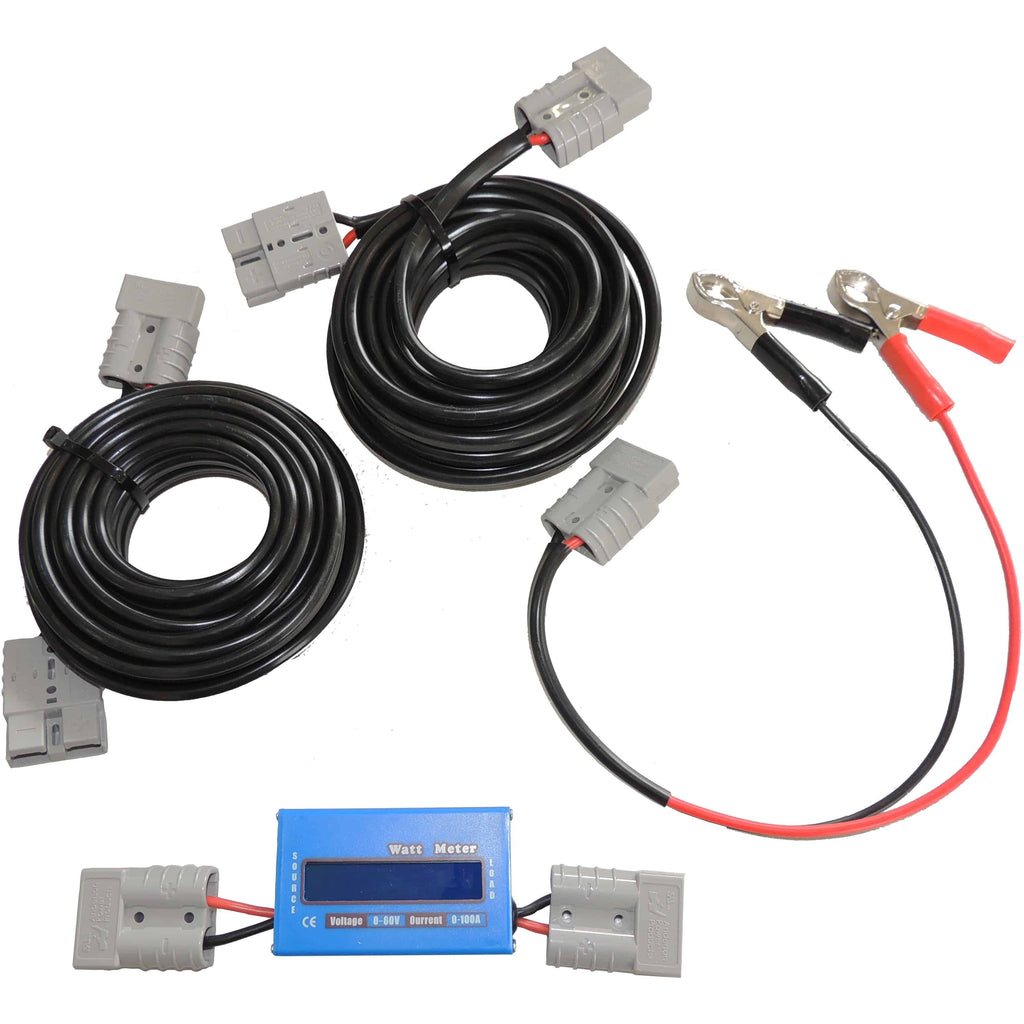

- Complete solar leads (2 x 5mt leads with in line Amp meter)

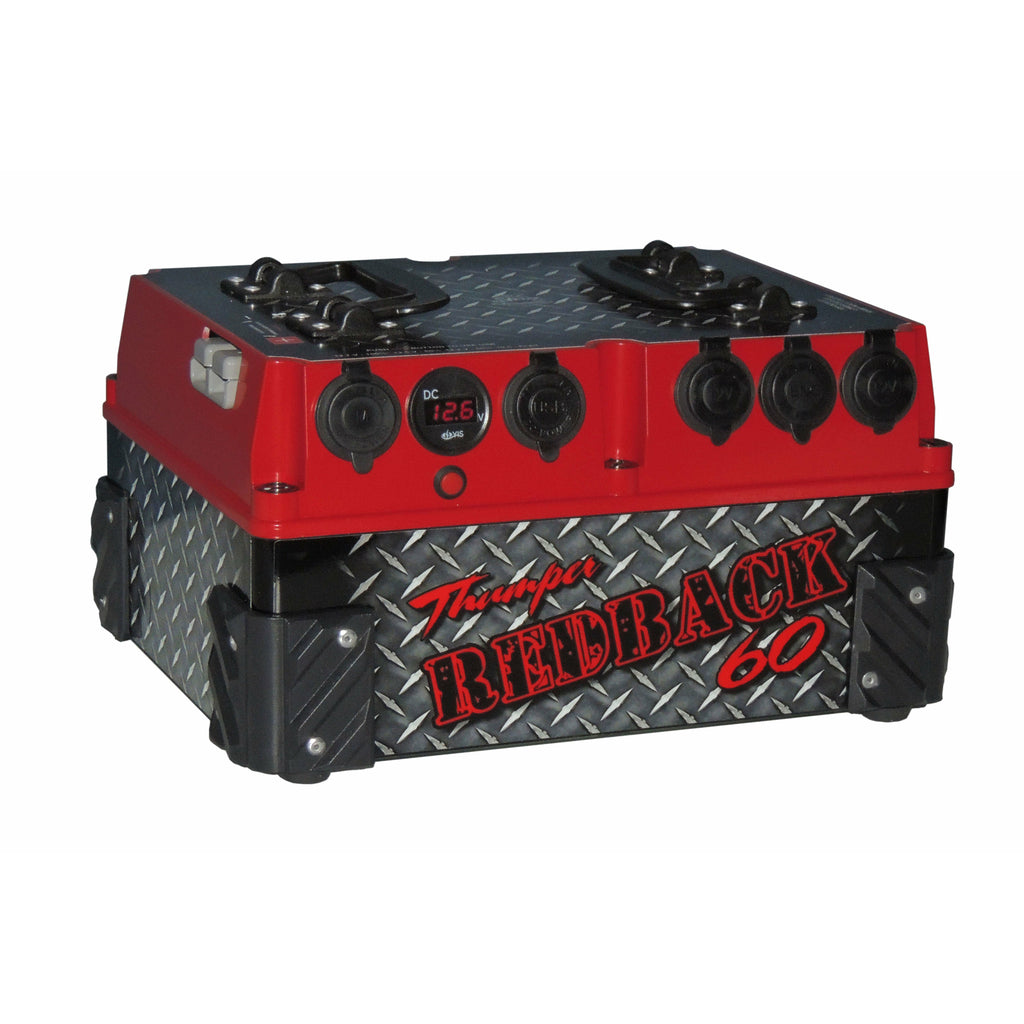

THUMPER 60 AH BATTERY PACK
The Thumper 60 AH is one the most popular units in the Thumper range.
It’s 60 AH of available power will enable a camper to run their 40 – 50 Lt compressor type fridge for 2 – 3 days without the need for recharging. The 60AH has the capacity to jump start 6Lt diesel engines over and over again!
The unit comes equipped with x 2 cigarette sockets, x 1 Hella type socket, a 15 Amp circuit breaker, x 1 50 Amp Anderson connector for vehicle charging and x 1 175 Amp Anderson for Heavy Duty Jump – starting; completely spike protected assuring that no damage will occur to your vehicle or Thumper whilst jump starting.

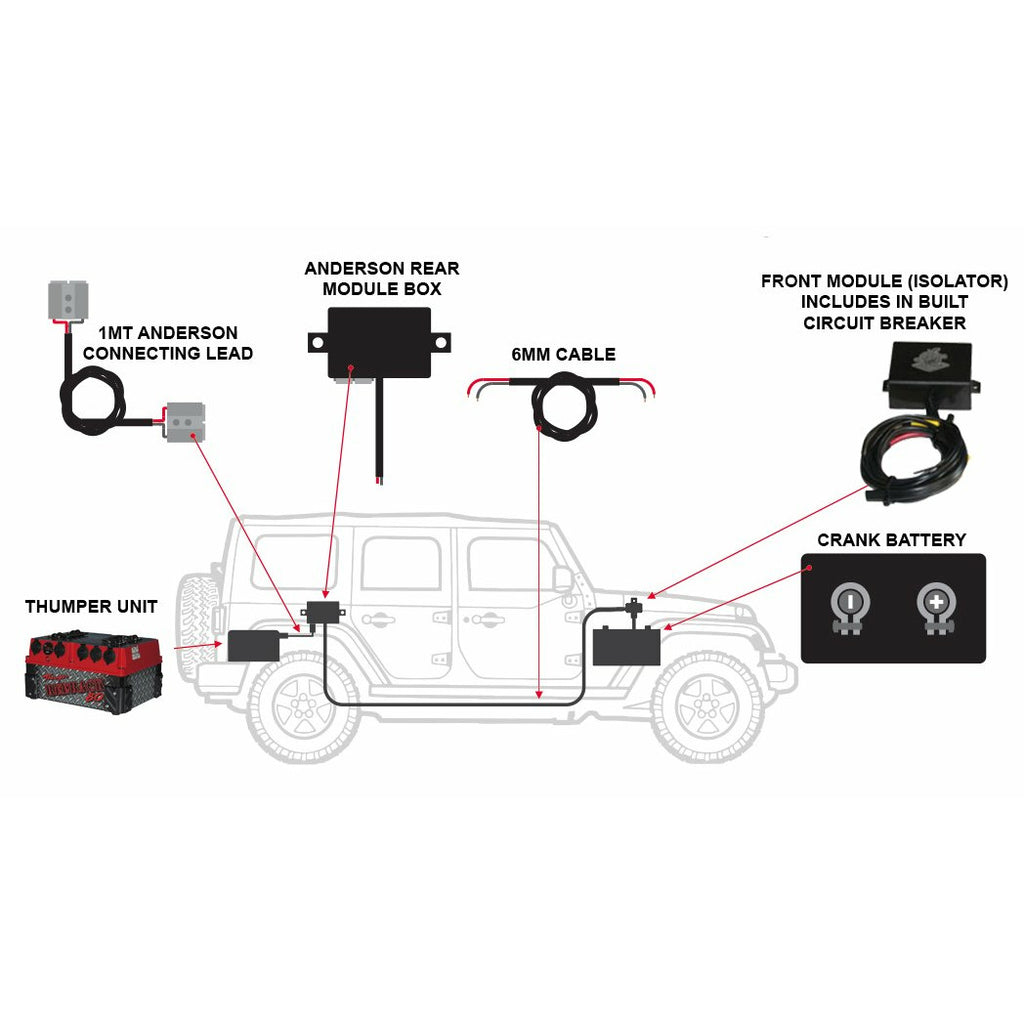

The unit comes included with a set of jumper leads and the vehicle charging system, which if used will allow for the unit to charge within 2 – 3 hours of driving.
The unit is also compatible with solar and 240 Volt charging. (When charging via 240Volt do not use in excess of a 20Amp charger)
The Thumper 60 AH is one the most popular units in the Thumper range.
It’s 60 AH of available power will enable a camper to run their 40 – 50 Lt compressor type fridge for 2 – 3 days without the need for recharging. The 60AH has the capacity to jump start 6Lt diesel engines over and over again!
The unit comes equipped with x 2 cigarette sockets, x 1 Hella type socket, a 15 Amp circuit breaker, x 1 50 Amp Anderson connector for vehicle charging and x 1 175 Amp Anderson for Heavy Duty Jump – starting; completely spike protected assuring that no damage will occur to your vehicle or Thumper whilst jump starting.
The unit comes included with a set of jumper leads and the vehicle charging system, which if used will allow for the unit to charge within 2 – 3 hours of driving.
The unit is also compatible with solar and 240 Volt charging. (When charging via 240Volt do not use in excess of a 20Amp charger)
|
This unit comprises of:
2 x Marine grade Cigarette sockets rated 16A at 12 V 1 x Merit (Hella) sockets rated 15A at 12V 1 x Dual USB outlet rated 2.5A at 5 Volt (12V only) 1 x Engel Fridge outlet rated to 15A at 12 volt |
2 x 50 Amp Anderson connectors
1 x 175Amp Anderson connector 1 x LED gauge 2.5V-33V reading 1 x Push button (Hold on) Internal circuit breaker protection |
Weight – 19.5 Kg Length – 335mm
Height – 187mm Width – 265mm
2 Year Warranty
R.R.P $ 729.00
Height – 187mm Width – 265mm
2 Year Warranty
R.R.P $ 729.00
Please note:
The Thumper is fitted with an Engel socket to fit the unique 2 prong Engel plug pictured below
The Thumper is fitted with an Engel socket to fit the unique 2 prong Engel plug pictured below
BUILT IN AUSTRALIA BY BLUE APPLE THUMPER

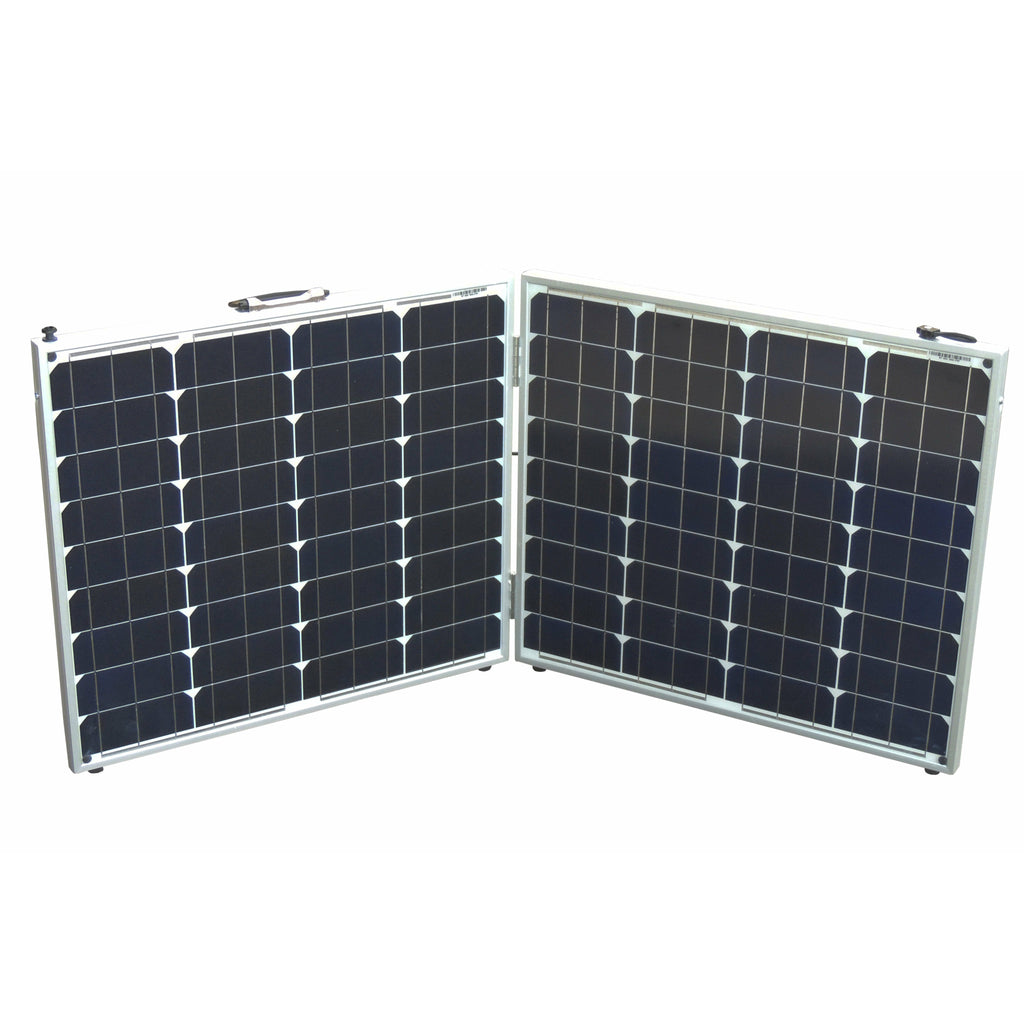

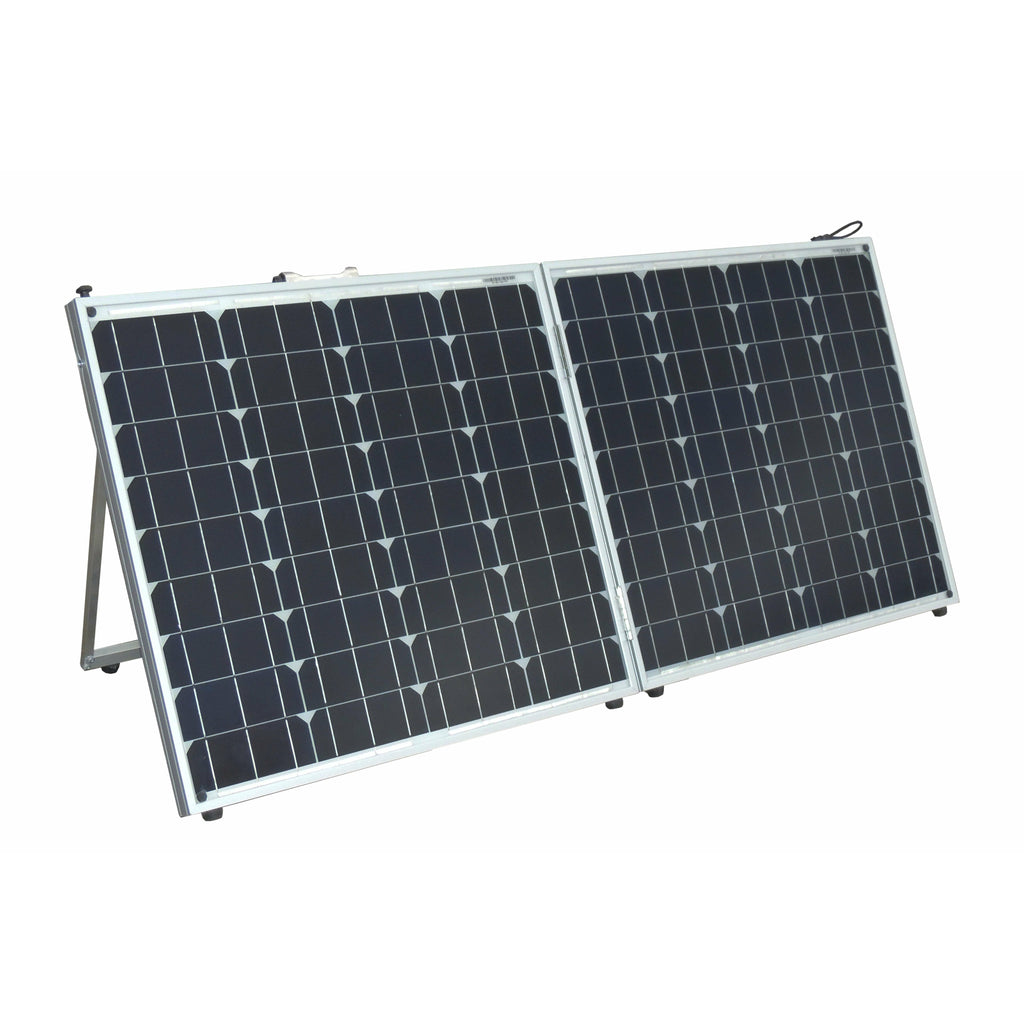

The Blue Apple Mono crystalline portable 120 watt split fold solar panel is made with the highest quality A - grade silicon cells and come with a full 25 year performance warranty and 10 year structural warranty.
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 120 watt SPLIT fold has the ability to harness over 7.5 Amps per hour (with an average output of 6.5 - 7.5 Amps)
This neat design consists of 2 x 60 watt panels hinged together, so when folded the glass panels will fold in facing one another; adding extra protection to the panel. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 120 watt split fold panel CAN produce up to 80 Amps per day! In most cases the 120 watt split fold panel would allow the user to continuously keep up with the draw of a 60Lt compressor type fridge (when combined with approx a 60 Ah battery).
The input power of a portable panel is largely dependent on the user of the panel.
**Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 120 watt SPLIT fold has the ability to harness over 7.5 Amps per hour (with an average output of 6.5 - 7.5 Amps)
This neat design consists of 2 x 60 watt panels hinged together, so when folded the glass panels will fold in facing one another; adding extra protection to the panel. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 120 watt split fold panel CAN produce up to 80 Amps per day! In most cases the 120 watt split fold panel would allow the user to continuously keep up with the draw of a 60Lt compressor type fridge (when combined with approx a 60 Ah battery).
The input power of a portable panel is largely dependent on the user of the panel.
**Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.
BYPASS REGULATOR OPTION:

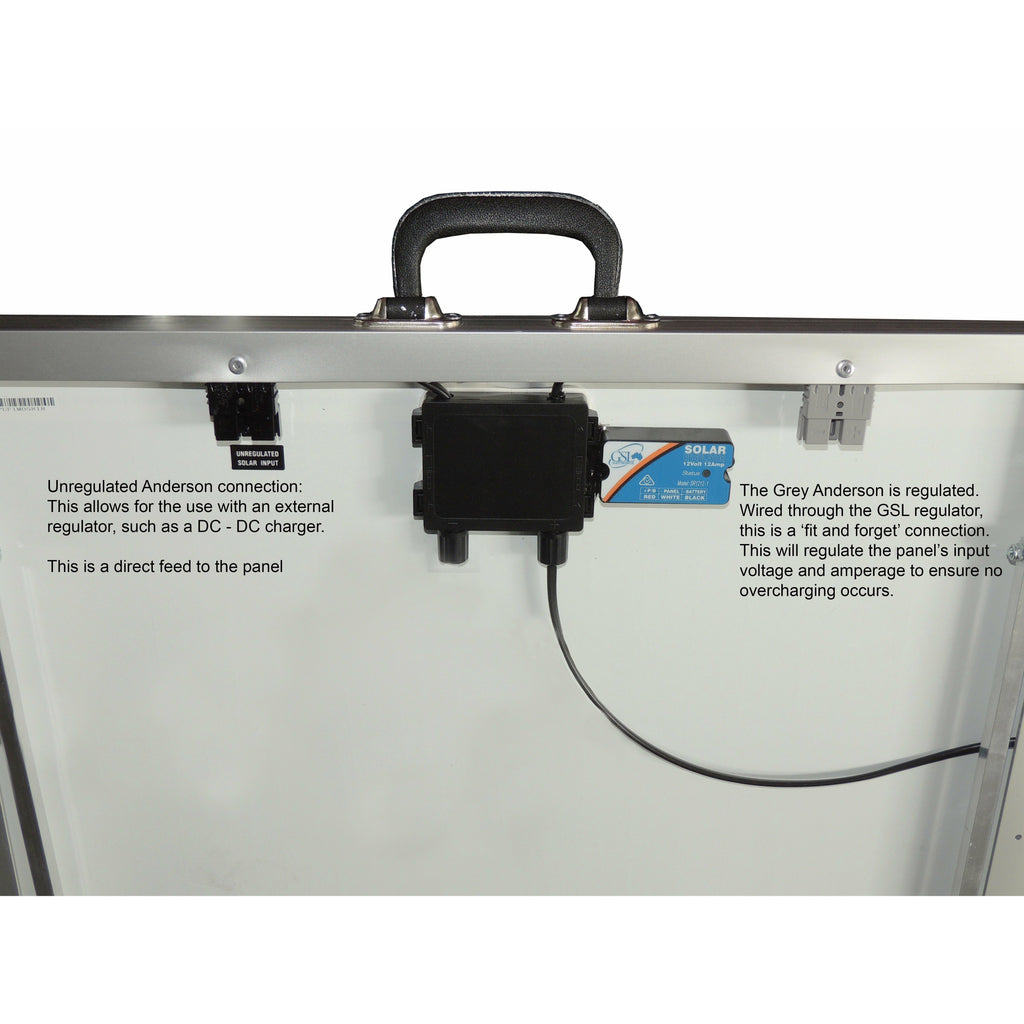

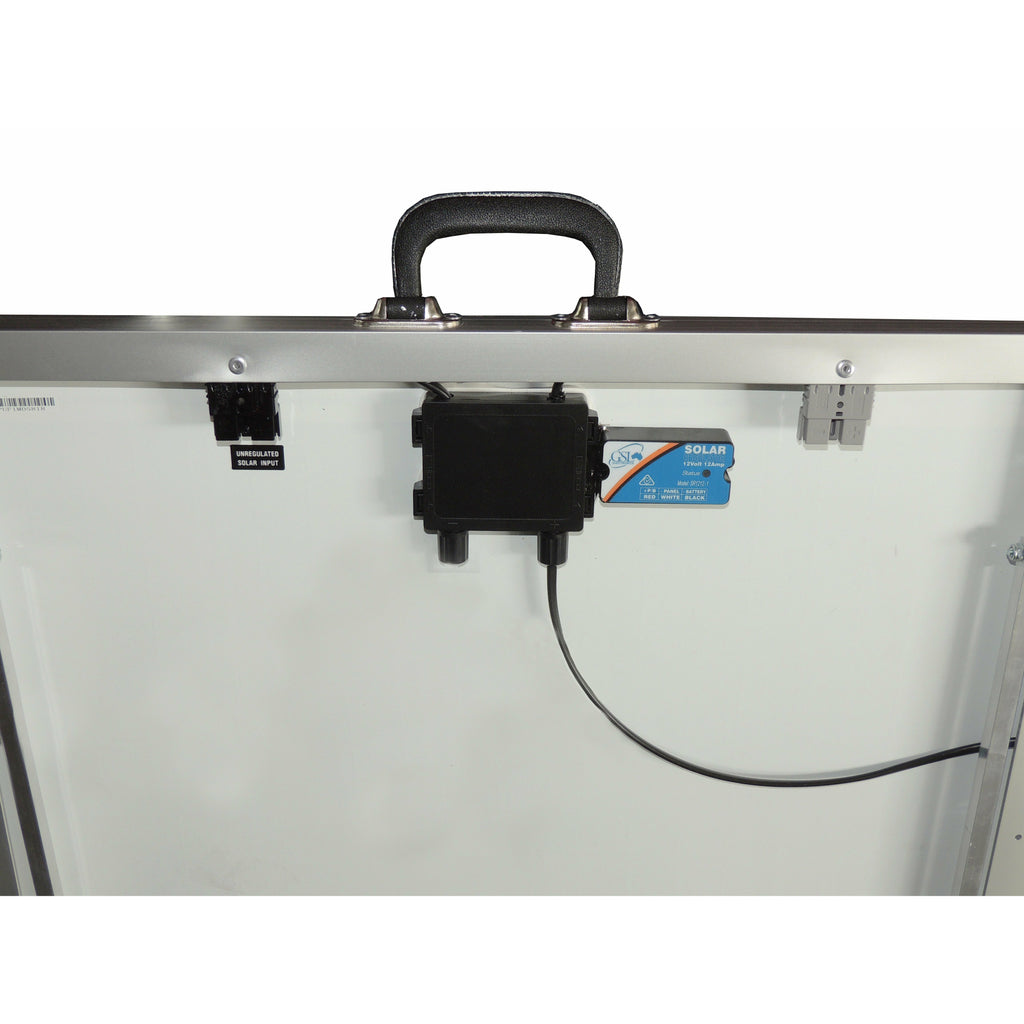

The 120 watt split fold panel is fitted with BYPASS Andersons.
The 120 watt split fold panel is fitted with BYPASS Andersons.
This means that the Grey 50 Amp Anderson is REGULATED and wired to the GSL regulator that is fitted to the panel. This connection will control the input charge from the solar panel and will ensure no overcharging occurs.
What if you have another regulator you would like to use?
No Problem!
This panel is fitted with a unique UNREGULATED Anderson (Black). This option allows a DIRECT feed to the panel and will allow you to use an external regulator (such as a DC - DC charger!)

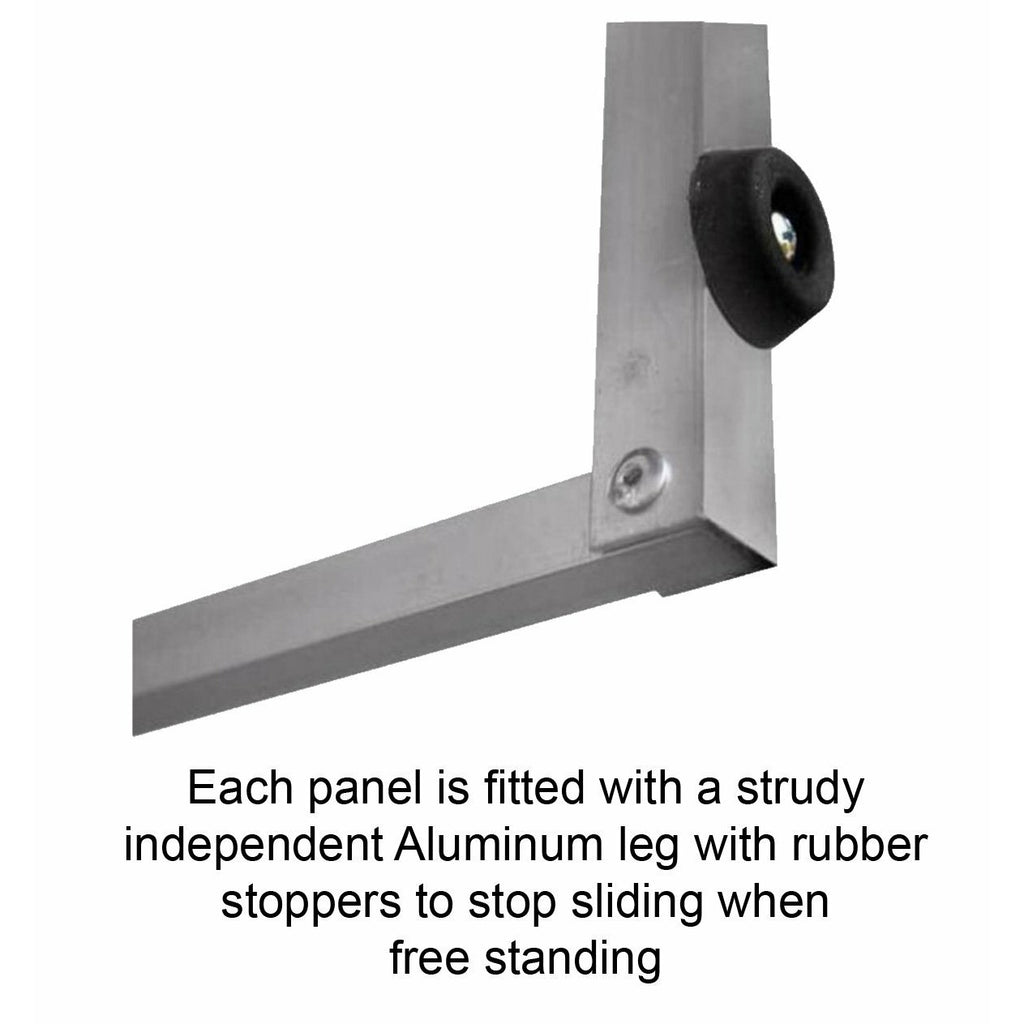

Each panel is equipped with its own set of heavy duty anodized aluminum legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminum leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.
Each panel is equipped with its own set of heavy duty anodized aluminum legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminum leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.
|
Panel Type BA - 120SF Maximum Power (Pmax) 120W Voltage at Pmax (Vmp) 19.5V Current at Pmax (Imp) 6.44A Open Circuit Voltage (Voc) 21.50V Short Circuit Current (Isc) 7.38A Normal Operating Cell Temp(NOCT) 48±2⁰C Max System Voltage 1000V |
Package includes:
All adaptors are available to convert to another connection. |
