Description
Description

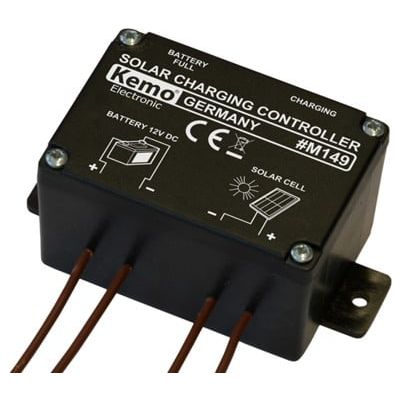

This 6A Solar Charge Controller 12V is designed for charging 12V batteries. Connected between a 12 V/DC solar cell ( open circuit voltage 14 - 30 V/DC ) and a 12 V / DC battery to prevent the battery from being overcharged. Easy to wire up with LEDs that indicate "charging" and "battery full". Ideal for charging 12V SLA batteries with Solar Panels rated up to 60W - 5 Amp fuse is recommended (not supplied).
Features
- Prevent overcharging a solar cells battery
- LEDs indicate when the battery is charging or at full charge
Specifications
Input Voltage Solar Cell Panels
14 - 30VDC open circuit voltage
Nominal Voltage
12VDC
Max. Input Current
6 A, short-time till 5 Min. 10A
Inrush Voltage
battery voltage < ca. 13.4VDC
Interrupting Voltage
battery voltage > ca. 14.4VDC
Displays
1 LED for Charging, 1 LED for Battery Full
Own Power Consumption
< 2.5mA (LED switched on)
Dimensions
ca. 72 x 50 x 42mm (without fixing straps)
