Thumper In line Dual Battery Isolator Complete kit - rated to 50Amps 12Volt

Save 39%

Price:
Sale price$159 Regular price$259

Description



Part No:

Rated Capacity:

Connections:

Cut in Voltage:

Cut out Voltage:

VSR50K

50 Amps

Andersons

13.2 Volts

12.7 Volts

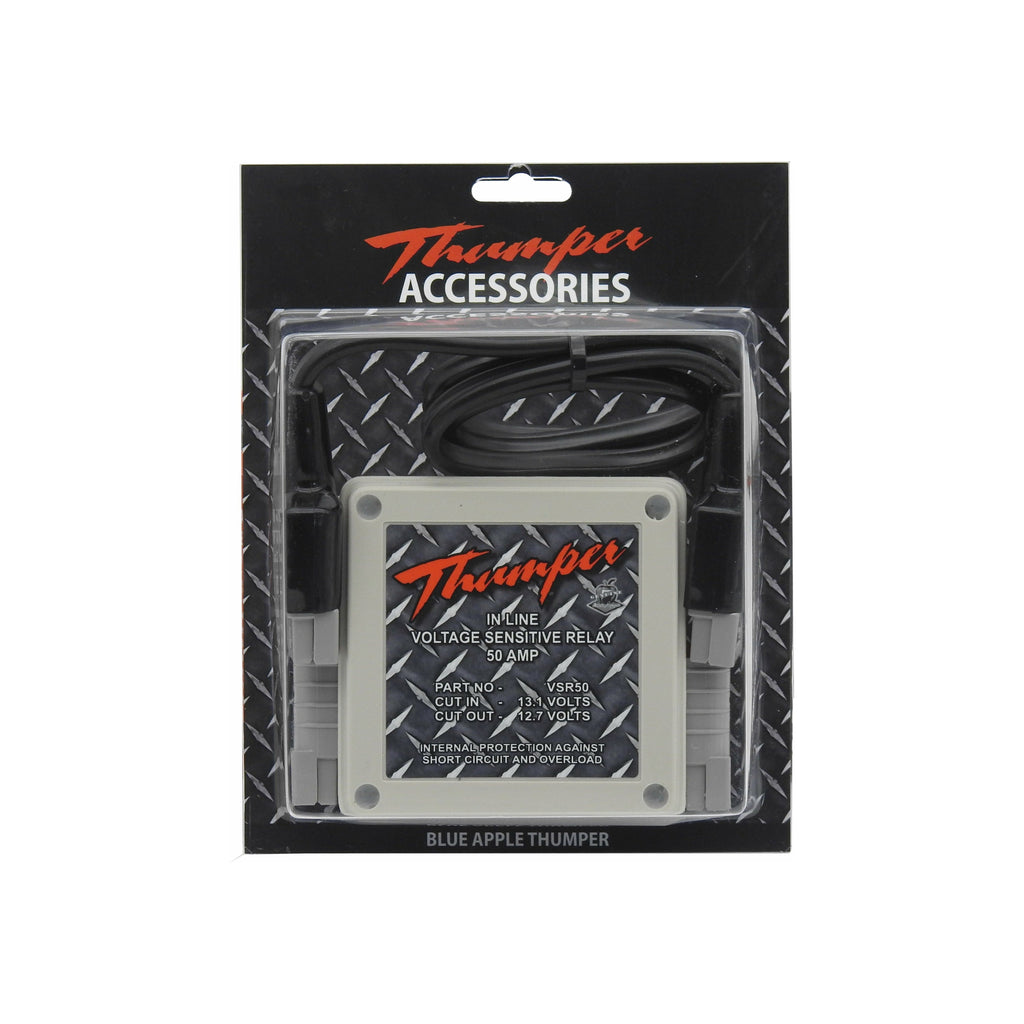

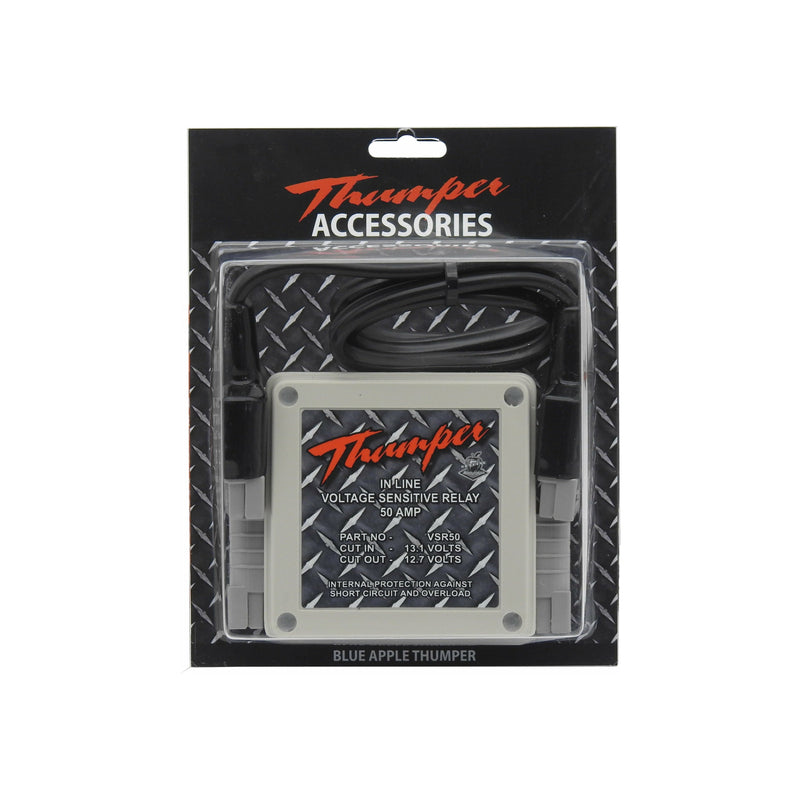

This new light weight and compact design VSR50 has been manufactured with the use of easy fit 50 Amp Anderson connectors for both the input and output connection.

Ideally suited for dual battery systems where under bonnet isolators are difficult to install, or for individuals who have one battery that changes between multiple vehicles; this in line isolator now offers the benefits of an easy, quick connect isolating system.

Rated to 50 Amps in capacity, the THUMPER In line isolator is suitable for charging a secondary battery bank within the vehicle up to a capacity of 200AH.

Supplied as a individual unit or as a complete kit, the Thumper VSR50 is perfectly suited for both all newer and later model vehicles.

                                           ______________________________

How does the VSR50 work?

The cut in voltage of the Thumper VSR50 is approx 13.2 Volts, making it the perfect companion for newer model vehicles with low alternator outputs.
Once 13.2 Volts is detected through the INPUT 50Amp Anderson, the isolator will engage by parallel linking the main battery and the secondary battery together to allow charge to be offered through to the secondary battery system.

When the voltage of the vehicle charge line drops below 12.7 Volts (indicating the ignition has been switched off) it is at this stage where the isolator will disengage and will then separate the two batteries (the main cranking battery and the secondary battery system).

The Thumper in line isolator is manufactured with an internal circuit breaker allowing for protection against short circuits and overload.

                                           ______________________________

This hand sized VSR50 isolator is perfect for:

- Vehicles in which under bonnet dual battery isolators are difficult to install
- Newer model vehicles with low alternator outputs
- Situations in which one battery is transferred between multiple vehicles
- Business vehicles, where installing charging systems in difficult / not allowed
- Situations in which you would like to isolator one secondary battery from another
     .. these are only a few !

                                           ______________________________

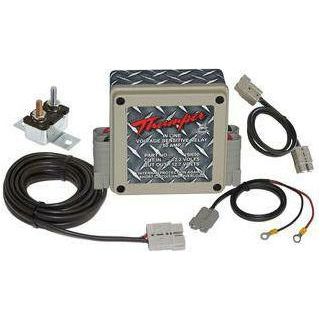

This particular kit includes:
1 x VSR50
1 x 5.5mt 6mm twin core automotive cable with 50 Amp Anderson
1 x In line automatic reset 50Amp circuit breaker
1 x 50Amp Anderson to Anderson connecting lead (6mm) 1mt
1 x 50Amp Anderson to ring terminals 1mt (8mm lug on neg(-) & 10mm lug on pos(+) ).

Specifications:
Model No:

Rated capacity:

Internal protection:

Connections:


Dimensions:



Weight:

Warranty:


VSR50

50 Amps continuous

Yes

50 Amp Anderson (Input connection)
50 Amp Anderson (Output connection)

137mm (Width across face - Includes Andersons)
105mm (Height)
55mm (Depth)

0.425 kg

2 Years
