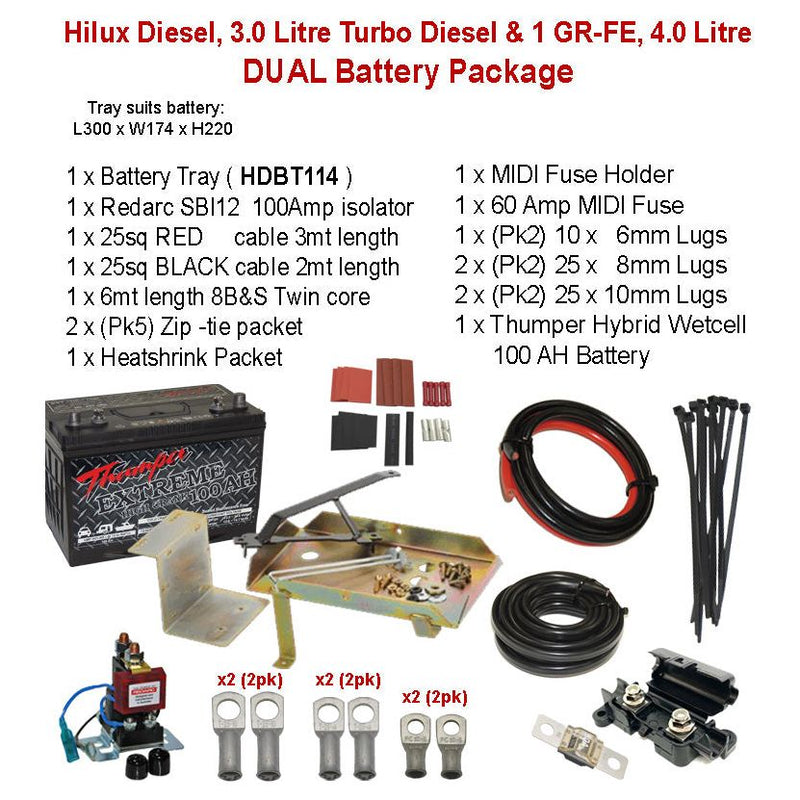

Hilux Diesel, 3.0Lt Turbo Diesel & 1 GR-FE, 4.0Lt V6 Petrol 2005 - 2014
This package is worth over $ 974.00 and Includes the following:

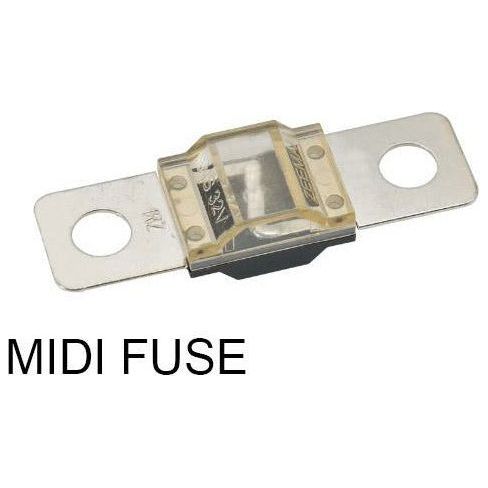

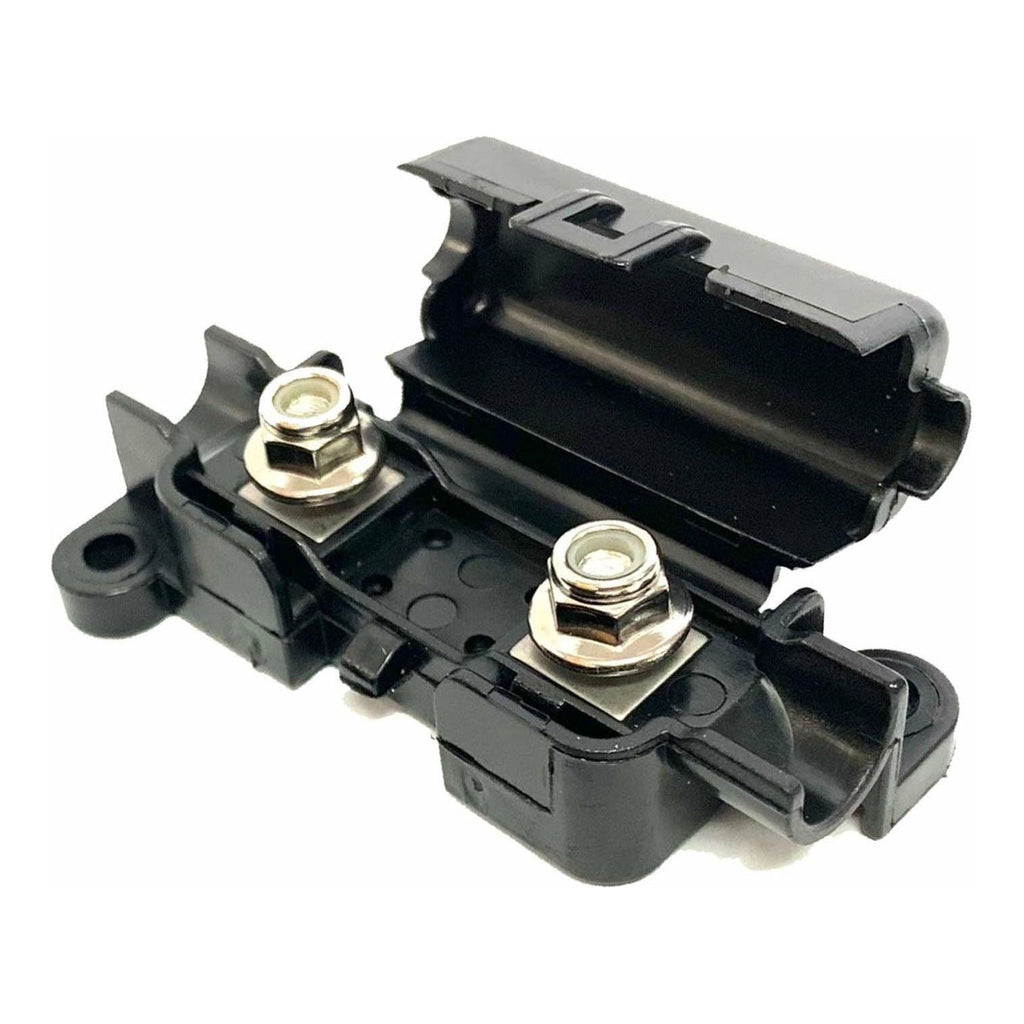

|1 x HDBT114 Battery Tray||1 x MIDI Fuse Holder
|1 x Redarc SBI1212 Isolator 100 Amp
||1 x MIDI Fuse - rated 60 Amps|
|1 x 25sq cable - Single RED - 3mt length
||1 x (Pk2) Cable lugs 10 x 6mm|
|1 x 25sq cable - Single BLACK - 2mt length||2 x (Pk2) Cable lugs 25 x 8mm|
|1 x 8B&S TWIN core cable - 6mt length||2 x (Pk2) Cable lugs 25 x 10mm|
|2 x (Pk5) Zip-tie pack||1 x Heat-shrink pack|
|1 x Thumper Hybrid Wetcell 100 AH|

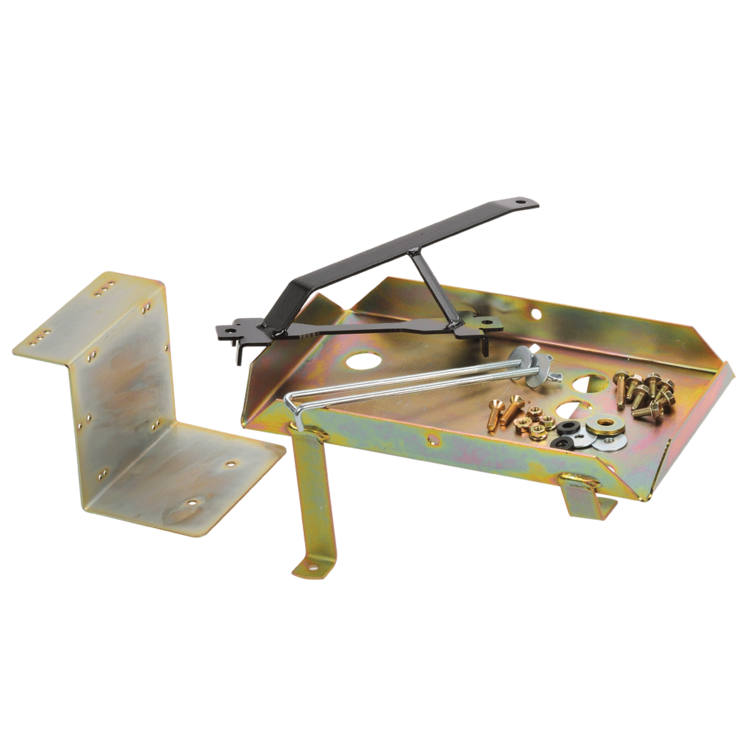

PART NO HDBT114
Suits: Hilux Diesel 1KD–FTV, 3.0 Litre Turbo Diesel
& 1 GR-FE, 4.0 Litre V6 Petrol
Max Battery Size (mm): L300 x W174 x H220
Max Battery Weight: 23Kg
Suits Battery: N70
Click HERE to download Instruction Manual
Rated to approx 50 Amps over 10mt
The "EXT-HC" (Extreme High Crank) hybrid battery is designed as a bonded element sealed lead acid; perfect for the use of everyday cranking as a primary starter battery. Whilst the marine nature of this hybrid battery offers heavy cranking ability, the battery is also the perfect choice for the use of a deep cycle alternative to that of an AGM.
The EXT-HC range is classified as a wet-cell Deep cycle.
The primary use of this battery would suit the following operations:
- Use in the marine industry as a hybrid "starter" battery whilst also being used to run appliances such as GPS systems, fish finders, small fridges, etc.
- Use in Caravan / Motorhome / Camper Trailer where the battery is located in the boot / outside container or in a battery box on the frame of the vehicle.
In stating the above, the use of the EXT-HC range within the boot of a caravan, under the bonnet of a vehicle and within the boat is perfect and completely safe!
The EXT-HC range of Thumper batteries include a 3 year nationwide warranty and are available in a number of sizes

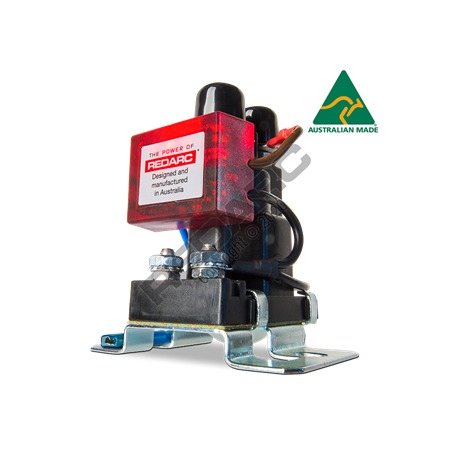

REDARC100 Amp Voltage Sensitive Relay
| PART NO.
CUT - IN VOLTAGE
CUT - OUT VOLTAGE
MINIMUM OPERATING VOLTAGE
MINIMUM CABLE SIZE
L.E.D CHARGE INDICATION
100 AMPS CONTINUOUS (not recommended for winching)
13.2 - 13.4 VOLTS
12.6 - 12.7 VOLTS
SURFACE / FIREWALL
CHARGING 550mA (Standby 10mA)
BUILT - IN
REQUIRES MINIMUM 10 VOLTS
14mm2 (6 B&S)
