Intelli-RV 500A External Current Shunt (PMSHUNT)

Save 5%

Price:
Sale price$299 Regular price$314.95

Description

PROJECTA has introduced an optional 500A external current shunt to its INTELLI-RV power management range, allowing the INTELLI-RV System to accurately measure large power loads, keeping an accurate State of Charge. Instead of bypassing INTELLI-RV system with direct battery connection, installers can now wire an inverter to the external shunt, which will communicate with the INTELLI-RV system.

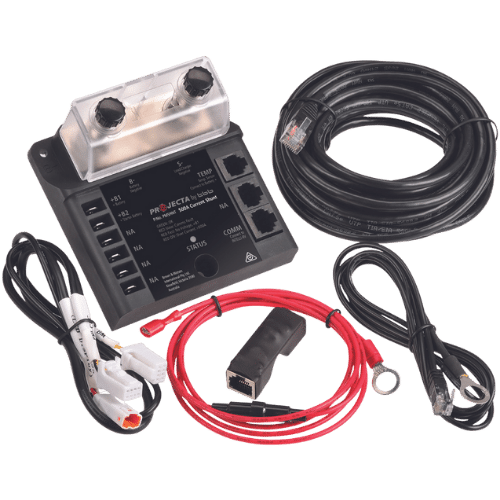

The unit comes as a kit (P/No. PMSHUNT), complete with all wiring and connectors required to connect to an INTELLI-RV management system. Kit components can also be purchased individually (see part numbers table).

The INTELLI-RV external current shunt is compatible with all PM2xx, PM3xx and PM4xx series systems and AGM/GEL/Wet/Lithium battery types.



Connecting an inverter directly to a battery can produce inaccurate State of Charge information on INTELLI-RV remote monitoring LCD screens and the smart phone app. By wiring an inverter to the external shunt, the inverter’s power draw is accurately represented and accounted for on displays.

In addition to inverters, installers may also use this 500A shunt to connect large DC-DC chargers to an INTELLI-RV system.



SPECIFICATIONS

PART NO

PMSHUNT

Continuous Current

500A

Voltage

7-95V

Battery Types

AGM/ GEL/ Wet/ Lithium

Working Temperature

-20~ 50°C

Storage Temperature

-30~ 70°C

Votlage Accuracy

±0.3%

Current Accuracy

± 0.4%

IP Rating

IP20

Dimensions

102mm x 102mm x 57mm

Shunt Current Draw

15mA



Note:

This product is not usually kept on the shelf and would be a special order, which may cause minor delays in delivery

Payment & Security

Apple Pay Google Pay JCB Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

You may also like

Recently viewed

Customer Reviews
5.0 Based on 6 Reviews
5 ★
100%
6
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
A
11/04/2022
Anonymous
Australia
I recommend this product

Shunt to go with PM300

Very easy to install and works well.

CU
11/04/2022
Carl U.
Australia Australia
I recommend this product

Pm Shunt

Only just received it today so haven’t had a chance to try it. Very good delivery time though. Thanks

A
28/02/2022
Anonymous
Australia Australia
I recommend this product

Projecta 500amp shunt

So far so good works great

SC
22/01/2022
Stephen C.
Australia Australia
I recommend this product

Works as expected. Ordering and delivery was easy and fast

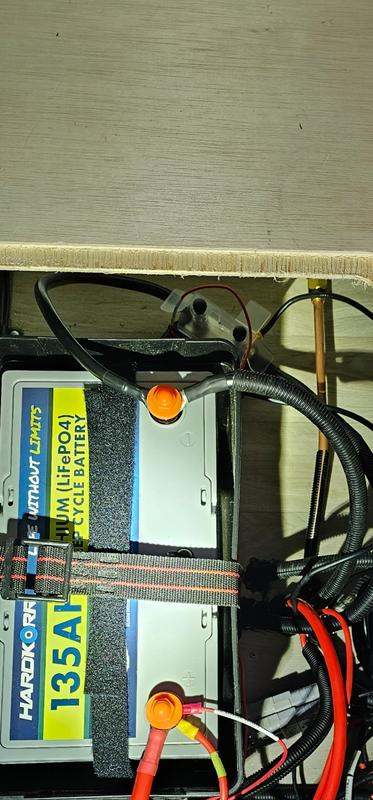

The unit works as expected. Just remember you need to move all accessories that are attached to the negative battery terminal over to the shunt for correct reading on the battery management system. From 12 volt online, the price was competitive, the website was very easy to use and ordering was painless. Delivery was as expected. Good e-mail comms during the process.

JG
21/01/2022
John G.
Australia Australia
I recommend this product

PM shunt

Delivered in a timely manner
