DC Battery charger for Lithium batteries

Roll over image to zoom in

Projecta Lithium 25 Amp DC DC In Vehicle Battery and Solar charger | IDC25L BONUS Midi Holder Fuse and Lugs!

Name: Projecta Lithium 25 Amp DC DC In Vehicle Battery and Solar charger | IDC25L BONUS Midi Holder Fuse and Lugs!
Brand: Home of 12 Volt Online
SKU: IDC25L+MHolder+ACX6506+CL-16-6
Price: 315.00 AUD
Availability: InStock

Save 32%

Home of 12 Volt Online

Share this product

25A 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger

PART NO IDC25L

NOW WITH A 5 YEAR WARRANTY!

______

The IDC25L is a sophisticated in vehicle and solar battery charger.

The Charger is designed to modify the input charge from the vehicle from 9-32 volts in order to produce a constant output charge to your secondary battery.

The charger is also equipped with a intelligent solar regulator. This component of the charger will allow you to connect an 'unregulated' solar panel direct to this IDC25L and the charger will ensure the panel never overcharges.

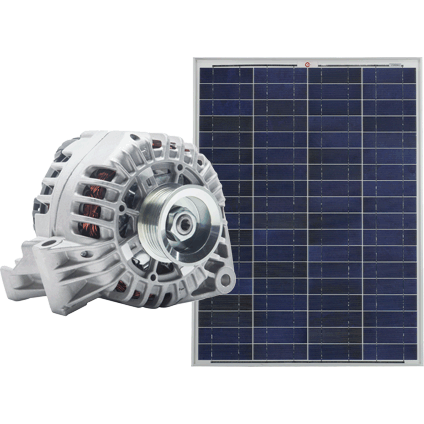

The Battery charger is rated to 25 Amps input per every hour of use. This 25 Amps can be harnessed from the vehicle's alternator, or from solar (providing the solar panels are larger enough to produce this input).

Now with a 5 year warranty, this charger is truly one of the best DC charger's on the market!

FEATURES

Lithium charging technology
Engineered for use with todays advanced lithium battery technology

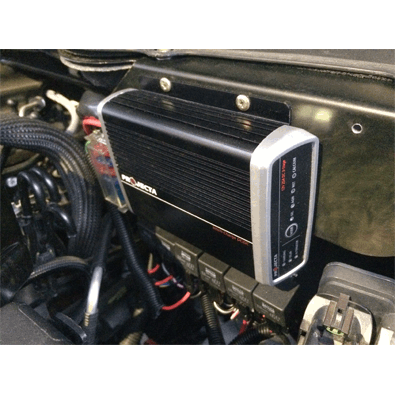

Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Dual charging modes
Engineered to work with both smart and conventional alternators

Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs

Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection

SPECIFICATIONS

PART NO

IDC25L

CHARGE TYPE

5 Stage

ALTERNATOR INPUT VOLTAGE

9-32Vdc

MAX SOLAR INPUT

28Vdc, 360W

OUTPUT CURRENT

Input 9-11Vdc 20A,
Input 11-32Vdc 25A

BACK DRAIN ON AUX BATTERY

9.5-10.5mA

CHARGING PROFILE

1st Soft Start: 1.25A
2nd Soft Start: 6.25A
Bulk Charge Current: 25A
Absorption Voltage: 14.5V
Float Voltage: 13.5V

BATTERY CAPACITY

50-250Ah

BATTERIES SUPPORTED

Lithium iron phosphate

SMART ALTERNATOR

12V: Turn On: 12.2-20V
24V: Turn On: 24.4-32V

Turn Off: <11.9V
Turn Off: <24V

CONVENTIONAL ALTERNATOR

12V: Turn On: 13.4-20V
24V: Turn On: 26.8-32V

Turn Off: <12.8V
Turn Off: <25.6V

OPERATING TEMPERATURE

-10°Cto +80°C
