Projecta LITHIUM IDC25L DC-DC In Vehicle Battery and Solar charger 25Amps

Save 22%

Price:
Sale price$335 Regular price$429

Description

25A 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger

PART NO IDC25L

An advanced DC/solar battery charger engineered for todays sophisticated lithium iron phosphate batteries.

FEATURES

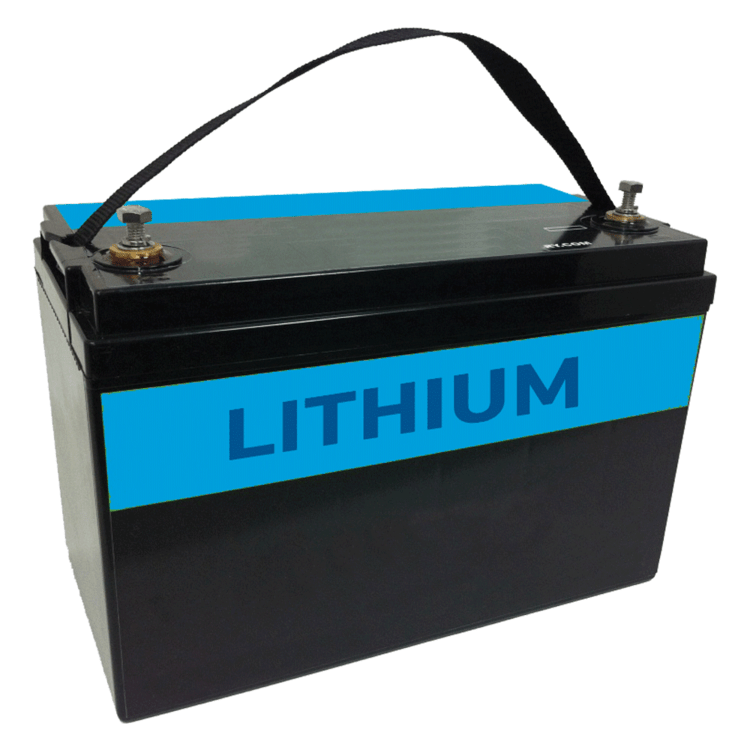

Lithium charging technology
Engineered for use with todays advanced lithium battery technology

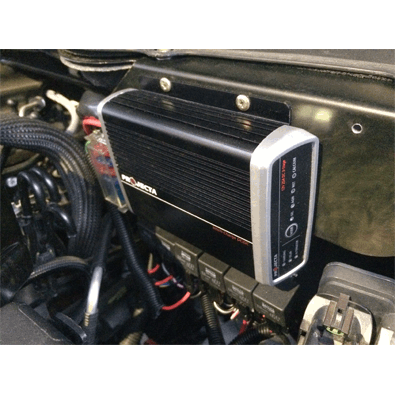

Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Dual charging modes
Engineered to work with both smart and conventional alternators

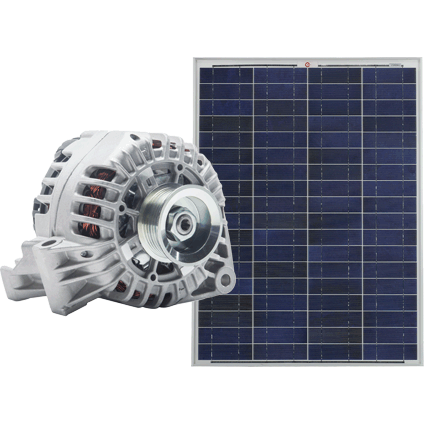

Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs

Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection



SPECIFICATIONS

PART NO

IDC25L

CHARGE TYPE

5 Stage

ALTERNATOR INPUT VOLTAGE

9-32Vdc

MAX SOLAR INPUT

28Vdc, 360W

OUTPUT CURRENT

Input 9-11Vdc 20A,
Input 11-32Vdc 25A

BACK DRAIN ON AUX BATTERY

9.5-10.5mA

CHARGING PROFILE

1st Soft Start: 1.25A
2nd Soft Start: 6.25A
Bulk Charge Current: 25A
Absorption Voltage: 14.5V
Float Voltage: 13.5V

BATTERY CAPACITY

50-250Ah

BATTERIES SUPPORTED

Lithium iron phosphate

SMART ALTERNATOR

12V: Turn On: 12.2-20V
24V: Turn On: 24.4-32V
Turn Off: <11.9V
Turn Off: <24V

CONVENTIONAL ALTERNATOR

12V: Turn On: 13.4-20V
24V: Turn On: 26.8-32V
Turn Off: <12.8V
Turn Off: <25.6V

OPERATING TEMPERATURE

-10°C to +80°C
