Description
Protection functions
- Overcharge protection
- Deep discharge protection
- Battery under voltage protection
- Solar panel reverse current protection
- Overcharge protection
- Deep discharge protection
- Reverse polarity protection of load,panel and battery
- Automatic electronic fuse
- Short circuit protection of load and panel
- Over voltage protection at panel input
- Open circuit protection without battery
- Reverse current protection at night
- Overload protection
- Battery over voltage shutdown

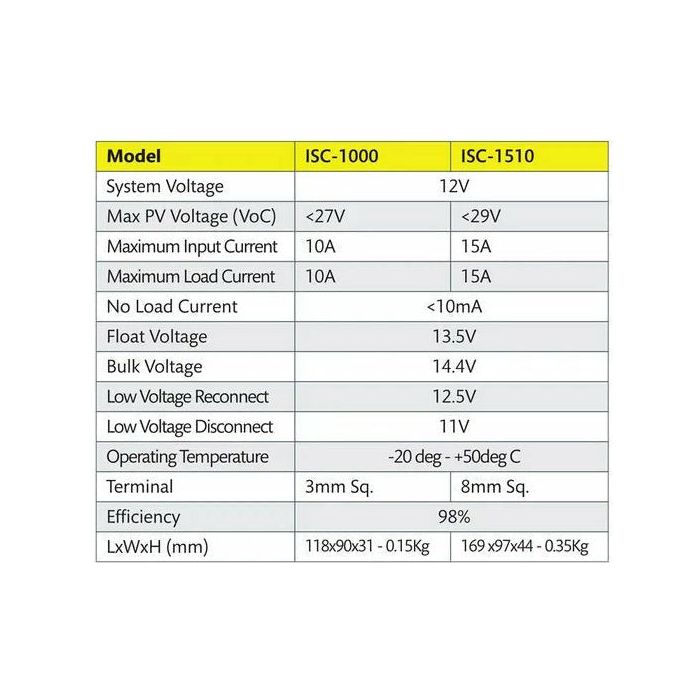

Specifications:
| Part Code | ISC-1000 |
| Brand | Voltech |
| Rated capacity | 10 Amp |
| Max Input Voltage | 29VDC |
| Overcharge voltage | 14.4Vdc±2% |
| Over Discharge voltage | 11Vdc±2% |
| Output Voltage | 12V DC |
| Operating temperature | -20°C/+50°C |
| IP rating | IP32 |
| Weight | 0.15kg |
| Dimensions |
118x90x31mm
|
| Warranty | 24 months |
| PWM Switching |
