Description
**Note: This solar regulator does not include a lithium charging profile
Protection functions
- Overcharge protection
- Deep discharge protection
- Battery under voltage protection
- Solar panel reverse current protection
- Overcharge protection
- Deep discharge protection
- Reverse polarity protection of load,panel and battery
- Automatic electronic fuse
- Short circuit protection of load and panel
- Over voltage protection at panel input
- Open circuit protection without battery
- Reverse current protection at night
- Overload protection
- Battery over voltage shutdown

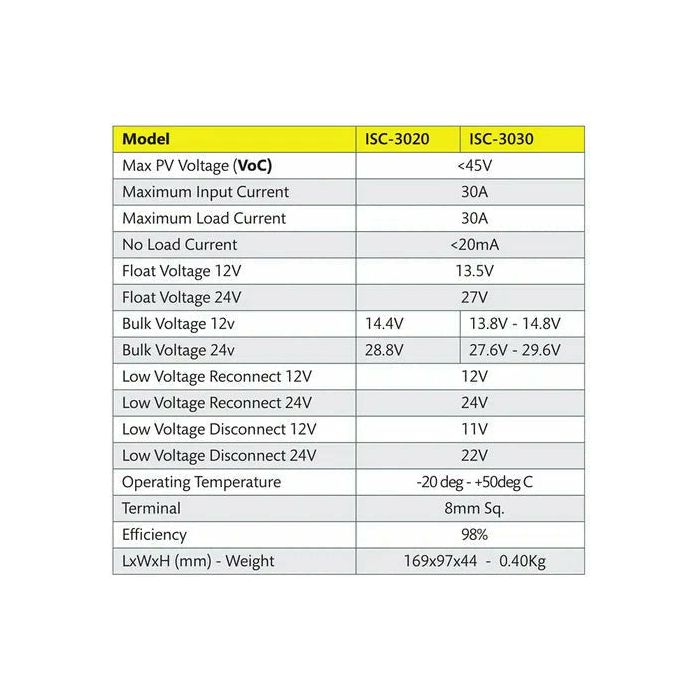

Specifications:
| Part Code | ISC-3030 |
| Brand | Voltech |
| Rated capacity | 30 Amp |
| Battery Chemistry |
Suits AGM / GEL / WET batteries |
| Max Open circuit Voltage | 45 VDC |
| Adjustable charge voltage (Bulk) |
13.8-14.8 / 27.6-29.6VDC |
| Adjustable charge voltage (Float) | 13.0-14.2 / 26.0-28.4VDC |
| Low Voltage Disconnect | 11.0-22.0V DC ± 2% |
| Auto reconnect Voltage |
12.0-24.0V DC ± 2% |
| Output Voltage | 12 Volt / 24 Volt DC |
| Operating temperature | -20°C/+50°C |
| IP rating | IP32 |
| Weight | 0.40kg |
| Dimensions |
169x97x44mm
|
| Warranty | 24 months |
| PWM Switching |
