Description

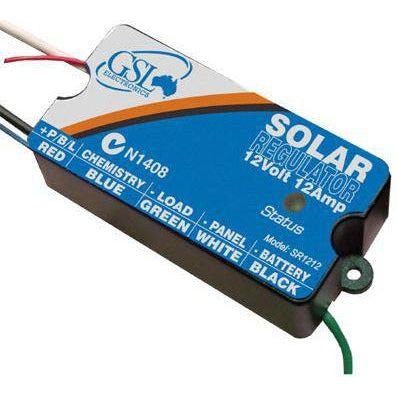

PWM Solar Regulator - SR1212
Maximum current at Bulk Charge 12A
Model SR1212:
Designed for charging 12V Batteries from 12V Panels (maximum Voc=25V)
Extreamly small foot print for size and power. 55cm3 (internal size) regulating panels up to 250W in peak power.
Weatherproof/Waterproof via Polymer Encapsulation. Giving the unit a greater freedom in mounting locations.
Now available in one model only.
SR1212-1:
• 3 Wire installation- No Mess, No Fuss.
• For Charging Flooded Cell Lead Acid batteries only.
-
Specifications
SR1212-1
*Discontinued* SR1212-2
Maximum Current at Bulk Charge
12A
12A
Maximum Input Panel Power
250W
250W
Input Voltage
15V to 25V
15V to 25V
Battery Voltage
12V
12V
Typical Efficiency
98%
98%
Monitoring & Control
-
Yes (Basic)
LVD
-
Yes
PV Short and Surge Protection
-
Yes
Thermal Protection
Yes
Yes
Dimensions [LxWxH]
81 x 37 x 22mm
81 x 37 x 22 mm
Weight [g] 50g 70g
Design and specifications may change without notice.
