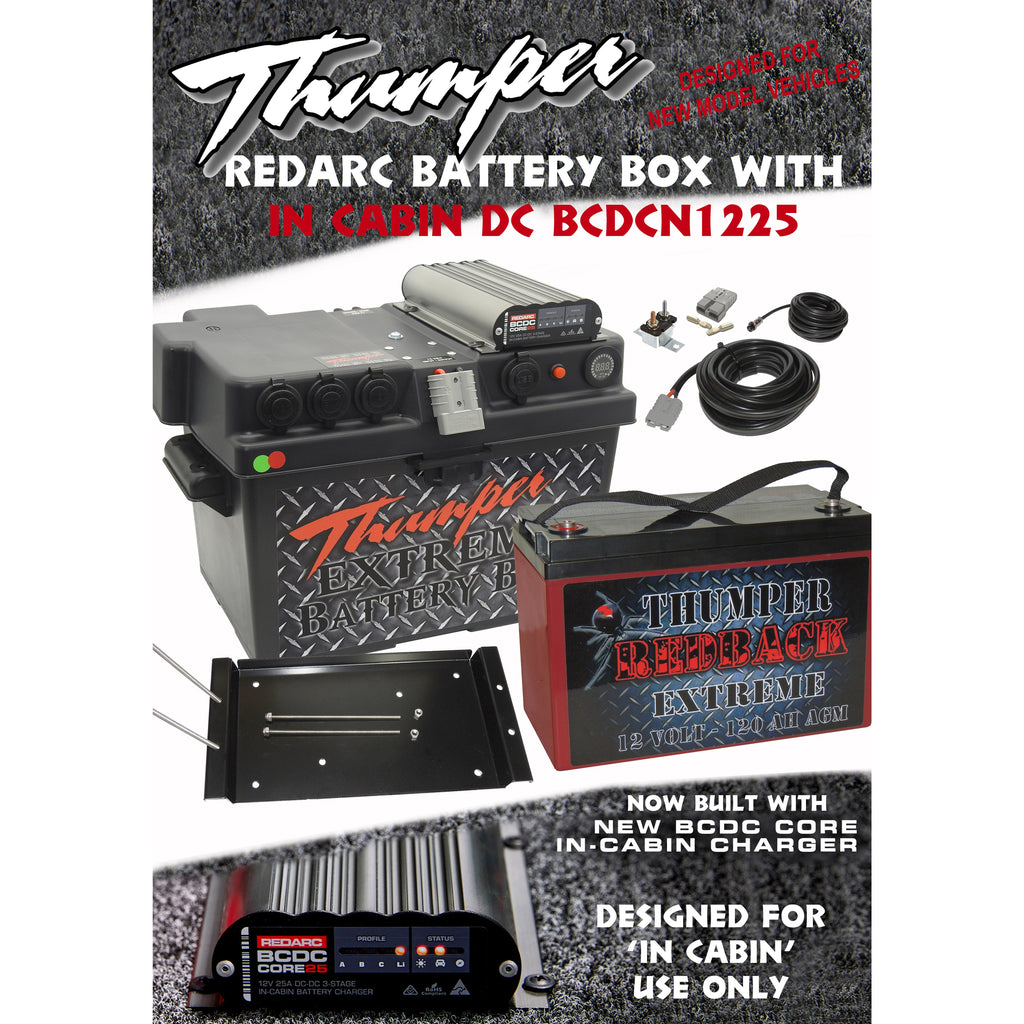

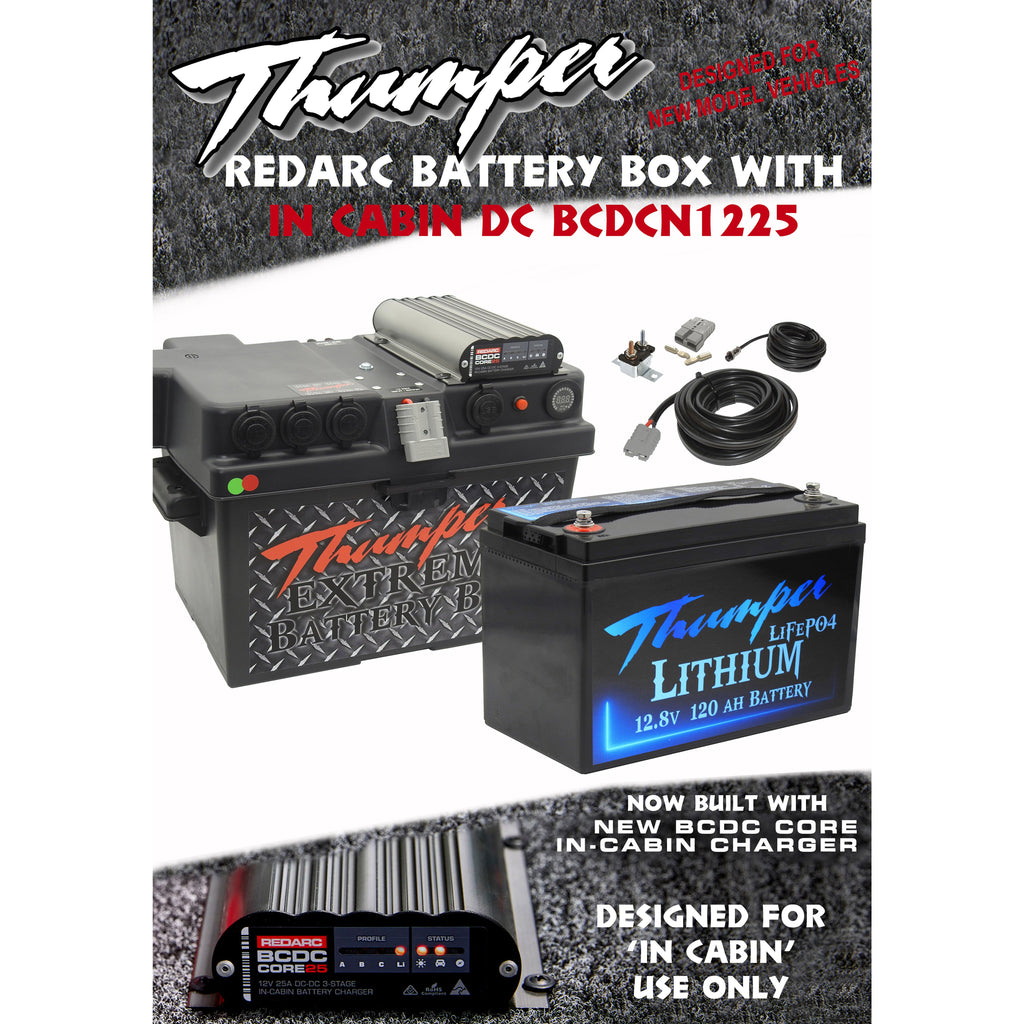

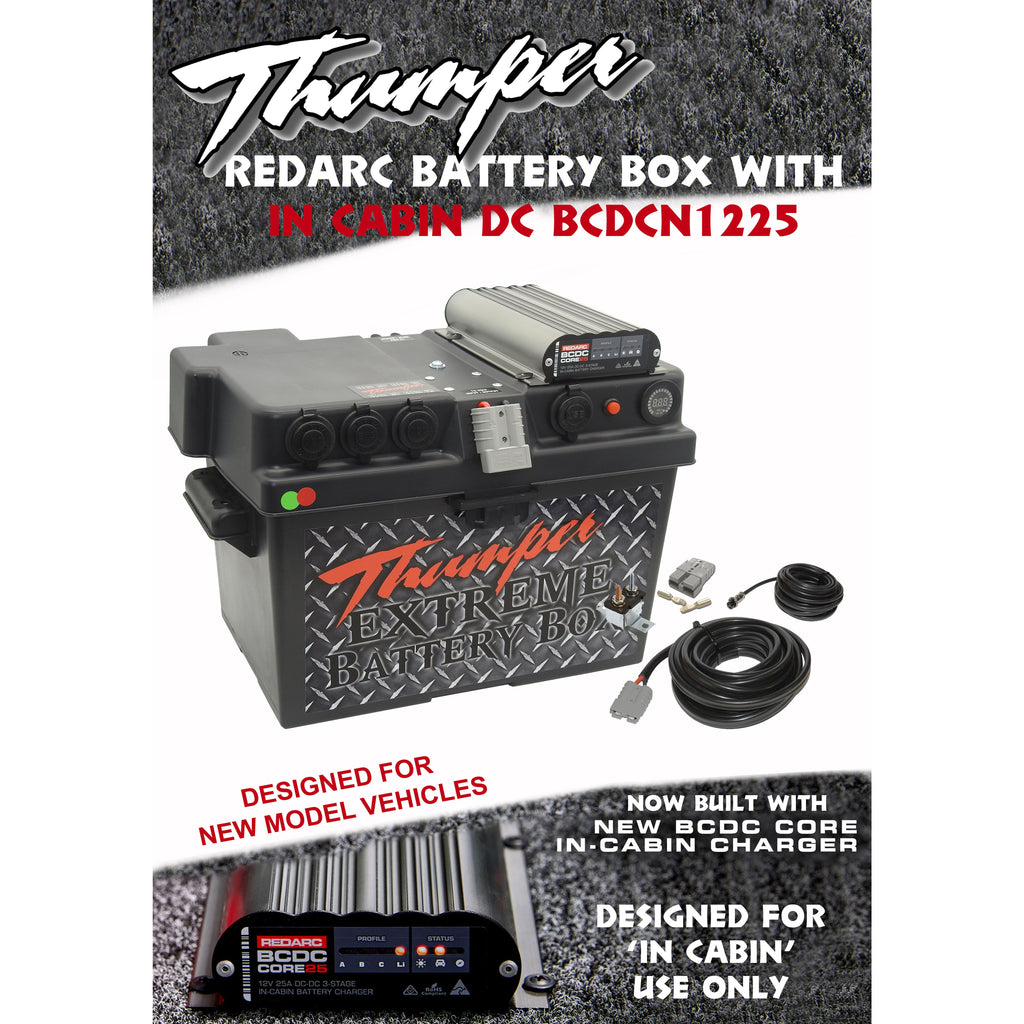

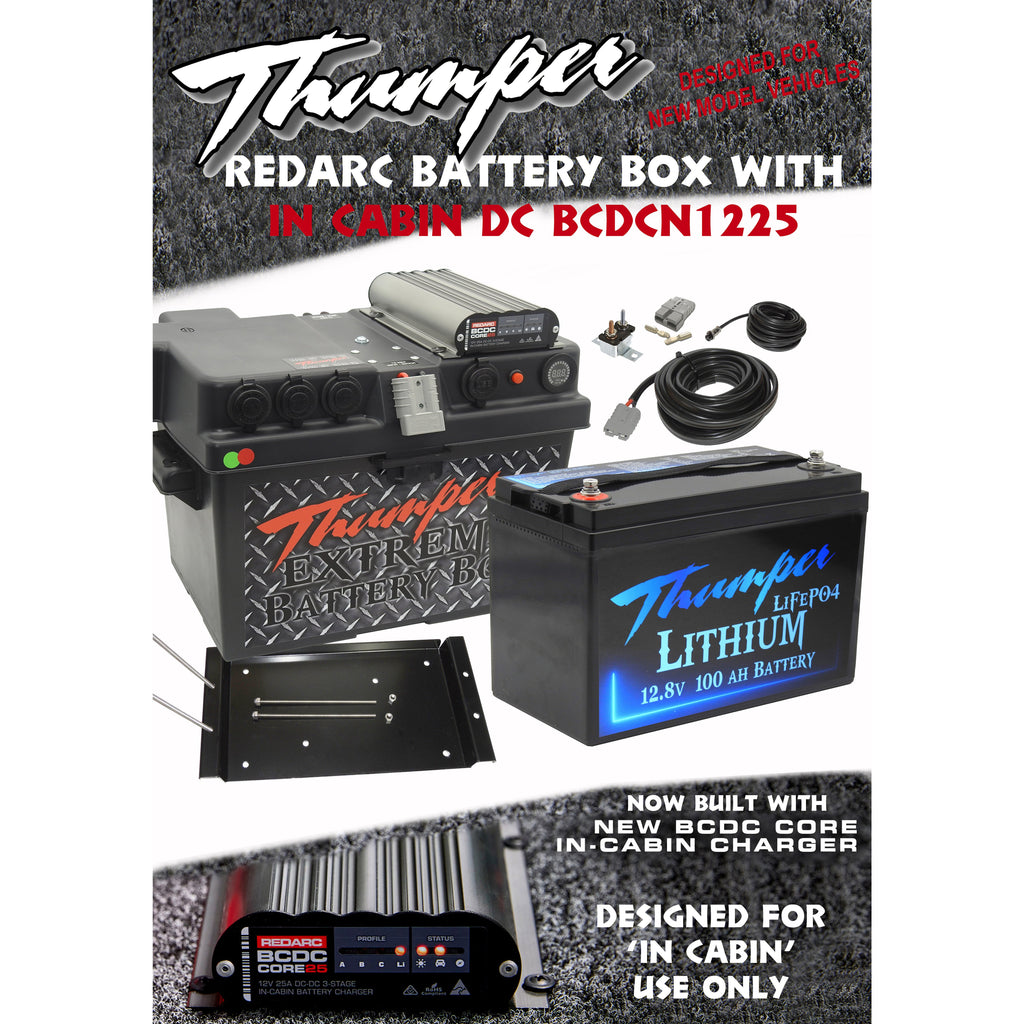

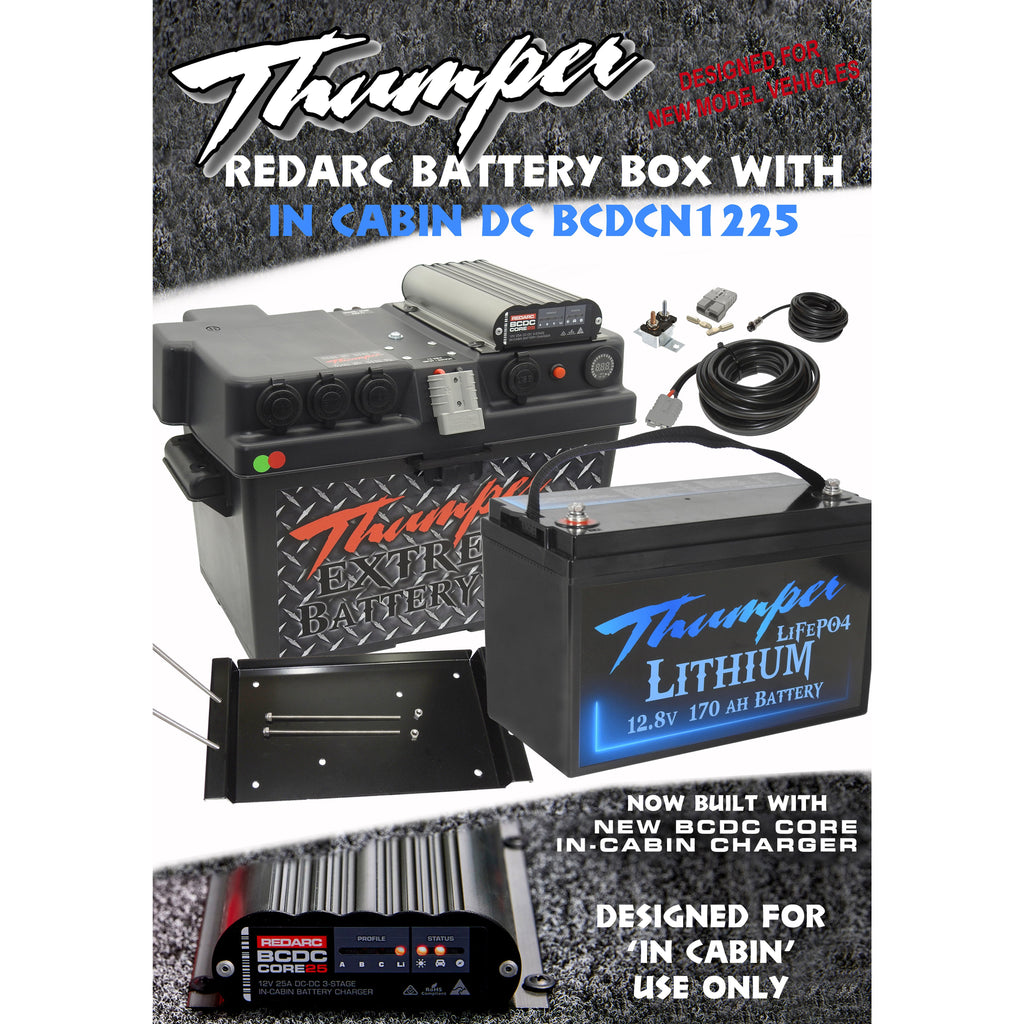

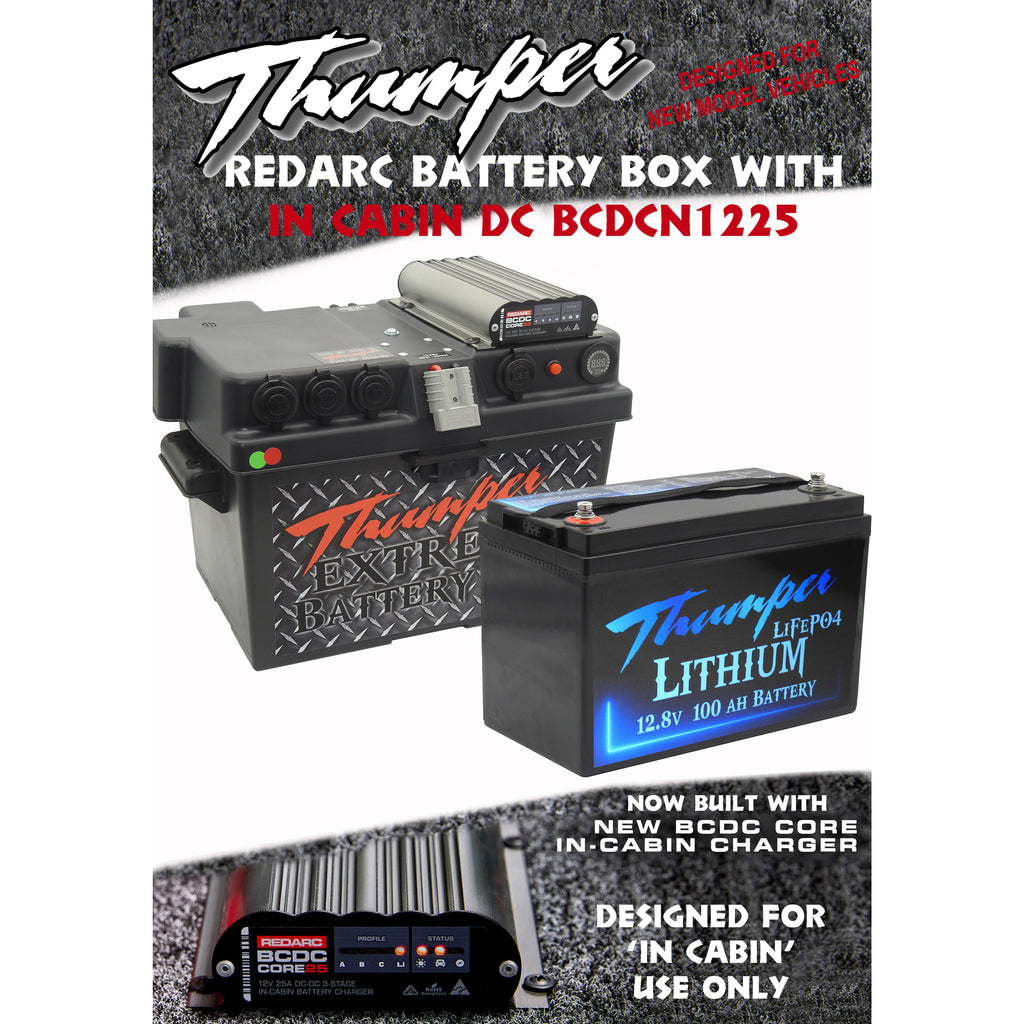

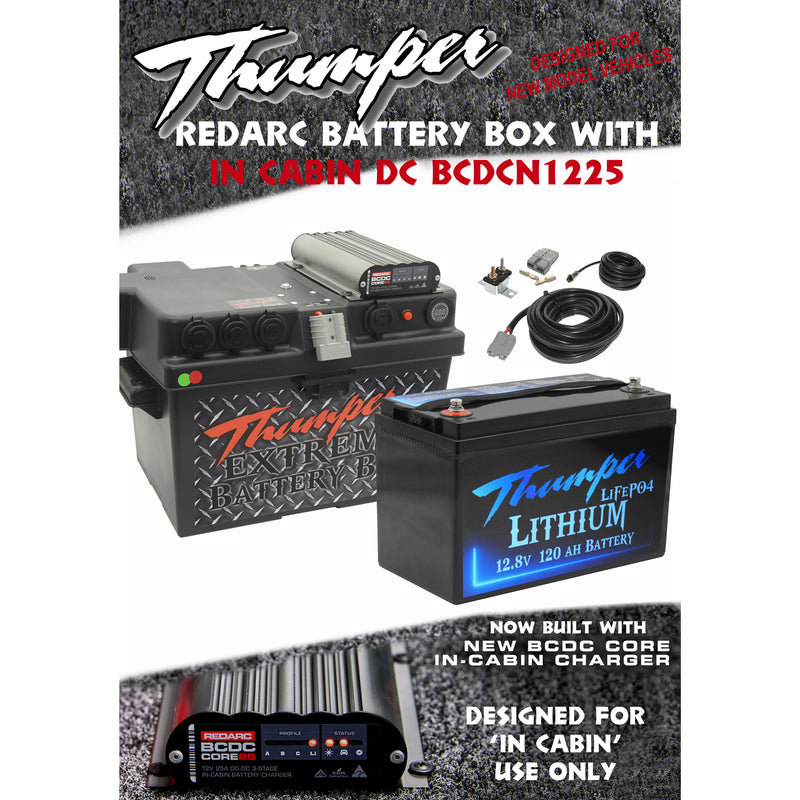

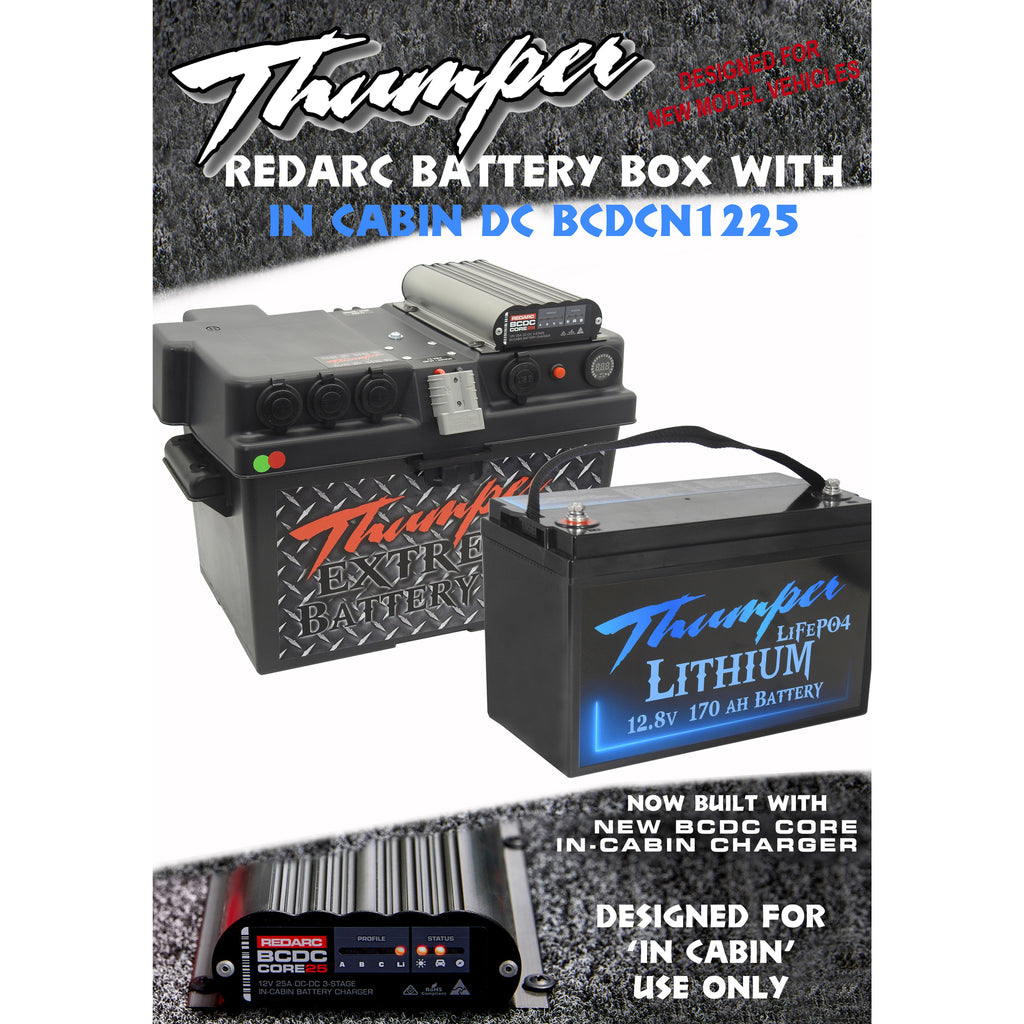

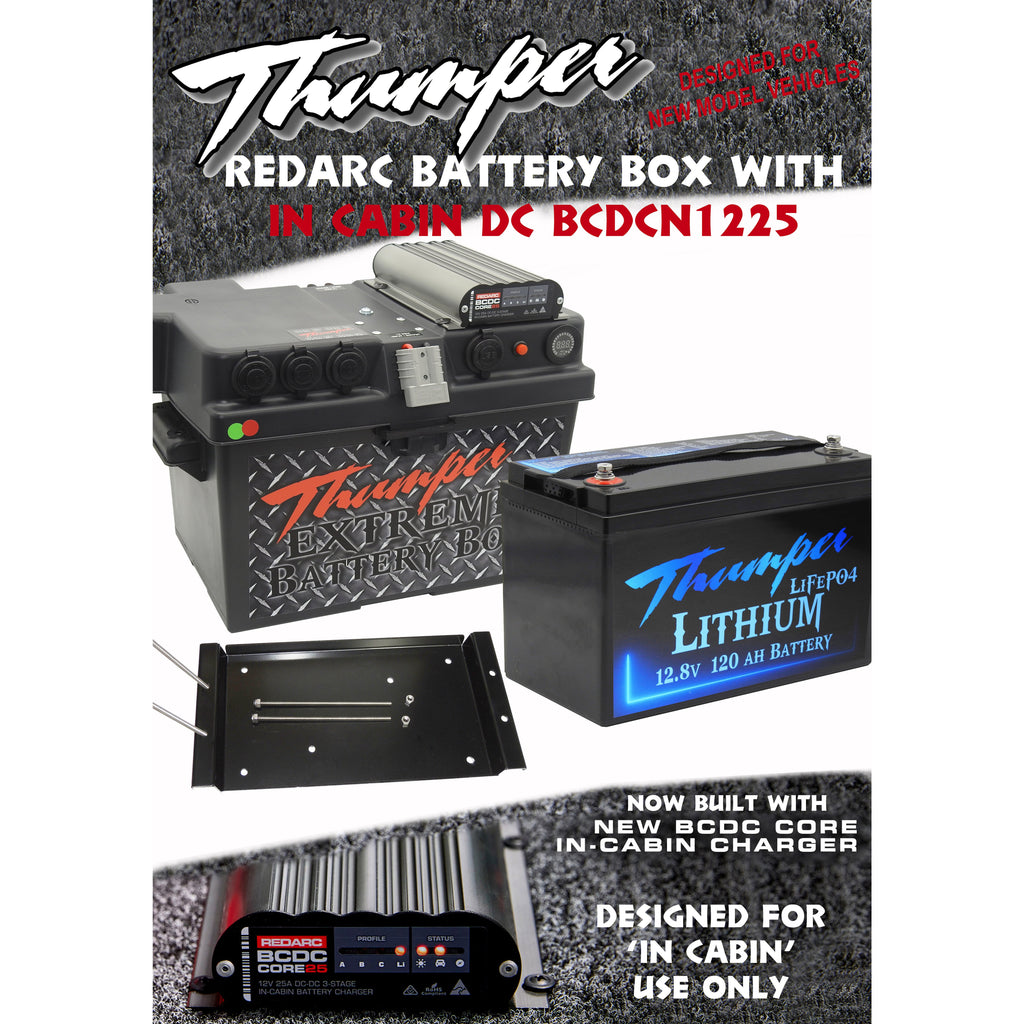

Description

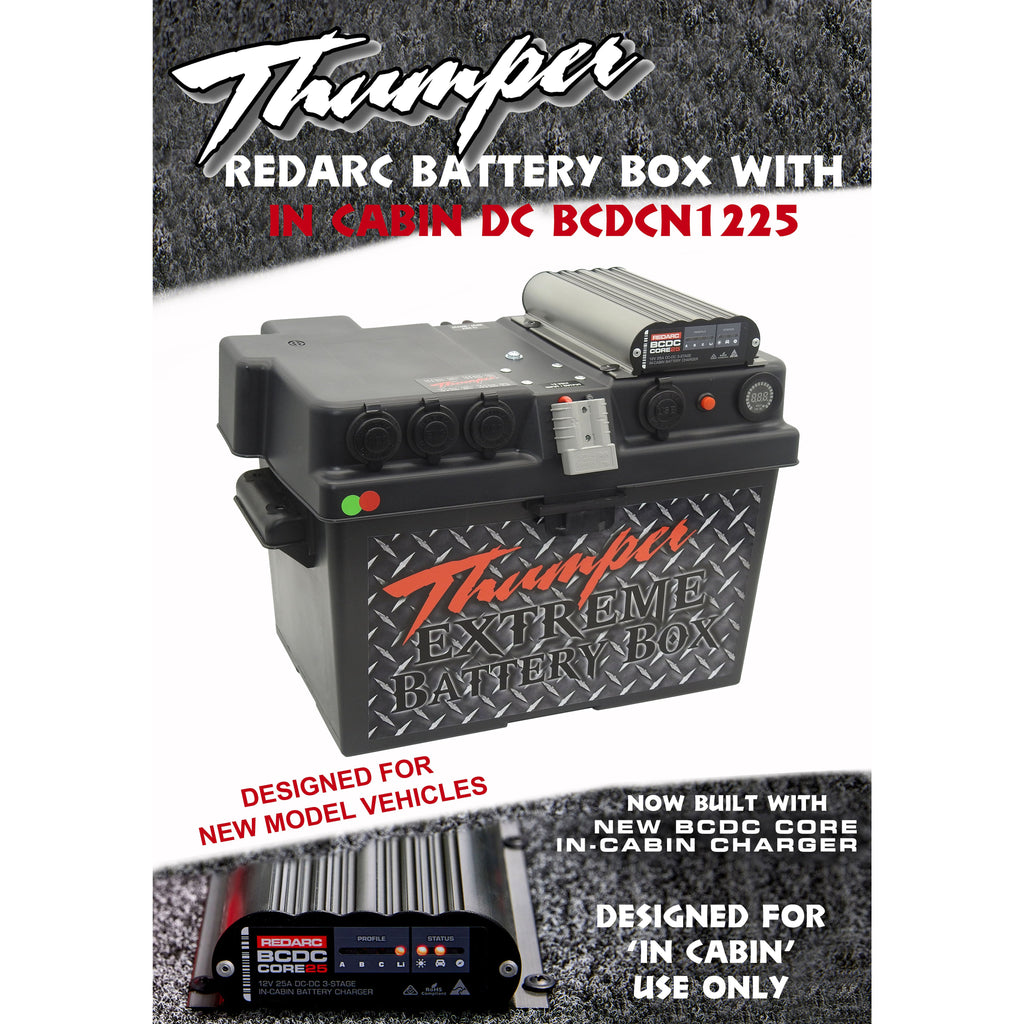

This box is not waterproof - designed for IN CABIN use only. Please look at our REDARC STD or REDARC DELUXE box for waterproof options
...
|
What is the difference between the CORE and the STANDARD Redarc BCDC1225? The Redarc CORE DC charger has been designed for strictly IN CABIN use! This DC charger is not designed to be mounted in locations exposed to moisture or harsh conditions. This particular battery box combination is perfect for the use INSIDE the vehicle or in a Caravan. |

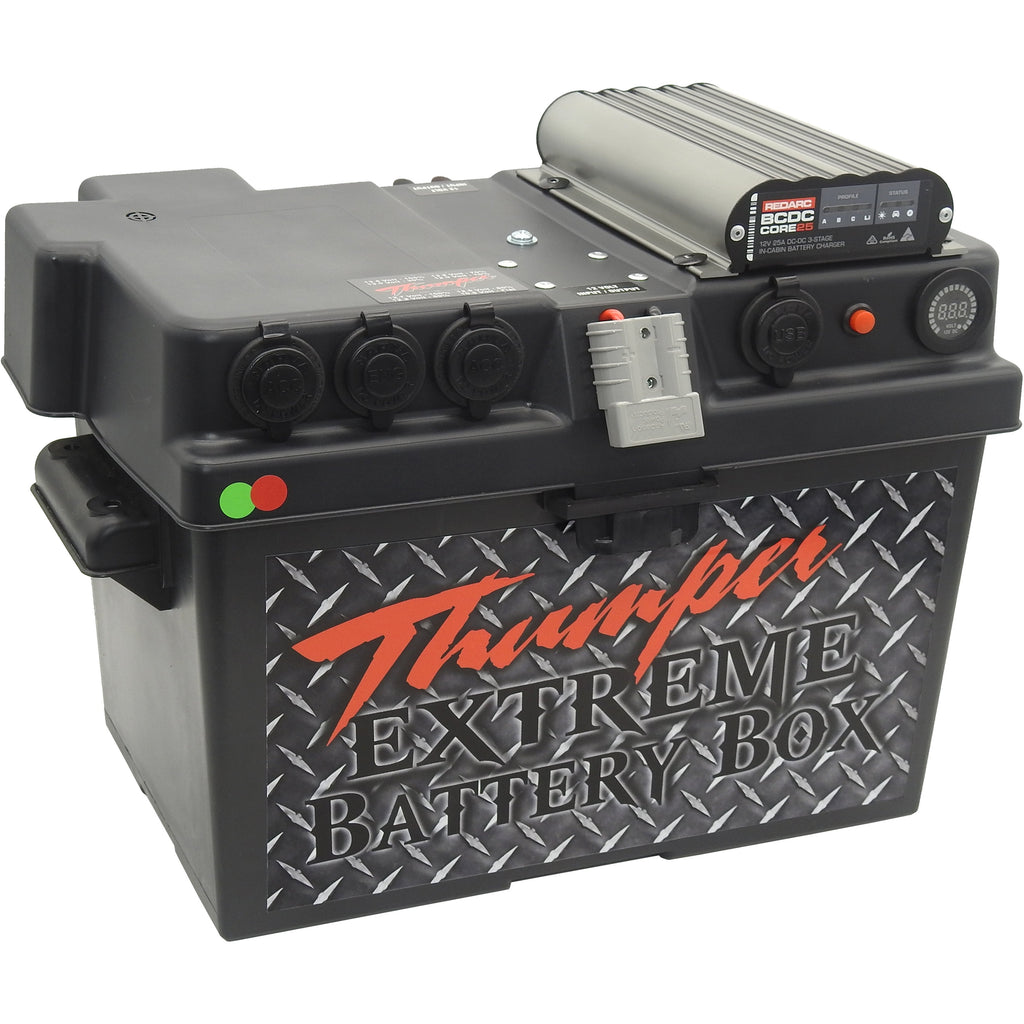

| Built with the Redarc BCDCN1225 DC charger |
| Designed to suit new model vehicles with smart / variable alternators |
|
|
|
|
|
|
|
|
This particular model suits a DUAL CHEMISTRY of both Lithium & AGM:
| 1 |
Redarc BCDC1225D 25Amp DC Battery charger (solar and vehicle compatible charge) - suitable for Lithium / Gel / AGM / Calcium |
| 2 | Marine grade Cigarette socket - rated to 16 Amps Includes rubber cap design to protect all sockets |
| 1 |
Engel Fridge type socket (2 prong design) - rated to 16 Amps |

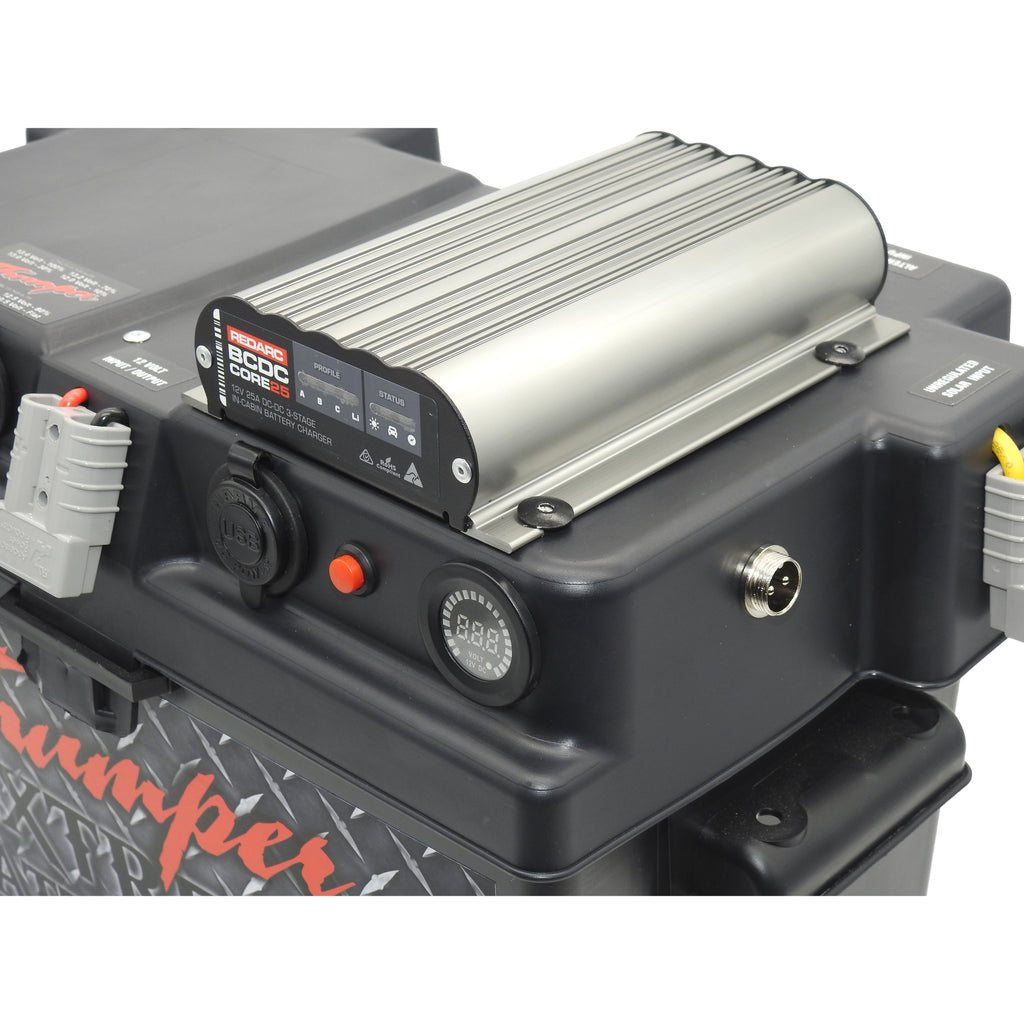

| 1 | Dual USB socket - rated to 2.2Amp (min rating) - used to illuminate the Volt meter gauge and activate the USB |
| 2 | 50 Amp Anderson connectors - Labelled INPUT/OUTPUT (one fitted to front of box and one on rear) |

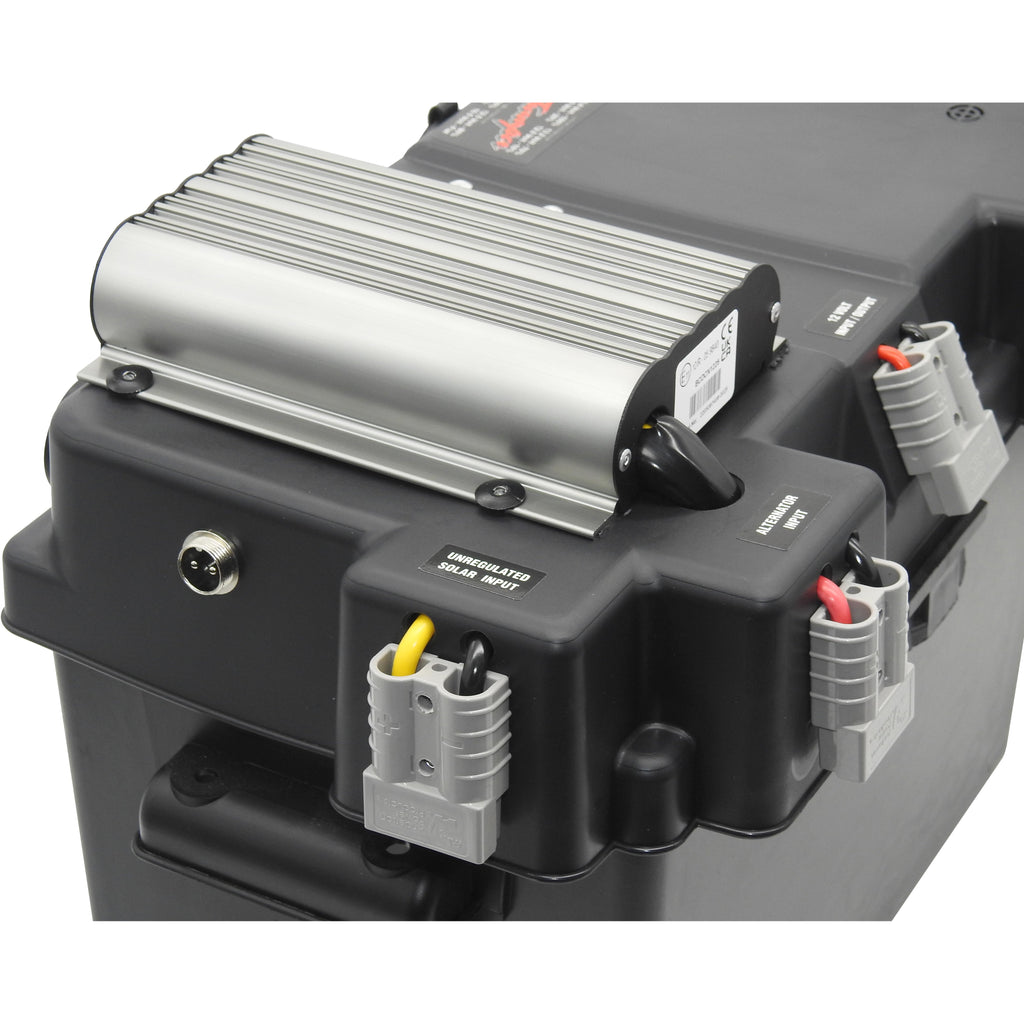

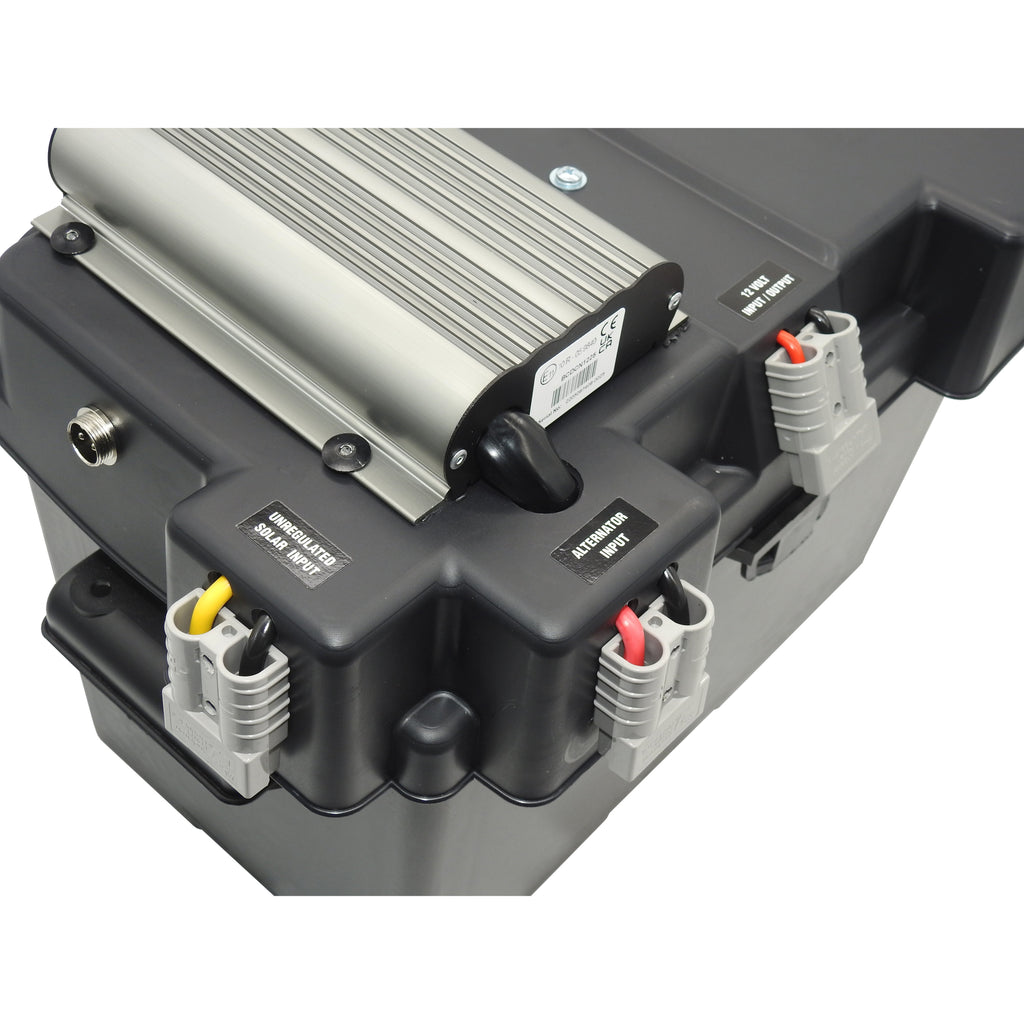

| 1 | 50 Amp Anderson connectors - designed purely for solar panel input - labelled "Unregulated solar input" |
| 1 | 50 Amp Anderson connectors - designed purely for vehicle (alternator) input - labelled "Alternator input" |
| 1 | All internal cabling to allow you to simply connect straight to the battery terminals |
| 1 | 2 year manufacturing warranty |
| Length |
330 mm |
| Width | 183 mm |
| Height | 220 mm (Base only - Lid allows more height) |
| Length |
410 mm |
| Width | 260 mm |
| Height | 280 mm |
The Loom includes:
(for vehicle charge line) WITH 50 Amp Anderson fitted
1 x 50Amp Automatic reset circuit breaker
(for connection off main vehicle battery for the charge line)
1 x 50 Amp Anderson connector (Genuine)
MADE IN SOUTH AUSTRALIA BY BLUE APPLE THUMPER
R.R.P $ 989.00 (Box and Loom)
___________________________________________________________
Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.
Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.
The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.
These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.
Specifications | TL-100BT
Features:
• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with chargers with an AGM or lithium setting
• For best results: Use of a lithium charger is recommended
• 5 year warranty
• Increased cycles compared to traditional lead acid
• Designed to be wired parallel
• Parallel connection is non-limited
• This battery is NOT designed for series linking
• This battery is NOT designed for starting purposes or under bonnet applications
• In built Bluetooth monitoring system!
*Please note that all upgrade options to BMS are modified after purchase and will incur 24 hours delay in dispatch time
Technical Specifications:
| Model No. | TL-100BT |
| Nominal Voltage | 12.8 V |
| Rated Capacity | 100 AH |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Bluetooth |
Yes |
Dimensions and Weight:
| Length | 328 mm |
| Width | 172 mm |
| Height (Total) | 220 mm |
| Weight | 9.75 Kg |
Operating Temperature Range:
| BMS High temp cut out / Reconnect | 80˚C / 50˚C |
| Discharge | -20˚C ~ 60˚C |
| Charge | -20˚C ~ 45˚C |
| Storage | -5˚C ~ 35˚C |
Charging Methods:
| Recommended Charge Current | 10 ~ 50 Amps |
| Max Charge Current | 70 Amps |
Discharge:
| Max discharge current (continuous) | 100 Amps *upgrade available |
| Peak discharge current (1-3 seconds) | 300 Amps |
| BMS Current cut off | >100.5A 10s |
| BMS Current cut off | >120.0A 3s |
| BMS Current cut off | >150.0A 1s |
| BMS Voltage cut off / Reconnect | 10.0V / 12.0V |
| Self Discharge per month: | ≤3% |
| Warranty | 5 years from date of purchase | as of June 2023 |
___________________________________________________________
Features:
• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with chargers with an AGM or lithium setting
• For best results: Use of a lithium charger is recommended
• 5 year warranty
• Increased cycles compared to traditional lead acid
• Designed to be wired as parallel OR series
• Parallel connection is non-limited
• Max series voltage is 48 Volt (max 4 series)
• This battery is NOT designed for starting purposes or under bonnet applications
• In built Bluetooth monitoring system!
*Please note that all upgrade options to BMS are modified after purchase and will incur 24 hours delay in dispatch time
Technical Specifications:
| Model No. | TL-120BT |
| Nominal Voltage | 12.8 V |
| Rated Capacity | 120 AH |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Bluetooth |
Yes |
Dimensions and Weight:
| Length | 328 mm |
| Width | 172 mm |
| Height (Total) | 220 mm |
| Weight | 10.95 Kg |
Operating Temperature Range:
| BMS High temp cut out / Reconnect | 80˚C / 50˚C |
| Discharge | -20˚C ~ 60˚C |
| Charge | -20˚C ~ 45˚C |
| Storage | -5˚C ~ 35˚C |
Charging Methods:
| Recommended Charge Current | 10 ~ 50 Amps |
| Max Charge Current | 80 Amps |
Discharge:
| Max discharge current (continuous) | 120 Amps *upgrade available |
| Peak discharge current (1-3 seconds) | 300 Amps |
| BMS Current cut off | >100.5A 10s |
| BMS Current cut off | >120.0A 3s |
| BMS Current cut off | >150.0A 1s |
| BMS Voltage cut off / Reconnect | 10.0V / 12.0V |
| Self Discharge per month: | ≤3% |
| Warranty | 5 years from date of purchase | as of June 2023 |
Bluetooth APP:
The App offers the ability to monitor and control:
|
|
Bluetooth App | Home screen - explained:
Bluetooth App | Control Screen - Explained:
The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.
Simply go into the CONTROL panel of your Bluetooth App and press:
CHARGE SWITCH - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.
DISCHARGE SWITCH - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
The Thumper is a Lithium LiFePO4 Prismatic battery.
Yes! The Thumper Lithium is designed to be continually charged and discharged fr the purposes of running all accessories, such as fridges, lighting, inverters and more.
Both the Thumper Lithium 100 AH & 120 AH have a continual discharge rate of 100Amps (1200watts). The batteries also have a MAX peak discharge of 300 Amps for 1-3 seconds (surge capacity).
This means that if you are using only one battery, then the maximum Inverter size that would successfully run on the Thumper 100 AH / 120 AH would be a 1200watt.
The Thumper Lithium 120 AH has a continual discharge rate of 120Amps (1440watts) as standard. The batteries also have a MAX peak discharge of 300 Amps for 1-3 seconds (surge capacity).
This means that if you are using only one battery, then the maximum Inverter size that would successfully run on the Thumper 120 AH would be 1440 watts.
Need a bigger BMS? We can upgrade our BMS boards to higher capacity, so you can run larger appliances from the one battery! See our drop down link for upgrade options on the BMS.
How many batteries do I need to run my Inverter?
150 watt Inverter ~ 1200 watt Inverter = 1 Battery with a 120 Amp BMS
1201 watt Inverter ~ 2400 watt Inverter = 1 Battery with 200 Amp BMS or 2 x Batteries with 100 Amp / 120 Amp BMS
2401 watt Inverter ~ 4800 watt Inverter = 2 x Batteries with 200 AMP BMS or 3 x Batteries with 120 Amp BMS
What would happen if I run over the discharge rating?The Thumper Lithium is protected internally with a BMS (Battery Management System), meaning that it will protect the battery against overcharge / low voltage and excessive discharge drain.
Example: If you connect a 2000 watt Inverter (166Amp total draw) to the Thumper Lithium battery, then the battery would allow you to run UP TO 1200watts (100Amps) from the Inverter. If the draw exceeded this 100 Amps, then the BMS inside the battery would disconnect and cease providing power to your system.
Once the load has been disconnected from the battery, the BMS will reconnect itself within a few seconds and the battery will be ready to use again.
Can I mount the Lithium battery on its side?Yes! The Lithium battery is completely sealed and is designed to allow you to mount on any side.
As with any Lithium battery, it is recommended (when possible) to use a lithium battery charger. Lithium Battery charger chargers charge the battery at a slightly higher voltage and run through compatible charging stages to suit the Lithium's chemistry. Charging your battery with a Lithium compatible charger will help to prolong the life of your Lithium battery by ensuring it is receiving a full rate of charge.
In stating the above, the Thumper Lithium range of batteries are designed to be able to charge from an AGM battery setting.
Can I use my portable solar panel on the Thumper Lithium Battery?The Thumper Lithium is designed to charge from any system that is compatible to charge from either a Lithium or AGM setting.
Providing your solar regulator is designed to suit Lithium or AGM chemistry, then it would be perfectly suitable to charge from your portable solar panel.
The Thumper Lithium Battery will not charge from an unregulated panel as the internal BMS will disconnect any input charge that exceeds 15 Volts.
What is the life expectancy of the Thumper Lithium battery?The Thumper Lithium is rated over cycles. A cycle is the process of charging and discharging the battery. The Thumper Lithium is rated to a minimum of 2000 cycles.
Yes! Both the Thumper 100 AH & 120 AH are designed to be wired in parallel and are non-limited. This means you can build your 12 volt system as large as you desire with use of these batteries!
Can I link a Thumper Lithium 100 AH to a 120 AH ?
Yes, as long as they are both Thumper Lithium batteries, then they can be linked in parallel!
Wiring in series converts a 12 Volt battery into either a 24Volt / 36Volt or 48Volt system (depending on how it is wired)
The Thumper 120 AH runs a more sophisticated internal BMS, which makes it perfectly suited to run in series UP TO 48 Volts. This battery will allow you to build a 24 Volt / 36 Volt or 48 Volt system.
We now offer an upgrade option for a 200 Amp START BMS (only available by Phone inquiry 08 8391 3121)
What voltage is fully charged in a Lithium Battery?Approx 13.2 ~ 13.4 Volts is 100% charged in a Lithium battery.
The use of a Lithium compatible gauge, such as the Victron SmartShunt, is recommended in order to accurately monitor the state of charge in a Lithium battery set up.
Using voltage to monitor the state of charge in a lithium battery is unfortunately not accurate.
As the voltage in a lithium battery remains higher throughout the cycle life of the battery, it means that Thumper Lithium will read in the 12's when it is nearing the end of it's capacity. When the remaining capacity of the battery has been exhausted, the battery's BMS will disconnect and the battery will shut down.
The short answer to this is Yes, and No.
A voltage meter will provide you an 'indication' on the state of charge on a lithium battery. However, the slightest change in the digital reading of voltage can mean over 50% of your battery's capacity.
The most accurate method to monitor this lithium battery is by the use of the free bluetooth app available in your App store.
What does the 12.8V on the front of the battery represent?Much the same as how a lead acid battery is configured, The Thumper lithium battery is constructed using a multiple of smaller cells linked internally.
Now with 5 year warranty from date of original purchase | as of June 2023
