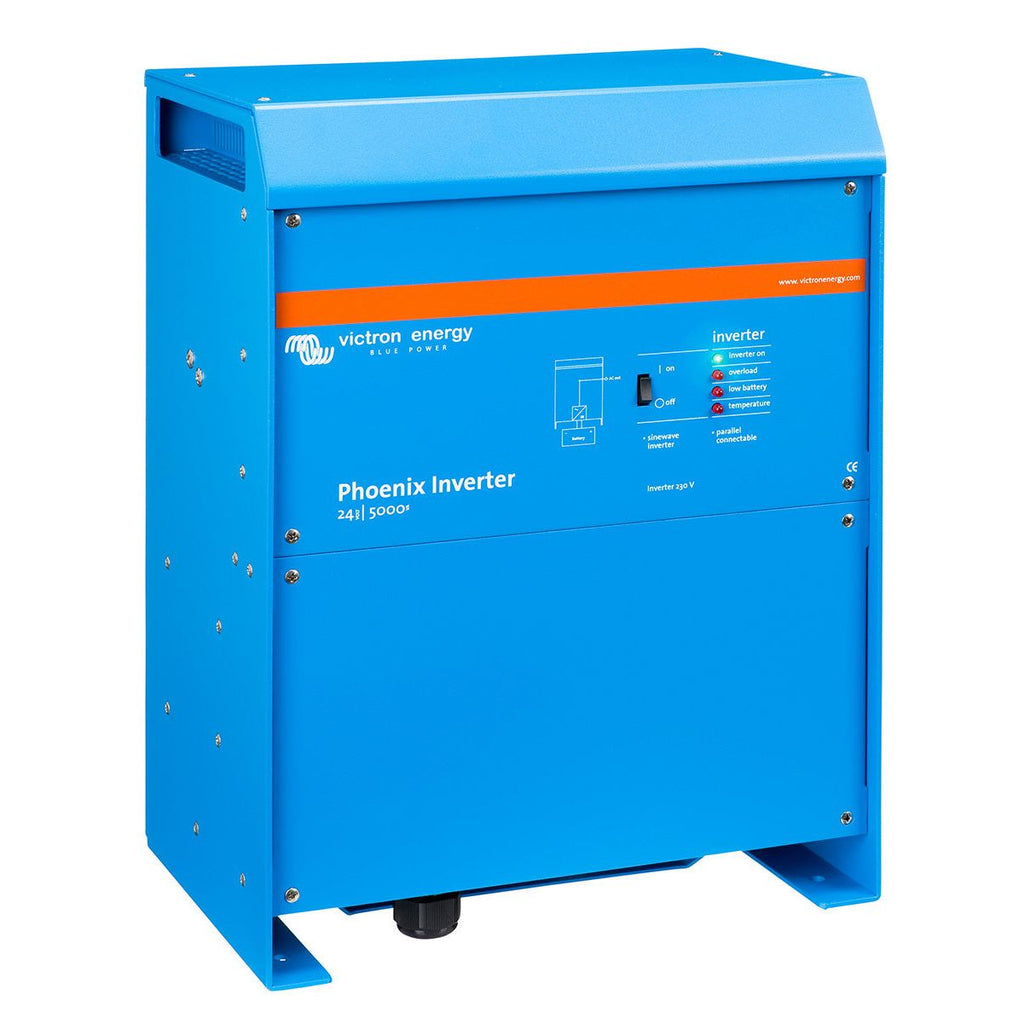

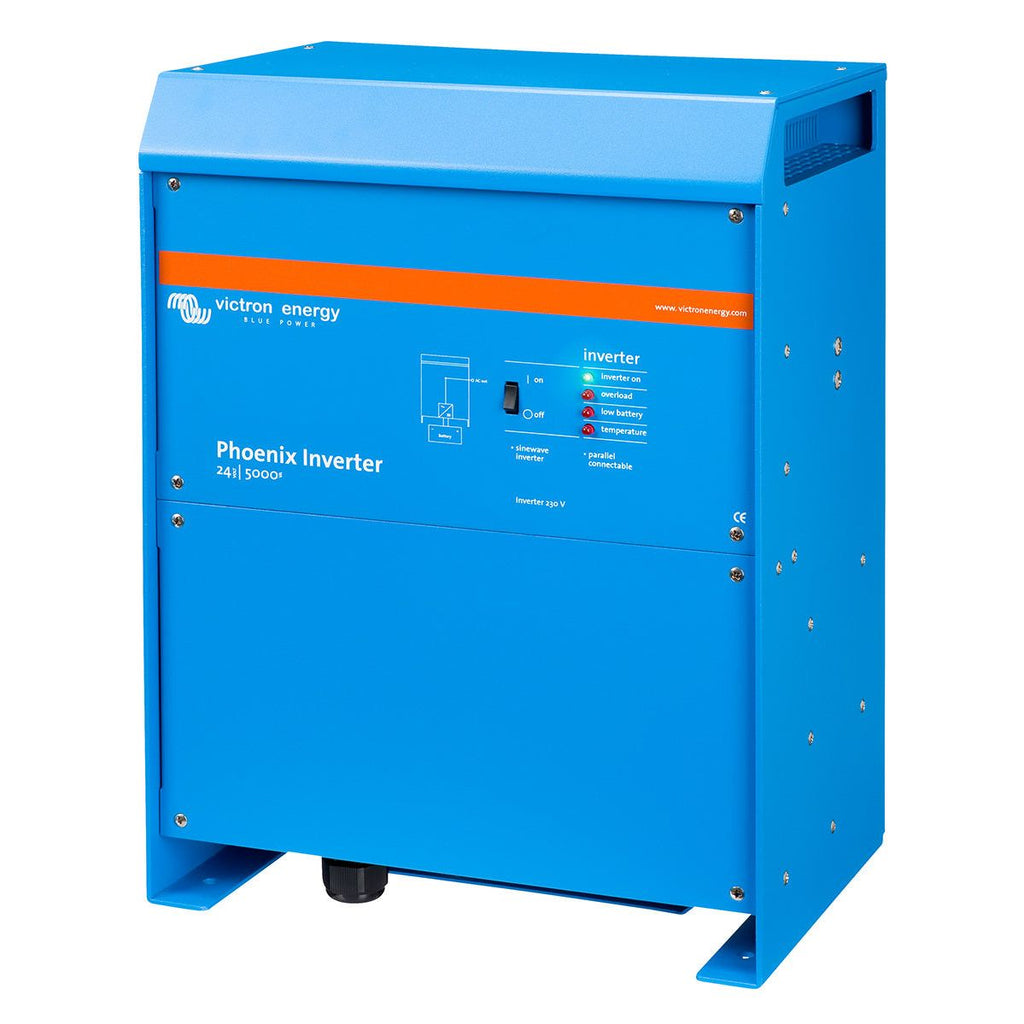

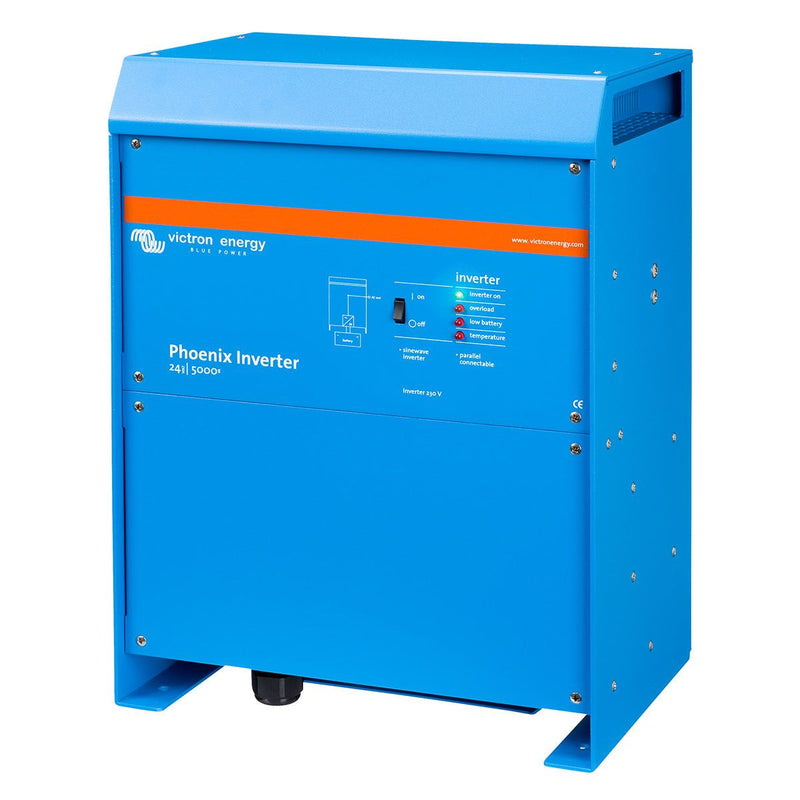

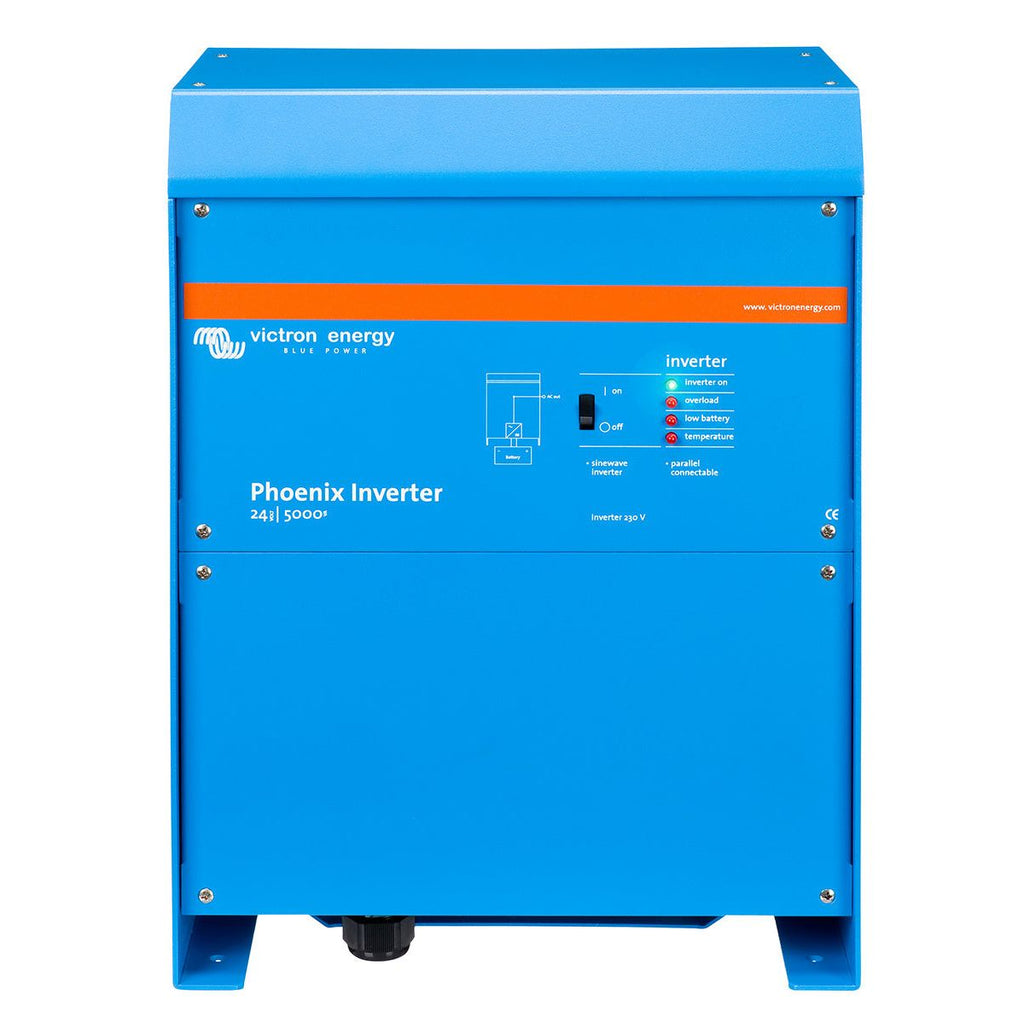

Phoenix Inverter 24/5000
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is its very high start-up power. Conventional high-frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Parallel and 3-phase operation capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in a 3-phase configuration is also possible.
These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is the Victron MK3- USB VE.Bus to USB interface. Together with the free downloadable VictronConnect or VEConfigure software, the parameters of the inverters can be customised. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.

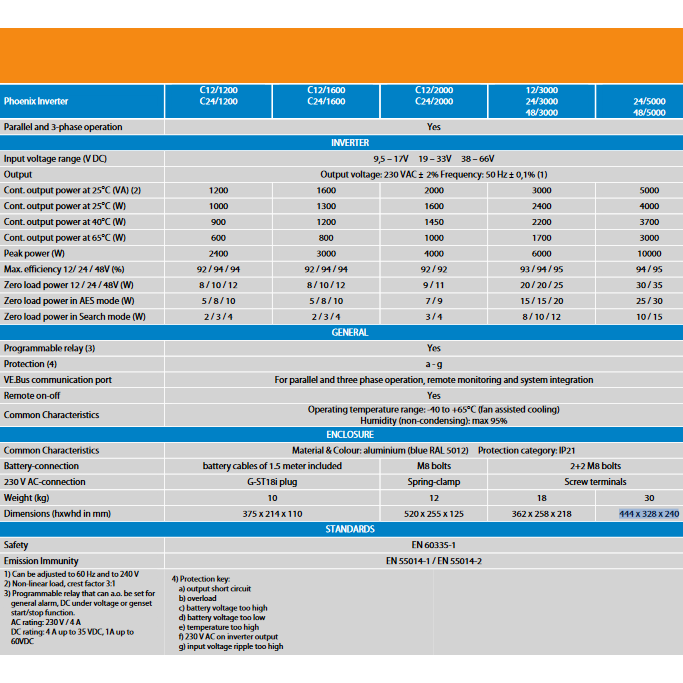

- Input voltage range 19 - 33VDC
- Output 230VAC +/- 2% 50Hz +/- 0.1% (adjustable to 240V 60Hz)
- Continuous output power @ 25degC 5000VA 4500W
- Peak power 10kW
- Efficiency 94%
- Zero-load power 25W, in search mode 5W
- Programmable relay which can be set for general alarm, DC Undervoltage or Genset start signal function
- Enclosure made from aluminium, blue RAL5012, IP21 rating
- Dimensions 444 x 328 x 240 (HxWxD) in mm
- Weight 30kg
