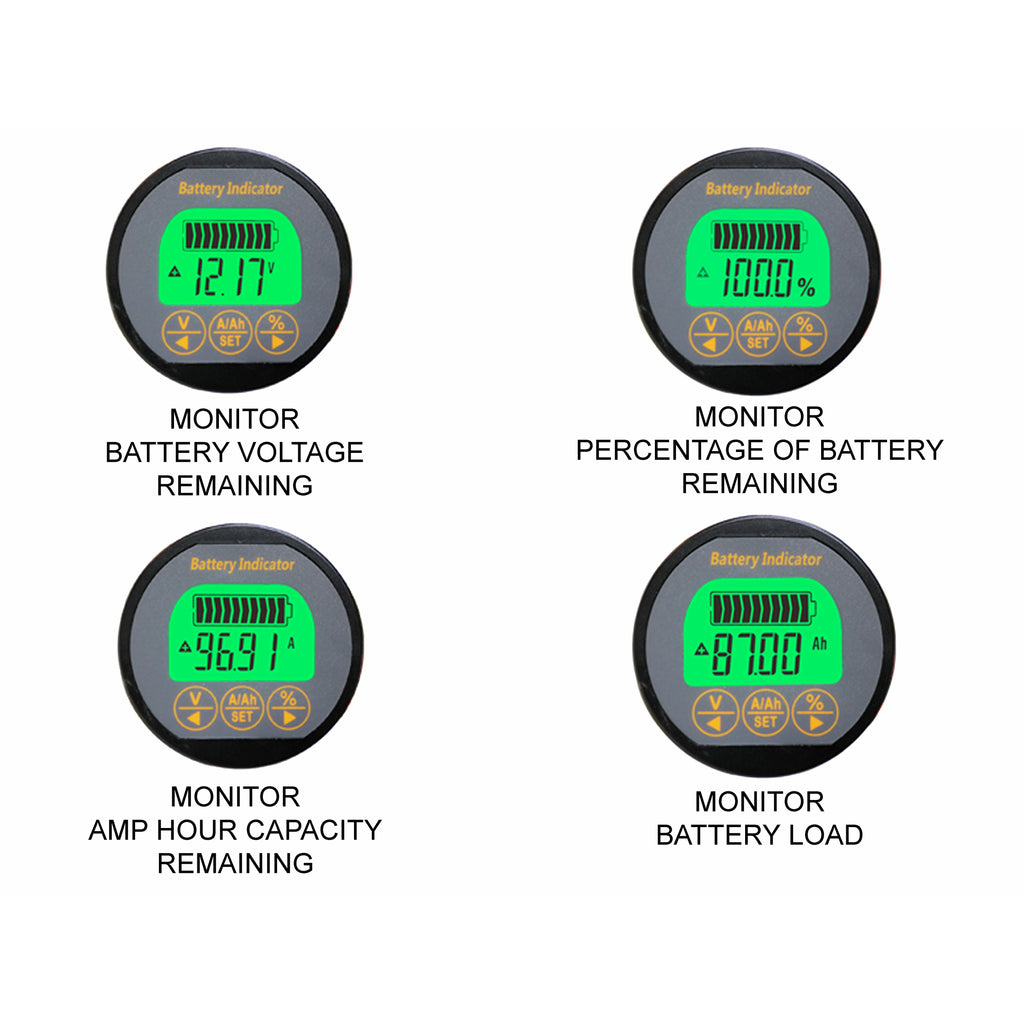

This digital meter is truly a one of a kind. When installed correctly, the meter will allow the user to to monitor:
- Voltage of the battery
- Current (Input or Output)
- Remaining capacity of battery in percentage
This particular gauge is uniquely suitable for monitoring different chemistry batteries, such as LITHIUM or lead acid batteries (AGM / GEL / Wet-cell batteries).
With an operating parameter 8 - 80 Volts, this unit is suitable for 12 Volt / 24 Volt / 36 Volt / 48 Volt systems.

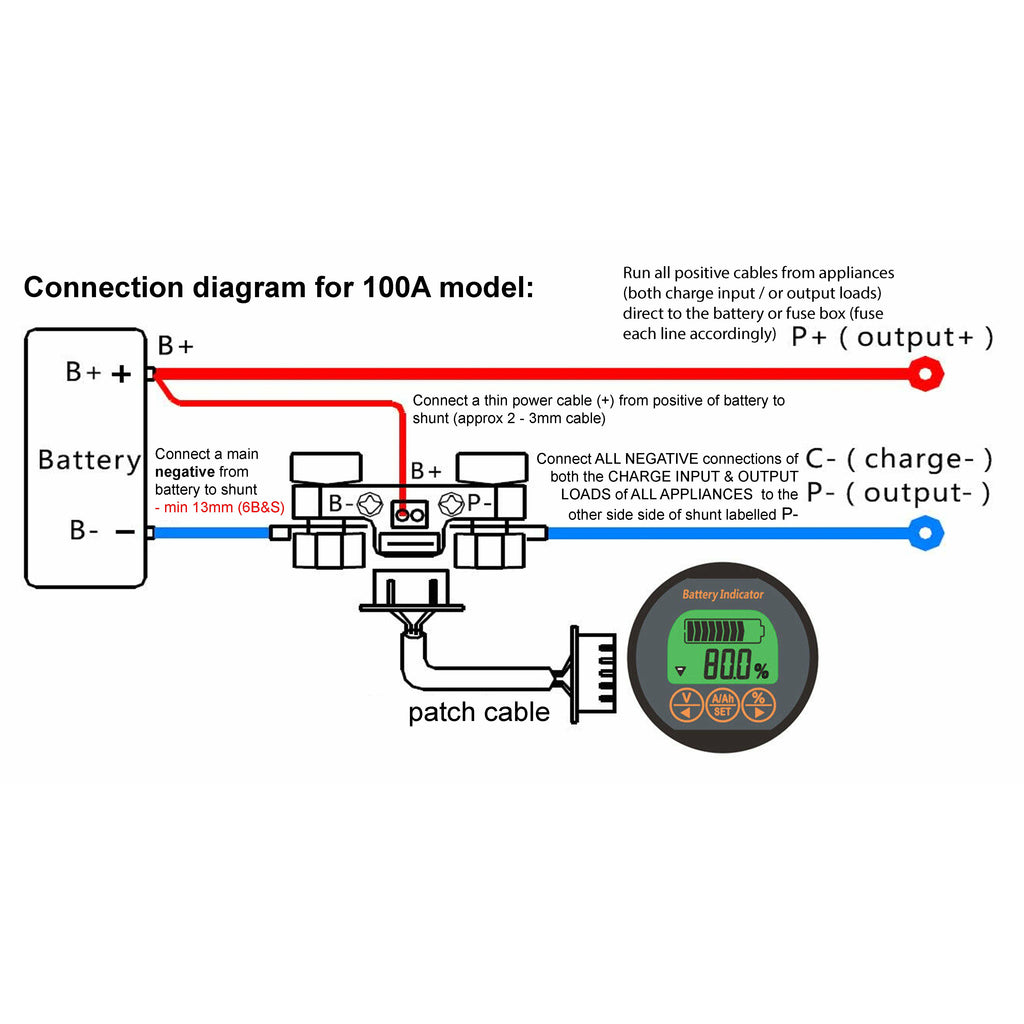

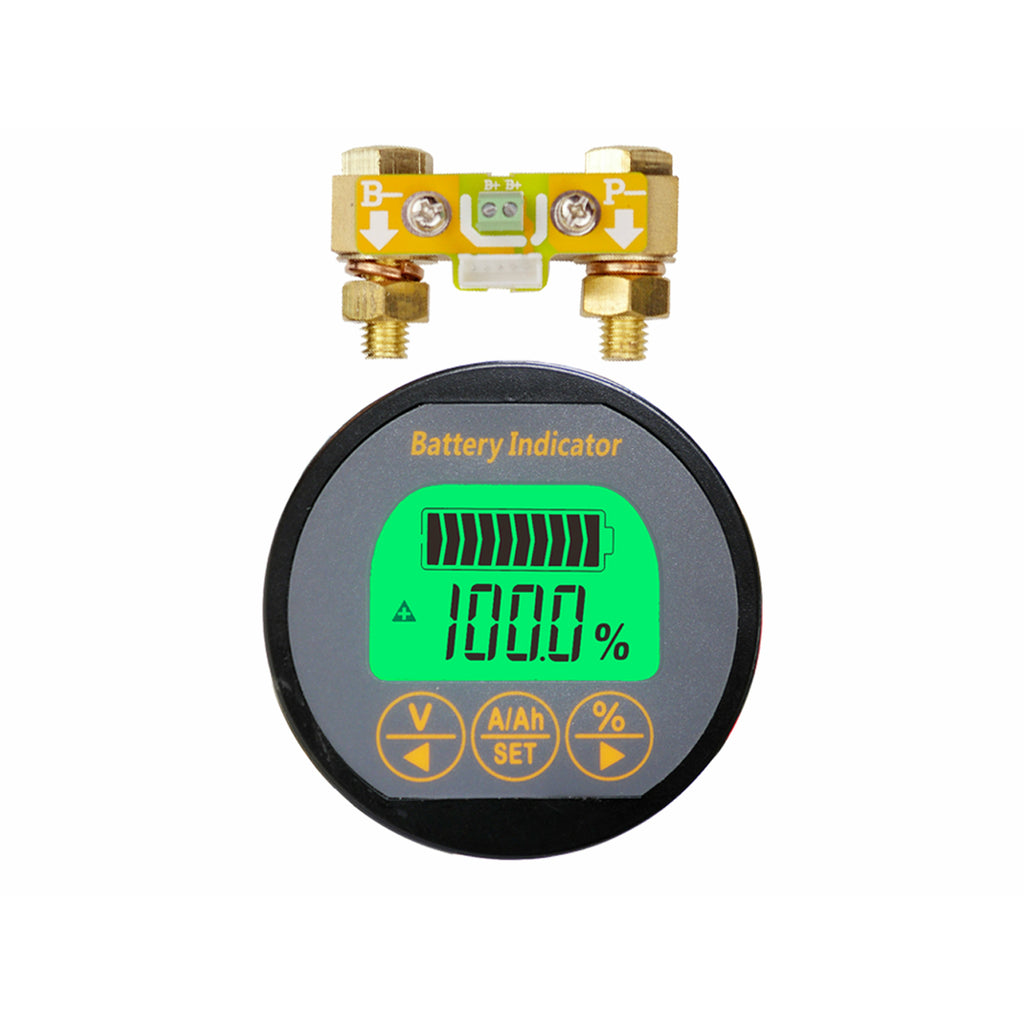

Supplied with a 100 Amp Shunt, patch cable and digital gauge; the gauge is extremely easy to wire to any battery system. Simply follow the provided wiring diagram below:
|Current||100 Amps (available in higher capacities also)|
|Operating voltage||DC 8V - 80V|
|Overall size||59 X 20mm
|Working power consumption||10.mA (Max 12.0mA)
|Standby power consumption||0.5mA (Max 0.6mA)|
|Sleep power consumption||50uA (Max: 60uA)|
|Voltage acquisition accuracy||+/-1.0%|
|Current acquisition accuracy||+/-1.0%|
|Ambient temperature range||0 - 35C|
|Back light on current (50A)
||30mA (Max 60mA)|
|Battery capacity setting value||0.0 - 999 A|
1.Residual capacity of battery (Ah or mAh)
3.Battery voltage remaining
4.Battery current remaining
