Description

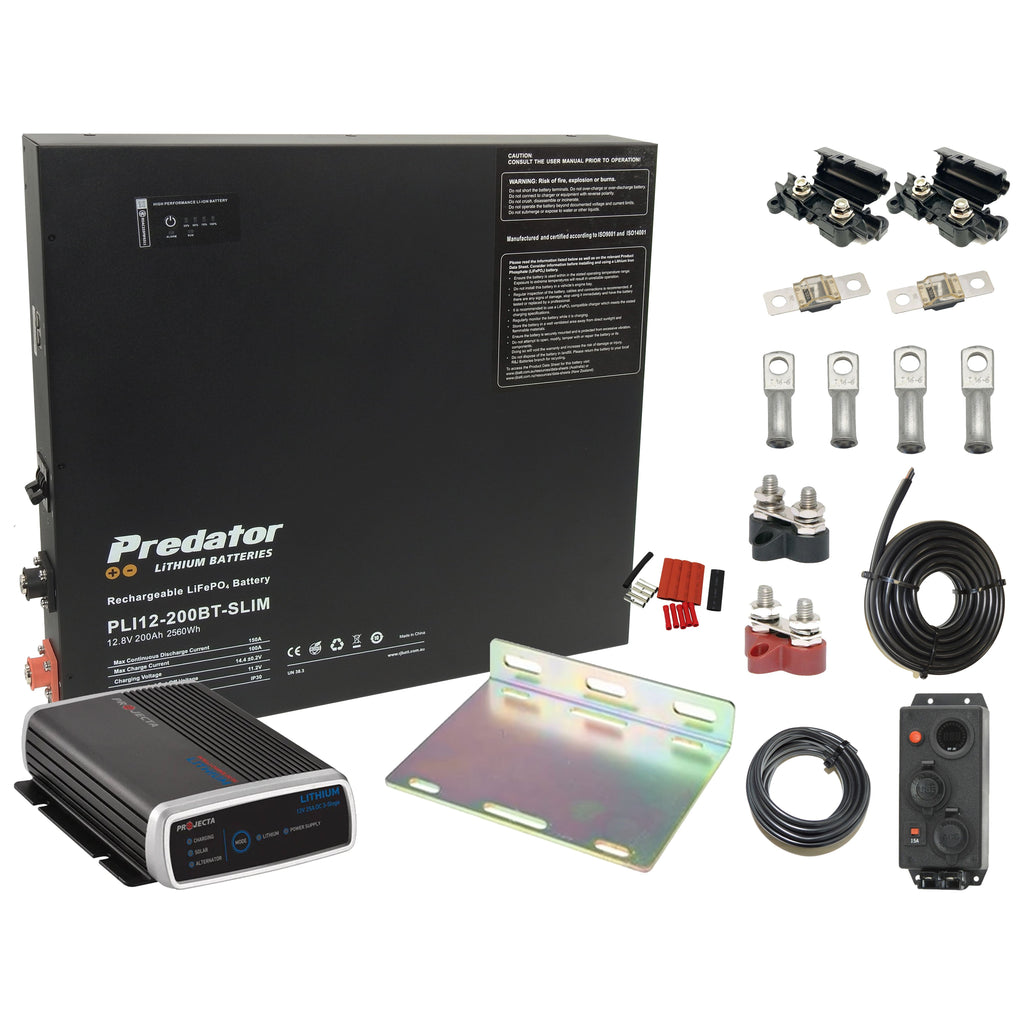

This package includes the following components:
| 1 x Predator Slim line 200 AH Lithium | 1 x 6mt length 8B&S Twin Core cable |
| 1 x Projecta PDC25 Battery Charger | 1 x 6mt length 6mm automotive cable |
| 2 x In line Midi Fuse Holder | 1 x CL-10-8mm lugs |
| 2 x Midi Fuse to suit holder 40 Amp | 1 x CL-10-6mm lugs |
| 1 x DC Mount BKT1002 | 1 x P2181 Distribution post (Black) |
| 1 x Control Box Volt Cig USB Anderson # 42 | 1 x P2180 Distribution post (Red) |
| 1 x Heatshink pack with 8mm joiners HSL-1 |
Predator Slimline batteries are packed with several features making them ideal for caravans, campers and 4WDs. They are especially useful for deep cycle applications with space restrictions.
- Slim line case
The 70mm case design allows these batteries to be installed in locations with limited space like behind the rear seats of dual cab utility vehicles. The batteries are also suited for deep cycle applications where high cycle life and low weight is required.
- High cycle life
Predator Slimline batteries deliver over 3500 cycles at 80% Depth of Discharge (DoD) as well as fast recharge capability. In comparison to lead acid batteries, LiFePO4 batteries have greater usable capacity which means you can enjoy long-lasting and consistent power with a fast recharge.
- Safe and reliable
The powerful LiFePO4 chemistry behind the Predator Slimline series is well regarded for its safety profile. LiFePO4 batteries are incombustible and can operate over a wide temperature range. The integrated Battery Management System (BMS) ensures that Predator Slimline batteries are safe and stable.
- Bluetooth monitoring
Another useful feature is Bluetooth connectivity. Predator Slimline batteries allow users to connect to the Predator Bluetooth App to view real time information. Monitor vital information like the battery status, voltage, State of Charge, temperature and individual cell voltage to ensure the battery is ready for the journey ahead.
What is the 200 AH perfect for?
With a 200 AH capacity, this unit is the perfect option for running your compressor driven fridge or general 12 volt appliances! Connect with up to a 1800 watt Inverter to Induction cooktops or those other desirable 240 volt appliances when on the road!
The average 40-50Lt compressor type fridge will operate on the 200 AH for approx. 6-7 days independent of charging.
The 200 AH is equipped with an 150A internal Battery Management System (BMS). This is an ideal size to allow the user the ability to draw loads up to 1800 watts.
Don't need this much power? Why not check out the Predator 100 AH, which is equipped with a 80A BMS and will run loads up to 960 watts.
Specifications:
| Nominal Capacity | 200 Ah |
| Nominal Energy | 2560 Wh |
| Nominal Voltage | 12.8V |
| Charging Voltage | 14.4 ±0.2V |
| Float Charge Voltage (for stand-by use) | 13.6V |
| Maximum charge current | 150A |
| Recommended charge current | ≤ 100A |
| Maximum discharge current | 150A Constant |
| Discharge cut-off voltage | 11.2V |
| Cycle life | 3500 cycles at 80% DOD |
| IP rating | IP30 - internal installation only |
| Dimensions (L x W x H), ±2mm | 600mm x 500mm x 70mm |
| Nominal Weight | 27 kg |
| Bluetooth Connectivity | Yes, via App (search Predator Bluetooth) |
| Operation Temperature Charge | 0oC to +50oC (0-95% RH) |
| Discharge | -20oC to +55oC (0-95% RH) |
| Self-discharge Residual Capacity | ≤ 3% /month, ≤ 15% /year |
| Recover Capacity | ≤ 1.5% /month, ≤ 8% /year |
| Storage Environment ≤ 1 month | -20oC to +60oC, 5% to 75% RH |
| ≤ 3 months | -10oC to +45oC, 5% to 75% RH |
| Recommended | +15oC to +35oC, 5% to 75% RH |
| Parallel connection | Yes, up to 4 x batteries |
| Series connection | Yes, up to 4 x batteries (take caution) |
| Combination of Parallel / series connection | No |
Download specification brochure HERE
Projecta PDC25
Introducing Projecta's new model PDC25 25 Amp DC to DC Charger.
The Pro-Charge DC is the evolutionary upgrade from the traditional IDC25 and IDC25L range of in vehicle battery chargers. Now offering multi-chemistry design, the Pro-charge has the ability to charge both traditional lead acid batteries, such as deep cycle AGM, and now Lithium LiFePO4 batteries.
Equipped with a simple plug and plug quick connect Anderson for connection to the alternator charge line, output to your AUX battery, and a dedicated line to your solar panel; it has never been easier to fit a DC Battery Charger to the vehicle!
Home of 12 Volt Online have gone one step further for ease of use and have fitted a 3-way Anderson connector on the alternator input to allow for and easy connection of the low voltage ignition activated cable.
In addition, Home of 12 Volt Online are including a bonus Red and Blue Anderson connector with every purchase so you have the connections you need to complete your installation!
Need a full wiring kit? No problem! Why not check out our upgrade option for a QC-Loom, including all necessary cables you will require for an in vehicle installation.
Specifications:
| Part No. | PDC25 |
| Warranty | 5 years from date of purchase |
| Alternator Input voltage | 9 - 32 Volts |
| Solar Input voltage | 28Vdc |
| Solar Regulator | Yes - MPPT 25 Amp |
| IP rating | IP67 |
| Output Current | Input 9-11Vdc 20A | Input 11V-32dc 25A |
| Charge control | 142V(Lithium), 14.4V(AGM), 14.7(WET), 14.7V(CAL) |
| Smart Alternator | 12V Vehicle: Turn On: 12.2 - 20V Turn Off: <11.9V |
| 24V Vehicle: Turn On >24.4 - 32V, Turn Off <24V | |
| Conventional Alternator | 12V Vehicle: Turn On: 13.4 - 20V Turn Off: <12.8V |
| 24V Vehicle: Turn On >26.8 - 32V, Turn Off <25.6V | |
| Package contains | 25 Amp DCDC Charger with MPPT Solar (Plug and Play) |
|
Red and Blue Anderson fitted to charger |
|
|
3 way Anderson connector fitted to charger This will fit a standard 50 Amp Anderson connector without using the ignition lead |
|
|
1 x Additional Blue Anderson (will only match Blue) 1 x Additional Red Anderson (will only match Red) |
