Description
Note: This is a PRE-ORDER purchase for dispatch approx DECEMBER 4th
Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.
Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.
The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.
These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.
Features:
• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with chargers with an AGM or lithium setting
• For best results: Use of a lithium charger is recommended
• 3 year warranty
• Increased cycles compared to traditional lead acid
• Parallel connection max 4 cells
• Series connection max 4 cells
• This battery is NOT designed for starting purposes
• This battery is NOT designed for under bonnet application
Technical Specifications:
| Model No. | TLS-100 |
| Nominal Voltage | 12.8 V |
| Rated Capacity | 100 AH 1280wh |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Bluetooth connectivity | NO (see Platinum range) |
Dimensions and Weight:
| Length | 328 mm |
| Width | 172 mm |
| Height (Total) | 220 mm |
| Weight | 11.95 Kg |
Operating Temperature Range:
| BMS High temp cut out / Reconnect | 60˚C / 45˚C |
| Discharge | -10˚C ~ 60˚C |
| Charge | -10˚C ~ 45˚C |
| Storage | -5˚C ~ 35˚C |
Charging Methods:
| Recommended Charge Current | 10 ~ 50 Amps |
| Max Charge Current | 50 Amps |
| Recommended Charging voltage | 14.4 - 14.6V |
Discharge:
| Max discharge current (continuous) | 100 Amps |
| Peak discharge current (1-3 seconds) | 300 Amps |
| BMS Current cut off | >100.5A 10s |
| BMS Current cut off | >120.0A 3s |
| BMS Current cut off | >150.0A 1s |
| BMS Voltage cut off / Reconnect | 10.5V / 12.2V |
| Self Discharge per month: | ≤3% |
| Discharge capacity | 97% |
| Cycle capacity | 3000 |
| Warranty | 3 years from date of purchase |
_________________________________________________________________________
__________________________________________
The Thumper is a Lithium LiFePO4 Prismatic battery.
Does the TLS-100 have Bluetooth connectivity?
No.
The TLS-100 does not hold Bluetooth ability.
Note: Thumper offer a Platinum range of batteries, that offer a BLUETOOTH BMS. Only the Thumper Platinum is a Bluetooth battery
See Platinum option TL100 here
Is the Thumper Lithium a Deep cycle?Yes! The Thumper Lithium is designed to be continually charged and discharged for the purposes of running all accessories, such as fridges, lighting, inverters and more.
The Thumper Lithium 100 AH holds a continual discharge rate of 100Amps (1200watts).
The maximum Inverter size that would successfully run on the Thumper 100 AH = 1200watts.
How many TL100S batteries would I need to run my Inverter?
150 watt Inverter ~ 1200 watt Inverter = 1 Battery
1201 watt Inverter ~ 2400 watt Inverter = 2 Batteries
2401 watt Inverter ~ 3600 watt Inverter = 3 Batteries
Note: Thumper offer a Platinum range of batteries, that allow for an upgrade of the BMS board in the battery. The Platinum 100 AH may have the BMS board upgraded to 200Amp, resulting in the one battery being capable of running a 2400watt discharge load.
See Platinum option TL100 here
What would happen if I run over the 100 Amps discharge rating?The Thumper Lithium is protected internally with a BMS (Battery Management System), meaning that it will protect the battery against overcharge / low voltage and excessive discharge drain.
Example: If you connect a 2000 watt Inverter (166Amp total draw) to the Thumper Lithium battery, then the battery would allow you to run UP TO 1200watts (100Amps) from the Inverter. If the draw exceeded this 100 Amps, then the BMS inside the battery would disconnect and cease providing power to your system.
Once the load has been disconnected from the battery, the BMS will reconnect itself within a few seconds and the battery will be ready to use again.
Can I mount the Lithium battery on its side?Yes! The Lithium battery is completely sealed and is designed to allow you to mount on any side.
As with any Lithium battery, it is recommended (when possible) to use a lithium battery charger. Lithium Battery charger chargers charge the battery at a slightly higher voltage and run through compatible charging stages to suit the Lithium's chemistry. Charging your battery with a Lithium compatible charger will help to prolong the life of your Lithium battery by ensuring it is receiving a full rate of charge.
In stating the above, the Thumper Lithium range of batteries are designed to be able to charge from an AGM battery setting.
Can I use my portable solar panel on the Thumper Lithium Battery?The Thumper Lithium is designed to charge from any system that is compatible to charge from either a Lithium or AGM setting.
Providing your solar regulator is designed to suit Lithium or AGM chemistry, then it would be perfectly suitable to charge from your portable solar panel.
The Thumper Lithium Battery will not charge from an unregulated panel as the internal BMS will disconnect any input charge that exceeds 15 Volts.
What is the life expectancy of the Thumper Lithium battery?The Thumper Lithium is rated over cycles. A cycle is the process of charging and discharging the battery. The Thumper Lithium standard model is rated to 3000 cycles.
Yes! The Thumper Lithium Standard 100 AHis designed to be wired in parallel up to 4 x cells (max 400 AH).
Can I wire the Thumper Standard Lithium in Series?Wiring in series converts a 12 Volt battery into either a 24Volt / 36Volt or 48Volt system (depending on how it is wired)
The Thumper 100 AH is designed to run in series UP TO 48volts (max 4 cells)
Can the Thumper Lithium Battery be used for starting purposes?No.
Approx 13.4 Volts is 100% charged
What voltage is FLAT in the Thumper Lithium BatteryUsing voltage to monitor the state of charge in a lithium battery is unfortunately not accurate.
Approx Voltages:
13.4V = 100% | 13.2V = 70% | 13.0V = 30% | 12.0 Volts = 10%
The short answer to this is Yes, and No.
A voltage meter will provide you an 'indication' on the state of charge on a lithium battery. However, the slightest change in the digital reading of voltage can mean over 50% of your battery's capacity.
What does the 12.8V on the front of the battery represent?Much the same as how a lead acid battery is configured, The Thumper lithium battery is constructed using a multiple of smaller cells linked internally.
3 years from date of original purchase
_________________________________________________________________________
__________________________________________

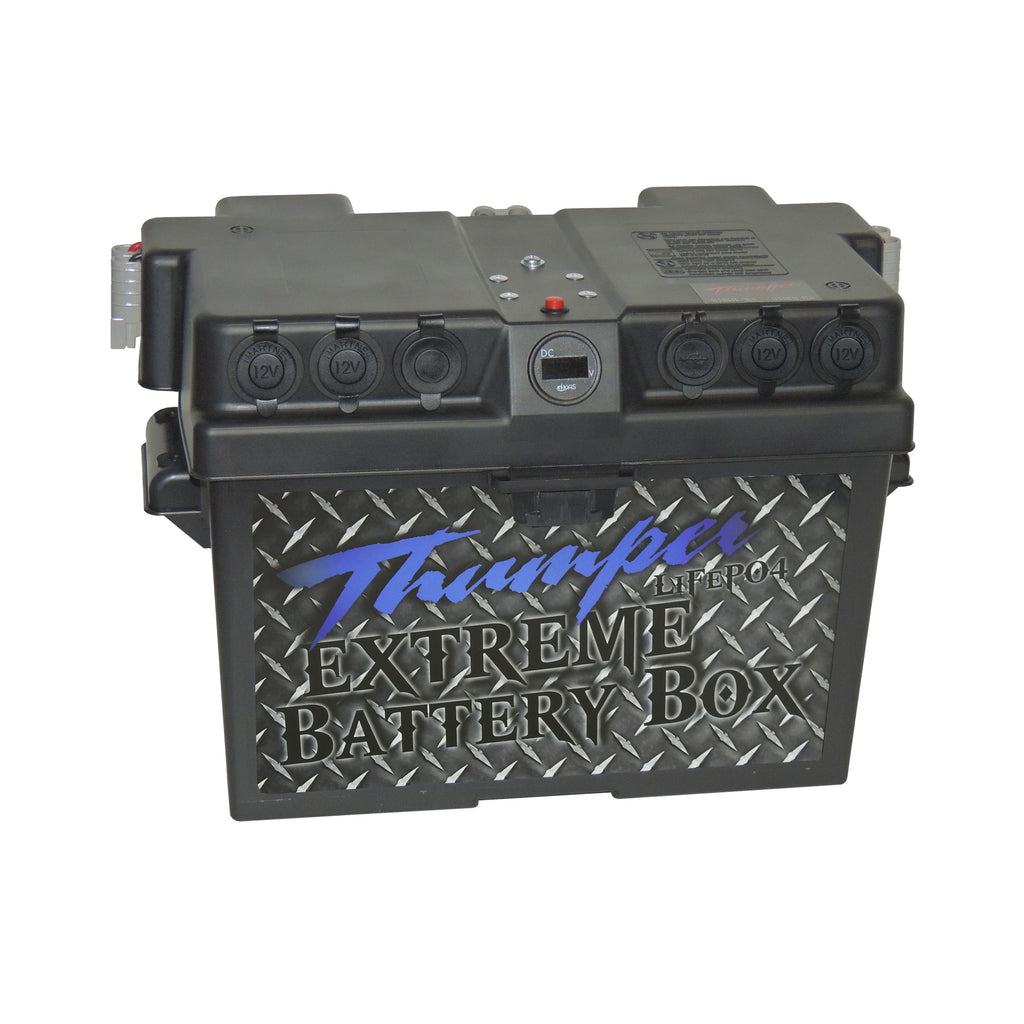

Thumper Elite BATTERY BOX - BLUE
Internal Dimensions of Battery Box
Length - 340mm
Width - 183mm
Height - 220 mm (base only - lid allows for further height)
External Dimensions of Battery Box
Length - 410mm
Width - 260mm
Height - 280mm
* Dimensions includes all protruding outlet sockets *
MADE IN SOUTH AUSTRALIA BY BLUE APPLE THUMPER
R.R.P $ 239.00
4 x Marine grade Cigarette type socket - rated to 16 Amps
Includes rubber cap design to protect all sockets.
1 x Merit type socket - rated to 15 Amps
Includes rubber cap design to protect all sockets
1 x Dual USB adaptor
- rated to min of 2.5 Amp 5 volt
3 x 50 Amp Anderson connectors
1 x LCD Digital Volt meter gauge
Allows for accurate voltage reading of your battery (3volt ~ 30 Volts)
1 x Hold down push button switch
- used for Volt gauge
1 x 30 Amp Automatic reset circuit breaker
- Controls all outlet sockets inside the Battery Box
1 x 50 Amp Automatic reset circuit breaker
- Control both 50 Amp Anderson connector on front & rear
- All internal cabling to allow you to simply connect straight to the battery terminals
