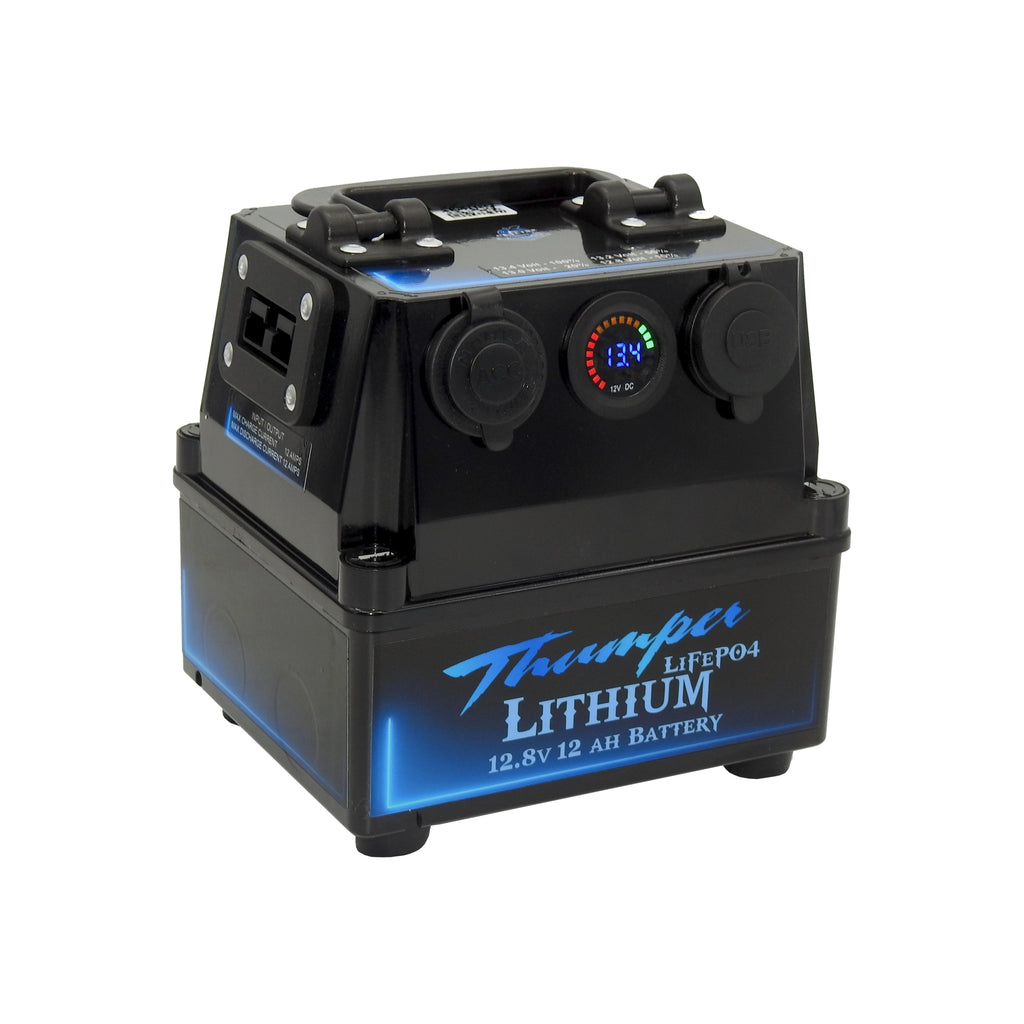

Thumper Lithium 12 AH Mini Battery Pack Limited Edition BLUETOOTH model

Includes:

• Bluetooth monitoring!

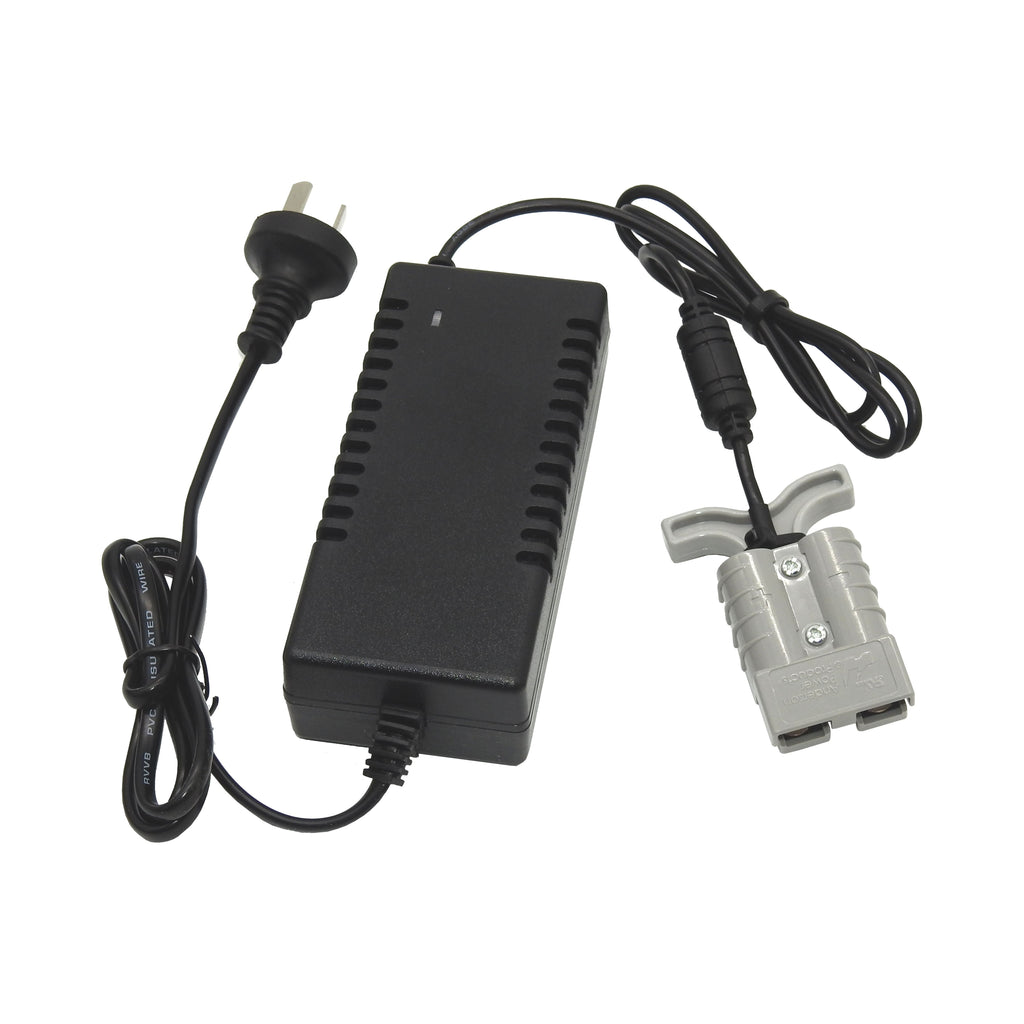

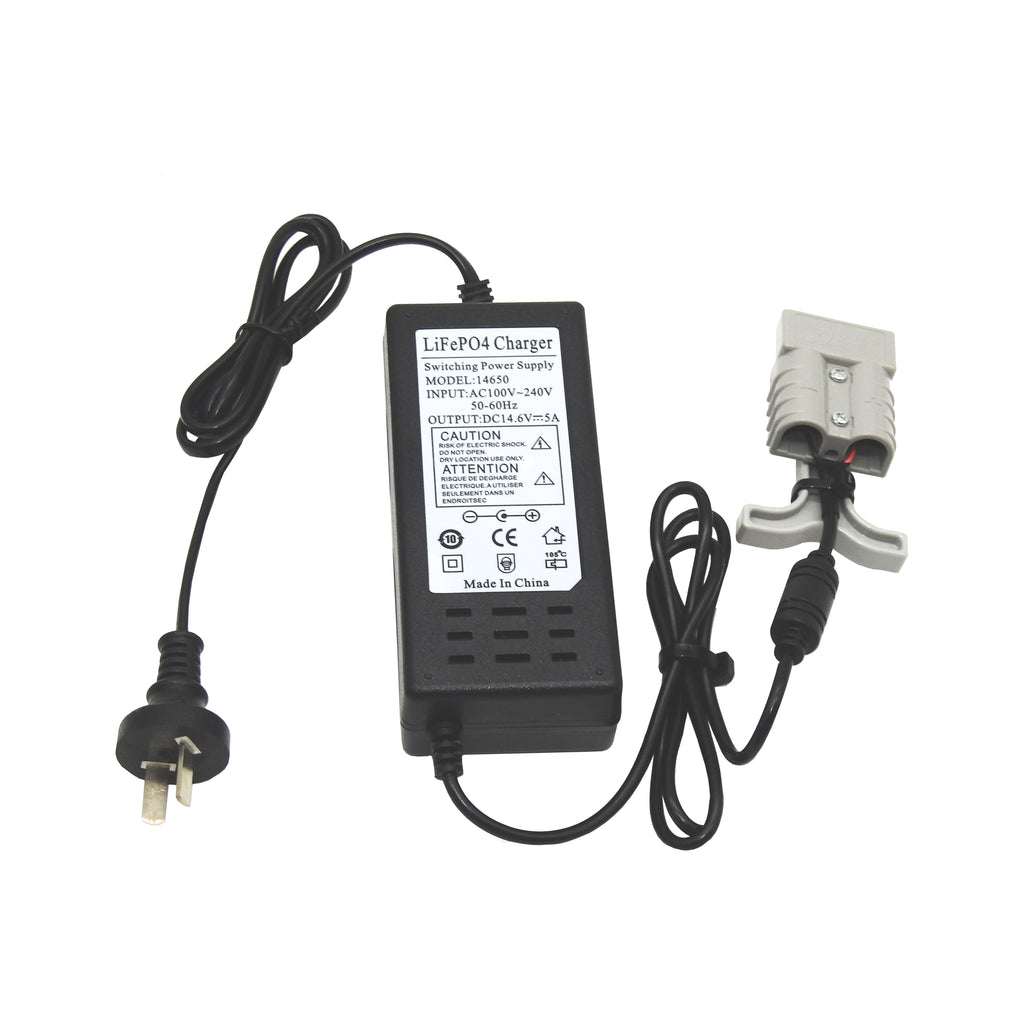

• 240 Volt LiFePO4 Battery Charger 5 Amp (fitted with Anderson)

Perfect for the use with smaller draw 12 volt appliances such as:

• Small compressor fridges
• TV's
• Recharging appliances from USB socket
• Spot - lighting
• Running fish finder
• and more!

Now with Bluetooth monitoring!

The Thumper Lithium battery pack is a reliable, compact and lightweight alternative to the standard lead acid portable dual battery system.

Designed with the latest technology of Lithium LiFePo4 cells, the Thumper offers a fully sealed and maintenance free battery pack that can safely be used on any side.

Equipped with an internal Battery Management System (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and internal short circuit protection.

The Thumper range of Lithium battery packs have a usable power of 95% capacity. At this point, the BMS system within the Thumper will shut down all power to the unit.  In order to reset the BMS, an charge load must be connected to the battery.

Note: The Thumper Lithium is not suitable for Jump-Starting

_____________________________________________________________________________________

The Thumper Lithium 12 AH is the smallest battery pack of the Thumper range. Designed primarily for use with low draw appliances, this unit is best suited for running portable lighting, phone charging, charging camera batteries and running any other low draw 12 volt appliance.

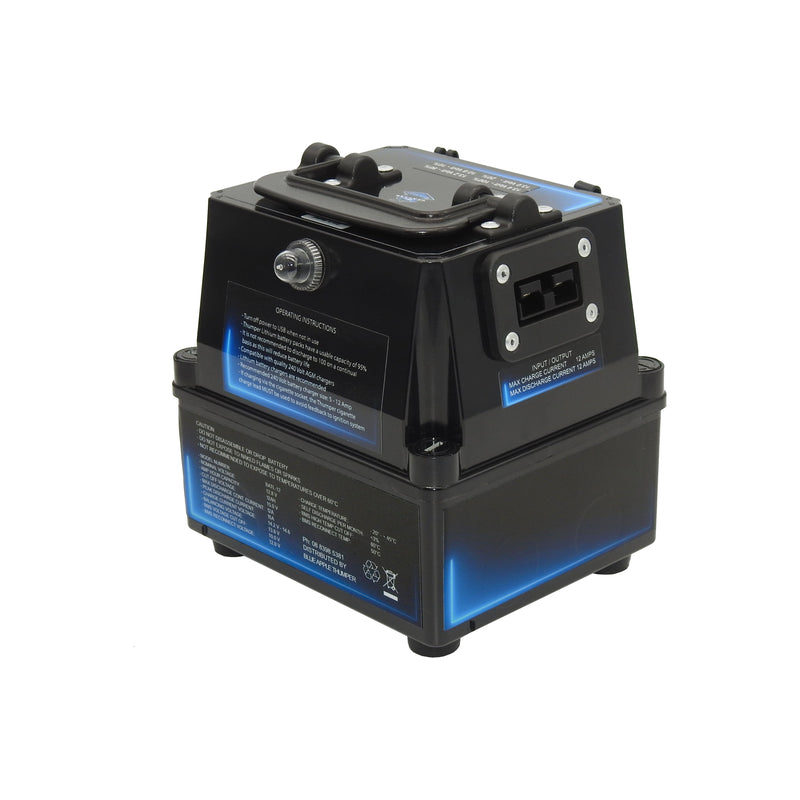

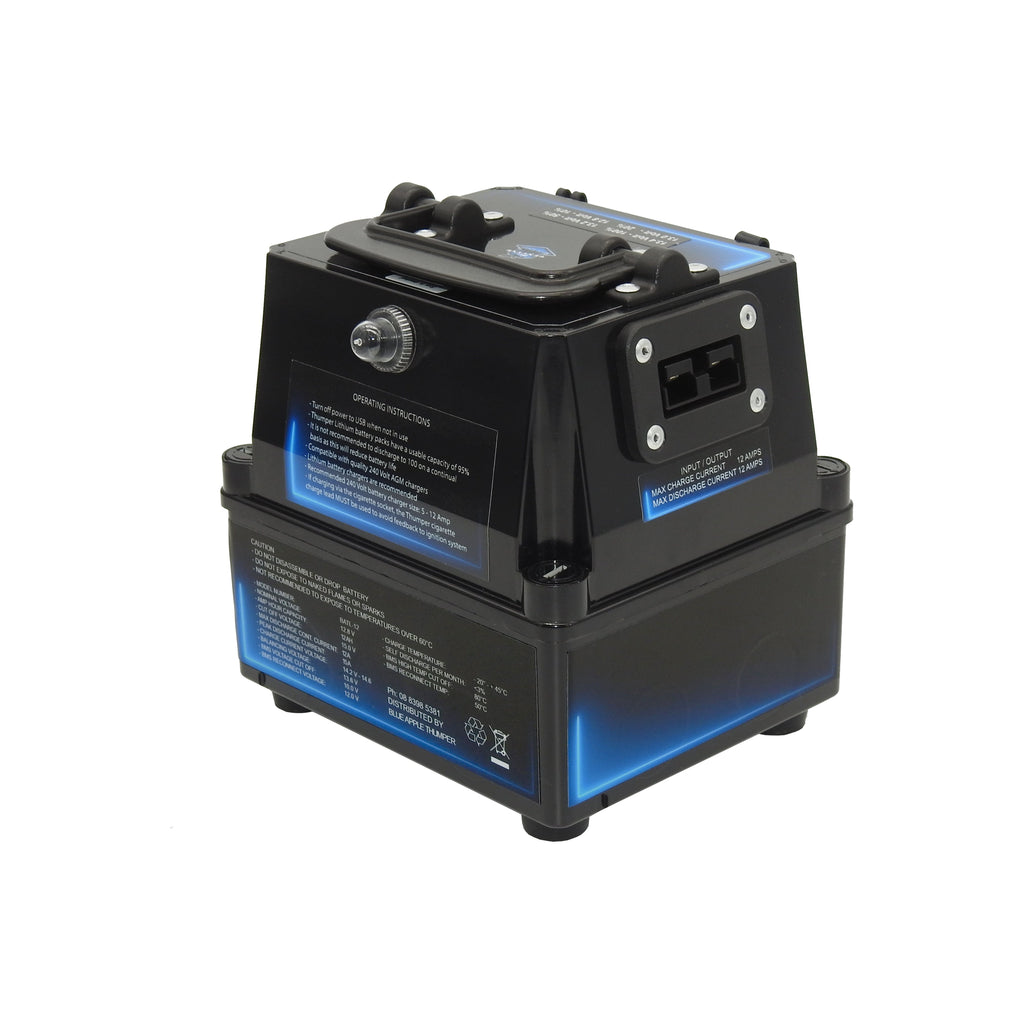

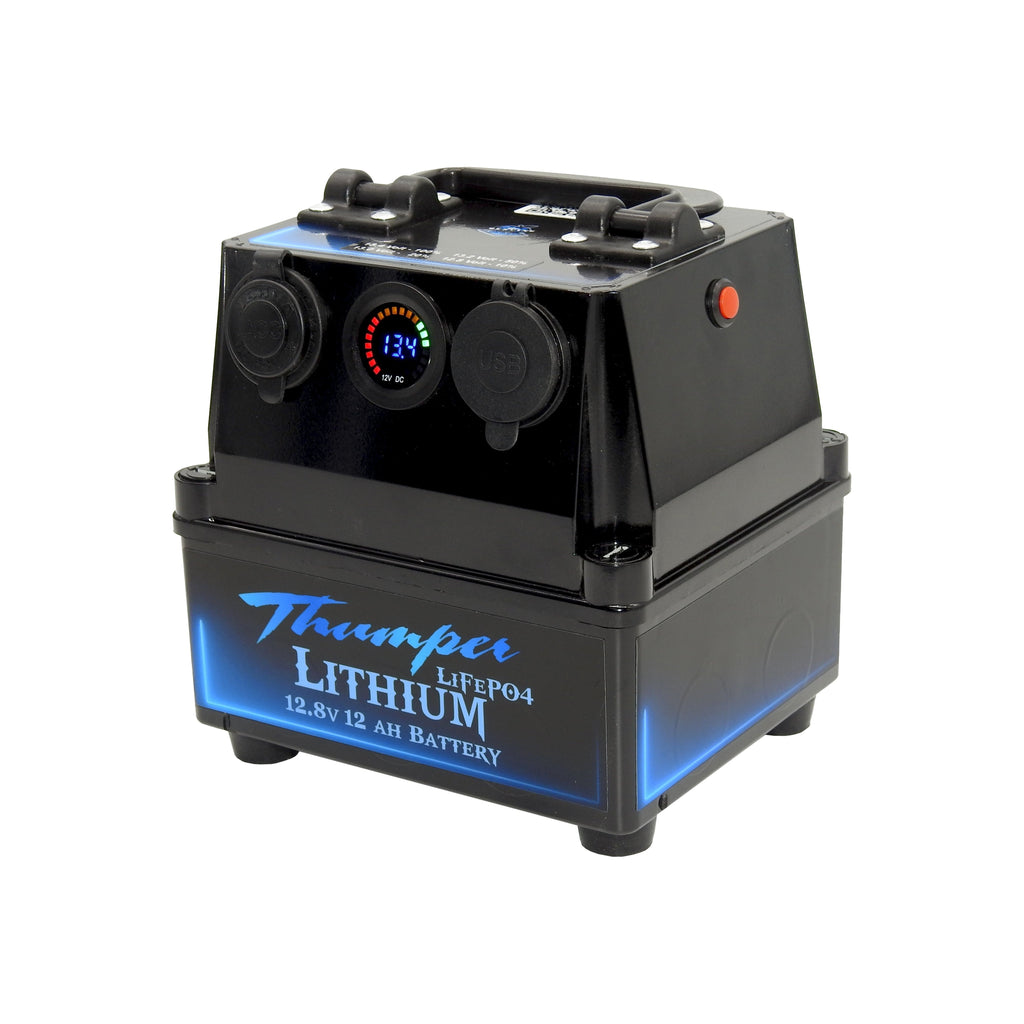

The unit is equipped with:

1 x Digital Volt meter                 1 x Anderson connector (Max. 12Amp rating)

1 x Cigarette socket                   1 x Dual USB socket (Min. 2.4Amp rating)

1 x 15 Amp manual circuit breaker

Charging:

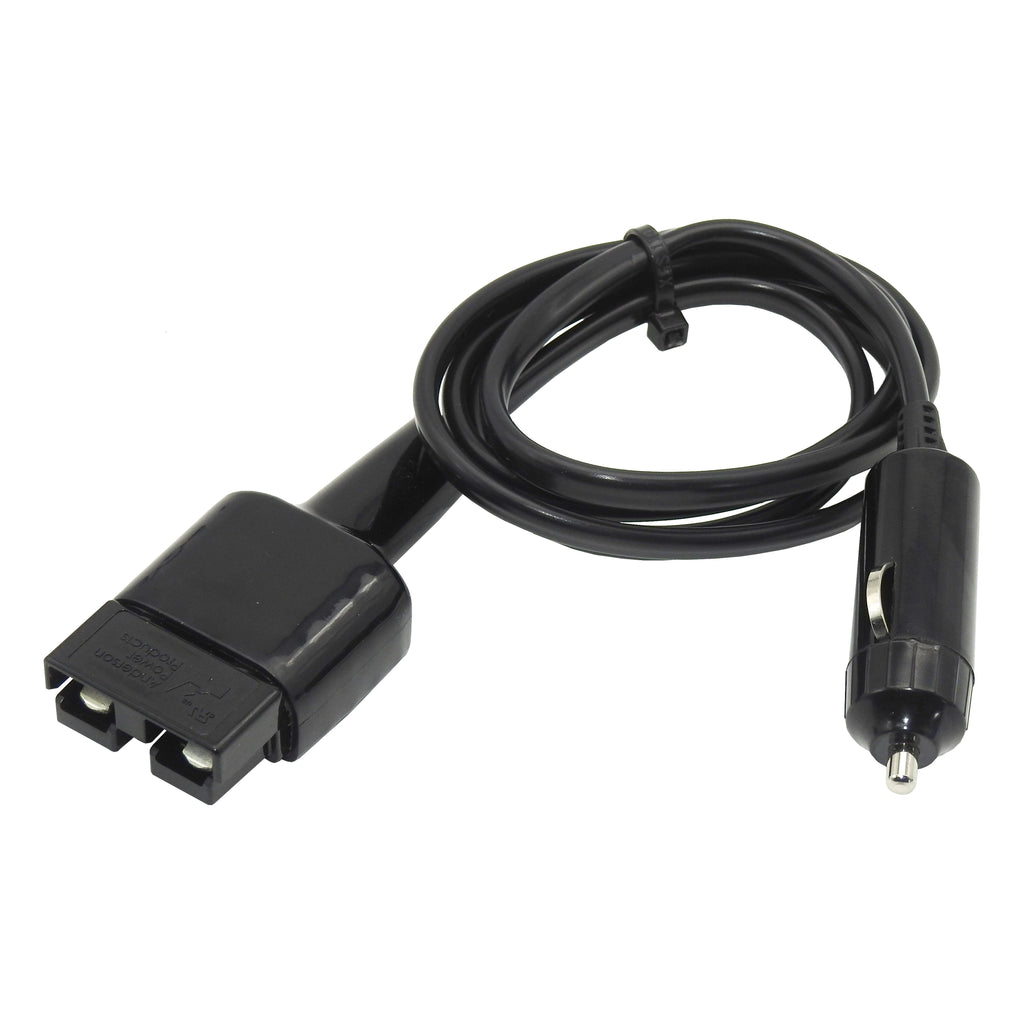

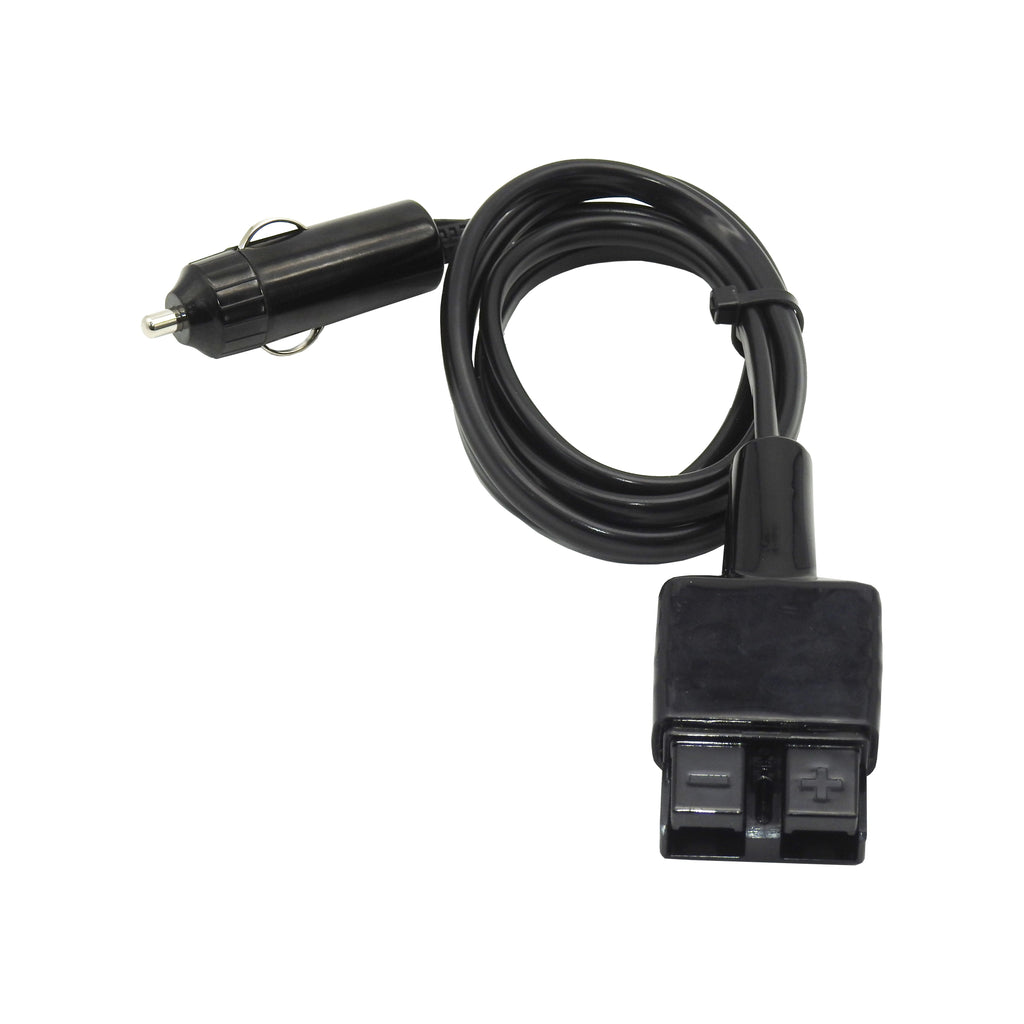

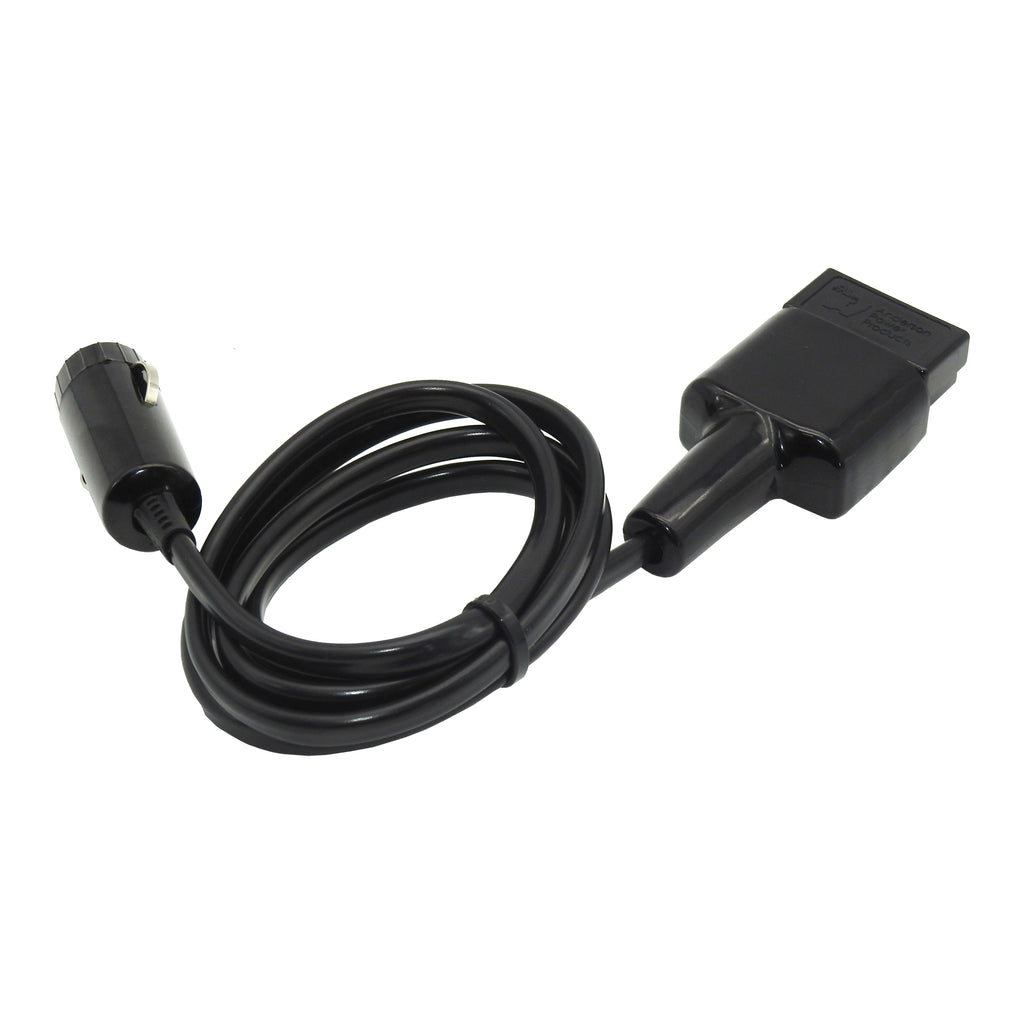

The Thumper 12 AH Lithium battery pack comes included with the

TL-A-C1.2 Anderson to cigarette charge lead. Rated approx. 5-8Amps

This unique lead has been designed to allow the Thumper 12 AH to charge directly from the vehicle cigarette lighter socket.

This lead must be used when charging via the cigarette plug in any vehicle as it will prevent reverse drain occurring between the main start battery and the Thumper Lithium battery.

Keep in mind this form of charge is subject to the vehicle's alternator output and may not allow for the battery to recovery 100% if the voltage of the vehicle is <14.volts. In this case, it would be recommended to either charge often on the provided 240 volt battery charger, or alternatively an in line DC Charger may be purchased via LDC-5A to ensure optimum charge is obtained from the vehicle.

• • Safe charging and discharging with over temperature protection
  • Under voltage cut off protection

  • Over voltage cut off protection
  • Internal short circuit protection
  • Smart Battery Gauge for quick battery reading

  • 100% usable battery capacity

Available to purchase as an optional extra is:

• LDC-5A

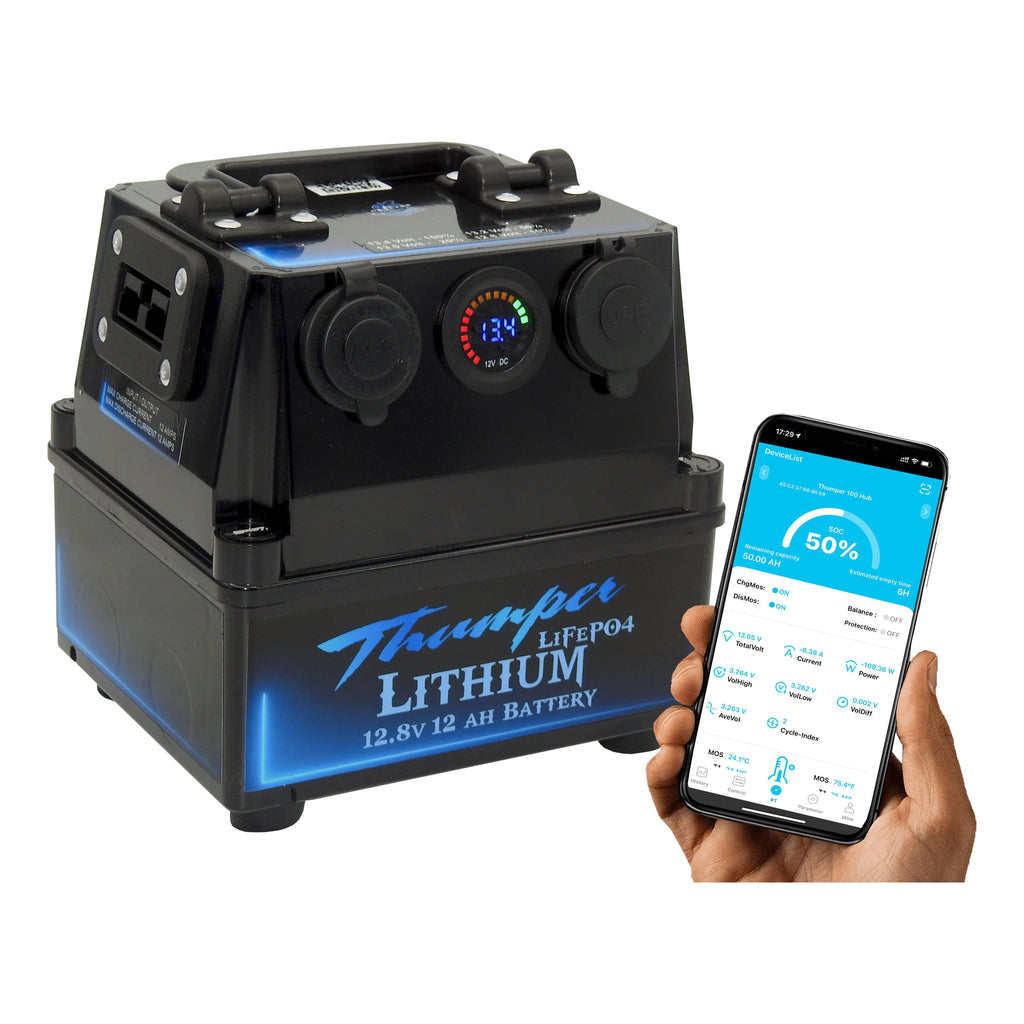

Bluetooth

The Thumper Lithium Battery Pack is fitted with one of the most comprehensive Bluetooth monitoring Apps available on the market.

The App offers the ability to monitor and control:

Thumper offer a number of videos to help explain in more detail the operation of the Bluetooth App, however, a few key points are covered in this listing (videos to be uploaded soon).

For any technical advice regarding the App, we recommending contacting our team direct directly.

 Bluetooth App | Home screen - explained:

  Bluetooth App | Control Screen - Explained:

The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.

Simply go into the CONTROL panel of your Bluetooth App and press:

CHARGE SWITCH  - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.

DISCHARGE SWITCH  - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
