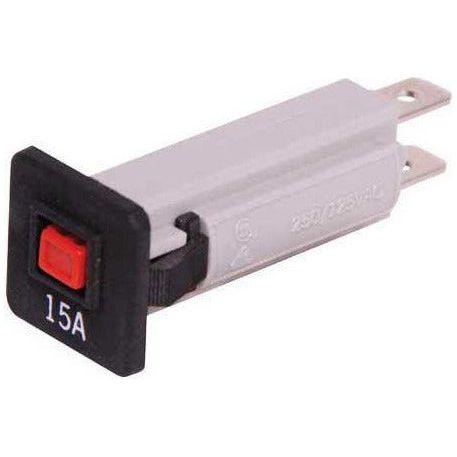

This panel mount circuit breaker is the perfect option for a flush mount fuse. Designed to be manually reset, the red tab will eject when tripped. To reset the circuit breaker, simply push the red tab back inside the unit.
- All specifications at 25°C
- Hold Current: 100% load indefinitely
- Trip Current: Within 1 hr @ 135% load
- Within 1 minute @ 200% load
- Max. voltage: 250V AC or 32V DC
- Dimensions: 52L x 13.5H x 15.5W
- Warranty: 12 months
*Specifications are subject to change without notice.
