50 Amp Battery Capacity Volt / Amp meter (Max 80V) | BCI-S50 | Suits Lithium & AGM

Sale price$79


This digital meter is truly a one of a kind. When installed correctly, the meter will allow the user to to monitor:

  • Voltage of the battery
  • Current (Input or Output)
  • Remaining capacity of battery in percentage
  • Remaining time to charge / discharge under current load

This particular gauge is uniquely suitable for monitoring different chemistry batteries, such as LITHIUM or lead acid batteries (AGM / GEL / Wet-cell batteries).
With an operating parameter 8 - 80 Volts, this unit is suitable for 12 Volt / 24 Volt / 36 Volt / 48 Volt systems.

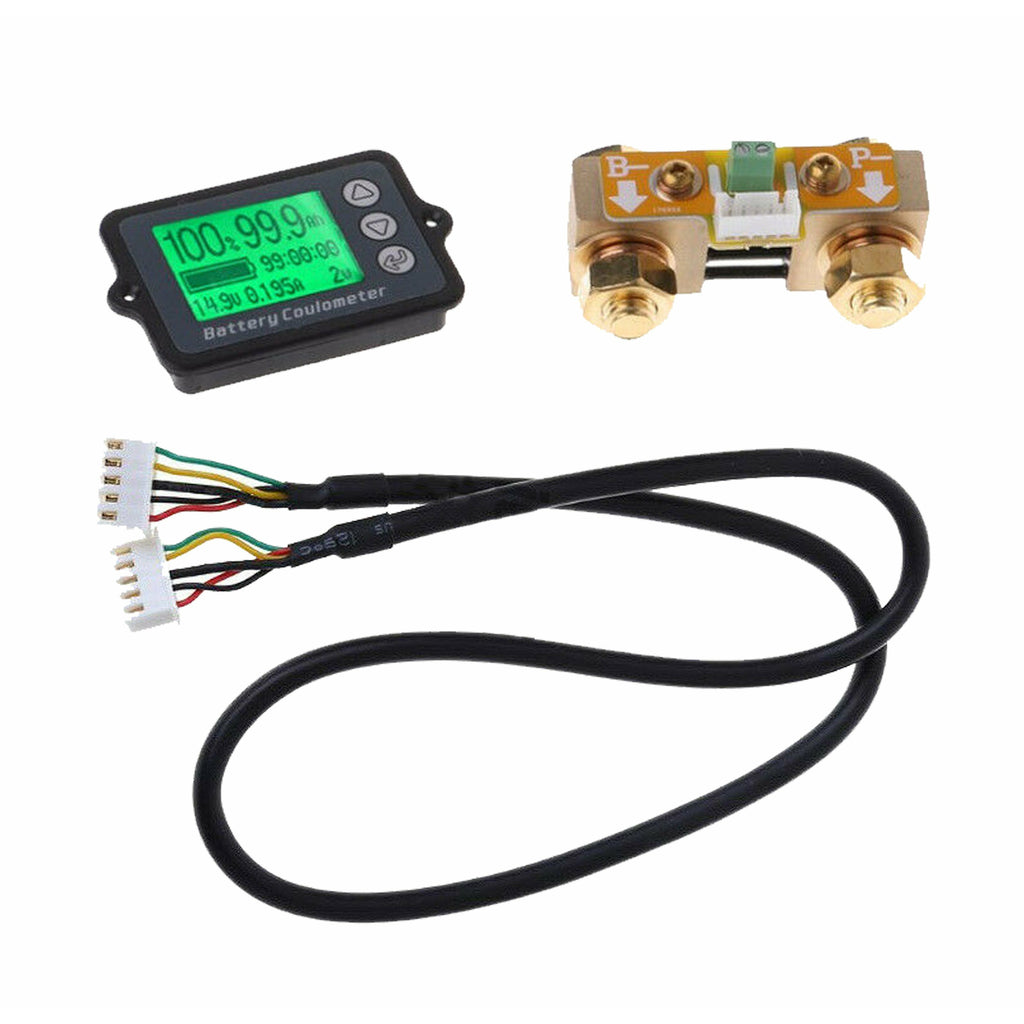

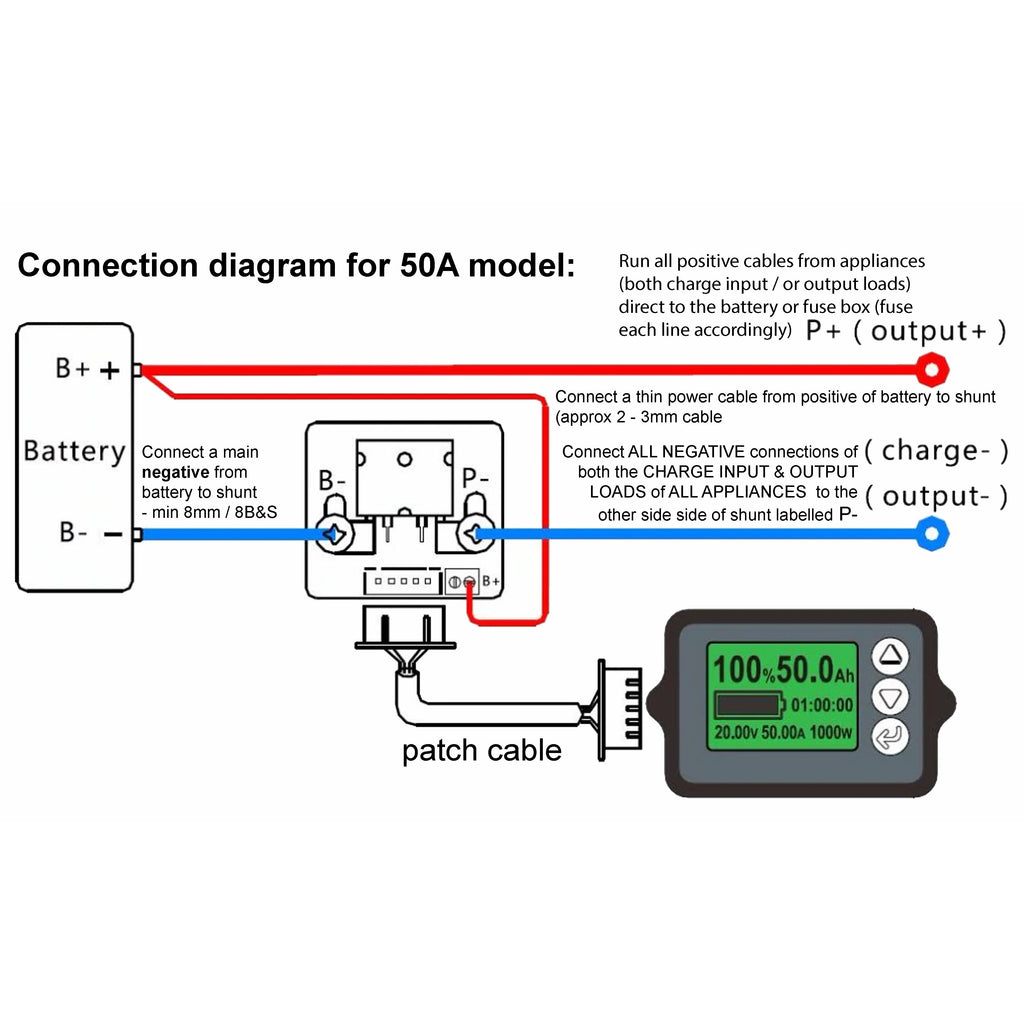

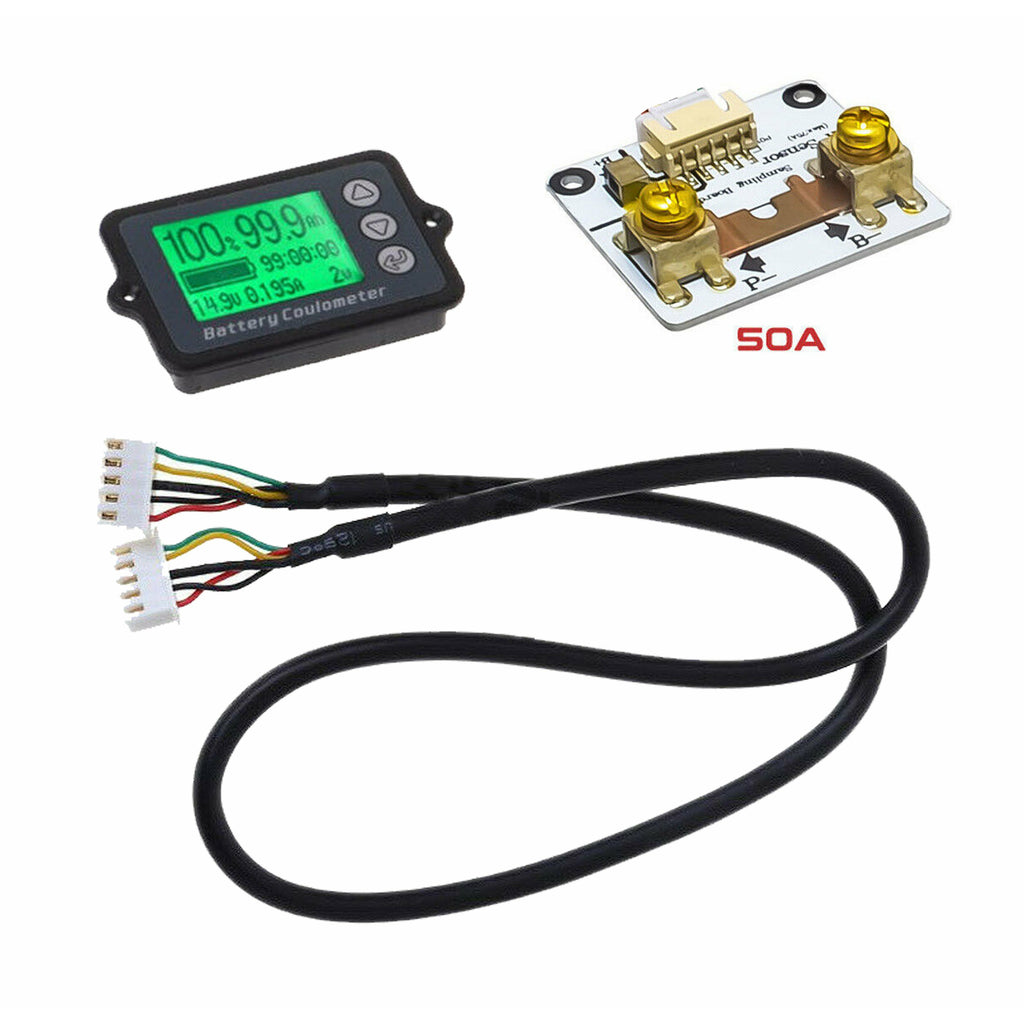

Supplied with a 50 Amp Shunt, patch cable and digital gauge; the gauge is extremely easy to wire to any battery system. Simply follow the provided wiring diagram below:

Part No BCI-S50
Current 50 Amps  (available in higher capacities also)
Operating voltage DC 8V - 80V
Overall size 66 x 40 x 10mm
Display area 32 x 23mm
Technical parameters:
Working power consumption 8.0mA (Max 10.0mA)
Standby power consumption 0.5mA (Max 0.8mA)
Sleep power consumption 50uA (Max: 60uA)
Voltage acquisition accuracy +/-1.0%
Current acquisition accuracy +/-1.0%
Ambient temperature range 0 - 35C
Back light on current 40mA (Max 50mA)
Back light off current 30mA (Max 40mA)
Battery capacity setting value 0.0 - 590 A
Note: The minimum voltage battery recommended on this device is 12 Volt.

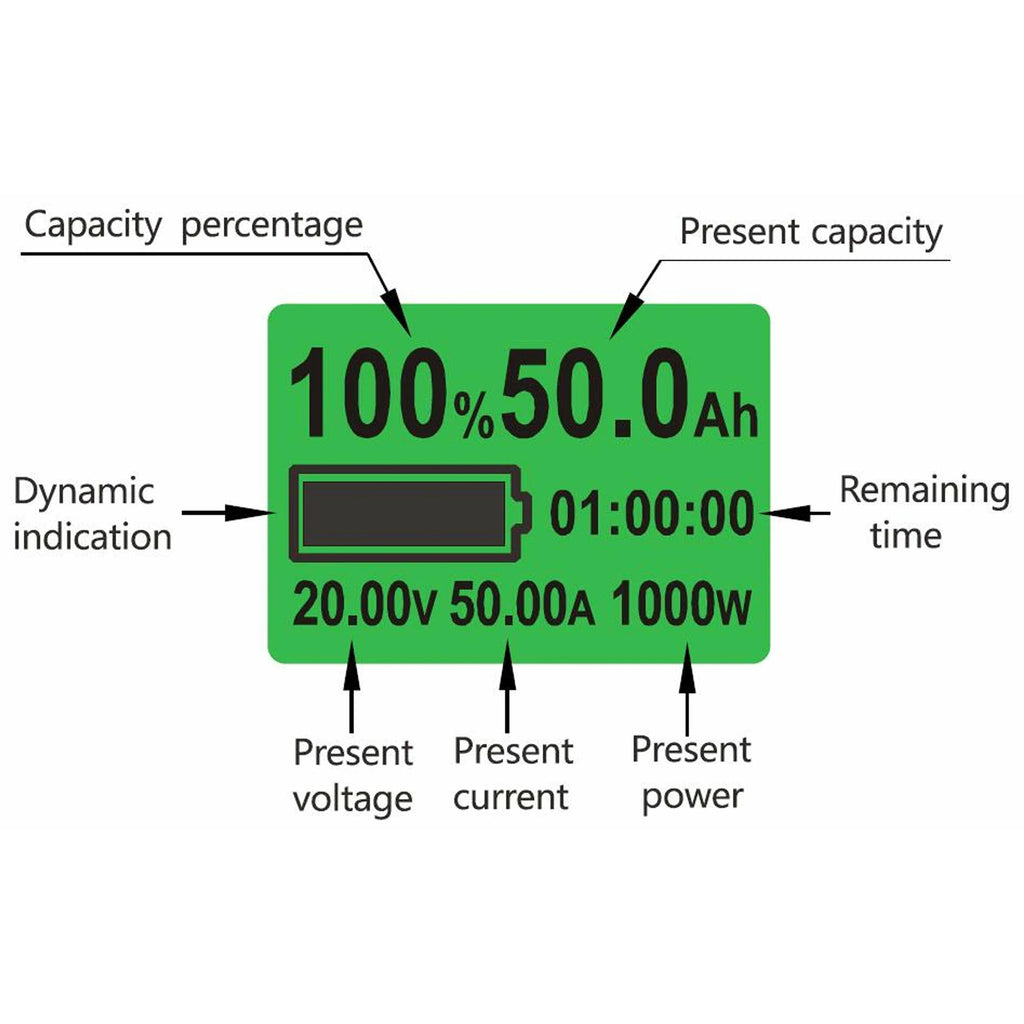

1.Residual capacity of battery (Ah or mAh)
2.Capacity percentage and totem pole display
3.Battery voltage remaining
4.Battery current remaining
5.Power output
6.Remaining time of charge and discharge
