Description
This cable is designed to allow you to fit your own Anderson connector from your battery.
- Simply mount the Anderson connector (for example on the rear of the vehicle / or on the front of the Caravan A-frame).
- Feed the cable length back to the battery location
- Using one of the 10mm lugs provided, connect your negative (black wire) directly to the negative of the battery

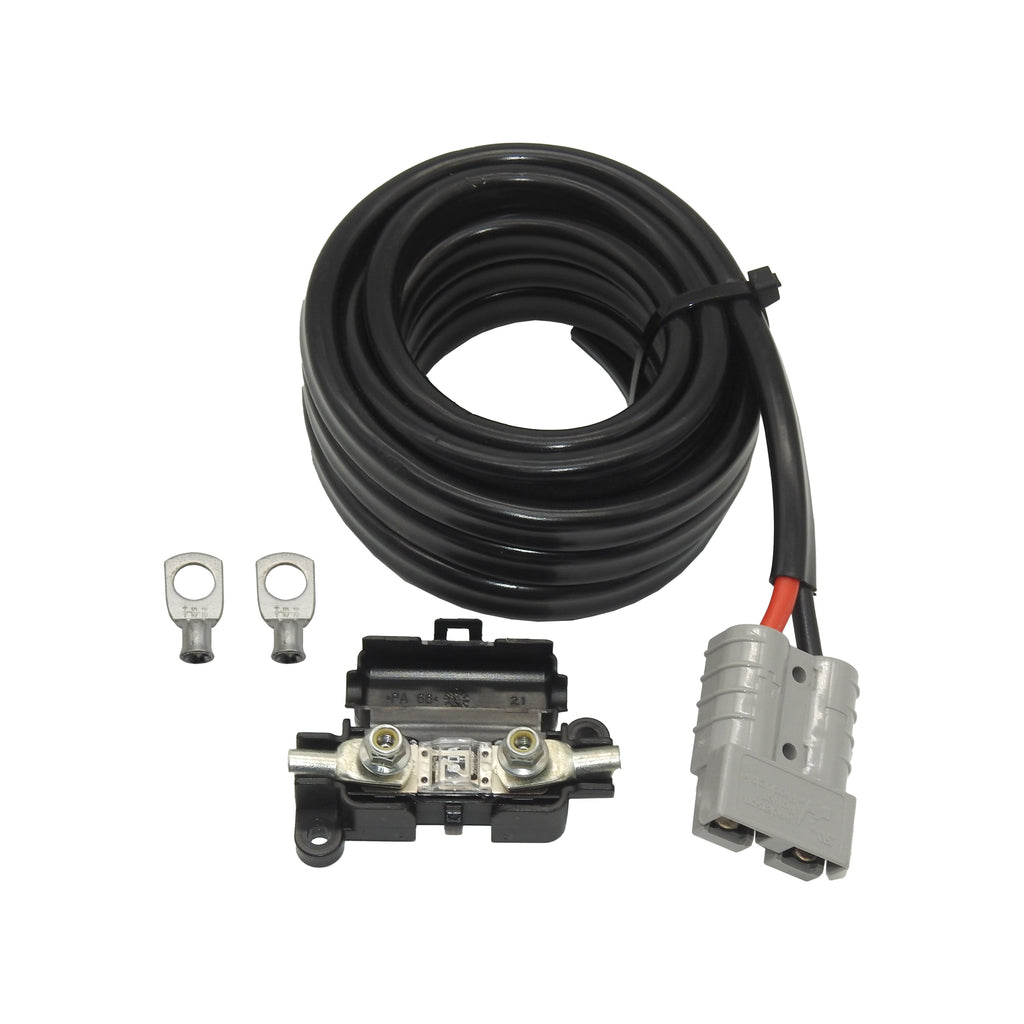

- Fit the Midi Holder & Fuse (provided) in line of the positive (red cable only), as close the battery location as possible. Use the 2 x 6mm eyelets to join the Midi Fuse holder (as seen in the image) and use the remaining 10mm eyelet to connect to the battery positive terminal.
The midi fuse will act to protect the line. If there is a fault on the line, the fuse will blow.
Available in 2 lengths:
- 3mt length
- 6mt length
Specifications:
- Cable = 8mm automotive cable - rated to approx. 75 Amps over 5-6mt
- Anderson = 50 Amp Genuine Anderson connector (Uni-sex)

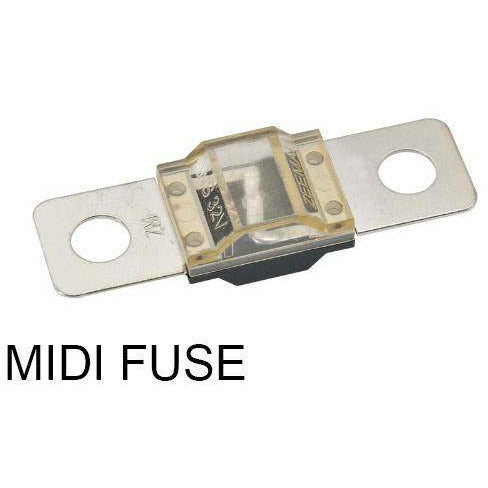

- Midi Fuse = 60 Amp
Whats Incl. :
- Cable = 8mm Twin 6mt or 3mt.
- Anderson = 50 Amp Genuine Anderson connector Connected to cable
- Midi Fuse = 60 Amp

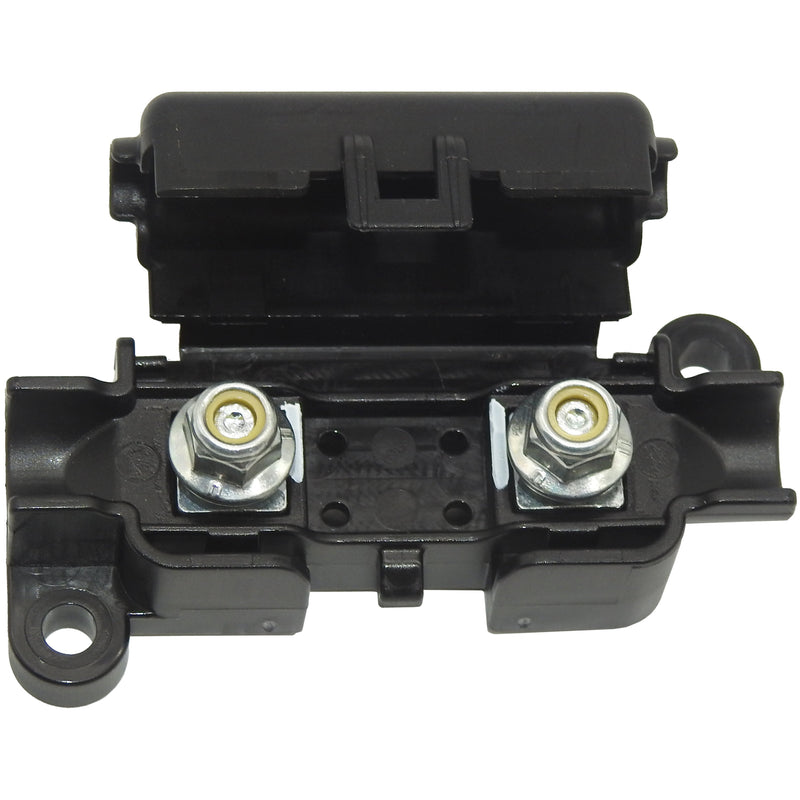

- Midi Fuse Holder

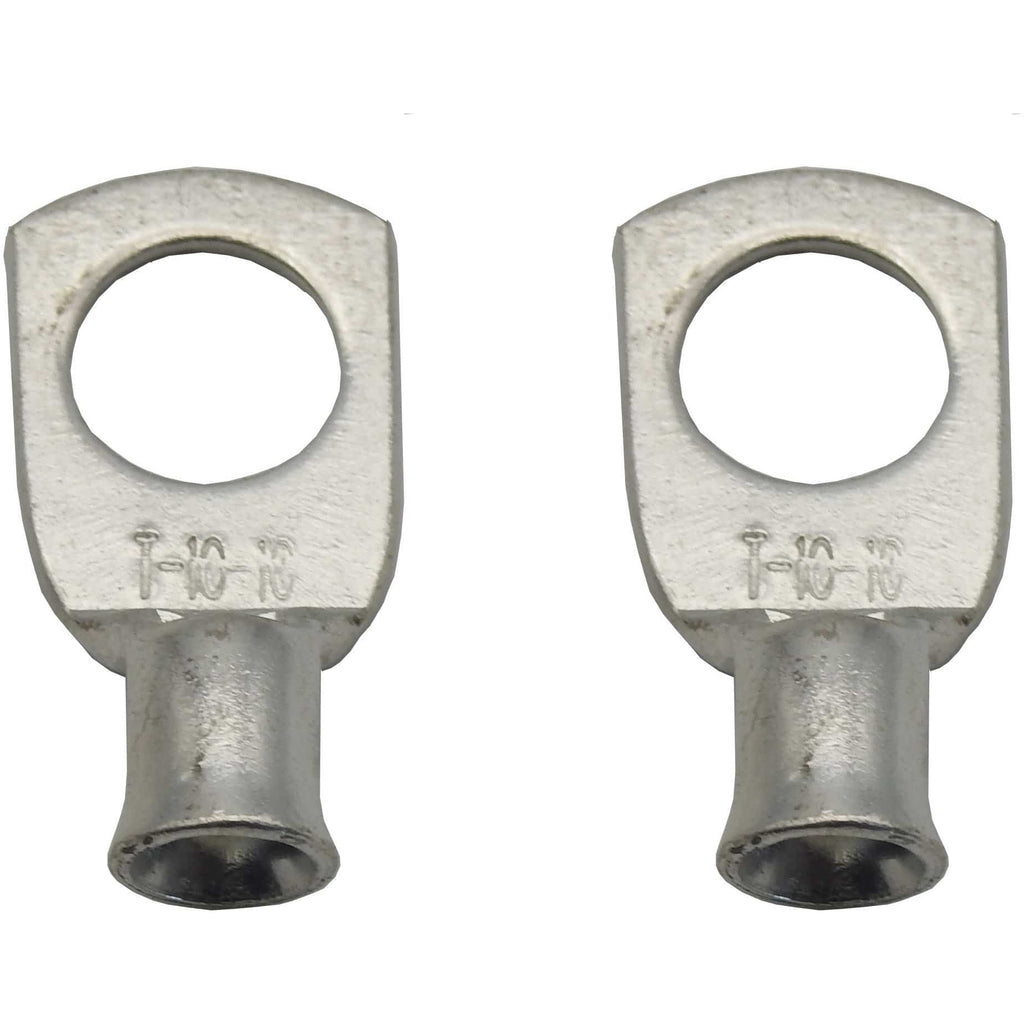

- CL-10-10 Lugs

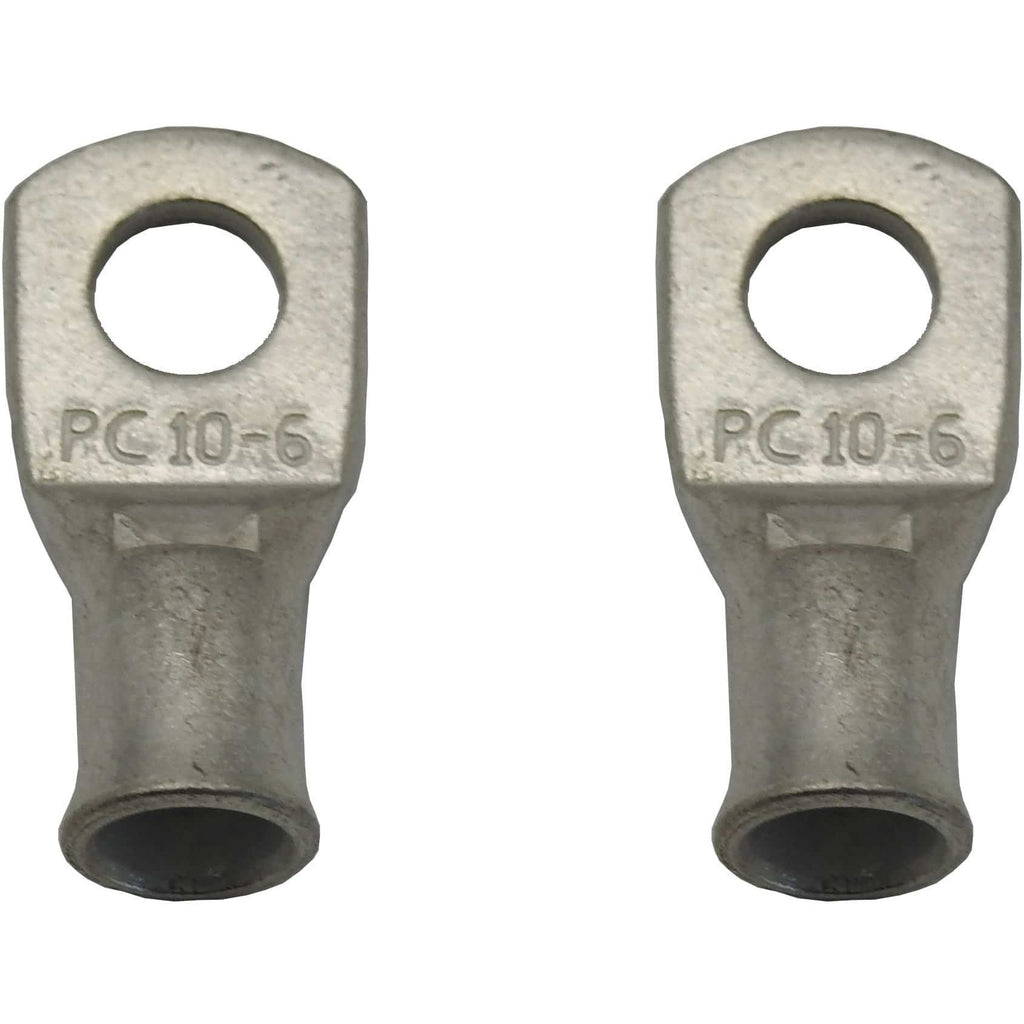

- CL-10-6 Lugs
What will you need to complete this installation:
- Crimping Pliers
- Cable cutters
