Description
Battery Box

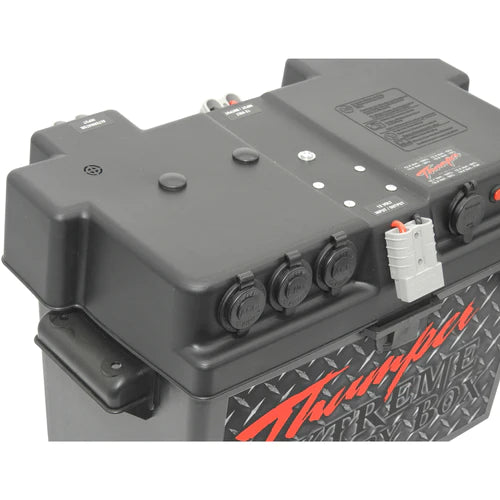

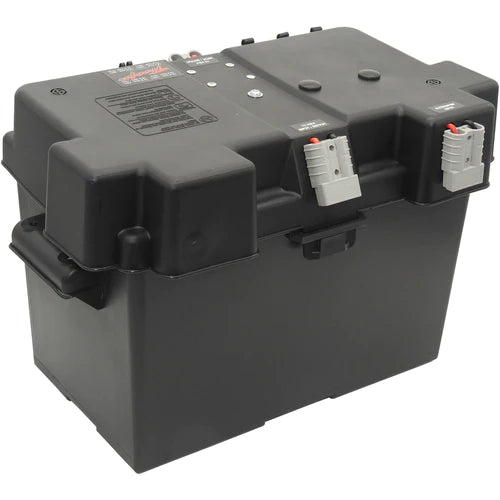

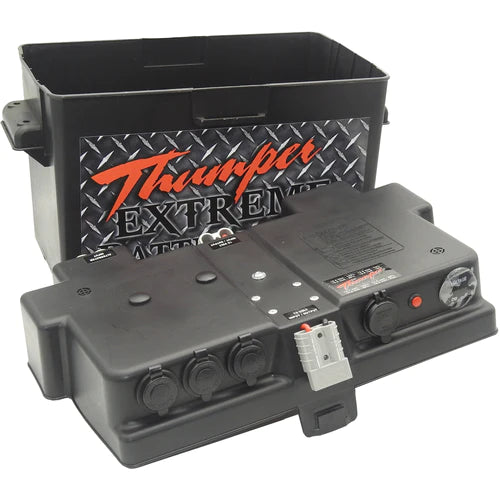

This Thumper battery box has been designed as the perfect option for installing a secondary battery within the vehicle; it is especially suited to new model vehicles, however will suit any make, model or year vehicle.
Designed for use with any Lithium Life04 battery, the box has been manufactured with an internal DC Battery charger, rated to 20Amps.
Key Features:
- In built DC Charger, rated to 20 Amps
- Suits supplied Lithium Battery
- Will boost vehicle output to provide a constant 13.8 - 14.4 Volts
- DC Charger wired to dedicated 50 Amp Anderson
- Note: The DC charger is not an isolator. This system is recommended to use with a vehicle isolator
| 1 |
DC Voltage booster - rated to 20 Amp - Specifications listed below suitable for Lead acid batteries (Gel / AGM / Calcium) |
| 2 | Marine grade Cigarette socket - rated to 16 Amps Includes rubber cap design to protect sockets |
| 1 |
Engel Fridge type socket (2 prong design) - rated to 16 Amps |
| 1 | Dual USB socket - rated to 2.2Amp (min rating) |
| 1 | Push button switch - used to illuminate the volt meter and to also activate power to the USB |
| 2 | 50 Amp Anderson connectors - INPUT/OUTPUT (bi-directional) (one fitted to front of box and one on rear) |
| 1 | 50 Amp Anderson connector - dedicated for vehicle (alternator) input - labelled "Alternator input"| Connected to DC Charger |

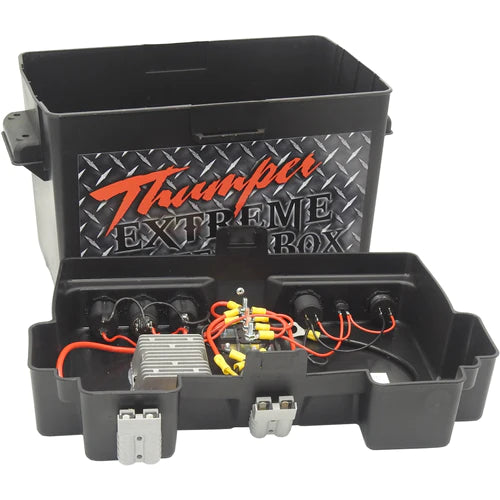

| 1 | All internal cabling to allow you to simply connect straight to the battery terminals |
| 1 | 3 year manufacturing warranty |
| Length | 330 mm |
| Width | 183 mm |
| Height | 220 mm - Base only (Lid allows more height) |
| Length | 410 mm |
| Width | 260 mm |
| Height | 280 mm |
Wiring Loom

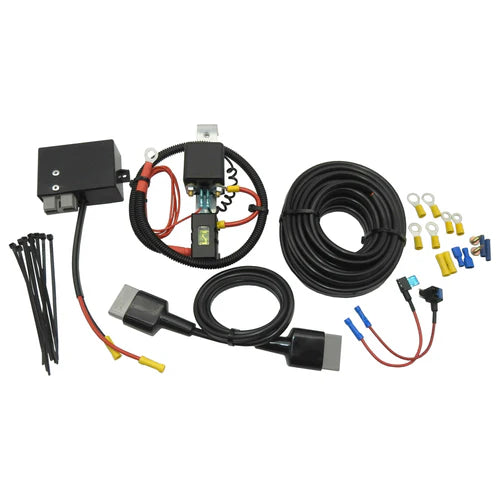

The Thumper Universal Relay Loom (TUR-L) has been designed to suit all model vehicles, both new and old. This charging system is also compatible for vehicles that are using a DC charger (whether mounted on a battery box, in line or under bonnet).
The TUR-L been designed to fit under the bonnet of the vehicle. The kit provides an isolated HEAVY DUTY charging line to the rear of the vehicle so the user can charge secondary battery systems, fridges and other accessories.
The TUR-L uses an ignition activated relay. The relay will act to provide power to the charging system when the vehicle is running, and in turn, will isolate away from the main starter battery once the vehicle's ignition has been switched OFF.
The TUR-L is now used provided with the DELUXE model Thumper Battery box and and Lithium battery packs.
Included with all components you will need for the vehicle installation, this charging system is available in BOTH a 6mm twin core cable option (50 Amp rating) or a 8mm twin core cable option (75 Amp rating).
