Description
This volt meter has been designed to allow you an easy way to monitor the battery's charge condition by digital read out.
This volt meter is designed with a colour graph around the outer edge of the meter. The colour graph makes it easier to monitor the condition of the Lithium battery.

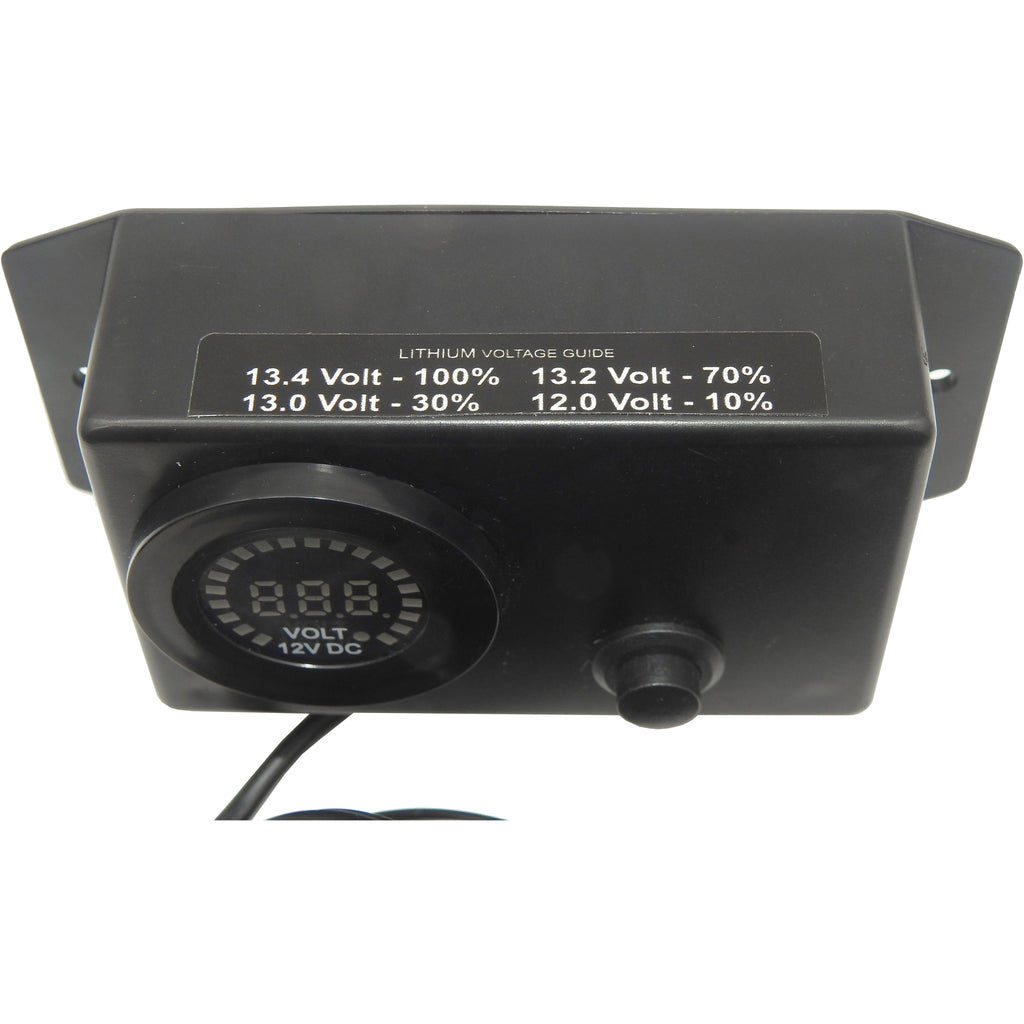

Usually monitoring Lithium batteries with a volt meter is very difficult, as a small change is a larger change in the battery capacity of a lithium. See estimated voltages below for a lithium battery reading:
| 13.4 Volt = 100% | 13.2 Volt = 70% |
| 13.0 Volt = 30% | 12.0 Volt = 10% |
The Colour graph around the outer rim of the gauge is designed to stay illuminated GREEN when the lithium battery capacity is above 50%.
The graph will then illuminate ORANGE from approx 50% - 30% of battery capacity.
The push button allows for the volt meter to switch ON / OFF when desired. Once pushed, the button will 'hold in' until pressed again to release and turn off the gauge.

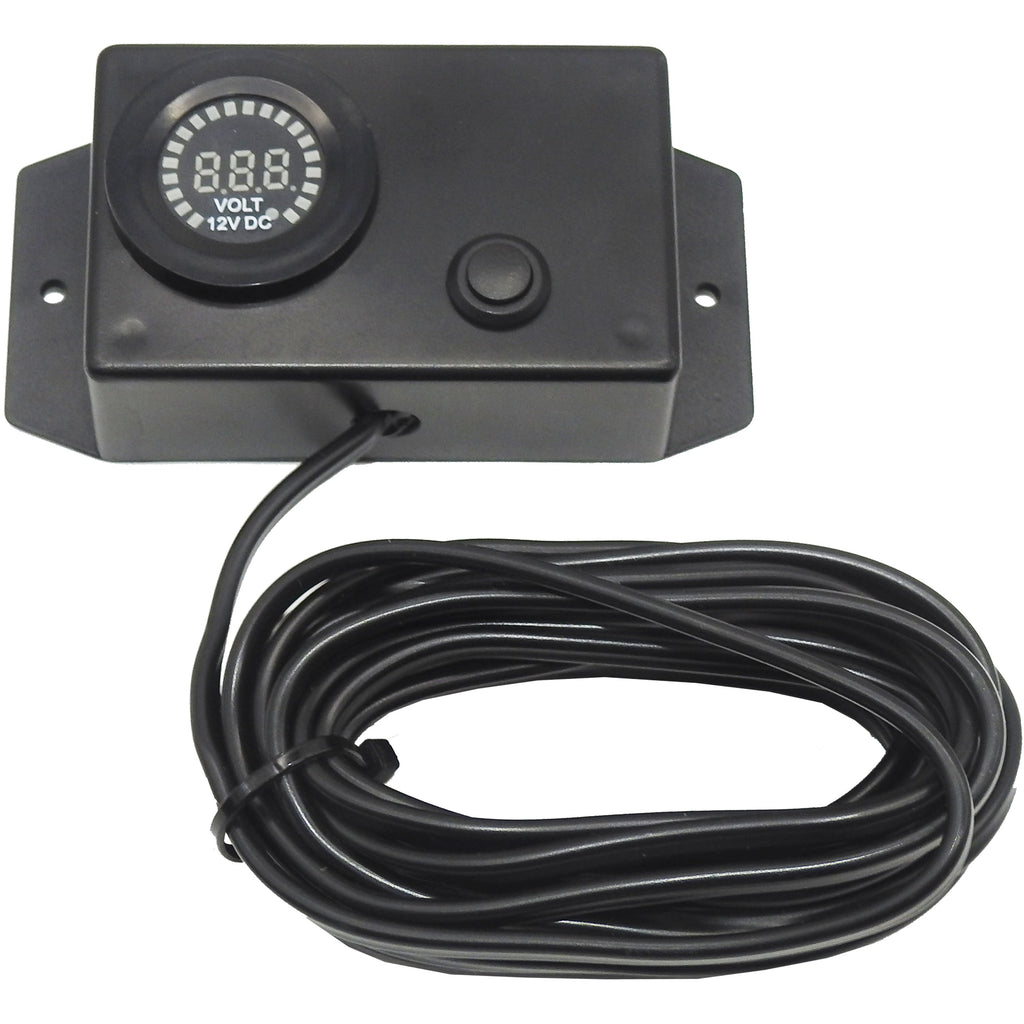

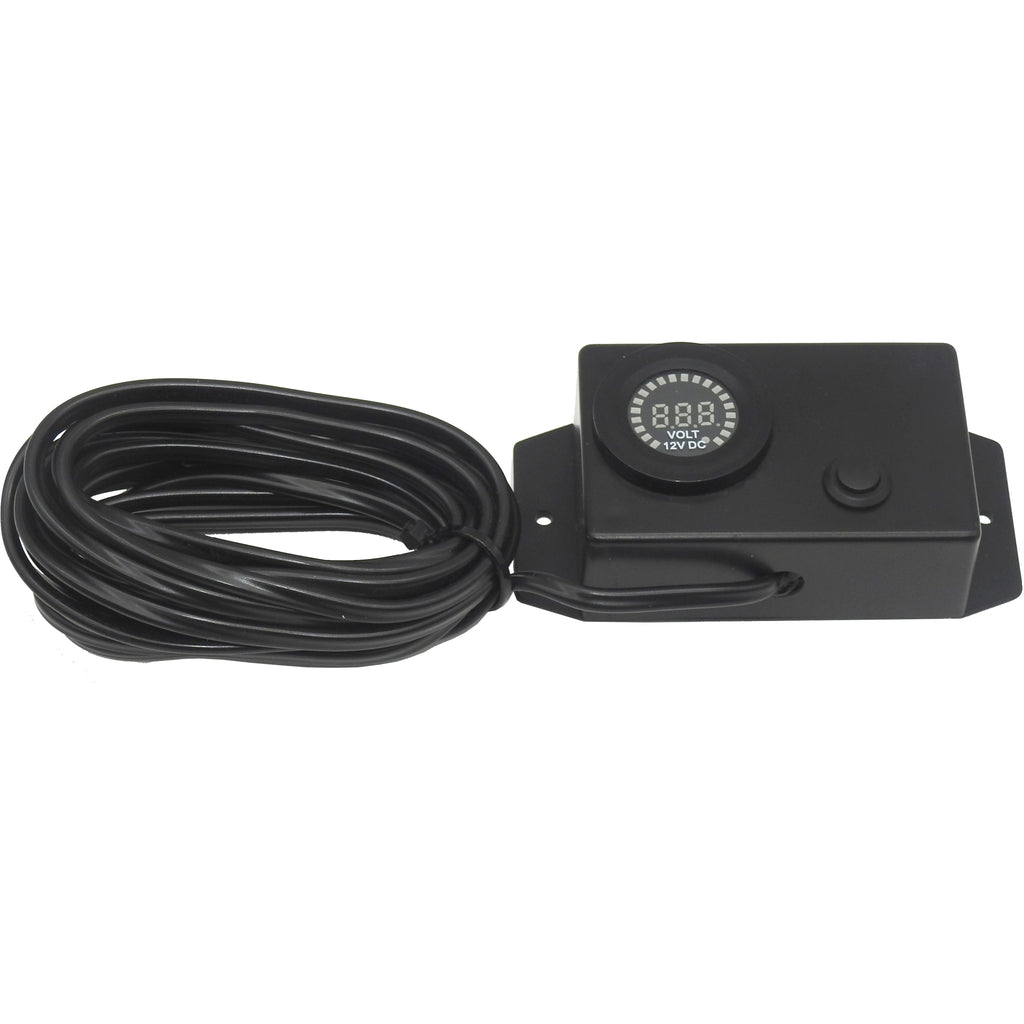

The volt meter is pre-wired to 3mt of 2mm twin core cable.
* It is advised to install an in line fuse in any line that feeds off a battery connection (recommended 3-5 Amp fuse)
Item specifications:
| Part No. | CBV-L |
| Voltage |
9 - 33 Volts |
| Dimensions: | L 109mm x H 55mm W 30mm (35mm incl push button) |
| Cable Gauge |
2mm automotive twin core |
|
Cable length |
3mt |
| Approx Power usage | 3-4ma |
| Warranty | 12 months |
