Description
This package is designed for an under bonnet dual battery system to suit:
-
Hilux Diesel, 3.0Lt Turbo Diesel & 1 GR-FE, 4.0Lt V6 Petrol 2005 - 2014
_______________________________________________________

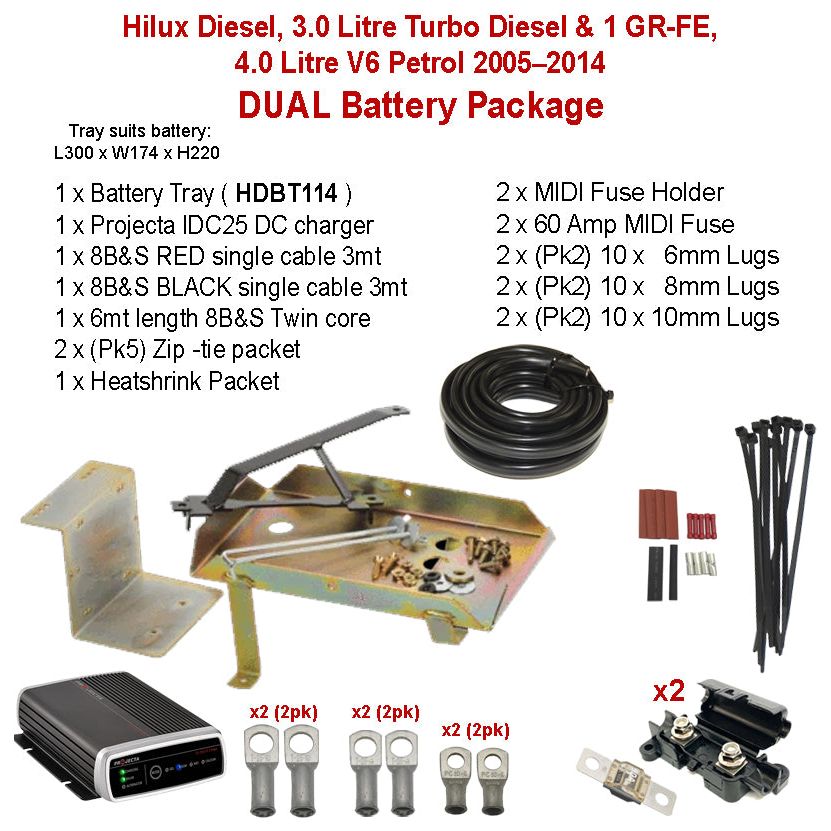

This package is worth over $ 1,000.00 and Includes the following:

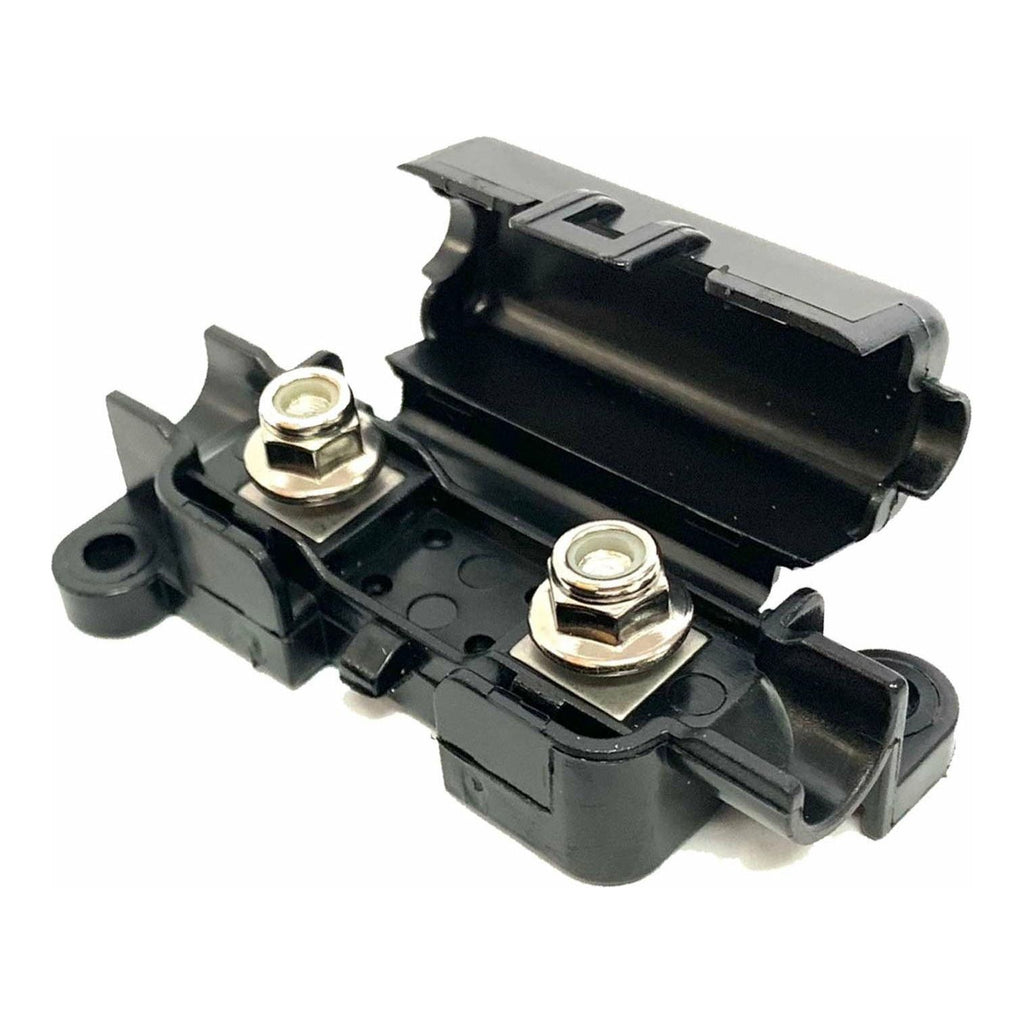

| 1 x HDBT114 Battery Tray | 2 x MIDI Fuse Holder |

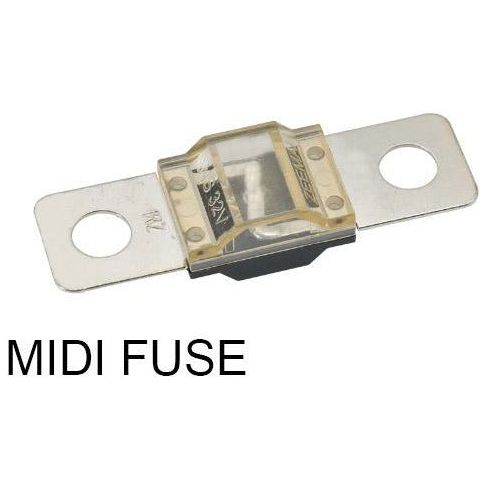

| 1 x Projecta IDC25 25 Amp DC charger | 2 x MIDI Fuse - rated 60 Amps |
| 1 x 8B&S single RED 3mt length cable | 2 x (Pk2) Cable lugs 10 x 6mm |
| 1 x 8B&S single RED 3mt length cable | 2 x (Pk2) Cable lugs 10 x 8mm |
| 1 x 8B&S TWIN core cable - 6mt length | 2 x (Pk2) Cable lugs 10 x 10mm |
| 2 x (Pk5) Zip-tie pack | 1 x Heat-shrink pack |
Note: No battery included in this package
Description

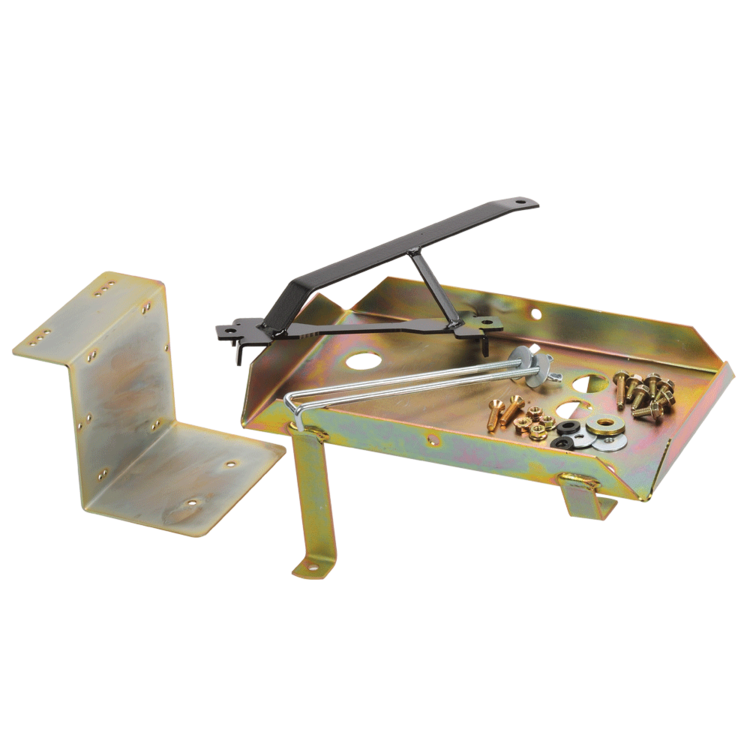

PART NO HDBT114
Suits: Hilux Diesel 1KD–FTV, 3.0 Litre Turbo Diesel
& 1 GR-FE, 4.0 Litre V6 Petrol
Models: Auto/Manual
Years: 2005–2014
Max Battery Size (mm): L300 x W174 x H220
Max Battery Weight: 23Kg
Suits Battery: N70
Click HERE to download Instruction Manual

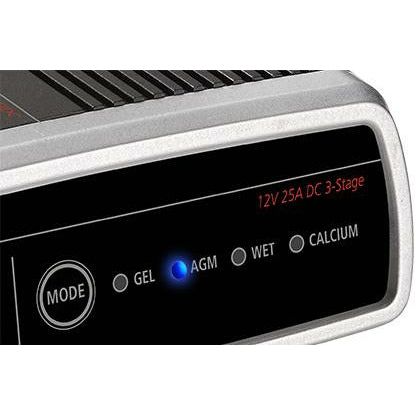

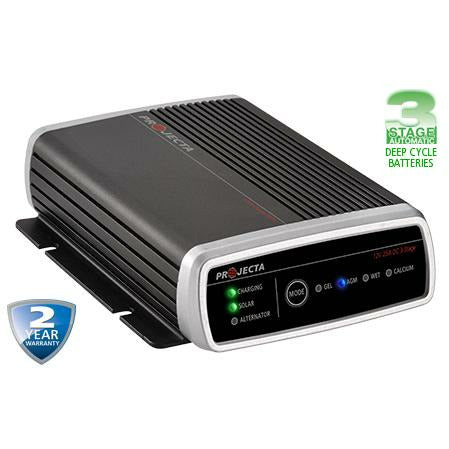

IDC25
Projecta 25 Amp DC Charger / Solar
Projecta 25 Amp DC Charger / Solar
Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.
|
Dual Charging Modes /
Dual Input Operation Simultaneous dual battery charging from both solar and alternator inputs |

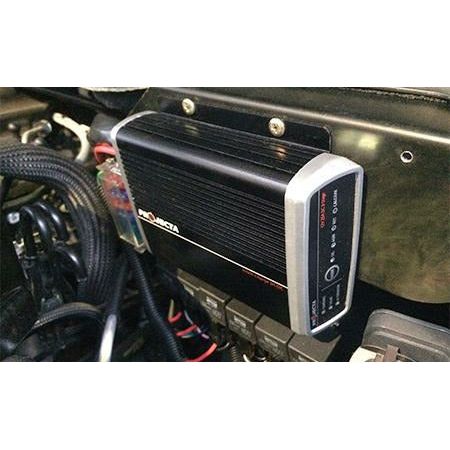

Engine Bay Installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C |
|
4WD installation
A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators. |
Caravan installation
Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and performance. |
8mm (8B&S) SINGLE CORE AUTOMOTIVE CABLE
Rated to approx 75 Amps over 5mt
Rated to approx 50 Amps over 10mt
Rated to approx 50 Amps over 10mt
The 8mm SINGLE & TWIN core automotive cable is the perfect option for running to fuse boxes, accessory sockets or a charge line for your secondary (AUX) battery.
Rated at approx. 75 Amps over a 5mt distance.
