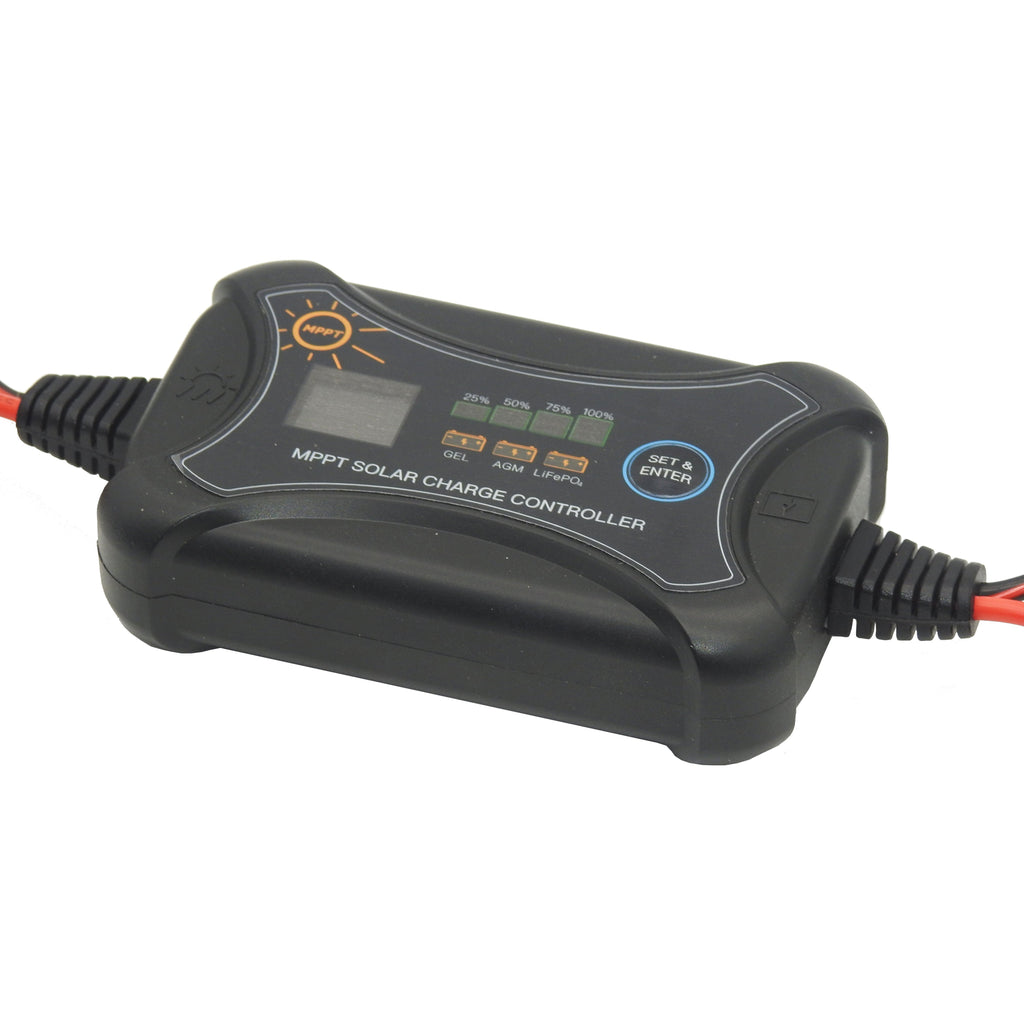

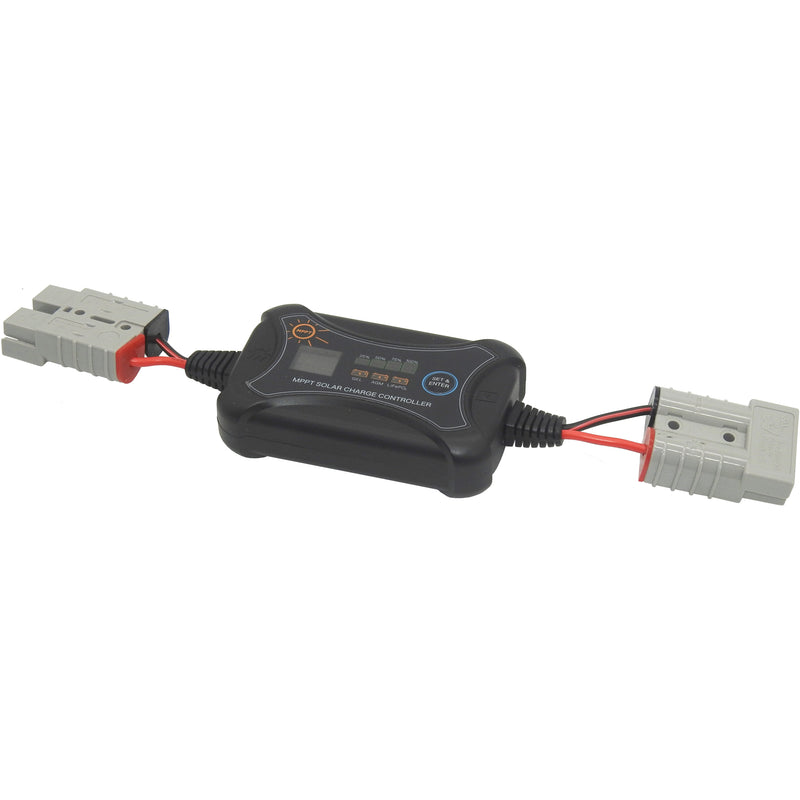

This MPPT 10 Amp in line solar regulator is the perfect option for use with unregulated solar panels up to 150 watt capacity.

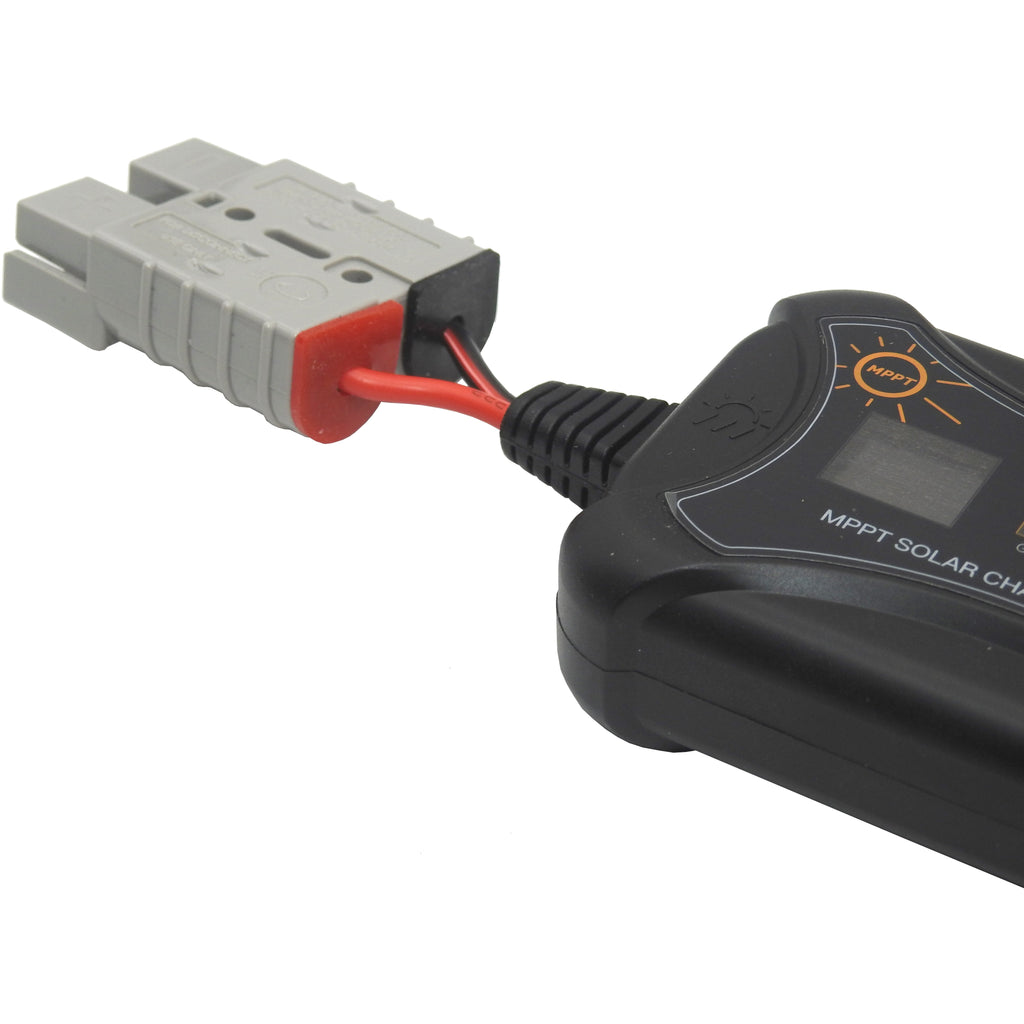

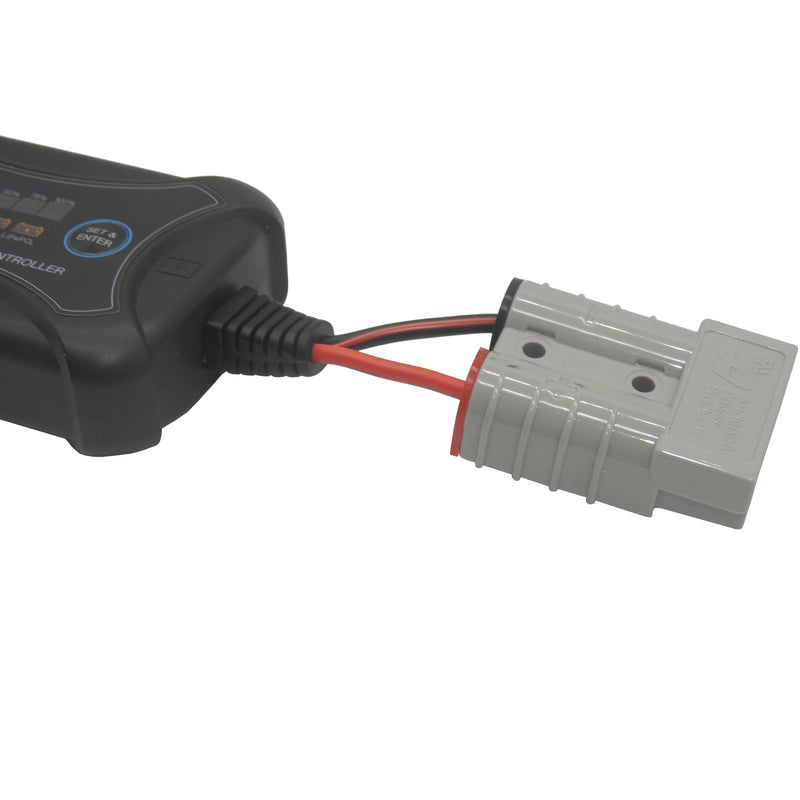

Fitted with Anderson connectors, the in line regulator is designed to easily connect to a portable solar set up and directly to your battery system.
Designed to suit multi-chemistry batteries such as AGM / GEL / LiFePO4, this regulator has 3 stage charging to optimise battery performance.
A user friendly key press operation makes for am more simple and easy operation of the regulator.

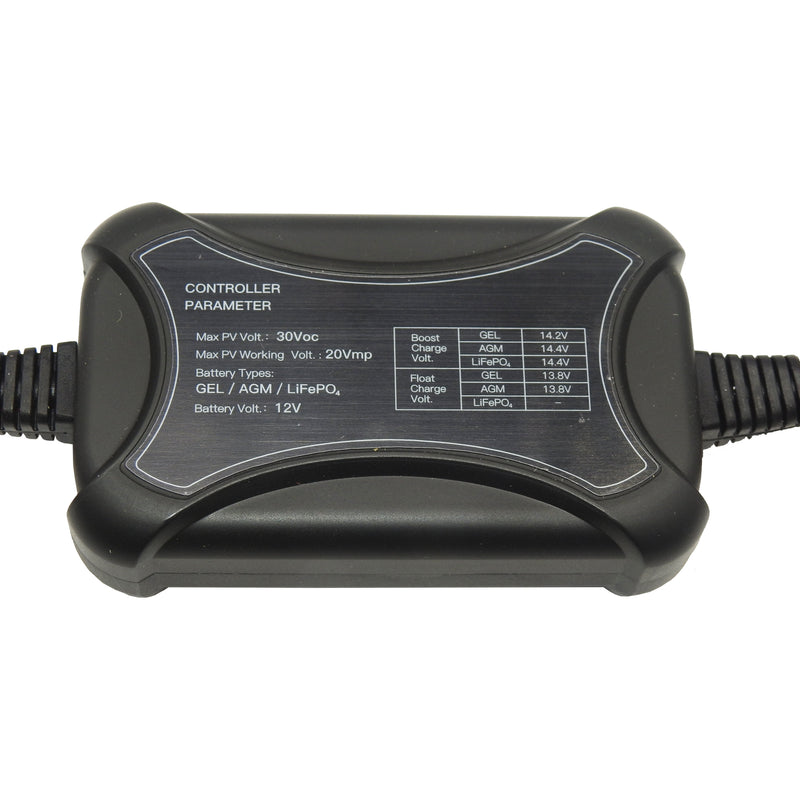

|Suit Battery Type||GEL / AGM / LiFePO4|
|Max PV Voltage||<30 Voc|
|Max PV Working Voltage||20Vmp|
|Rated capacity||10 Amps (150 watts)|
|Connection||50 Amp Anderson|
|Operating Temperature||-35*C ~ + 45*C|
|Controller Dimensions||96.4mm x 61.6mm x 27mm|
