Description

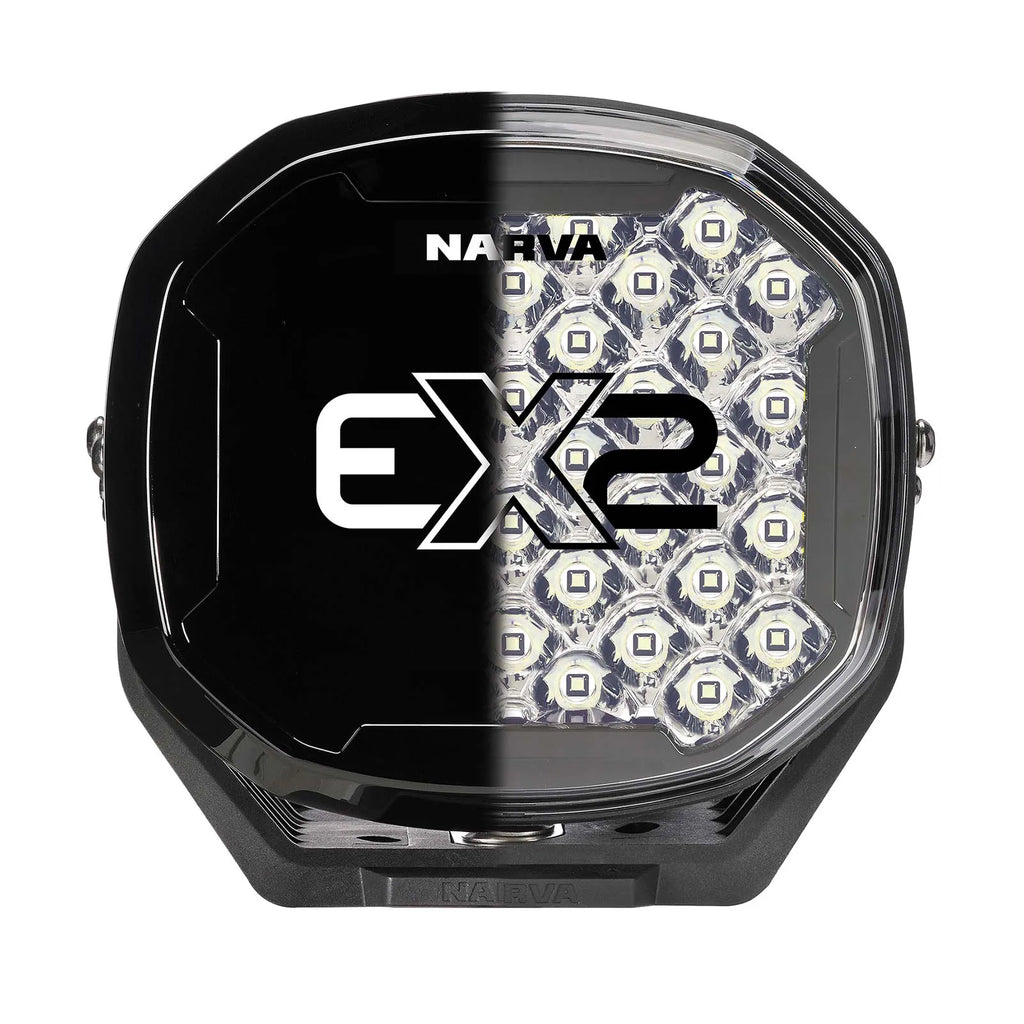

Introducing the NARVA EX2 range of driving lights which has been designed with the DIY 4WD enthusiast in mind and is also ideal for a wide range of fleet and transport applications!
With EXceptional beam pattern performance, EXtra-easy installation, EXceptional build quality and EXtensive customisation options to EXpress yourself.
| Input Voltage | 9 – 33V |
|---|---|
| Current Draw | @13.5V: 19.2A |
| LEDs | 40 x 5 Watt Cree LEDs |
| Lumens | 27,200 raw / 19,400 effective |
| IP Rating | IP68 & IP69K |
| Colour temperature | 5700°K |
| Other | Beam type: Hybrid |
| Raw Lumens | 13600lm |
| Effective Lumens | 9700lm |
| Beam Distance | 700m @ 1lux |
| Beam Width | 60m @ 1lux |
| Colour Temperature | 5700K ±5% |
| Colour Rendering Index (CRI) | 70 |
| Height | 225 |
| Depth | 102 |
| Width | 221 |
| Weight | 2620g ±10% |
| Cable Length | 0.5m |
| Housing | Pressure die-cast aluminium |
| Lens Material | Hard coated polycarbonate |

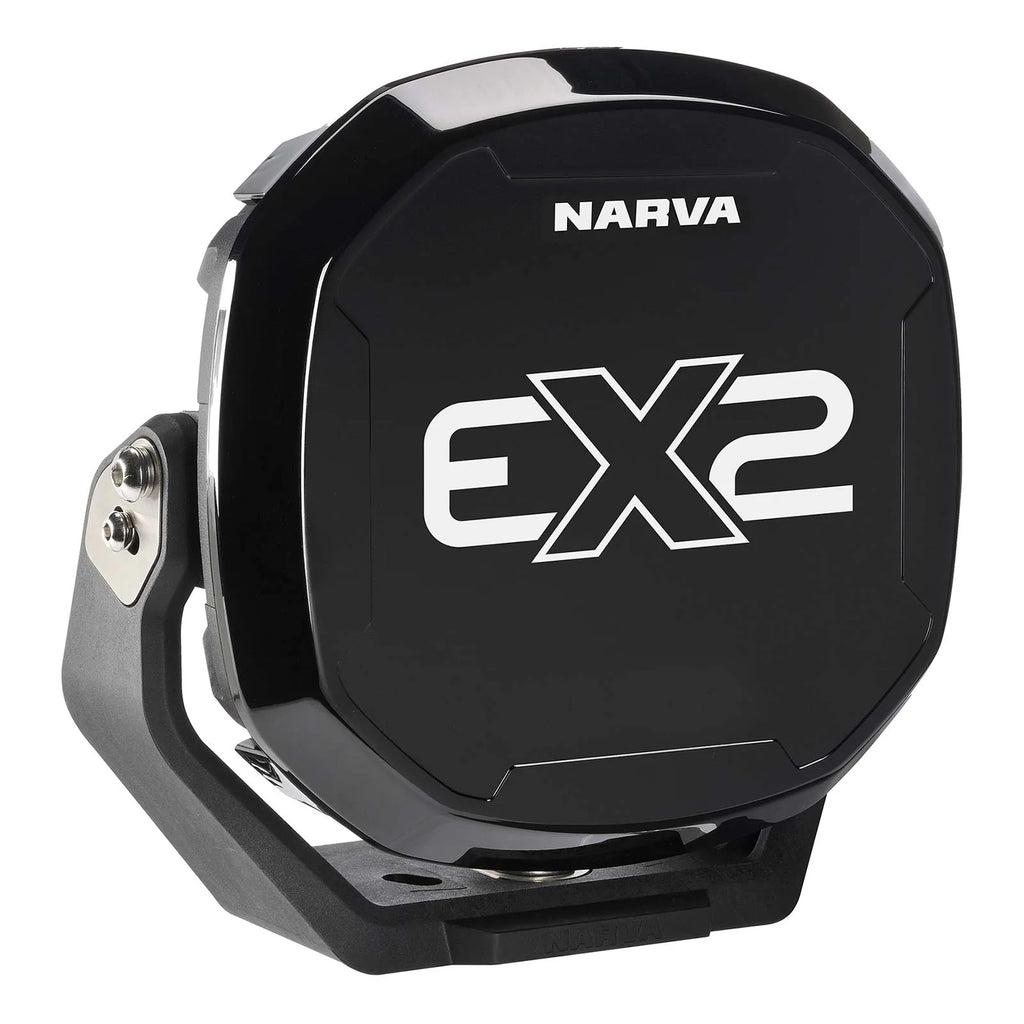

| Lens Protector | Black ABS |
| Bracket | Nylon + 30% Glass-Filled |

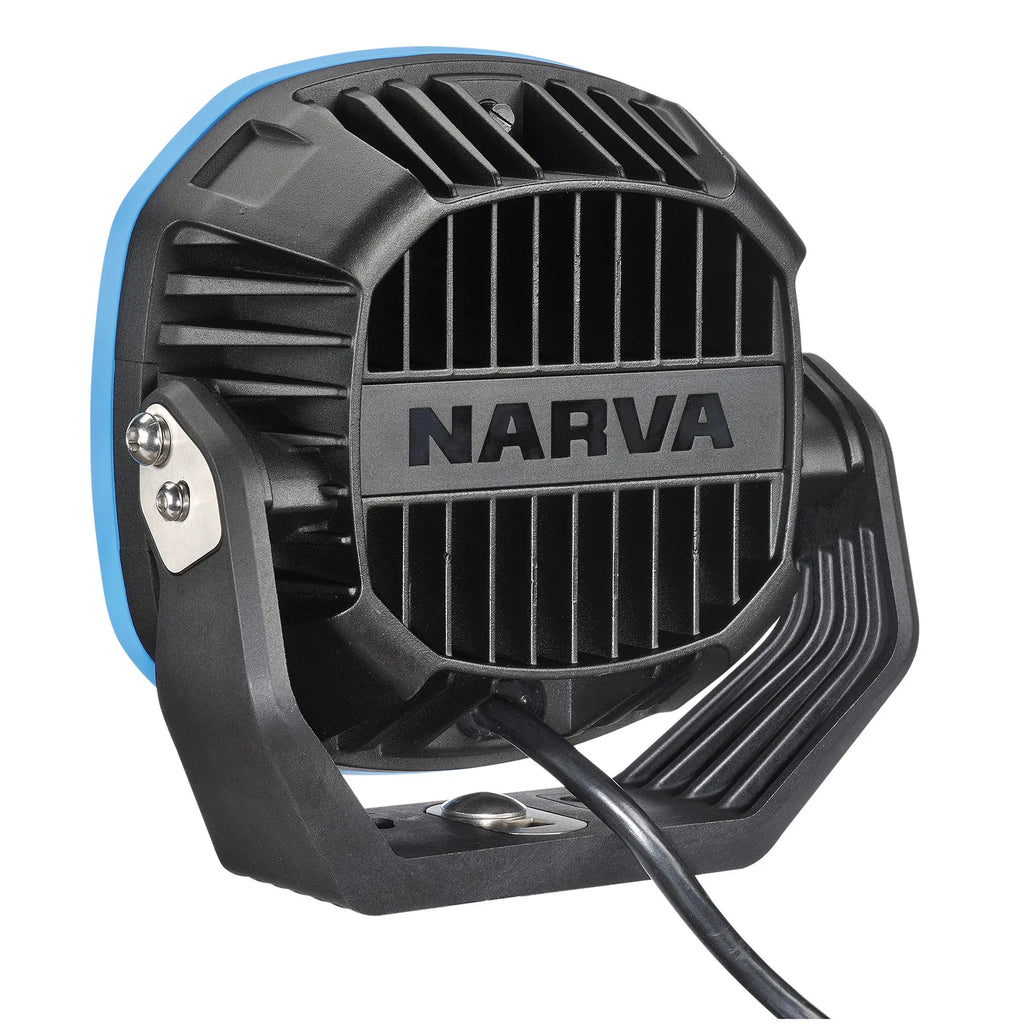

| Mounting | 3 bolt mount |
| Input Voltage | 9-33V DC |
| Current Raw (@13.5V/@28V) Per Lamp | 9.62/4.64 |
| LED's | 40 |
| LED Spec | 5W CREE LED |
| LED Power | 130 |
| Protection |
Reverse Polarity Protection, Over and Under Voltage Protection |
| IP Rating | IP68 & IP69K |
| Operating Temperature | -40 - +60° |
| ECE R10 | ✓ |
| RCM | ✓ |
| Warranty | 7 years |
| Wiring |
Red - Positive Yellow - High Beam Trigger Black - Negative |
| Kit Includes |

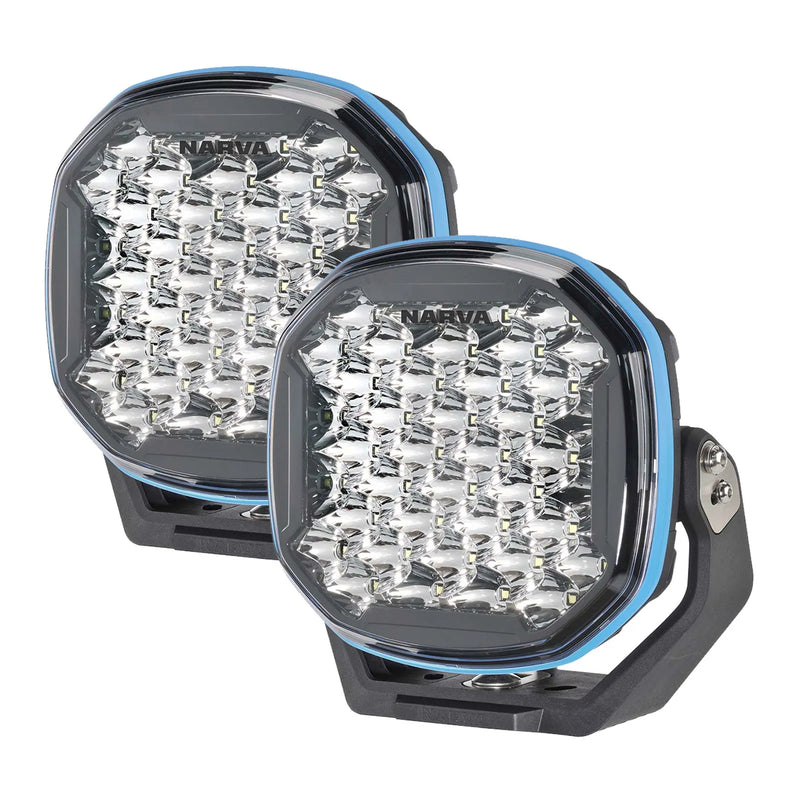

2 x 9” Driving Light 2 x BLACK Lens Protectors 1 x Colour Trim fitted on lamp (Electric Blue) 1 x Colour Trim (Slate Grey) 1 x Wiring Harness Lead Product Instructions S/S Hardware |
