Description

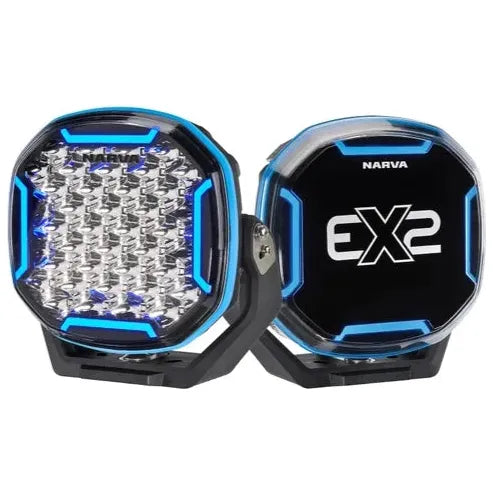

The EX2R range retains the output and build quality of the EX2 series with the addition of ADR/ECE approved front position lights offering visibility, and a distinctive appearance.
These position lights are RGB enabled, allowing them to be changed to various colours when paired with the 12V RGB Bluetooth® Controller - a never before seen feature on the market (For off-road use only).
| Input Voltage Range | 9-33V DC |
|---|---|
| Current Draw | @13.5V: 9.62/4.64 |
| LED's | 40 |
| Lumens | 13600 raw/9700 effective |
| IP Ratings | IP68 & IP69K |
| Operating Temperature | -40 - +60° |
| Colour Temperature | 5700K ±5% |
| Weight | 2620g ±10% |
| Raw Lumens | 13600lm |
| Effective Lumens | 9700lm |
| Beam Distance | 700m @ 1lux |
| Beam Width | 60m @ 1lux |
| Colour Temperature | 5700K ±5% |
| Colour Rendering Index (CRI) | 70 |
| Height | 225 |
| Depth | 102 |
| Width | 221 |
| Weight | 2620g ±10% |
| Cable Length | 2.1m |
| Housing | Pressure die-cast aluminium |
| Lens Material | Hard coated polycarbonate |
| Lens Protector | Black ABS |
| Bracket | Nylon + 30% Glass-Filled |
| Mounting | 3 Bolt |
| Input Voltage | 9-33V DC |
| Current Raw (@13.5V/@28V) Per Lamp | 9.62/4.64 |
| LED's | 40 |
| LED Spec | 5W CREE LED |
| LED Power | 130 |
| Protection | Reverse Polarity Protection, Over and Under Voltage Protection |
| IP Rating | IP68 & IP69K |
| Operating Temperature | -40 - +60° |
| ECE R10 | ✓ |
| RCM | ✓ |
| Warranty | 7 years |
| Wiring |
Red - Positive Yellow - High Beam Trigger Black - Negative |
| Kit Includes |
2 x 9” Driving Lights 2 x Clear Lens Protectors 4 x Colour Trims (Electric Blue - fitted on lamp/Slate Grey - in box) 1 x Fused Wiring Harness 2 x EX2 White Position Light Adaptor lead (150mm Brown) Product Instructions S/S Hardware 1 x EX2 12V RGB Controller with 2m lead 2 x X Decal Sticker Sets |
