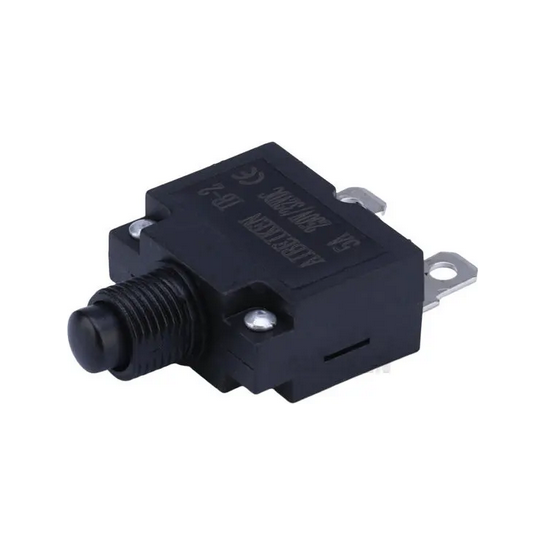

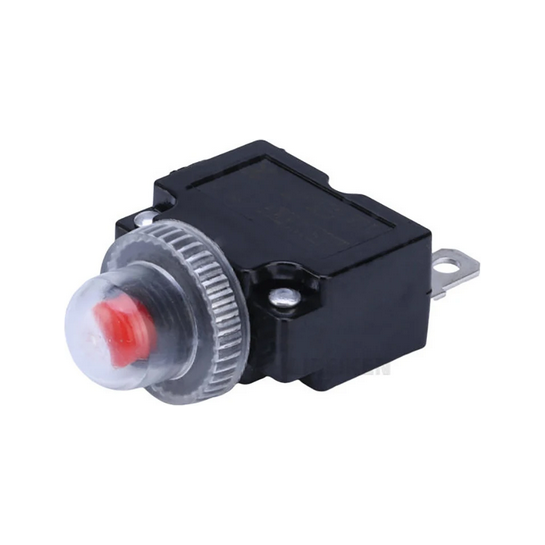

10PCS Circuit Breaker Current Overload Protector Switch 3A 4A 5A 8A 10A 15A 20A 25A 30A
Specification:
Model: Panel Circuit Breaker
Terminals : 2 Pin
Materil: Plastic/Bakelite
Rated Voltage: AC 125 V/250 V 50-60Hz
Disconnecting Current: 15A/35A
Contact Piont: Copper Contact Point
Contact Resistance: Lower than 50M Omega
Insulation Resistance: Over than 100M Omega
Dielectric Strength: Over than 1500VAC/5S
Life: 10000 Clycles
Trip Time: Lower than 40S
Warranty: 1 year
Please Note: Push button will be lucky dip between black or red.

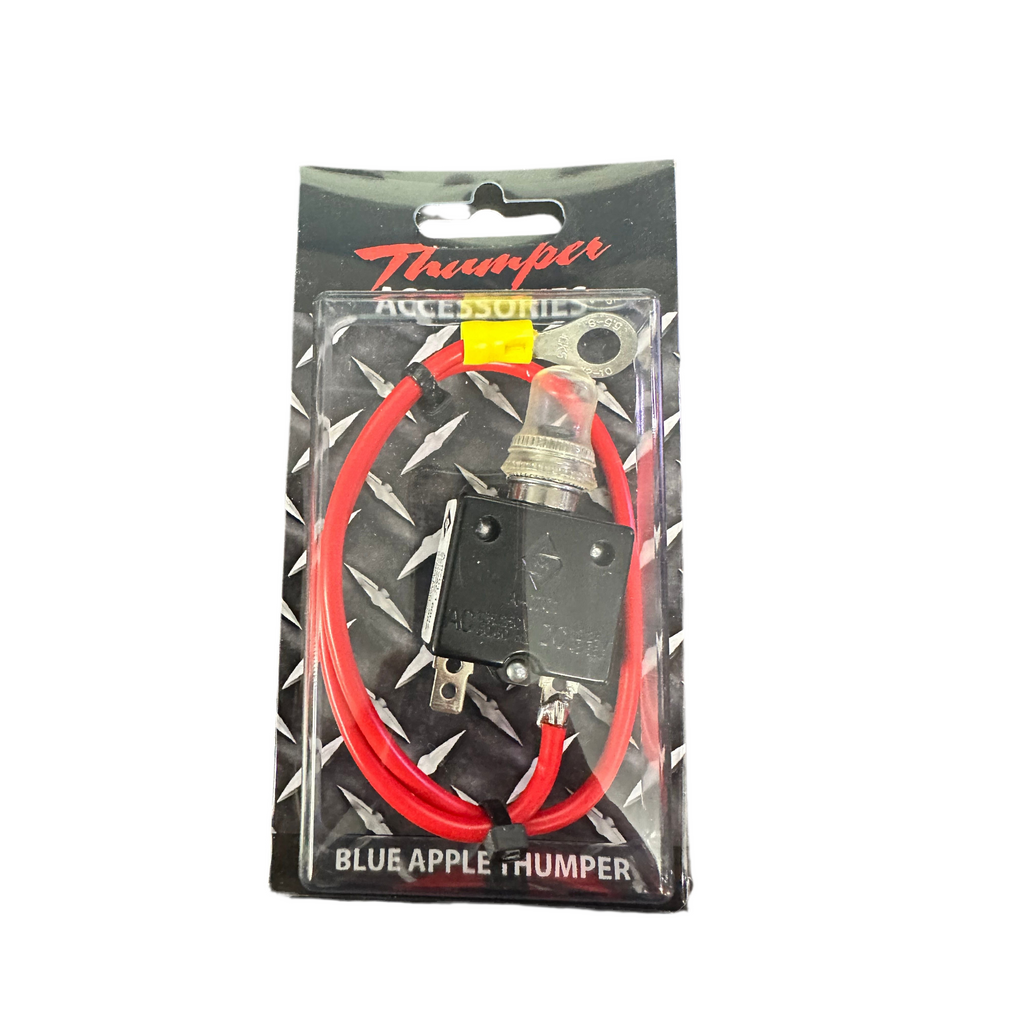

* The 35Amp Fuse is the only version with Positive cable to Eyelet added.
