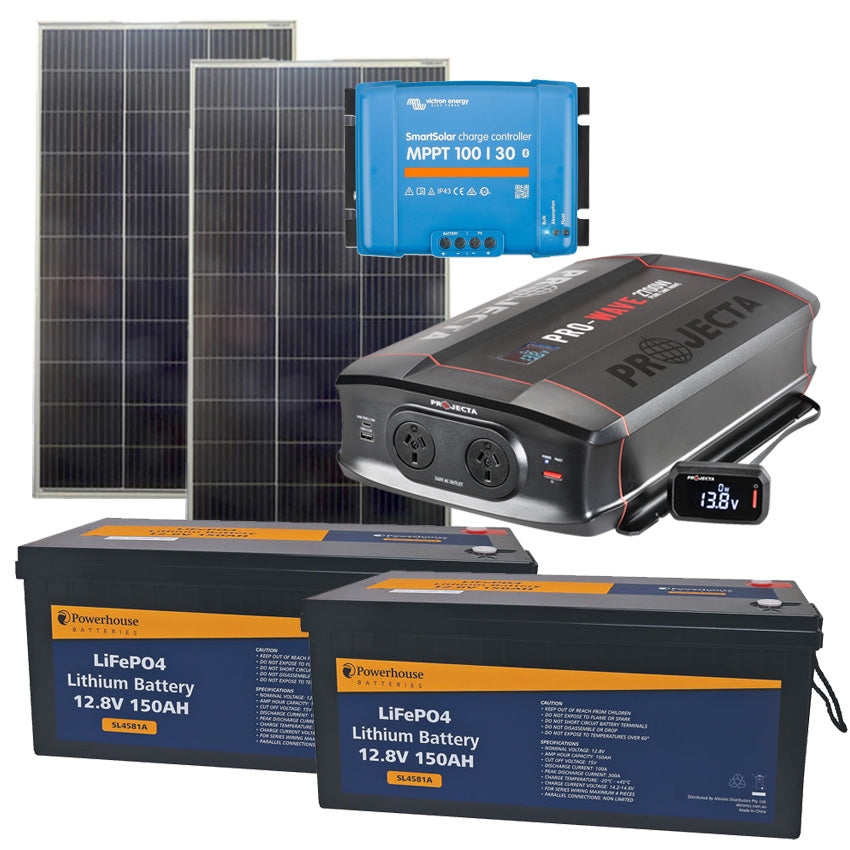

Description
This is the ultimate off grid starter package.
- 300 AH Lithium battery (2 x 150 AH)
- 2700 watt Pure Sine Inverter power
- 400 watts Solar (2 x 200 watt)
- Victron Bluetooth 30 Amp solar regulator MPPT100/30

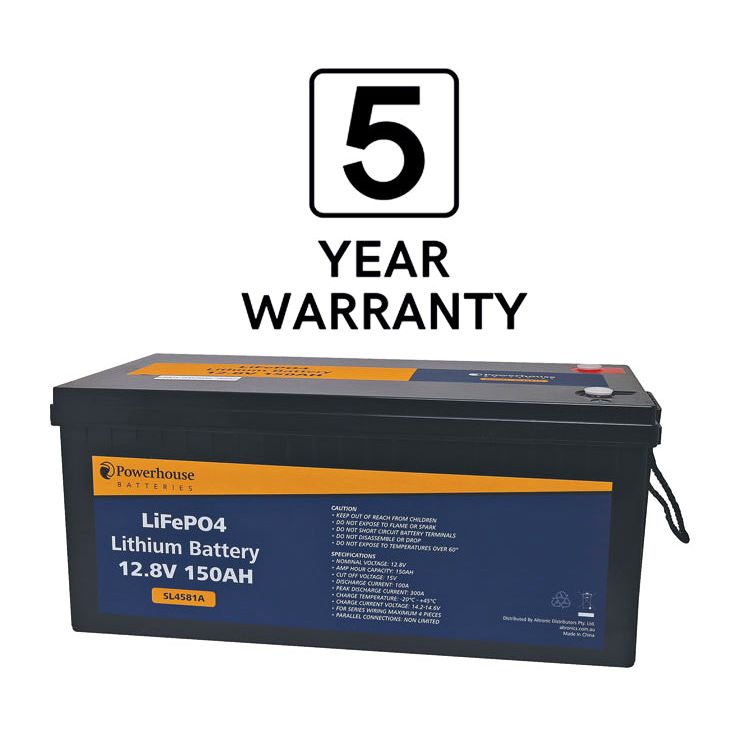

Lithium LiFePO4 Battery Power - 2 x 150 AH
This 12V 150Ah LiFePO4 replacement battery is compatible in size with traditional 150Ah SLA batteries, but with all the benefits of cutting-edge lithium technology. LiFePO4 batteries offer longer service life than traditional lead acid batteries, plus weigh less than HALF as much as SLA batteries. LiFePO4 also provide more usable life per cycle, allowing for longer run times by holding a higher voltage until capacity is almost exhausted. These batteries will also maintain 80-90% charge when in storage - far higher than their lead acid counterparts. The latest generation in maintenance free batteries is here!
Each battery is fitted with an internal battery management system to provide safe charging and discharging at all times. This system provides internal short circuit, over temperature and under/over voltage cut off. Can be wired in series and/or parallel. Regardless of your wiring configuration it is technically best to individually charge each battery to 100% capacity using the same charger before connecting them. This ensures all batteries are at the same terminal voltage and will charge/discharge evenly.
Factory supplied at 30% charge for safety compliance. Must be charged fully before use.
Excessive temperatures over 65ºC can effect the ABS housing. Need to be well ventilated in warm conditions. Not for use in engine bays.
Features
- Internal battery management system for safe charging and discharging.
- Drop in replacement for standard lead acid 150Ah batteries
- Half the weight of traditional lead acid batteries.
- Less discharge when in storage compared with traditional lead acid batteries.
- Longer service life compared to lead acid.
- Longer run time compared to lead acid.
Electrical Specifications:
| Part No. | SL4581A |
| Amp hour Capacity | 150 AH |
| Reserve Capacity @ 30A |
300 min |
| Energy Density | 1920 Wh |
| Resistance - Milliohms | < 40 |
| Efficiency - round trip | > 99.5% |
| Self Discharge per Month | < 3% |
| Max 4 - series connection | 12 - 48 V |
| Parallel connection | Non- Limited |
Discharge Specifications:
| Max Cont Discharge current |
100 A |
| Peak Discharge Current 3C |
300 A |
| BMS Current Cut off | >100.5A 10S |
| BMS Current Cut off | >120A 3S |
| BMS Current Cut off |
>150A 1S |
| BMS Voltage Cut off | 10V |
| BMS Reconnect Voltage | 12V |
Temperature Specifications:
| Discharge Temperature |
(-20 to 60C) |
| Charge Temperature |
(-20 TO 45C) |
| Storage Temperature |
(-5 to 35C) |
| BMS High Temp Cut Off |
80C |
| BMS Reconnect Temp |
50C |
| IP |
50 |
Mechanical Specifications:
| Dimensions |
521 x 237 x 217mm |
| Weight |
20 kg |
| Terminal Type |
M8 |
| Terminal Torque |
12.4NM |
| Case Material |
ABS |
| Case IP Rating | IP56 |
| Cell Type - Chemistry | LiFePO4 |
| Cell Type | Prismatic |
Charge Specifications:
| Recommended Charge current |
50A |
| Max Charge current |
100A |
| Charge current (0 to -10C) |
<50A |
| Charge current (-20 to -10C) |
<40A |
| Recommended Charge Current voltage |
14.2 - 14.6V |
| BMS Charge voltage cut off |
15.0V |
| BMS Reconnect voltage |
14.4V |
| Balancing voltage |
13.6V |
Safety and Performance Specifications:
| Certifications |
CB / CE |
| UN38.3 |
|
| UL1642 @cell |
|
| Shipping Classification |
UN3480, CLASS 9 |
HUGE 5 YEAR Manufacturer warranty!

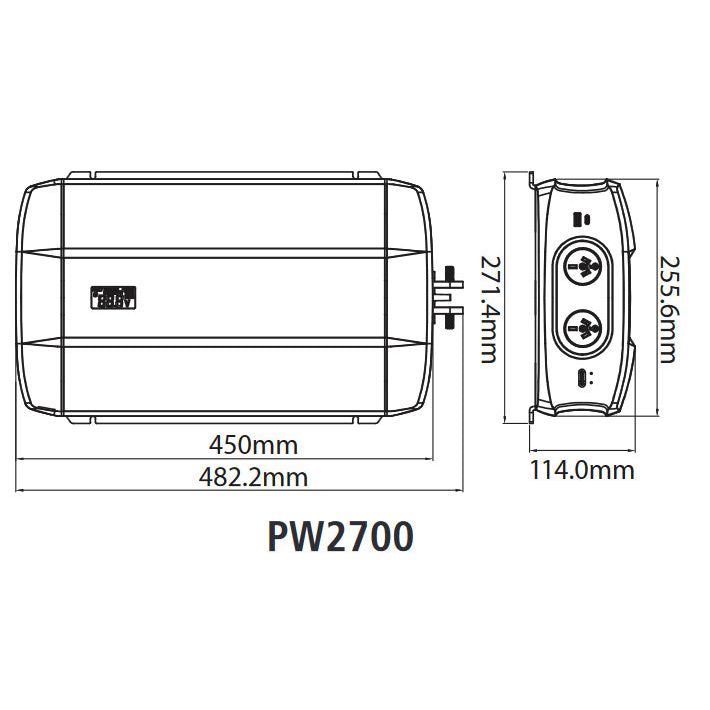

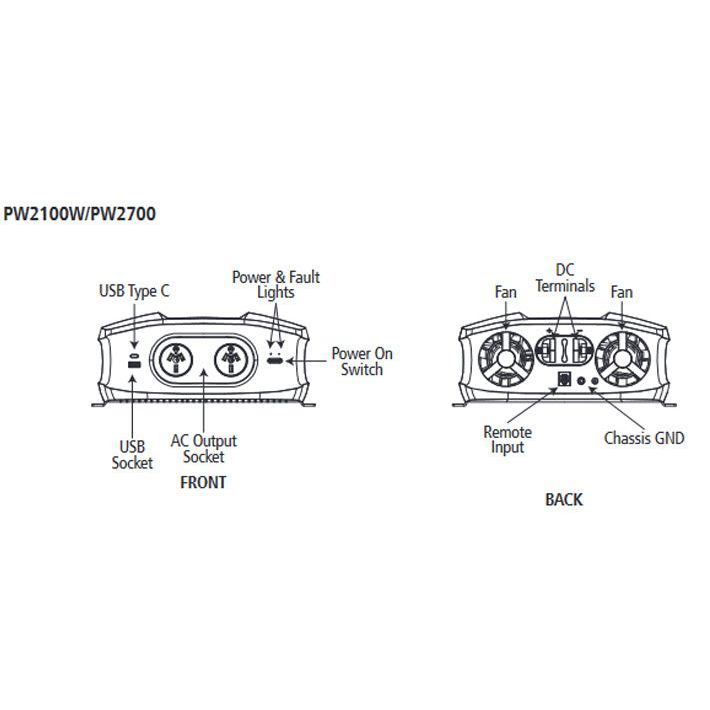

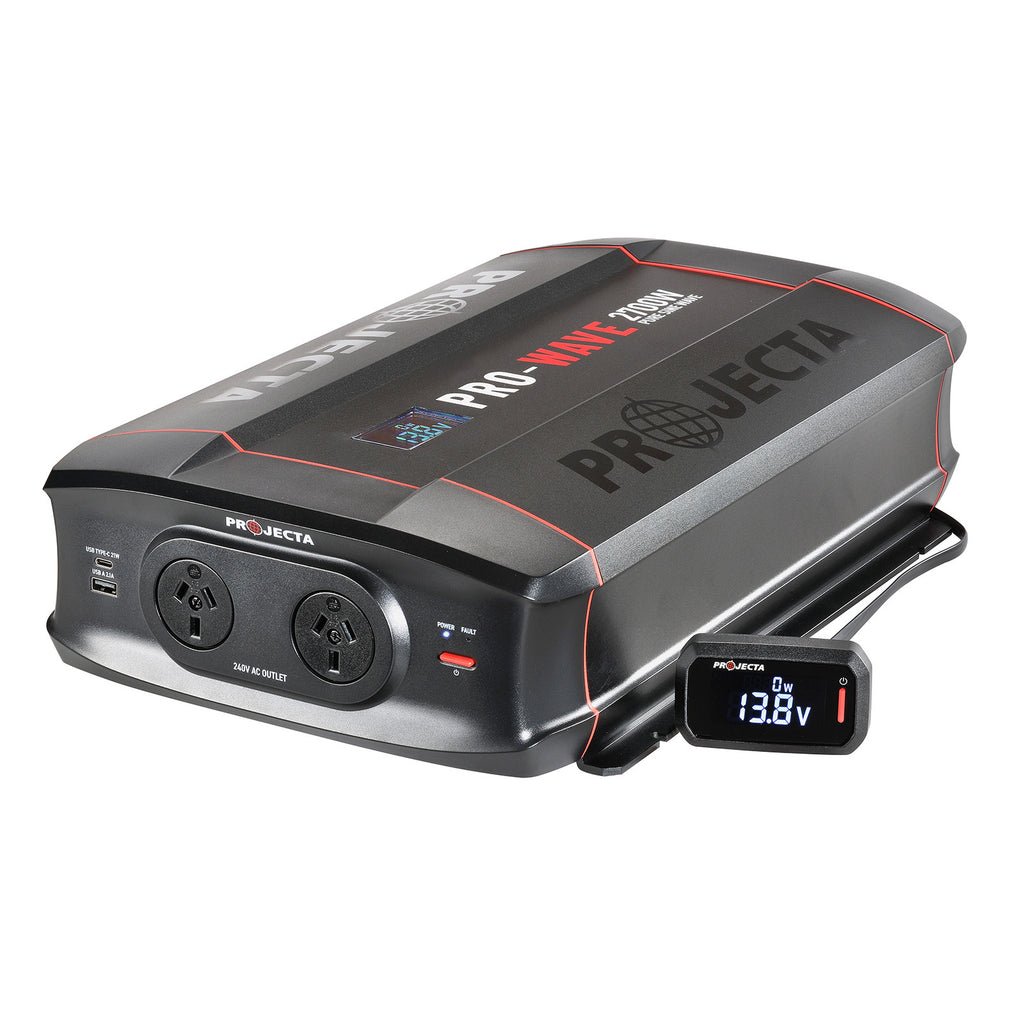

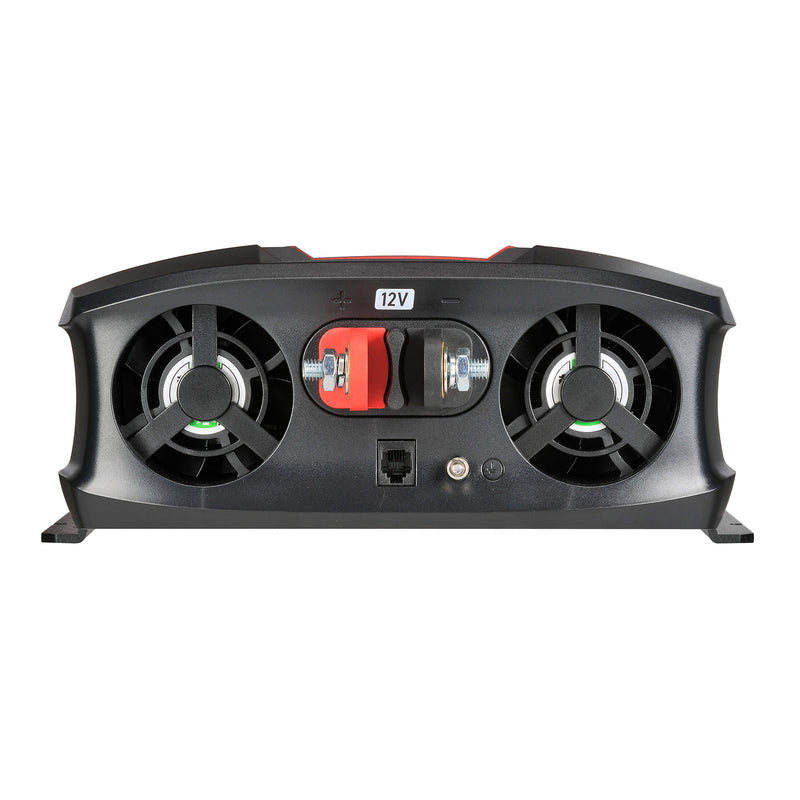

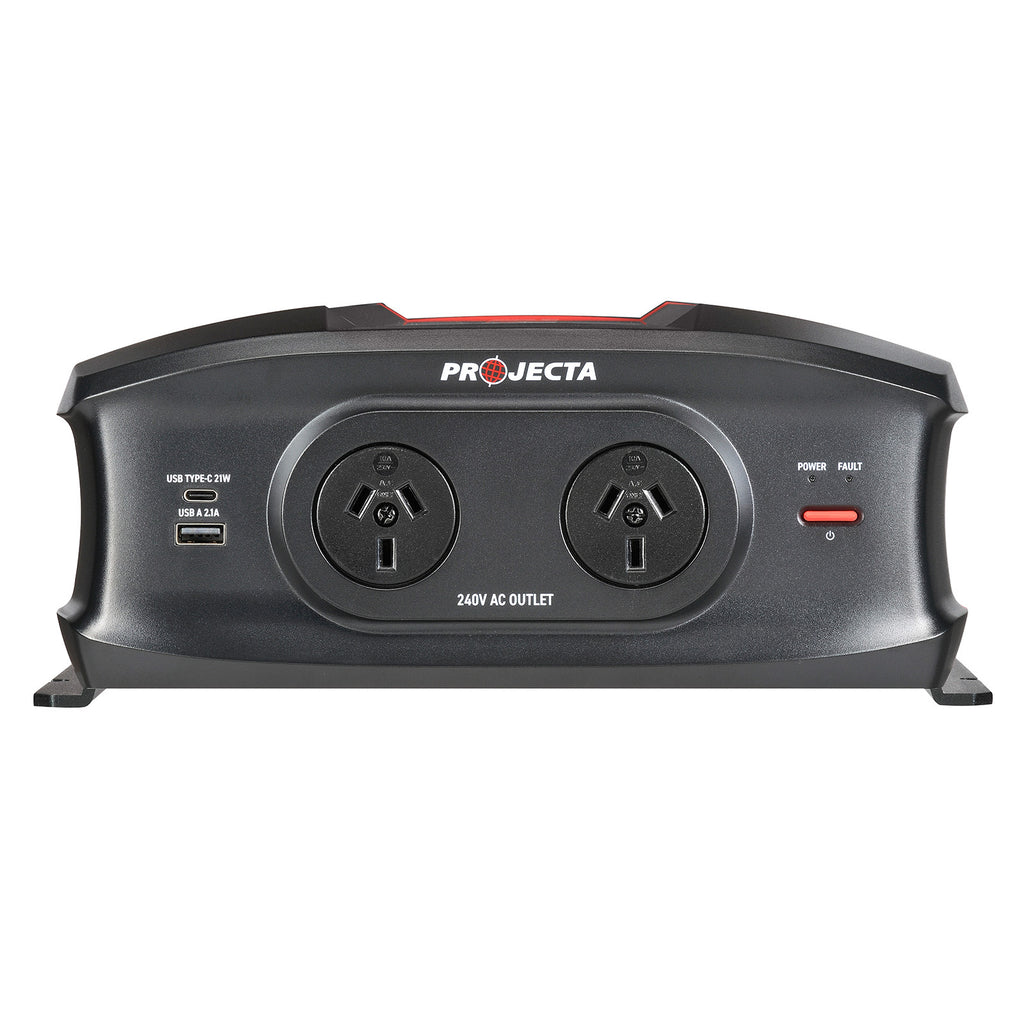

Pure Sine inverter Power - PW2700
The Projecta ProWave inverters have been upgraded to incorporate a heavy duty design, increased capacity, added protection and an extended 3 year manufacturer's warranty!
This impressive design offers sizes ranging from 500 watts up to 2700 watts!
The Projecta PW2700 has targeted to heavy draw appliances such as 240 volt fridges, coffee machines, power tools and more!
Included with an optional remote head, it is now easy to monitor the usage of your system remotely from your inverter location!

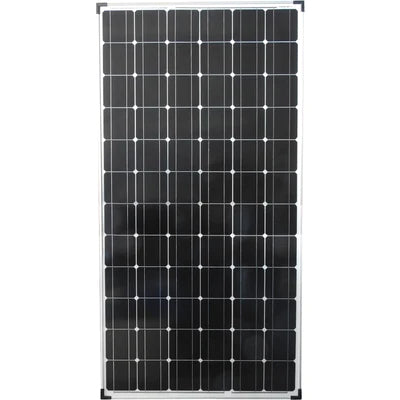

Solar Panel
This 200 watt Mono-crystalline solar panel is the largest 12 volt panel we offer.
Note: This panel is not advised to fit to Caravan or motorhomes due to the size of the panel. This panel is designed for stand alone systems, such as Shacks, container and stand-alone systems.
This listing is for an unregulated panel, It is advised to fit a regulator for a permanent installation to ensure overcharging does not occur.
| Panel Type | Mono-crystalline |
| Code | MT-105M-200W |
| Maximum Power (Pmax) | 200W +-3% |
| Maximum Power Voltage (Vmp) | 22.45V |
| Maximum Power Current (Imp) |
8.91A |
| Open Circuit Voltage (Voc) | 26.01V |
| Short Circuit Current (Isc) | 9.41A |
| Nominal Operating Cell Temp. (NOCT) | -45 to 80*C |
| Maximum System Voltage | DC1000V |
| Maximum Series Fuse | 15A |
| Weight | 10.6 Kg |
| Dimensions | 1510*670*35mm |
The past 10-15 years has seen rapid improvements in the field of solar technology. Panels that were the “most efficient” on the market even 5 years ago are not necessarily the most efficient today.
There are three main types of panels available in today’s market:
Amorphous – These cells are used in calculators, watches, toys and small solar applications. Amorphous cells tend to work very well in levels of low light; however the surface area of the panel needs to be much greater in order to produce even a small amount of power. Some amorphous cells are flexible but are much larger in size per watt than mono crystalline panels. Amorphous panels claim to be more shade tolerant, however the size of the panel required to produce anything of real power renders the use of this type of panel impractical in the Caravan, camping and off-road industry.
Poly-crystalline – These panels were very commonly used in the Caravan, camping and off – road industry, most installations nowadays use the Mono crystalline panels. Polycrystalline panels use a light reflective crystal which tends to attract the light from sharper angles. This is a great feature for fixed mounted panels; however they also have flaws when compared against the Mono crystalline panels. Polycrystalline panels work fantastic in areas of high light such as the northern and western parts of Australia (high Western Australia, NT and QLD). However, the efficiency of a polycrystalline panel is reduced quite significantly when used in overcast or low light locations such as the lower parts of Australia or Eastern Australia.
Mono crystalline – The most popular type of panel used in today’s market due to its high tolerance to low light and overcast conditions. This type of panel was not as popular 10 years ago due to cost factors, however, as manufacturing cost for this panel has reduced, the Mono crystalline panels have by far taken the lead as the most “ALL ROUNDED” panel used in the off – road industry.
Mono crystalline panels make for fantastic panels for the off-road / portable power usage due to the all rounded efficiency with all levels of light.
Home of 12 Volt offer a full range of fixed and portable Mono-crystalline Solar Panels.
All panels sold by Home of 12 Volt are made with highest quality A - grade silicon cells and come with a full 20-25 year performance warranty and 10 year structural warranty.

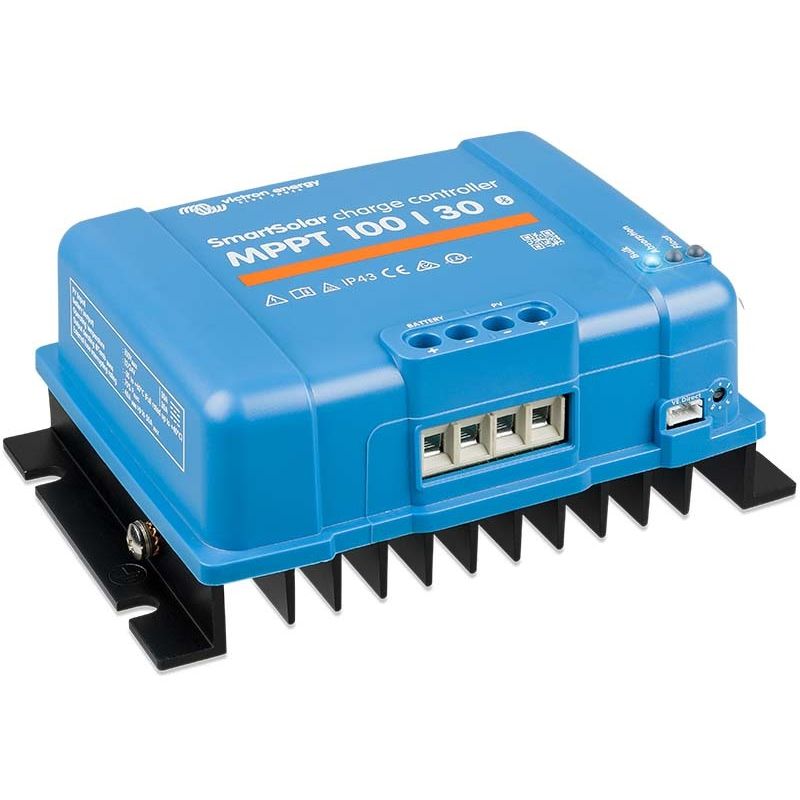

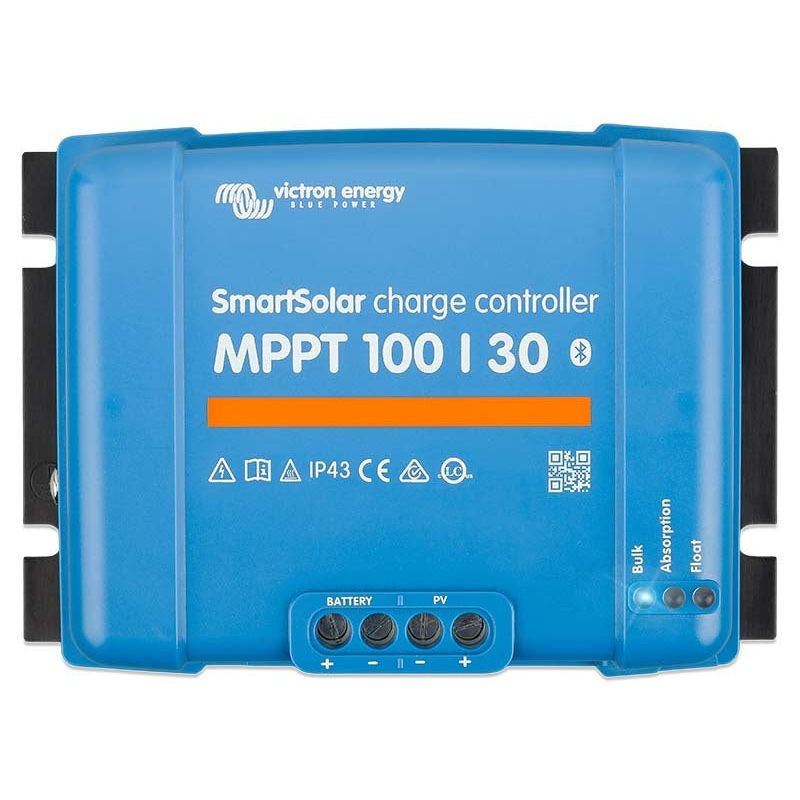

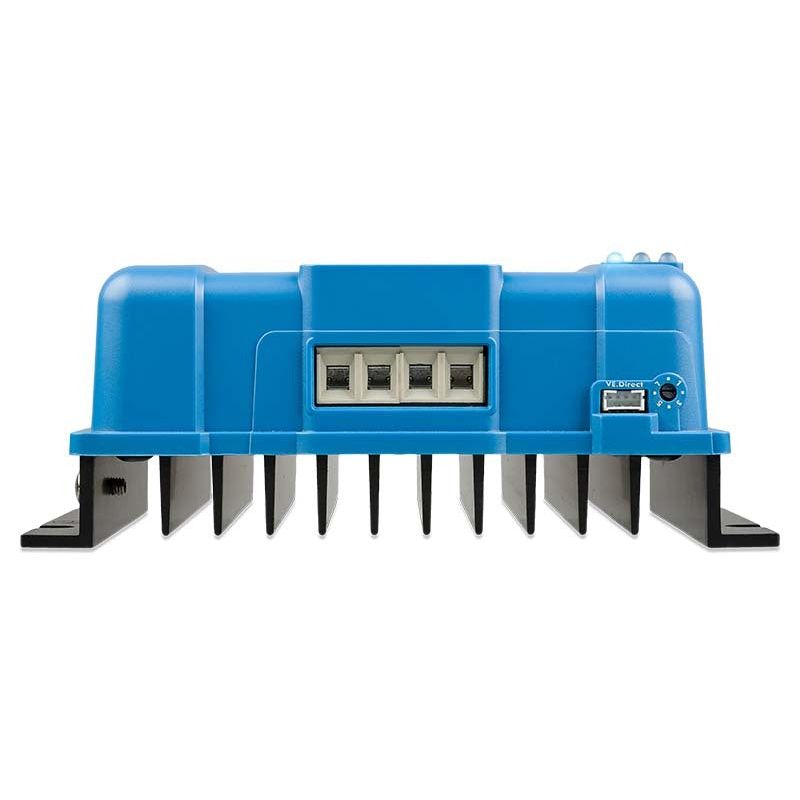

Victron Bluetooth Solar Regulator - MPPT100/30
Victron SmartSolar 100 VOC, 30 Amp MPPT solar panel charge controller for 12V and 24V battery systems (including Lithium) with Bluetooth.
Suits Battery: 12/24V
MPPT 100/30 & 100/50
MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It then manages this power to supply the varying voltage requirement of the battery plus load.
The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.
The Victron MPPT SmartSolar support Advanced Maximum Power Point Detection. Unlike the conventional MPPTs which tend to lock to a local MPP when shady conditions occur, [which may not be the optimum MPP], Advance Maximum Power Point Detection will harvest maximin energy by locking to the optimum MPP.
Internal temperature sensor provides additional electronic protection
- Over-temperature protection and power derating when temperature is high.
- PV short circuit and PV reverse polarity protection.
- PV reverse current protection.
Other features:
- With no cooling fan the maximum efficiency exceeds 98%.
- Flexible charge algorithm provides functionality for fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch
Built-in Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available on your solar charge controller such as:
|
|
.jpg)
Victron MPPT model names explained
MPPT 100/30, the first number is the maximum PV open circuit voltage. The second number, 30, is the maximum charge current. Use the Victron MPPT Excel sheet or Online MPPT Calculator for PV sizing calculations.
For more information about PWM or MPPT charge controllers, read the Victron whitepaper: which solar charge controller: PWM or MPPT?
(VIC.SCC110030210)
