Portable 330 watt Tri Fold Solar Panel - Unregulated | Suits DC charger use

Save 13%

Price:
Sale price$649 Regular price$749

Description

The Blue Apple Mono crystalline portable 330 watt Split fold solar panel is made with the highest quality A - grade silicon cells and come with a full 25 year performance warranty and 10 year structural warranty.

Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.

The 330 watt Split fold has the ability to harness up to 20+ Amps per hour (with an average output of 18+ Amps)

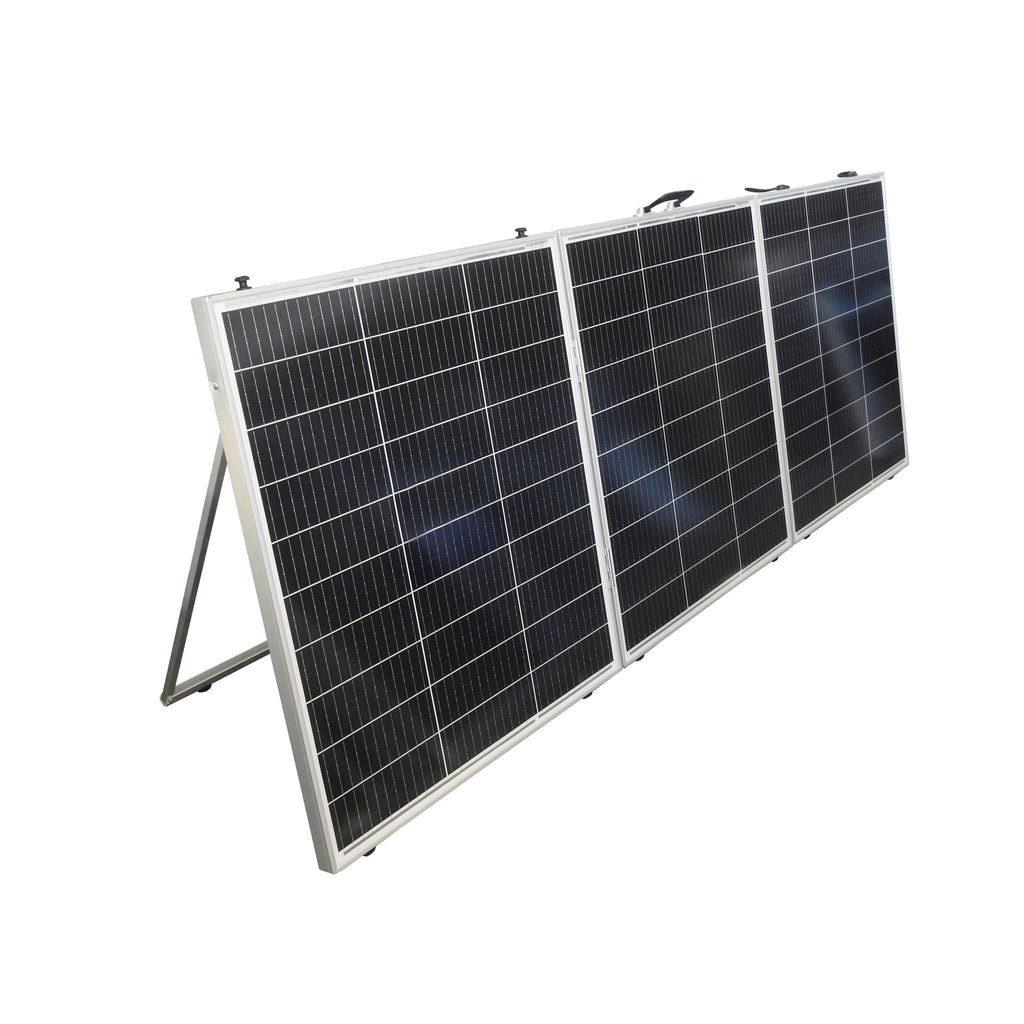

This neat design consists of 3 x 110 watt panels hinged together, so when folded the glass panels will fold in facing one another, adding extra protection to the panel. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.

Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).

This means that the 330 watt Tri fold panel CAN produce up to a massive 240+ Amps per day!

The 330 watt Tri fold panel would allow the user to continuously keep up with the draw of an 150Lt compressor type fridge plus more (when combined with approx a 100 Ah+ battery).

The input power of a portable panel is largely dependent on the user of the panel.

Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.

Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.

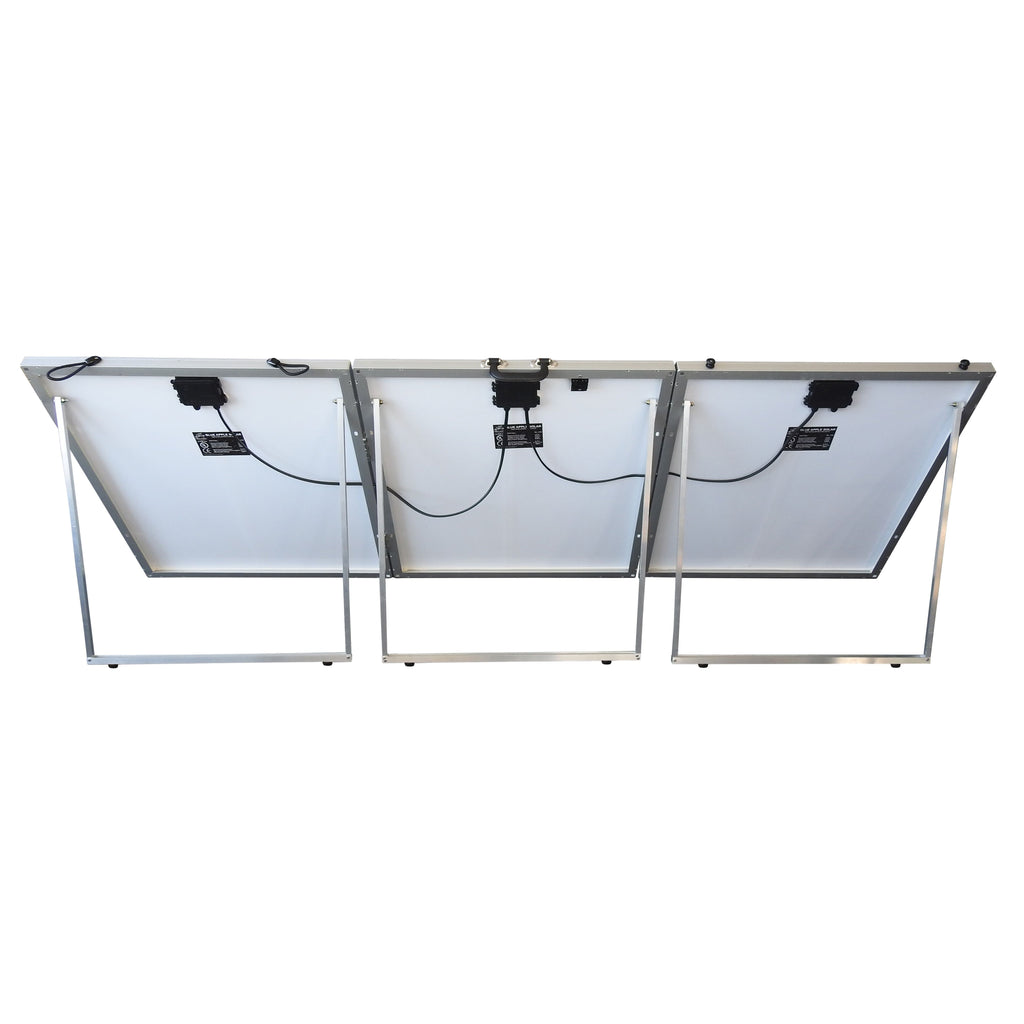

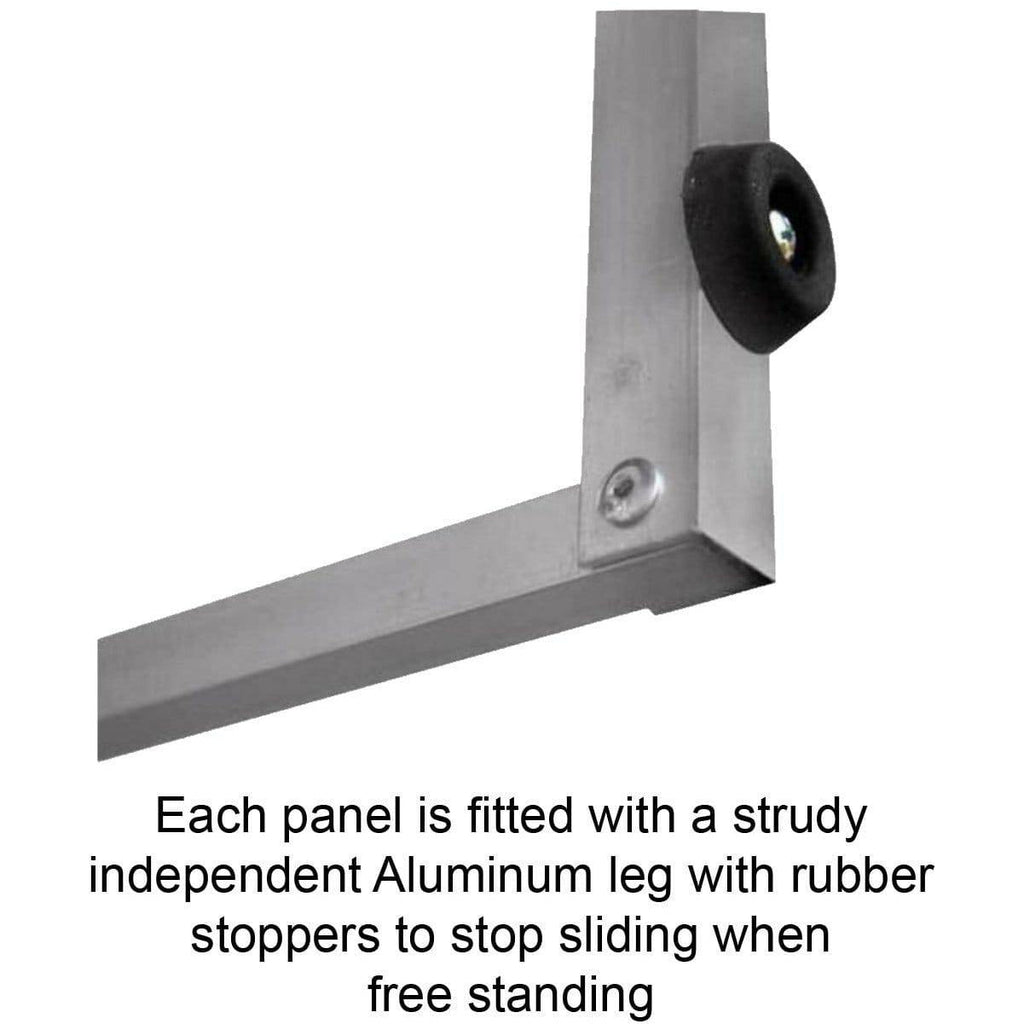

Each panel is equipped with its own set of heavy duty anodized aluminium legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminium leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.

UNREGULATED
The 330 watt Tri Fold solar panel is UNREGULATED. This connection is designed to be connected to an external solar regulator ( or in line solar regulator ). This unregulated connection allows a DIRECT feed to the panel and will allow you to use an external regulator (such as a DC - DC charger!)


Panel Type               Monocrystalline
Panel Code                    BA - 330TRI

Maximum Power (Pmax)         330W

Voltage at Pmax (Vmp)            18.0V

Current at Pmax (Imp)            19.8A

Open Circuit Voltage (Voc)      22.50V

Short Circuit Current (Isc)       18.48A

Normal Operating Cell
Temp(NOCT)                        48±2⁰C

Max System Voltage               1000V

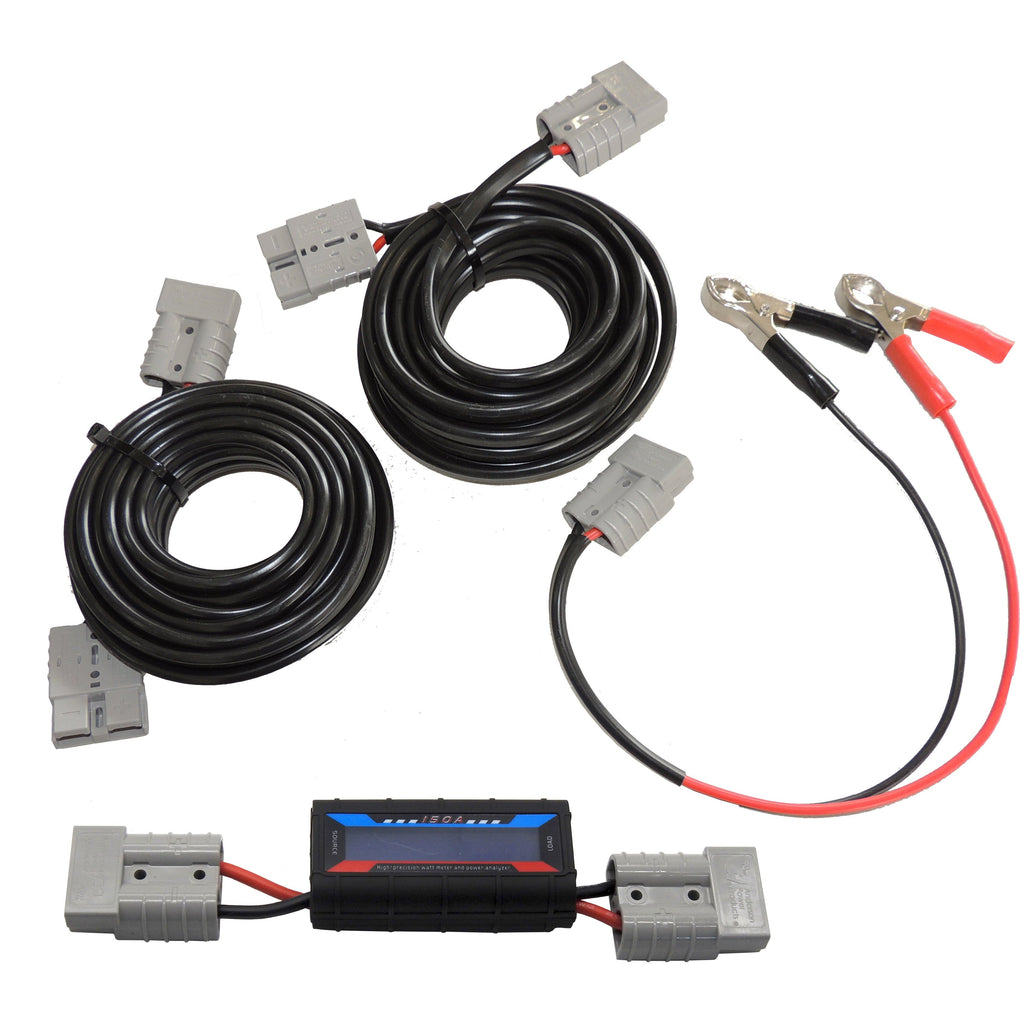

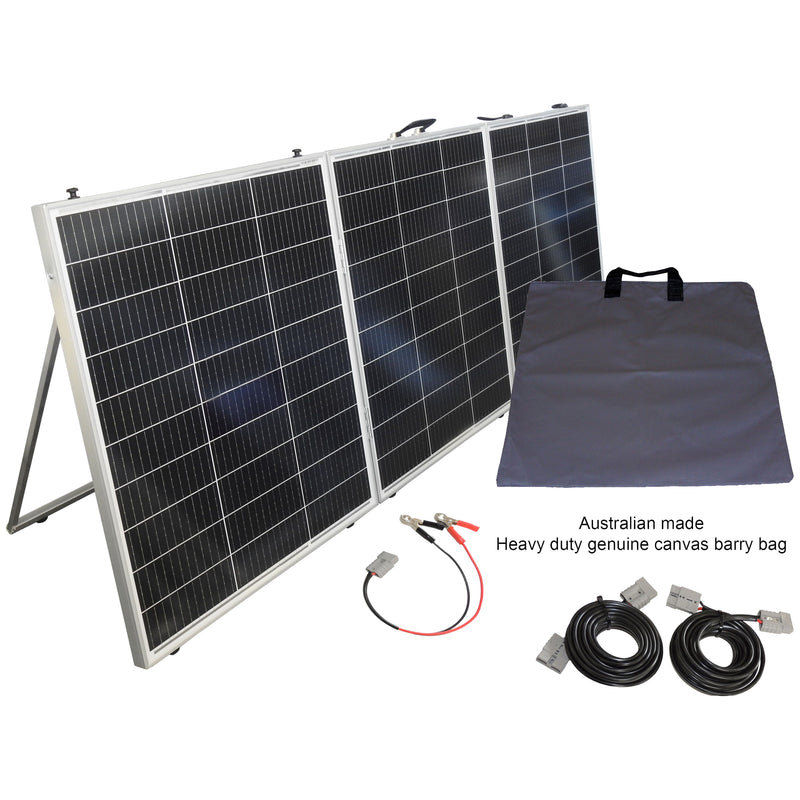

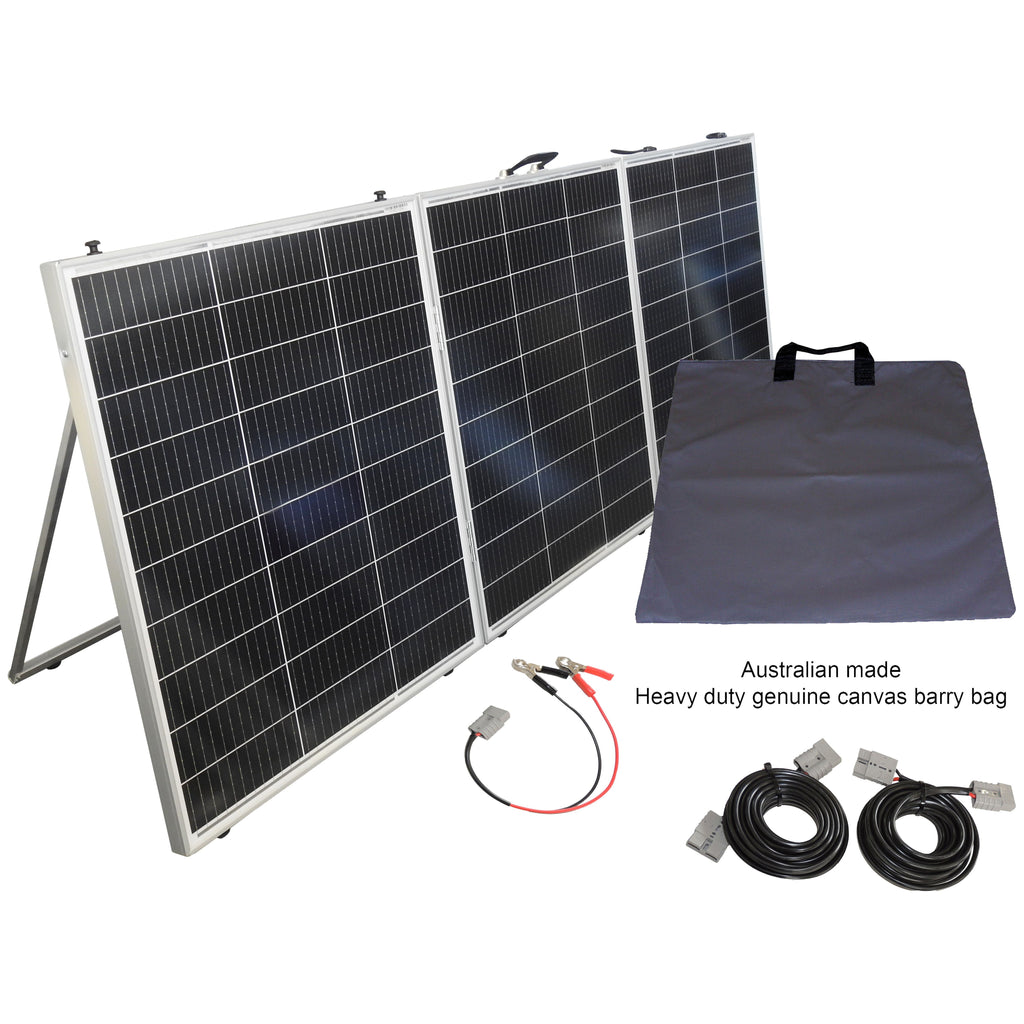

Package includes:

  • 330 watt TRI Fold Mono crystalline panel
  • 2 x 5 meters 6mm Twin core cable with Anderson
  • Anderson to Alligator clips

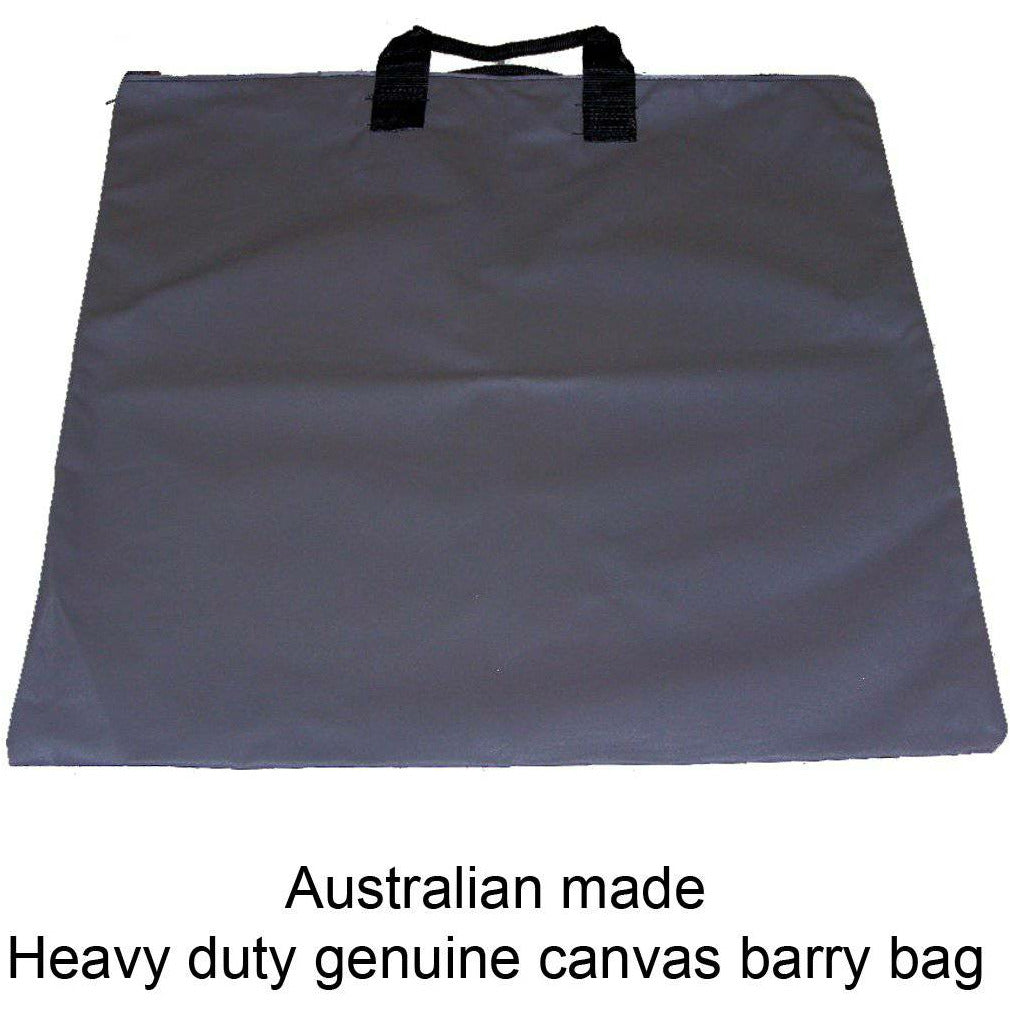

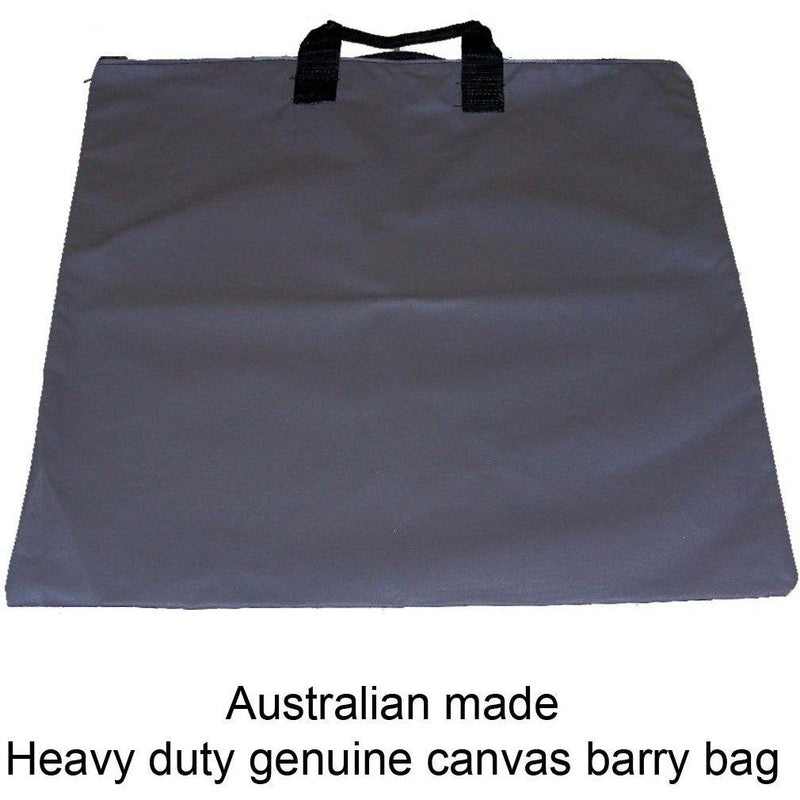

  • Heavy Duty Canvas Carry Bag
  • Amp meter and Extension lead kit - see photo
  • Unregulated Anderson (Black)






Weight – 17.0 kg

DIMENSIONS - UNFOLDED


Length – 2220mm

Height – 785mm (770mm no handle)

Depth – 30mm

DIMENSIONS - FOLDED


Length - 685mm

Height - 785mm (770mm no handle)

Depth - 95
mm

10 Year Structural Warranty
25 Year Performance Warranty
