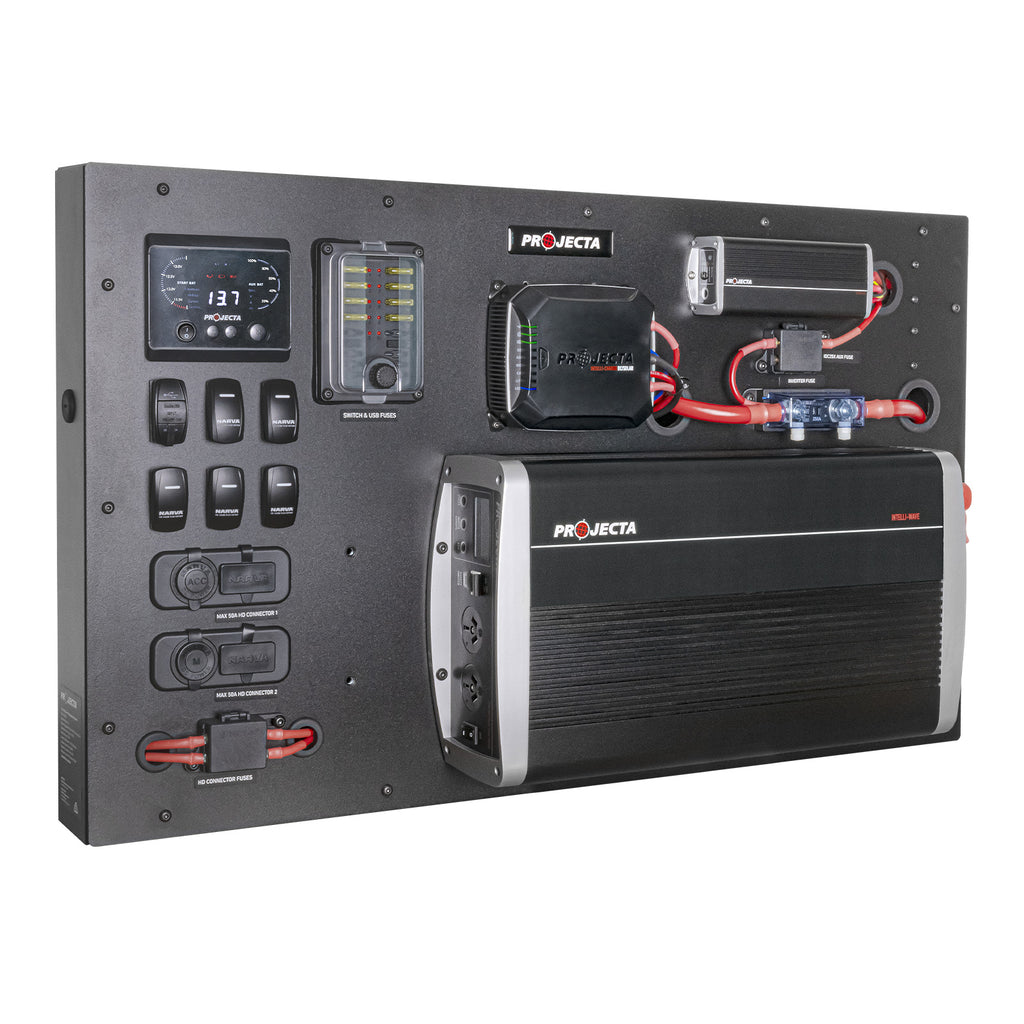

Projecta 12 Volt DC Power Management Board 4WD Canopy Includes IDC25X & IP2000 | ICB2000

Projecta’s range of 12V power management systems are ideal for Ute canopies, 4WD’s and Caravans.

Choose from a range of pre-built models to suit your vehicles needs. Each model includes a DC/DC charger with solar and alternator inputs along with an array of switches and sockets to manage your power needs.

The boards also feature a convenient easy to read Bluetooth enabled LCD display to check the status of your auxiliary battery. Lastly, it offers a powerful pure sine wave inverter to run all your 240V appliances off grid

SYSTEM COMPONENTS
• LCD Battery Monitor with Bluetooth enabled APP
• 500A Current Shunt
• DC-DC Charger with MPPT Solar Controller
• 5 x 20A Switches
• Dual USB Socket (total 3.1A)
• 2 x 50A Heavy Duty Connectors
• Accessory and Merit Socket
• 2000 watt Pure Sine Inverter
• Easily accessible fuse holders for each component
• Low Voltage Disconnect LVD50

KEY FEATURES

• DC-DC CHARGER (IDC25X)
  Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications

• BATTERY MONITOR (BM500-BT)
  An intelligent and compact Bluetooth battery meter ideal for monitoring SOC% and general status. Check your battery status via the on-board LCD display or via phone APP

• SOCKETS & SWITCH PANEL
  Power and charge 12V devices with 2 USB sockets (total 3.1A), a merit socket and a cigarette lighter socket. 5 switches are included to control all your connections
• LOW VOLTAGE DISCONNECT (LVD50)
  A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-
  discharge. The switch loads on the board are protected by this unit
