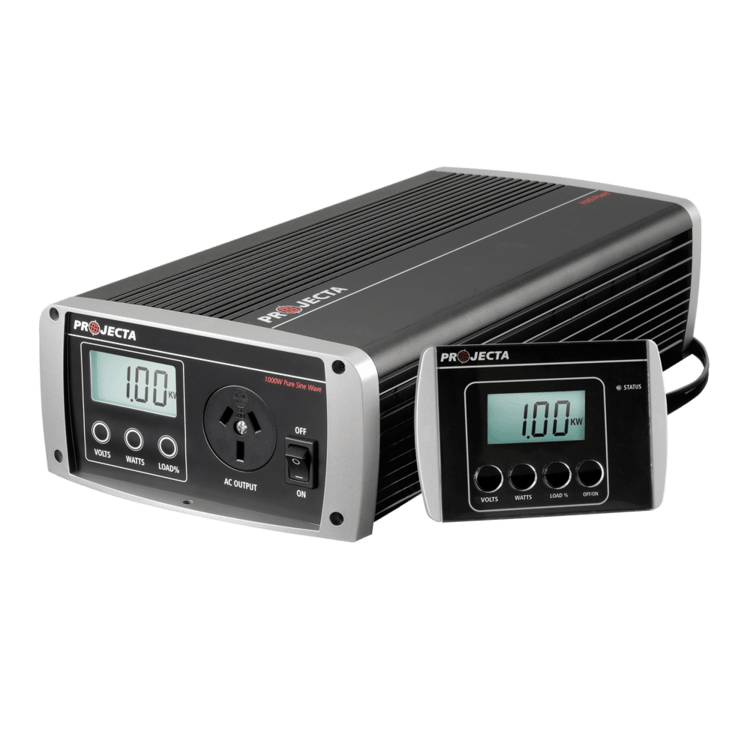

Projecta 12V 1000W Intelli-Wave Pure Sine Wave Inverter | IP1000

Name: Projecta 12V 1000W Intelli-Wave Pure Sine Wave Inverter | IP1000
Brand: Home of 12 Volt Online
SKU: IP1000
Price: 820.0 AUD
Availability: InStock

Save 18%

Home of 12 Volt OnlineSKU: IP1000

Share this product

PART NO IP1000

With a peak power output of an astonishing 2000W, the IP1000 is the ideal inverter for powering all your electrical needs that require ultra clean power. Ideal for permanent installation this sophisticated inverter is perfectly suited to caravans and trade requirements.

FEATURES

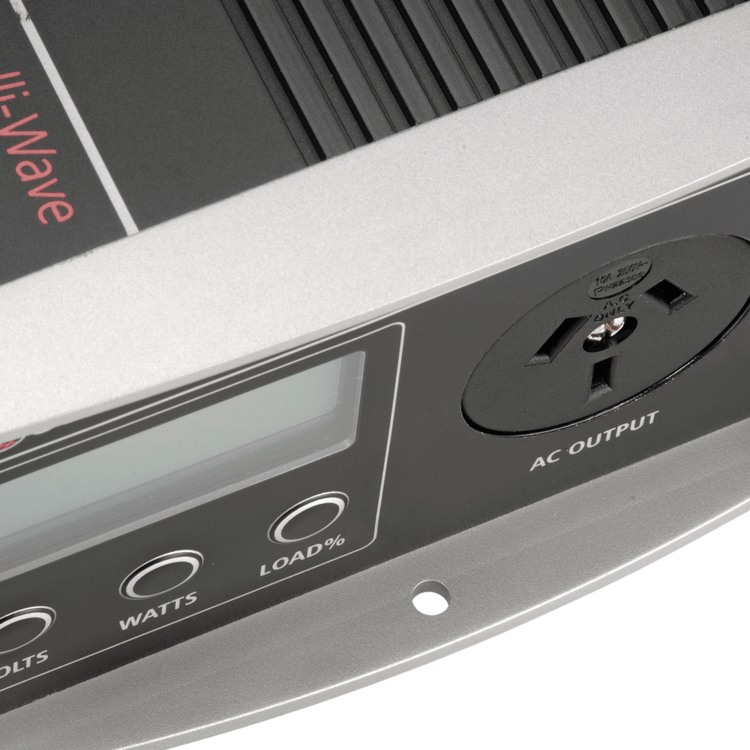

Approved output socket
AS/NZ approved 240V sockets. Inverter designed to Australian standard AS4763

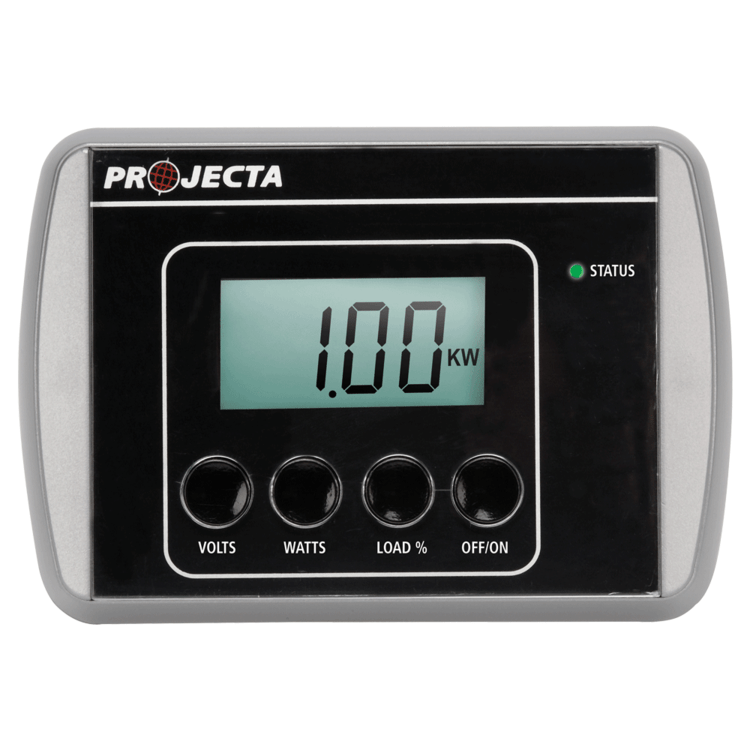

Remote control
LCD display and remote control unit provide information on battery voltage, power usage and load capacity

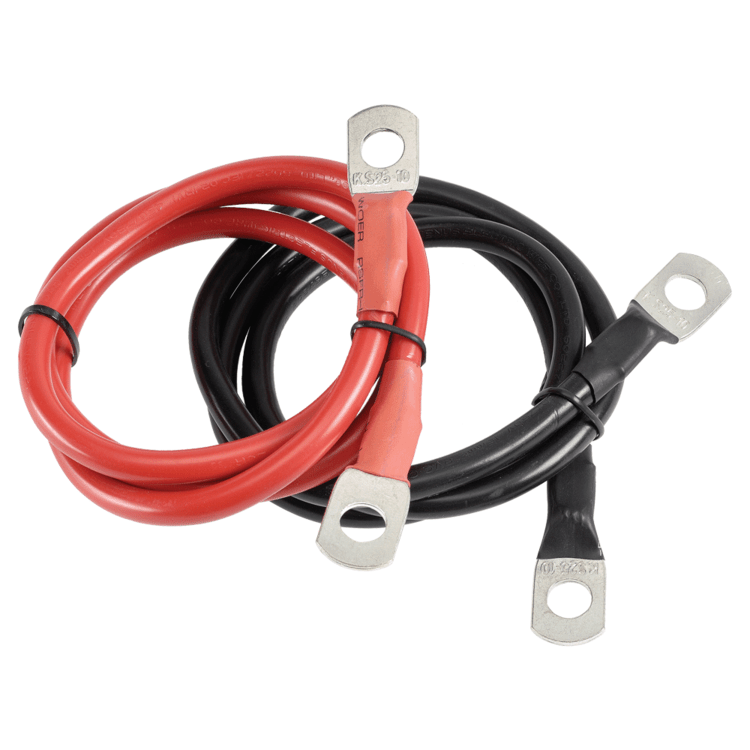

Wiring kit
Battery lugs with 1100mm 16mm2 battery cable

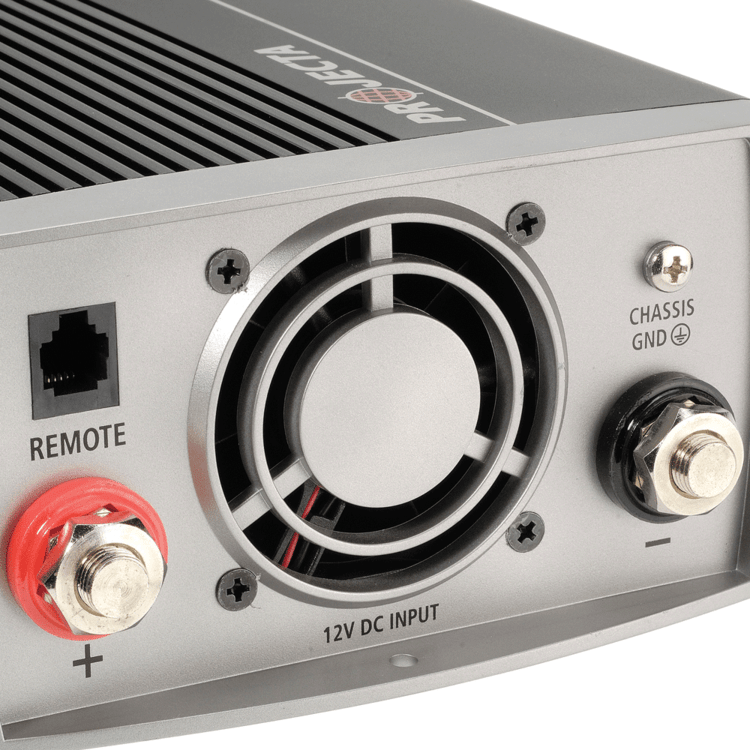

Efficient design
Thermostatically controlled cooling fan

Mounting flange
Convenient and robust mounting points

> Range features and application guide

SPECIFICATIONS
PART NO	IP1000
INPUT	12V DC, 100A Max
NO LOAD CURRENT DRAW	1.2A
OUTPUT	240VAC, 50Hz (Pure Sine Wave)
OUTPUT POWER	1000W Continuous (2000W Peak)
INVERTER CLASSIFICATION	Equipotentially Bonded (EPB)
EFFICIENCY	85–90%
LOW BATTERY ALARM	10.25 Volt
SHUTDOWN	9.75V (±0.2V)
COOLING FAN	Automatic temperature controlled
THERMAL SHUTDOWN	65°C(±5°C)
FUSE	220A (4 x 40A, 2 x 30A)
IDEAL BATTERY SIZE	75–250Ah
MINIMUM BATTERY SIZE	75Ah, 550CCA
RUN TIME WITH 1000W ON 75Ah BATTERY	15 minutes
RUN TIME WITH 100W GLOBE ON 75Ah BATTERY	6 hours
APPROVALS	Electrical Safety, EMC

INSTRUCTION MANUAL

> Download PDF
