Description

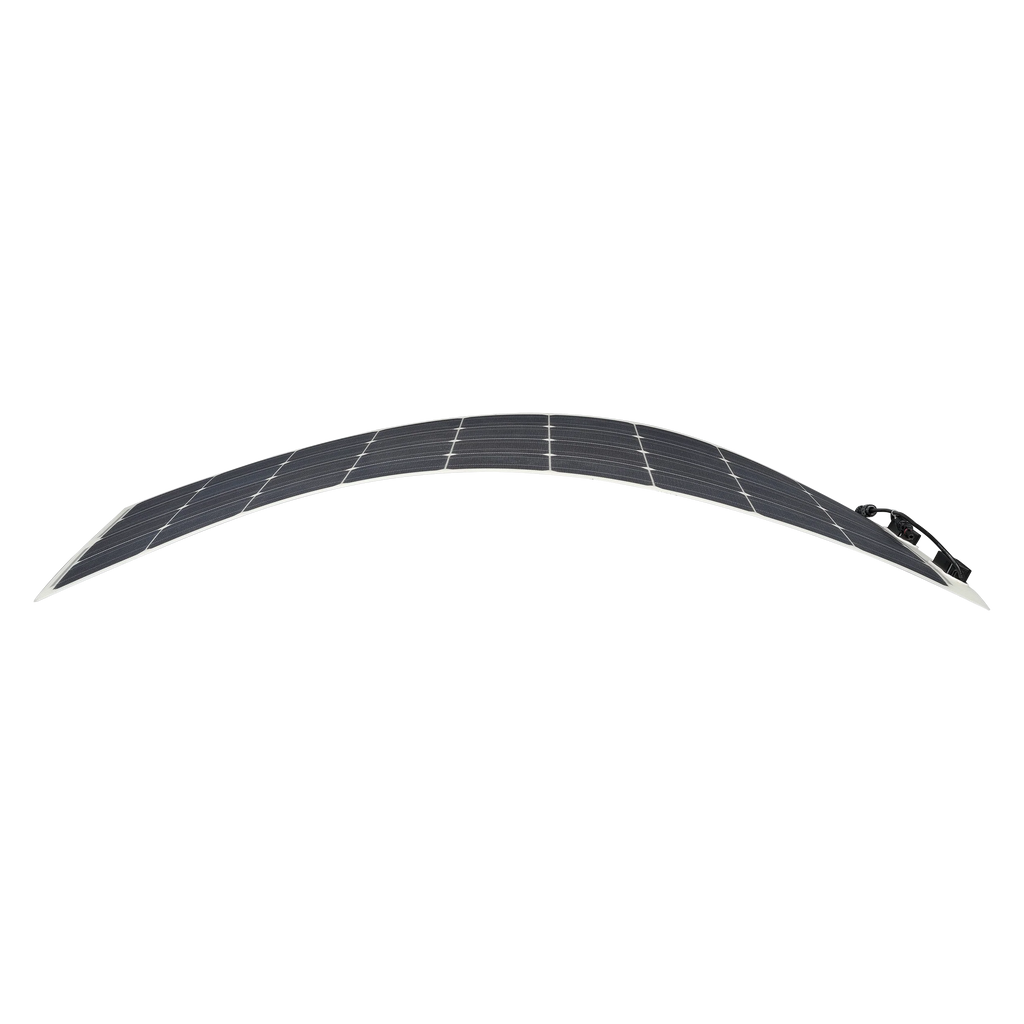

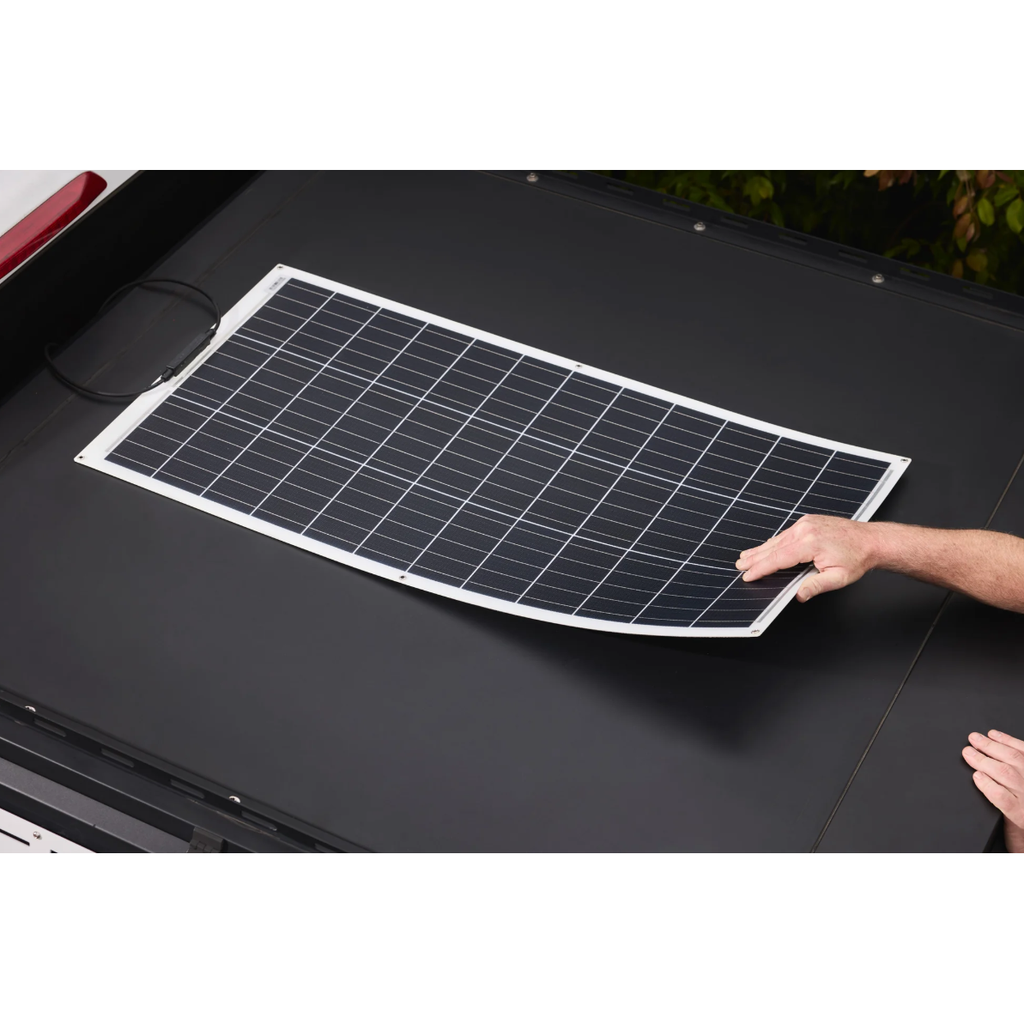

This light weight semi-flex solar panel weighs as little as 3.5kgs, being flexible (400mm max bending radius) also gives greater mounting options
Supplied with the durable rubber adhesive allowing users to mount them firmly for 20 years with confidence

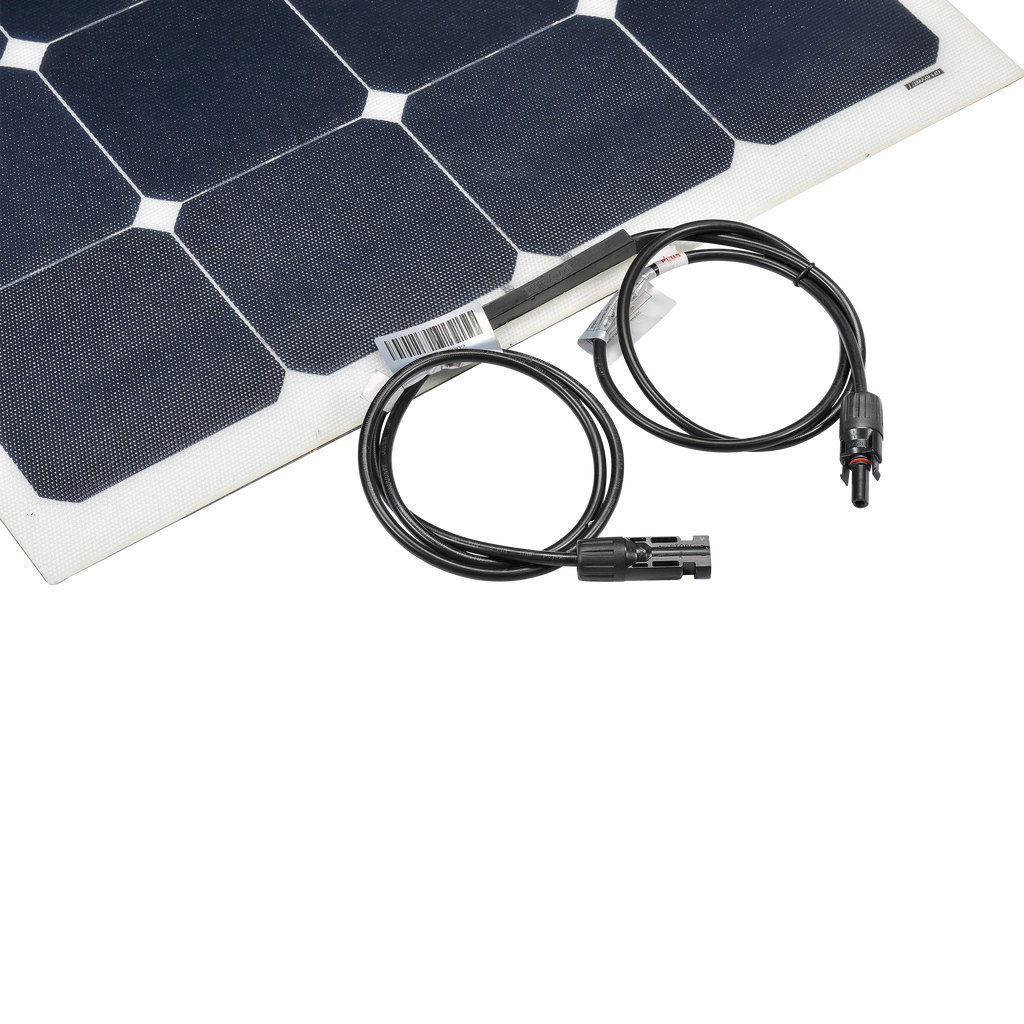

Fitted with standardised MC4 type connectors
Super-efficient monocrystalline technology produces more power via a smaller sized panel to effectively charge a battery.
PART NO. |
SPF180-MC4 |
TEST CONDITIONS |
1000W/m², 25°C |
VOLTAGE AT MAXIMUM POWER |
20.5V |
RATED VOLTAGE |
12V |
SHORT CIRCUIT CURRENT (Isc) |
9.2A |
TYPE |
Monocrystalline |

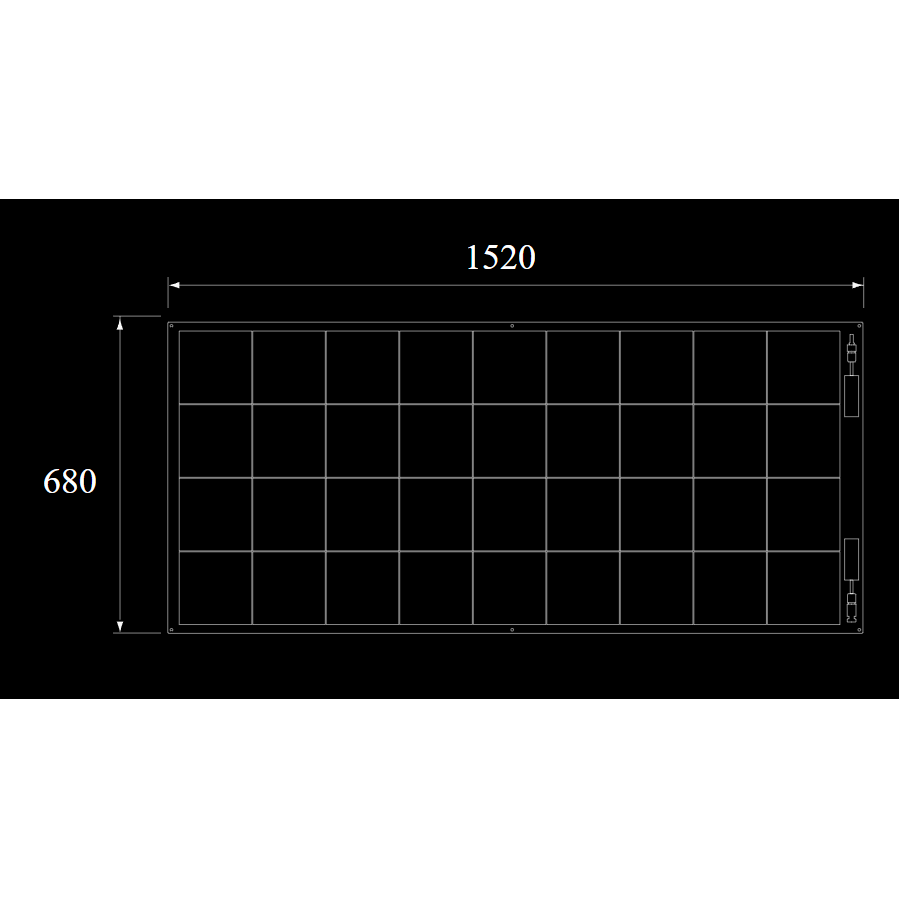

DIMENSIONS |
1520 x 680 x 3mm |
WEIGHT |
3.5kg |
RATED POWER |
180W (12V) / 8 - 9 Amps approx. |
CURRENT AT MAXIMUM POWER |
8.8A |
OPEN CIRCUIT VOLTAGE (Voc) |
24.1V |
OPERATING TEMPERATURE |
-40°C to +85°C |
WARRANTY |
5 Year Warranty |
