PART NO IP2000

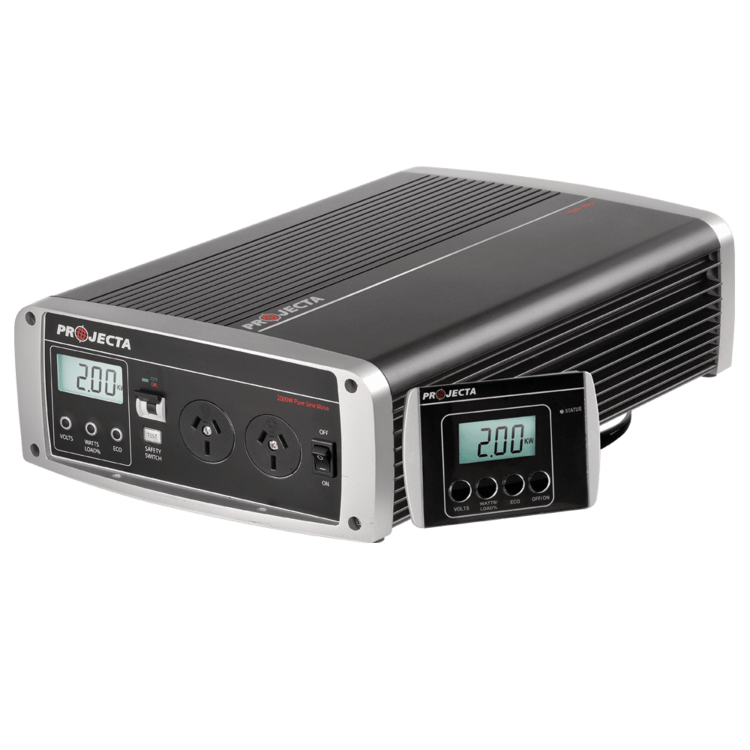

Projecta’s most powerful pure sine wave inverter, the IP2000 offers all the class leading features of the Intelli-Wave range with the added benefit of a sophisticated AC transfer switch. Delivering ultra clean power it is ideally suited to the demanding requirements of larger appliances often found in house boats, motor homes, caravans and so on.
FEATURES

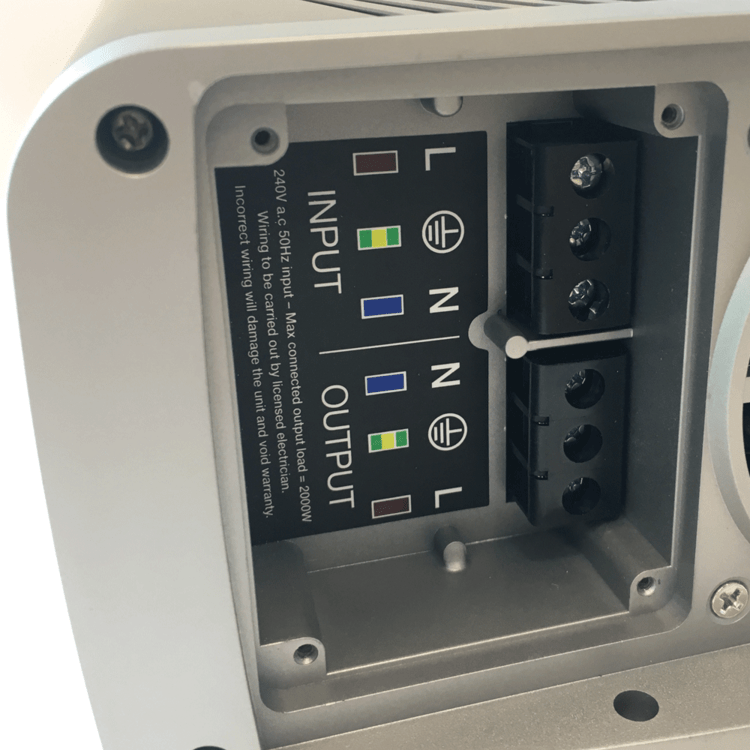

AC transfer switch
Ensures seamless flow of power when switching between mains and battery power

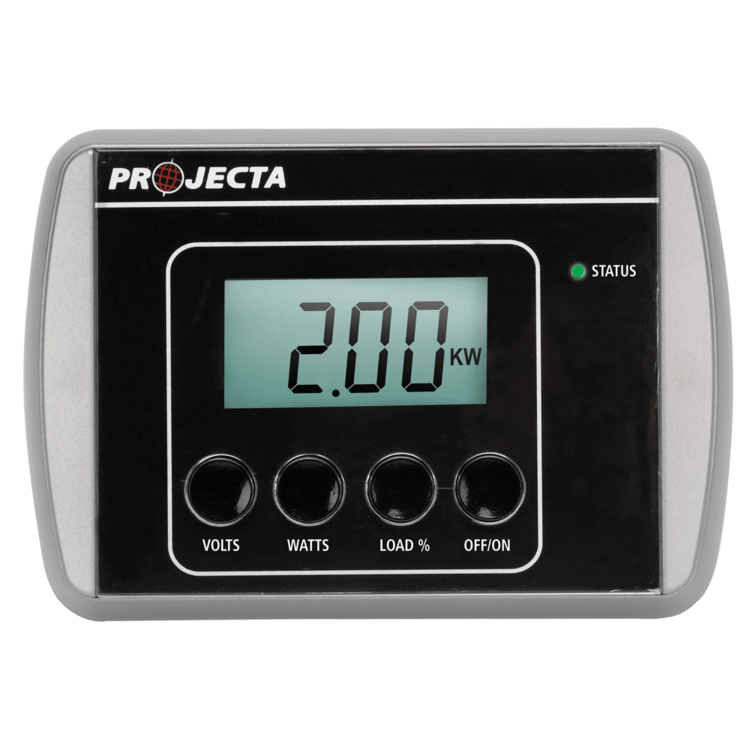

Remote control

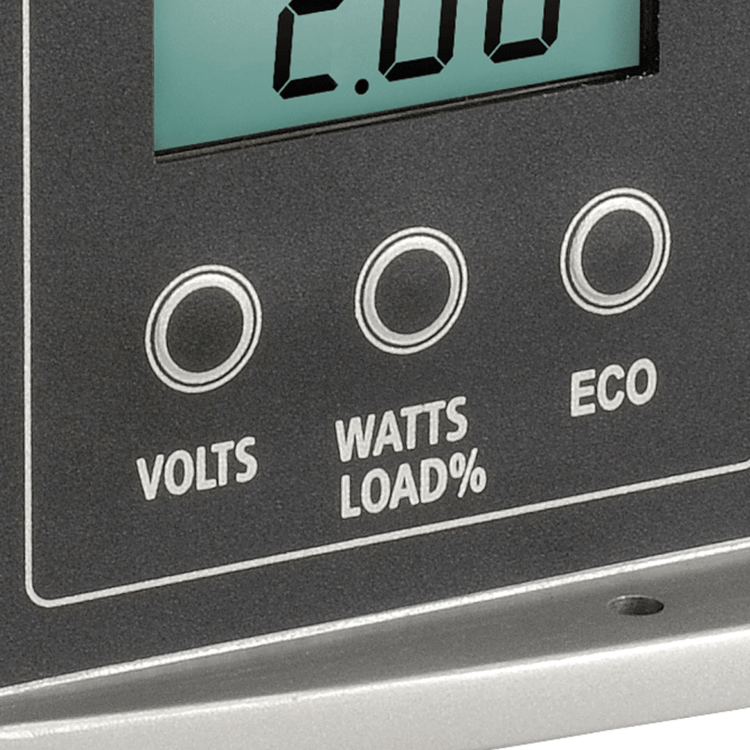

LCD display and remote control unit provide information on battery voltage, power usage and load capacity
ECO mode
Reduces power consumption extending battery run time

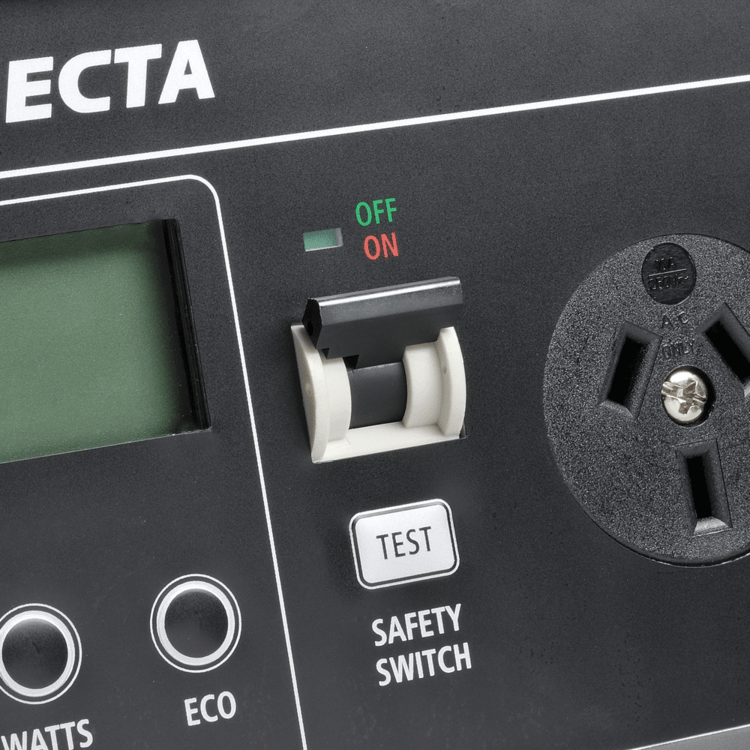

Safety 'cut out' switch
RCD provides absolute protection for the user and devices being powered

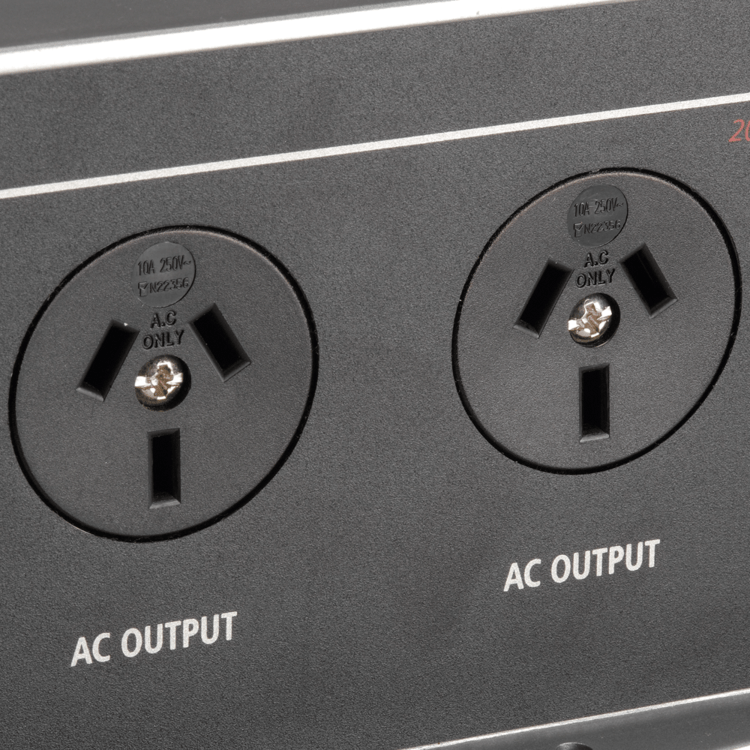

Approved output sockets
AS/NZS approved 240V sockets. Inverter complies to Australian standard AS4763 (AS3001 ready)
> What is an AC transfer switch
> Range features and application guide
SPECIFICATIONS |
PART NO
|
IP2000
|
INPUT
|
12V DC, 200A Max
|
NO LOAD CURRENT DRAW
|
10mA Eco
|
OUTPUT
|
240VAC, 50Hz (Pure Sine Wave)
|
OUTPUT POWER
|
2000W Continuous (4000W Peak)
|
INVERTER CLASSIFICATION
|
RCD Protected Inverter
|
EFFICIENCY
|
85–90%
|
LOW BATTERY ALARM
|
10.25 Volt
|
SHUTDOWN
|
9.75V (±0.2V)
|
COOLING FAN
|
Automatic temperature controlled
|
THERMAL SHUTDOWN
|
65°C (±5°C)
|
FUSE
|
350A Megafuse
|
IDEAL BATTERY SIZE
|
85–400Ah
|
MINIMUM BATTERY SIZE
|
85Ah, 600CCA
|
RUN TIME WITH 2000W ON 85Ah BATTERY
|
5 minutes
|
RUN TIME WITH 100W GLOBE ON 85Ah BATTERY
|
7 hours
|
APPROVALS
|
Electrical Safety, EMC, AS4763
|
