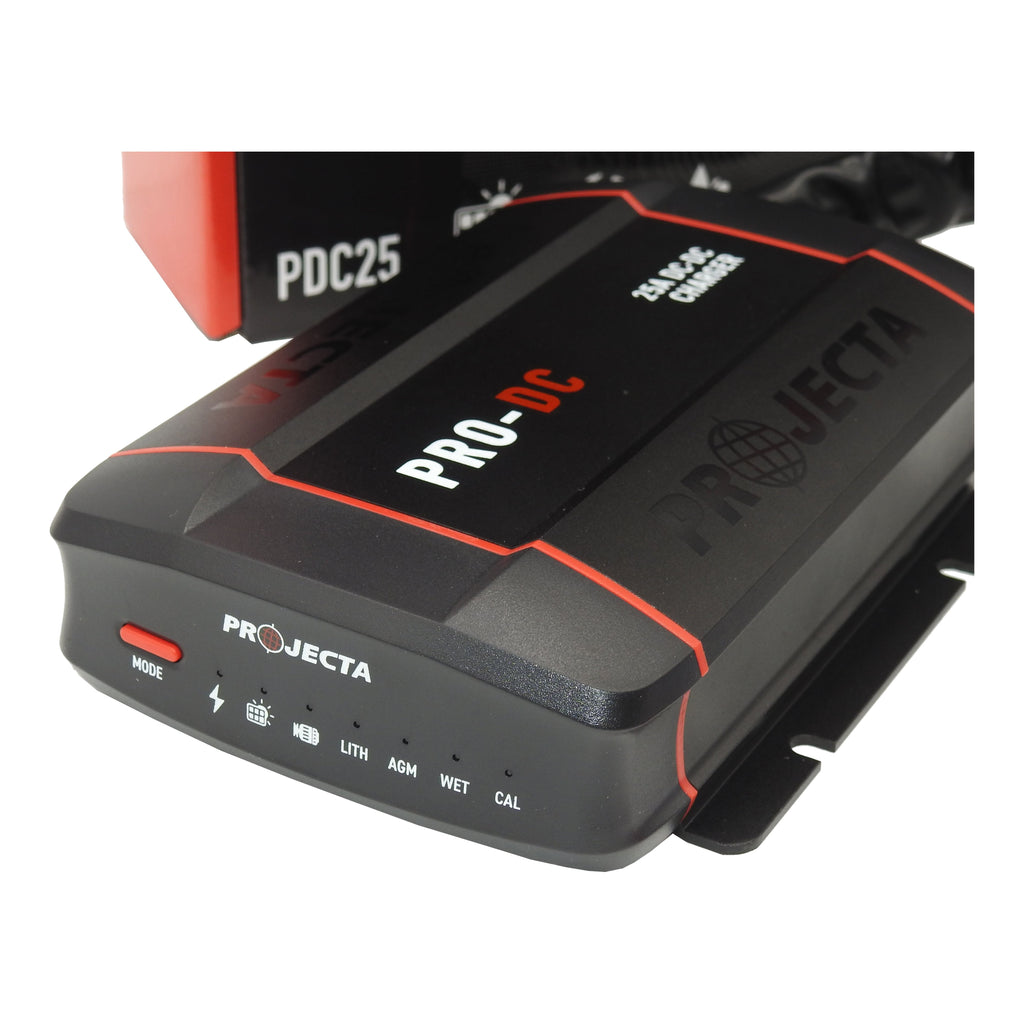

Introducing Projecta's new model PDC25 25 Amp DC to DC Charger.
The Pro-Charge DC is the evolutionary upgrade from the traditional IDC25 and IDC25L range of in vehicle battery chargers. Now offering multi-chemistry design, the Pro-charge has the ability to charge both traditional lead acid batteries, such as deep cycle AGM, and now Lithium LiFePO4 batteries.
Equipped with a simple plug and plug quick connect Anderson for connection to the alternator charge line, output to your AUX battery, and a dedicated line to your solar panel; it has never been easier to fit a DC Battery Charger to the vehicle!
Home of 12 Volt Online have gone one step further for ease of use and have fitted a 3-way Anderson connector on the alternator input to allow for and easy connection of the low voltage ignition activated cable.
In addition, Home of 12 Volt Online are including a bonus Red and Blue Anderson connector with every purchase so you have the connections you need to complete your installation!
Need a full wiring kit? No problem! Why not check out our upgrade option for a QC-Loom, including all necessary cables you will require for an in vehicle installation.
Specifications:
| Part No. |
PDC25 |
| Warranty |
5 years from date of purchase |
| Alternator Input voltage |
9 - 32 Volts |
| Solar Input voltage |
28Vdc |
| Solar Regulator |
Yes - MPPT 25 Amp |
| IP rating |
IP67 |
| Output Current |
Input 9-11Vdc 20A | Input 11V-32dc 25A |

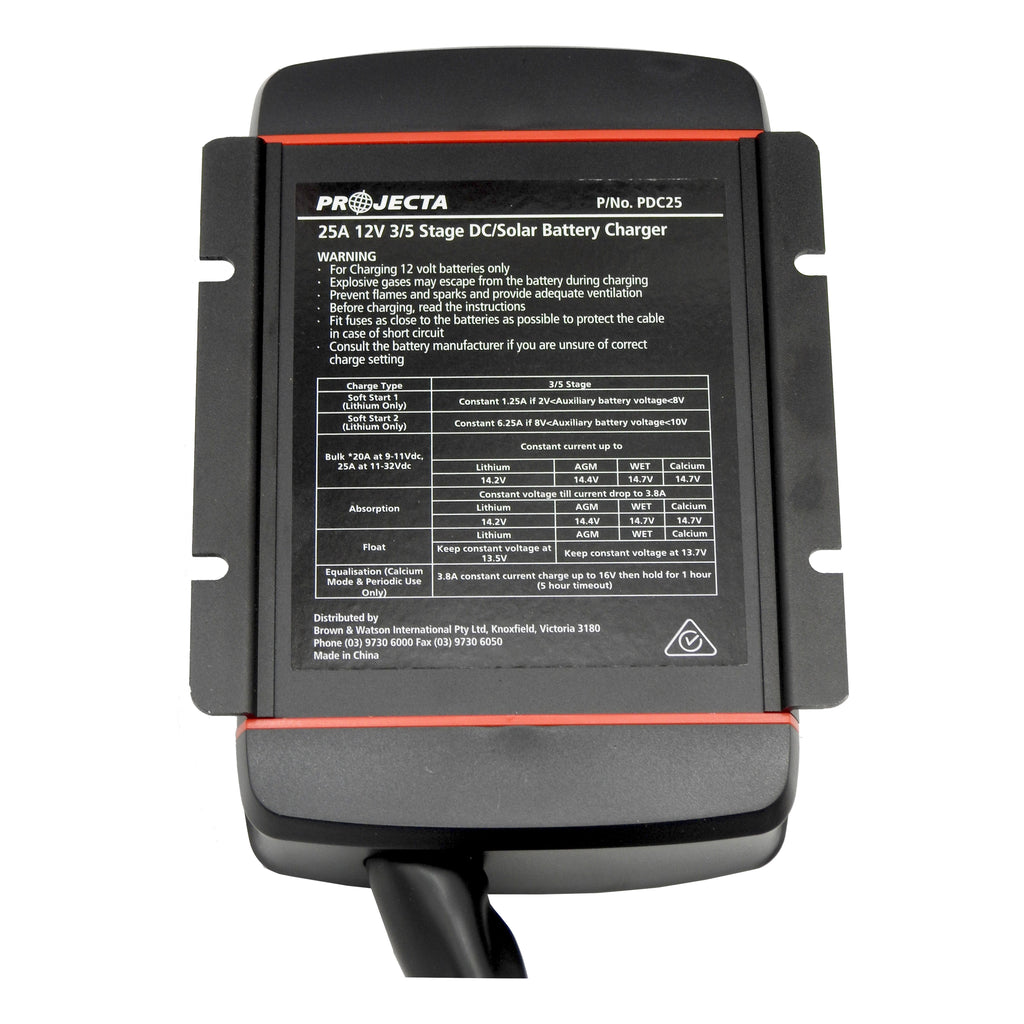

| Charge control |
142V(Lithium), 14.4V(AGM), 14.7(WET), 14.7V(CAL) |
| Smart Alternator |
12V Vehicle: Turn On: 12.2 - 20V Turn Off: <11.9V |
|
24V Vehicle: Turn On >24.4 - 32V, Turn Off <24V |
|
|
| Conventional Alternator |
12V Vehicle: Turn On: 13.4 - 20V Turn Off: <12.8V |
|
24V Vehicle: Turn On >26.8 - 32V, Turn Off <25.6V |
|
|

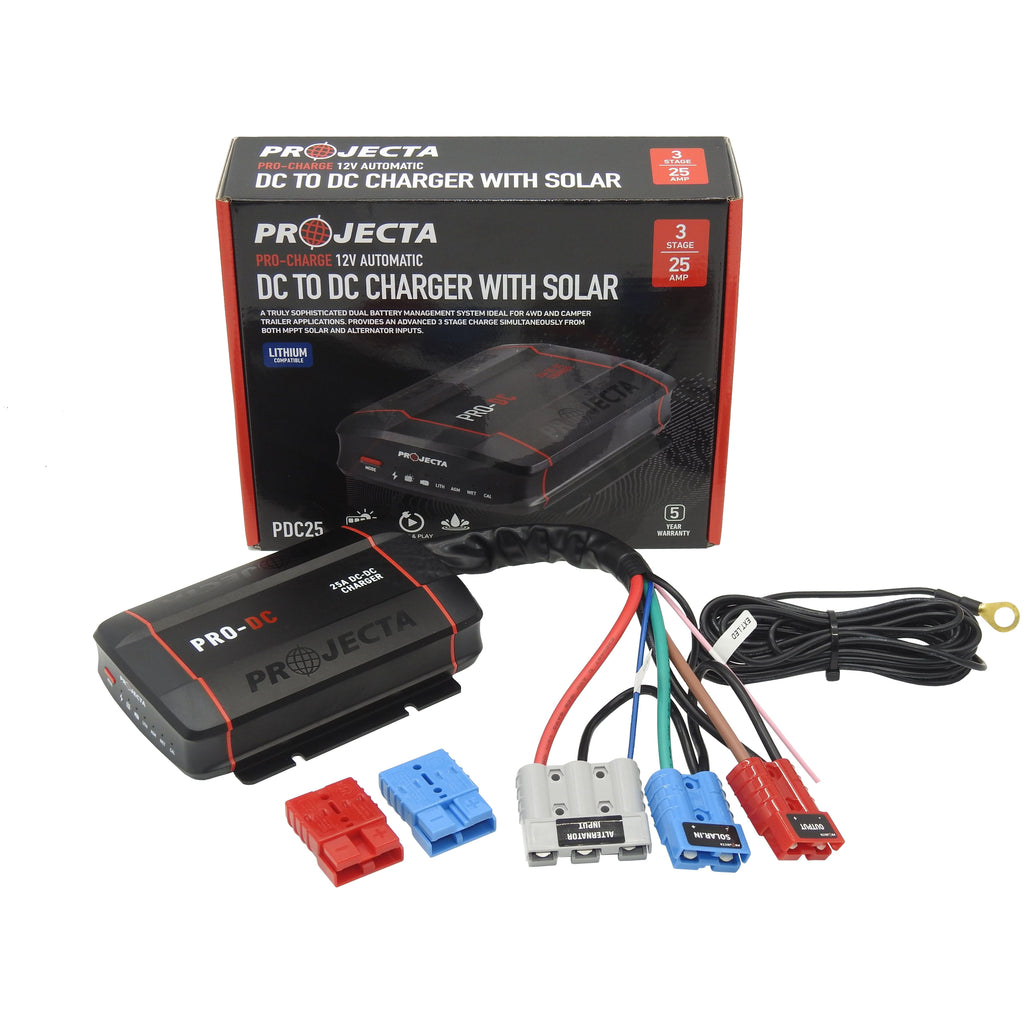

| Package contains |
25 Amp DCDC Charger with MPPT Solar (Plug and Play) |
|
Red and Blue Anderson fitted to charger
|
|
3 way Anderson connector fitted to charger
This will fit a standard 50 Amp Anderson connector without using the ignition lead
|
|
1 x Additional Blue Anderson (will only match Blue)
1 x Additional Red Anderson (will only match Red)
|
Download Instructions here
