Description

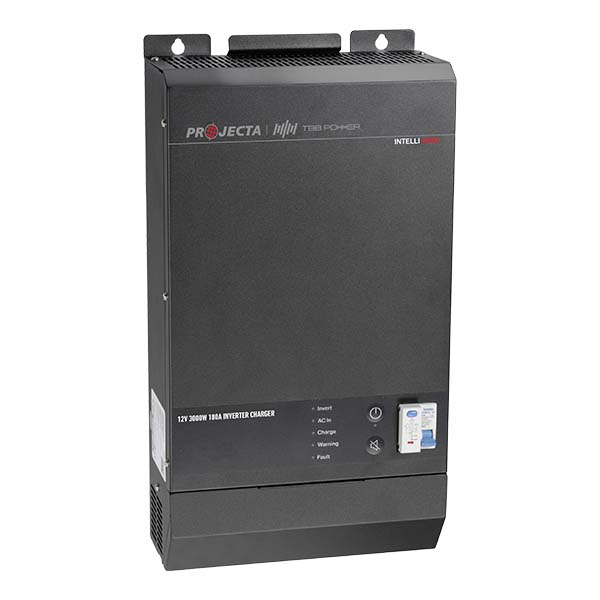

21INVCHR2 and INVCHR3 are 2-in-1 inverter chargers designed for high power management applications such as RV, utility vehicles, marine and emergency.
With the rapid charging capability of Projecta’s lithium batteries, the Inverter Chargers can provide high current charging from a mains source and are capable of starting and powering the most demanding appliances, such as air conditioning, water pumps, washing machine, freezer, compressor, power tools and induction cooktops.
The inverter charger is fitted with an AC transfer switch which manages the AC power automatically switching between mains power and inverter power.
With their Grid Boost feature, INVCHR2 and INVCHR3 can work with a limited AC source such as a generator or restricted AC mains to provide an additional boost using DC power.
Specifications
| Part No. | INVCHR3 |
| 240Volt Charging | |
| Charge type | 5 Stage Automatic |
| Input | 240VAC, 50/60Hz, 32A(max) |
| Output | 12V, 180A adjustable |
| Batteries supported | GEL, AGM, WET, Lithium |
| Temp. compensation | Yes |
| Inverter | |
| Input | 12 Volt (10.5 ~ 17V) |
| Output | 220 / 230 / 240 VAC |
| Frequency | 50 / 60 Hz |
| Output power | 3000 watt (4600w Peak) |
| GRID BOOST OUTPUT | 28Amps (mains supply + 12.5Amps Inverter) |
| AC Transfer | <2mSec |
| Operating Temperature | - 20 ~ 65*C |
| Dimensions | 510 x 245 x 165mm |
| Weight21 | 21kg |
| IP Rating | IP20 |
| Standby Current | 1.4 A |
| Solar Controller | N/A |

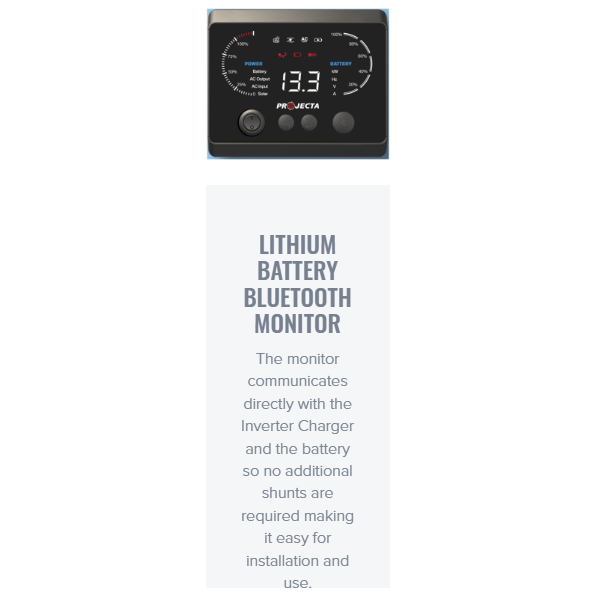

Bluetooth LCD monitor (P/No. INVCHR-BT)
Allows users to remotely monitor and control Projecta Inverter Chargers.
Displays battery voltage*, current*, Inverter load percentage, AC input/output voltage, frequency and power. Battery status can also be monitored via smart phone or tablet if connected with Bluetooth.
• Remotely switch on/off Inverter and AC power out of the Inverter Charger. • Will show battery information when a Projecta HD series lithium battery is connected to the system. • The APP can be downloaded from the APP store or Google play under PROJECTA Inverter Charger (INVCHR2/3).
Dimensions:
AC transfer Switch
