Description

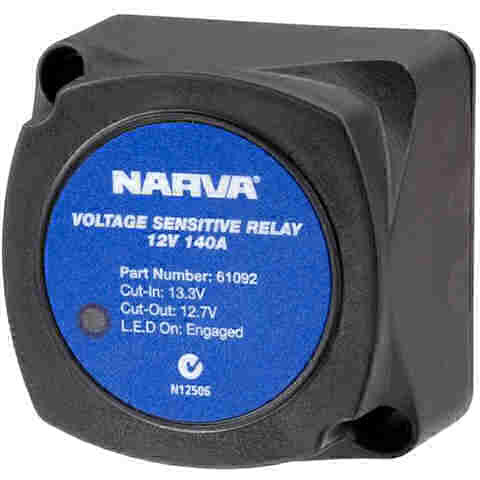

VSR140
NARVA 140 Amp Voltage Sensitive Relay
(Battery Isolator)
Narva’s new Voltage Sensitive Relays have been specifically designed for a wide variety of 12V & 24V applications.
The VSR units sense the input voltage generated and automatically connect / disconnect the appliance or circuit at pre-set voltages, eliminating the possibility of discharging the primary starting battery.
Constructed with a weatherproof body (IP65) and durable silver tipped contacts, the VSR units also feature surge protection and a L.E.D indicator designed to alert the user when the unit is engaged.
Narva’s VSR units are ideal for dual battery set-ups as they enable two batteries to be charged at the same time and then isolates the batteries from each other when the vehicle is turned off, ensuring your starting battery is always charged & ready to go.
The VSR units sense the input voltage generated and automatically connect / disconnect the appliance or circuit at pre-set voltages, eliminating the possibility of discharging the primary starting battery.
Constructed with a weatherproof body (IP65) and durable silver tipped contacts, the VSR units also feature surge protection and a L.E.D indicator designed to alert the user when the unit is engaged.
Narva’s VSR units are ideal for dual battery set-ups as they enable two batteries to be charged at the same time and then isolates the batteries from each other when the vehicle is turned off, ensuring your starting battery is always charged & ready to go.
|
|
SPECIFICATIONS
|
PART NO.
VOLTAGE CHARGING CURRENT CUT - IN VOLTAGE CUT - OUT VOLTAGE CUT - OUT DELAY CHARGE TYPE MOUNTING CURRENT DRAW VOLTAGE DROP SURGE PROTECTION INGRESS PROTECTION OVERRIDE RECOMMENDED FUSE MINIMUM CABLE SIZE TORQUE SETTING APPROVALS L.E.D CHARGE INDICATION |
VSR140
12 VOLT 140 AMPS at 12 V CONTINUOUS load MAX 160 AMPS at 12 V (for 60 seconds) 13.3 VOLTS 12.7 VOLTS 5 SECONDS PARALLEL SURFACE / FIREWALL CHARGING 0.25 A Standby 5mA NIL BUILT - IN IP65 RATING (Weatherproof body) N / A on this model 150 AMP 16mm2 6.5 N.m EMC POWER ON ..
|
