RedArc Dual Battery Isolator 12 Volt 100 Amp DUAL SENSING SBI12D

Save 10%

Price:
Sale price$199 Regular price$221.86

Description

REDARC Electronics

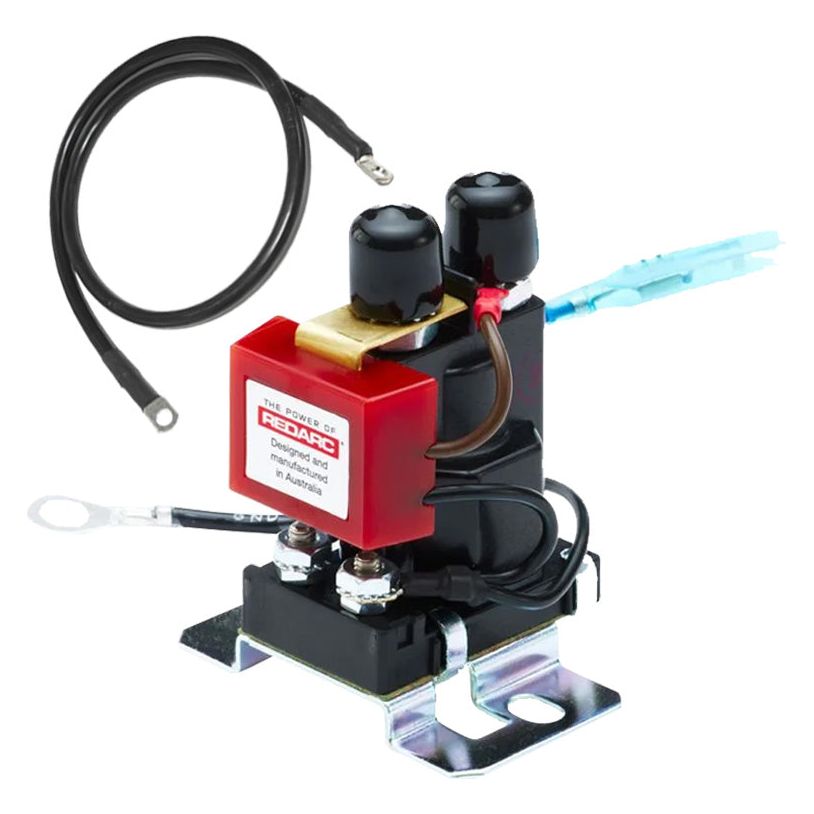

Dual Sensing Smart Start Battery Isolator 12V 100A

The REDARC Smart Start SBI12D 100A dual battery isolator enables the user to charge a 12 volt start battery from a solar panel or battery charger on the auxiliary battery.



he REDARC Smart Start® SBI12D is a microprocessor controlled battery isolator used in a dual battery system. It is designed to be used in dual battery systems as a solenoid priority system to protect the start battery from excessive discharge. The SBI12D provides 12 volt DC incorporating 100A of continuous ratings.

Dual Sensing

The dual sensing model is used to isolate the start and auxiliary batteries in a system where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger. The SBI12D also allows the start battery to be charged by the external source once the auxiliary battery reaches 13.2 volts. This is useful to top up the start battery.

Power Saving Technology

The Smart Start SBI12D incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

Used primarily in 4WD and commercial vehicles, the Smart Start SBI is a safe way to charge an auxiliary battery and should often be installed with a high quality fuse kit.

 Features

  • Overmould design
  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected



To view product flyer, click here.

Input (Operating) Voltage 12VDC
Output Current Rating (Cont.) 100A
Input Fuse Rating 100A
Output Fuse Rating 100A
Warranty 2 Years
Length (mm) 80
Width (mm) 75
Height (mm) 63
Weight (kg) 0.2
Type Approval

CE
