RedArc Dual Battery Isolator 24 Volt 200 Amp

Save 3%

Price:
Sale price$399 Regular price$411

Description

REDARC Electronics

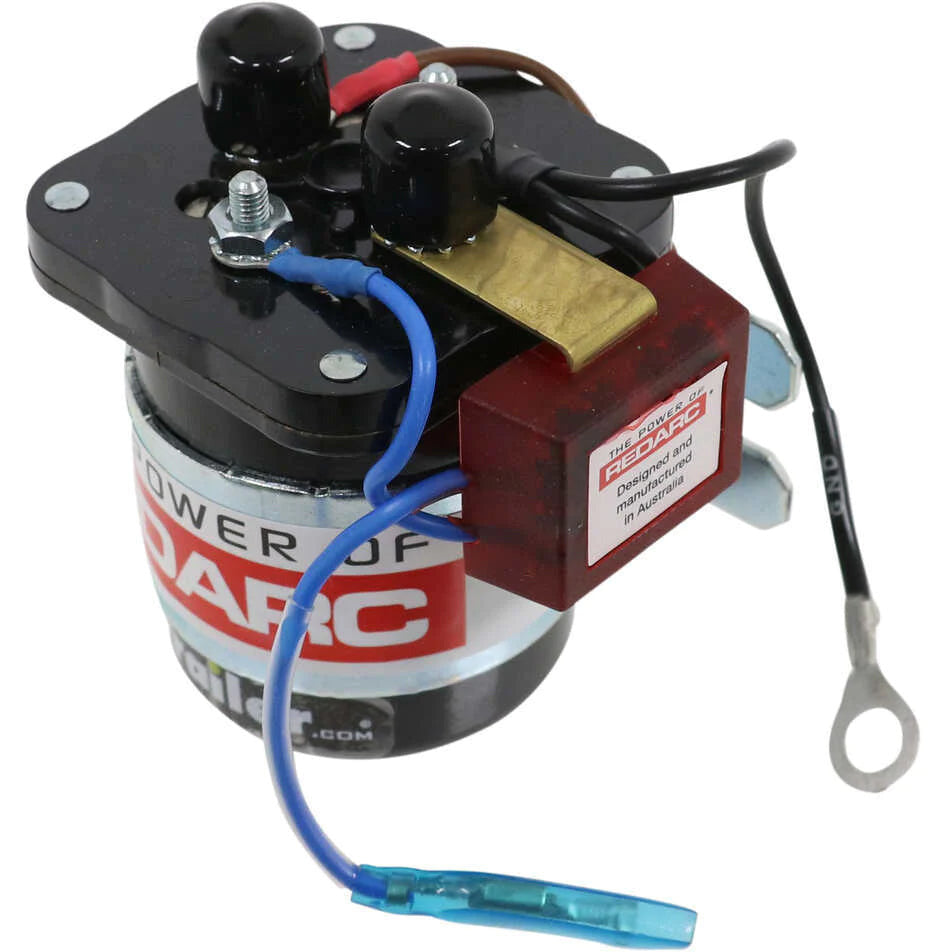

Smart Start SBI 24V 200A

The REDARC Smart Start SBI224 200A is a 24V DC 200A microprocessor-controlled, dual battery isolator designed to protect the start battery from excessive discharge while allowing the auxiliary battery to supply charge to non-essential loads.



The REDARC Smart Start® SBI224 is used in dual battery systems to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. The SBI224 provides 24 volt DC incorporating 200A of continuous ratings. The 200A battery isolator is best suited for heavy-duty operations.



Power Saving Technology

The Smart Start SBI224 battery isolator is mostly used in commercial vehicle dual battery systems, it incorporates electronic components preventing the solenoid from generating high voltage transients. Used instead of a diode battery isolator due to reduce voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

The Smart Start SBI224 battery isolator is a safe way to charge a heavy-duty dual battery systems and should often be installed with a high quality fuse kit.



Features

  • Overmould design
  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected



To view product flyer, click here.



Input (Operating) Voltage 24VDC
Output Current Rating (Cont.) 200A
Input Fuse Rating 200A
Output Fuse Rating 200A
Warranty 2 Years
Length (mm) 100
Width (mm) 95
Height (mm) 90
Weight (kg) 0.6
Type Approval CE
