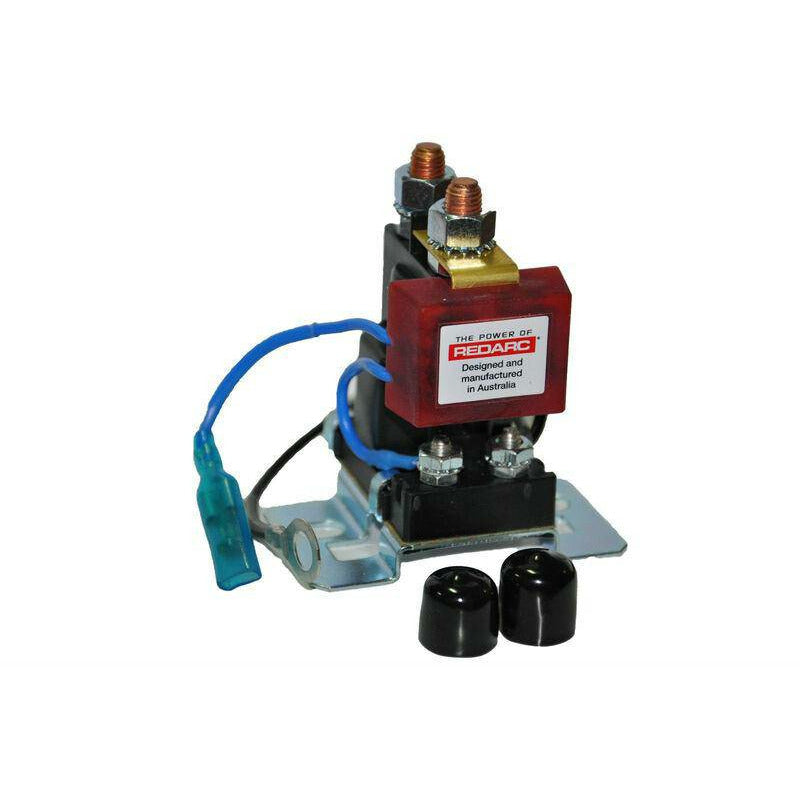

RedArc Dual Battery Isolator SBI1212 12Volt 100Amp

Save 11%

Price:
Sale price$169 Regular price$189

Description

SBI1212
REDARC100 Amp Voltage Sensitive Relay
(Battery Isolator)

The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications.

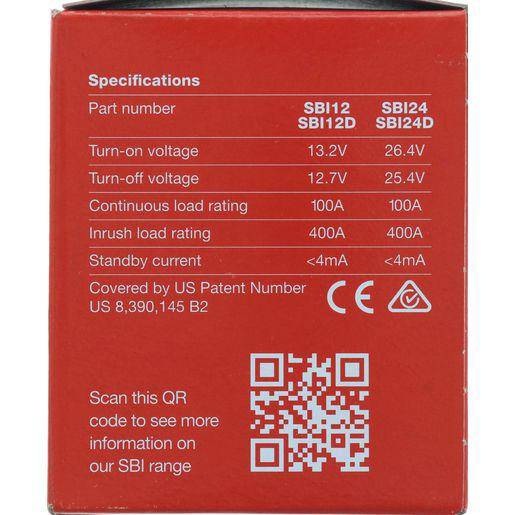

SPECIFICATIONS

PRODUCT DETAILS:

PART NO.

VOLTAGE

CHARGING CURRENT


CUT - IN VOLTAGE

CUT - OUT VOLTAGE


MINIMUM OPERATING VOLTAGE

CHARGE TYPE

CONTROL

MOUNTING

CURRENT DRAW

SURGE PROTECTION

INGRESS PROTECTION

OVERRIDE

RECOMMENDED FUSE

MINIMUM CABLE SIZE

APPROVALS



L.E.D CHARGE INDICATION




SBI1212

12 VOLT

100 AMPS CONTINUOUS (not recommended for winching)

13.2 - 13.4 VOLTS

12.6 - 12.7 VOLTS


10 VOLTS


PARALLEL

MCU

SURFACE / FIREWALL

CHARGING 550mA (Standby 10mA)

BUILT - IN

IP66 RATING

REQUIRES MINIMUM 10 VOLTS

150 AMPS

14mm2 (6 B&S)

EMC


POWER ON
