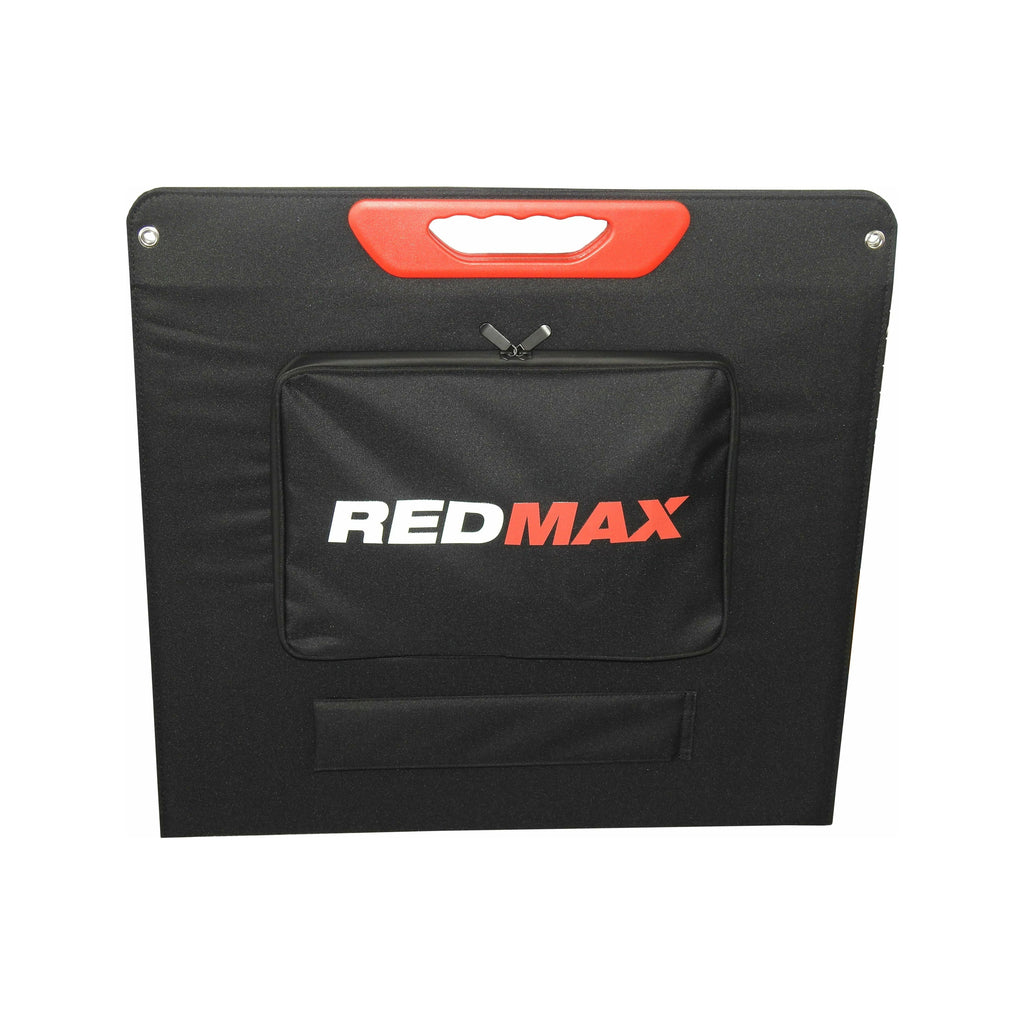

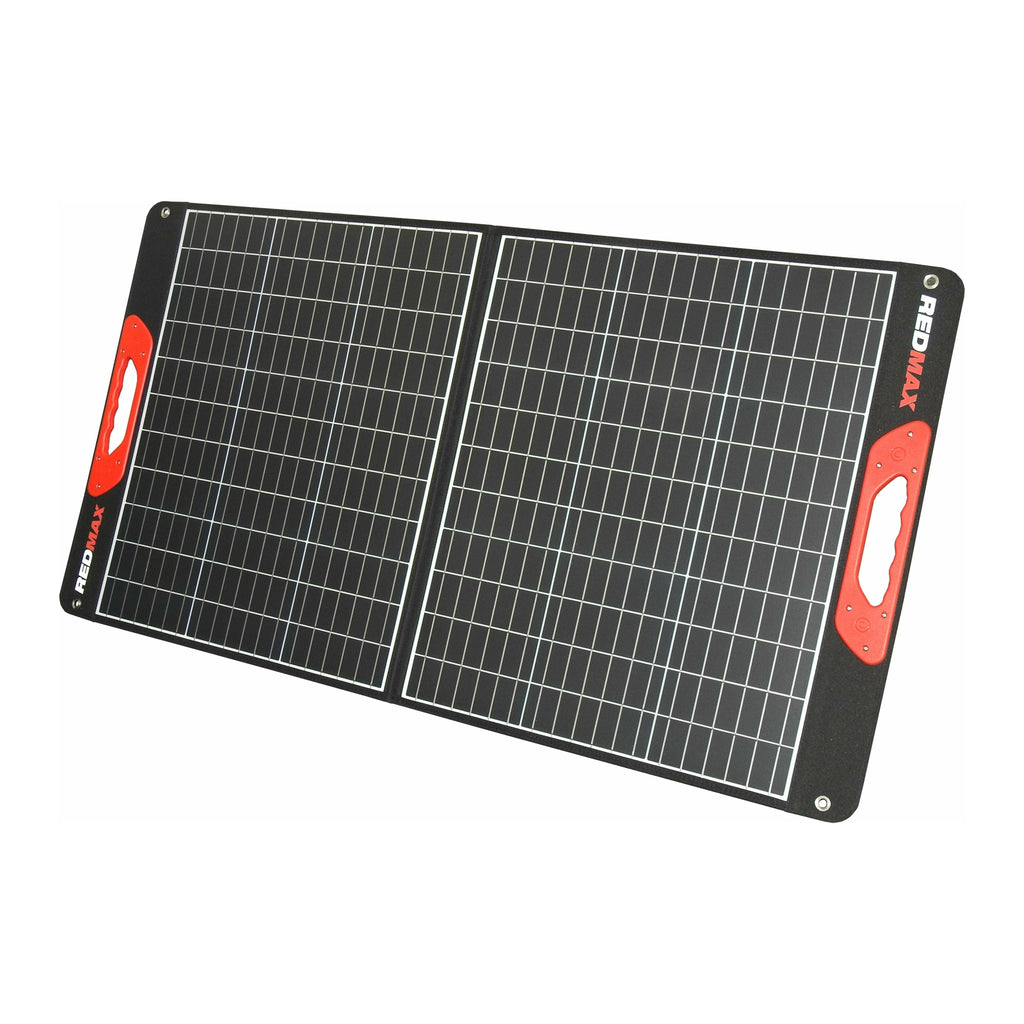

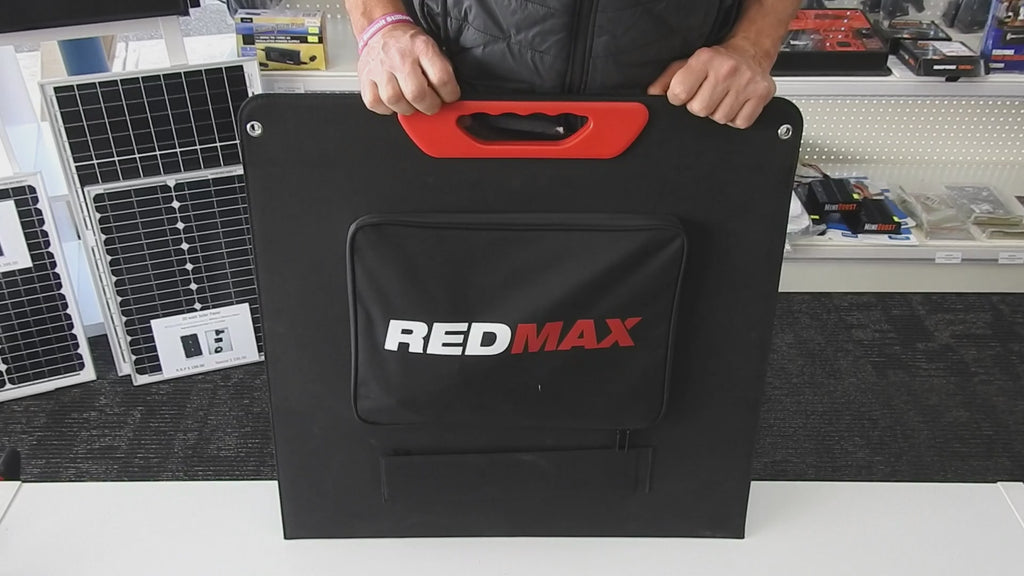

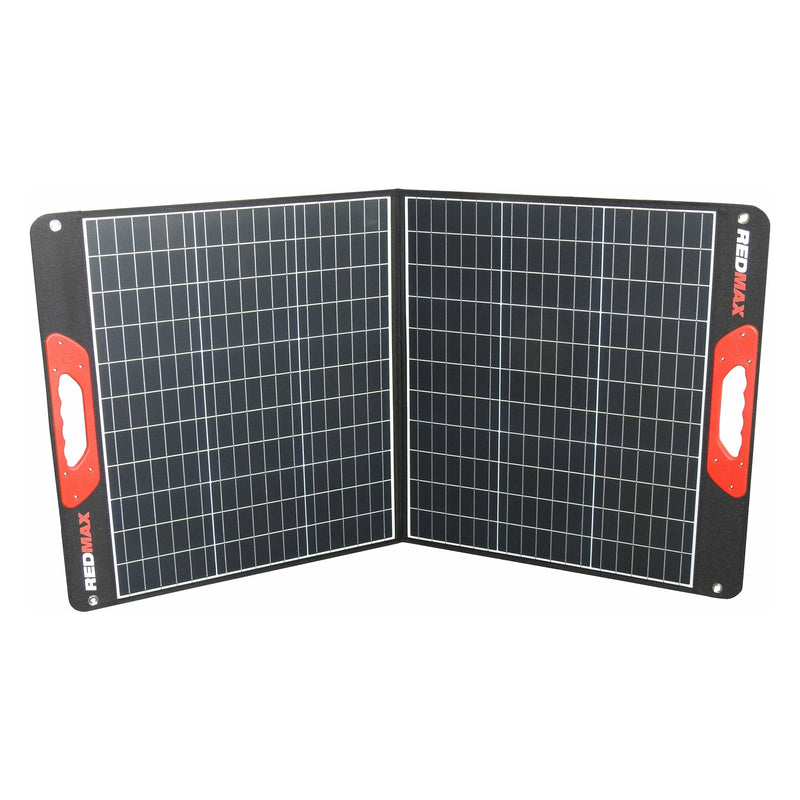

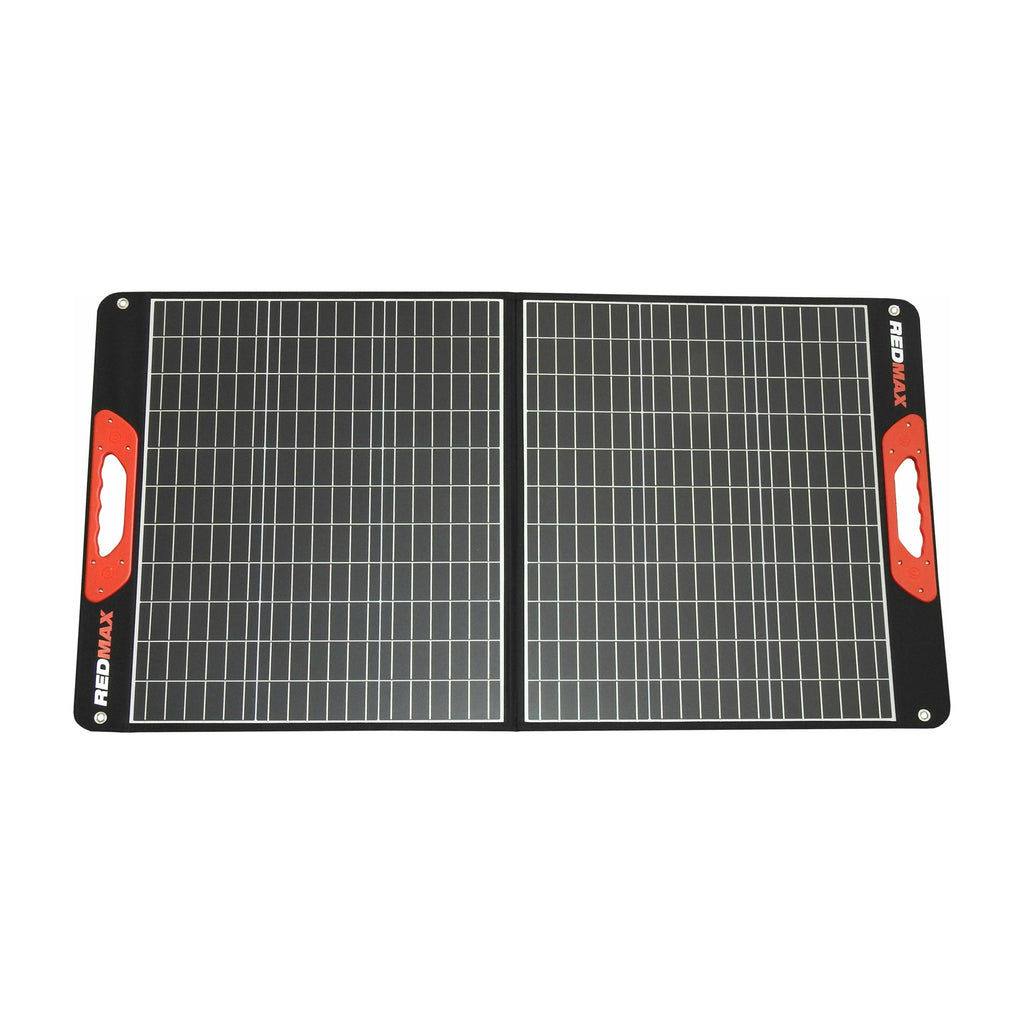

The Redmax portable 120 watt solar panel has been manufactured with the highest quality materials. Designed to be it's own carry bag, the panel it built with magnetic handles that will magnetized together once the panel has been closed shut.

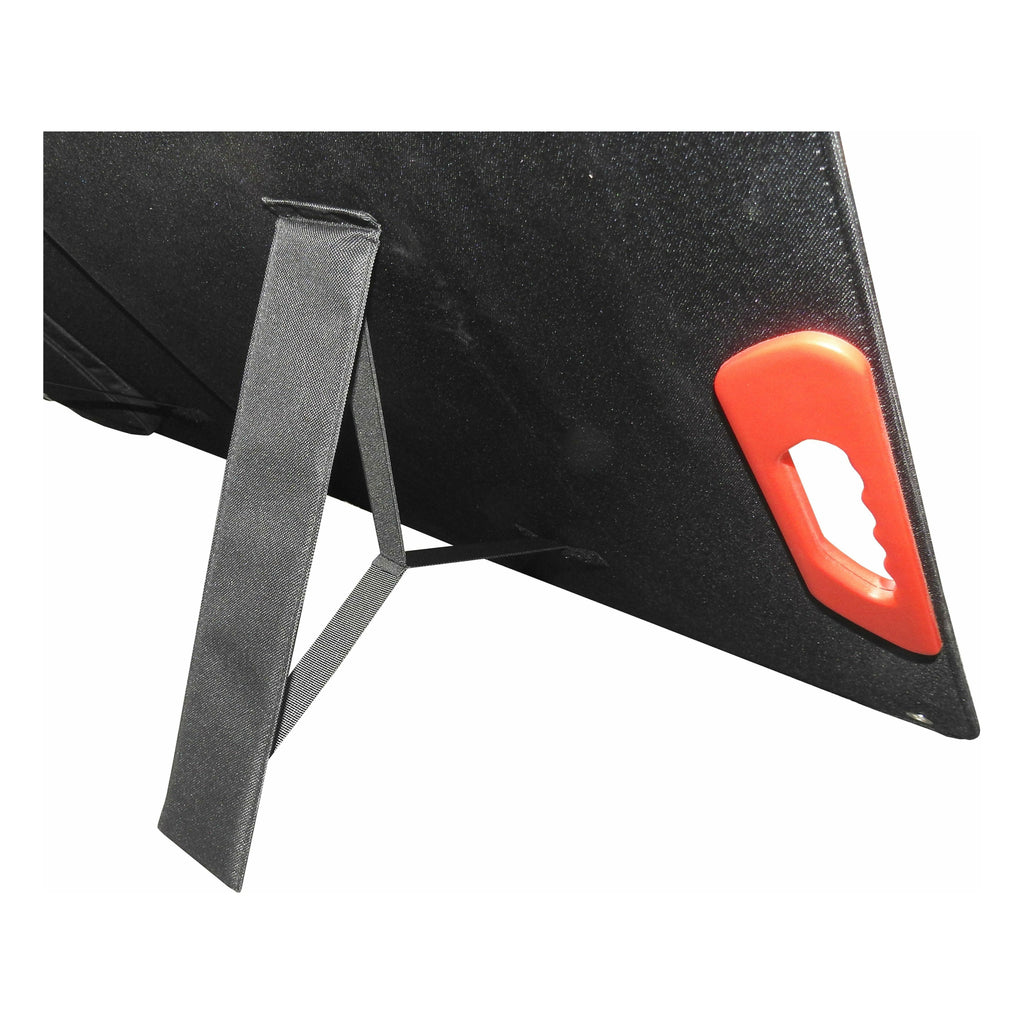

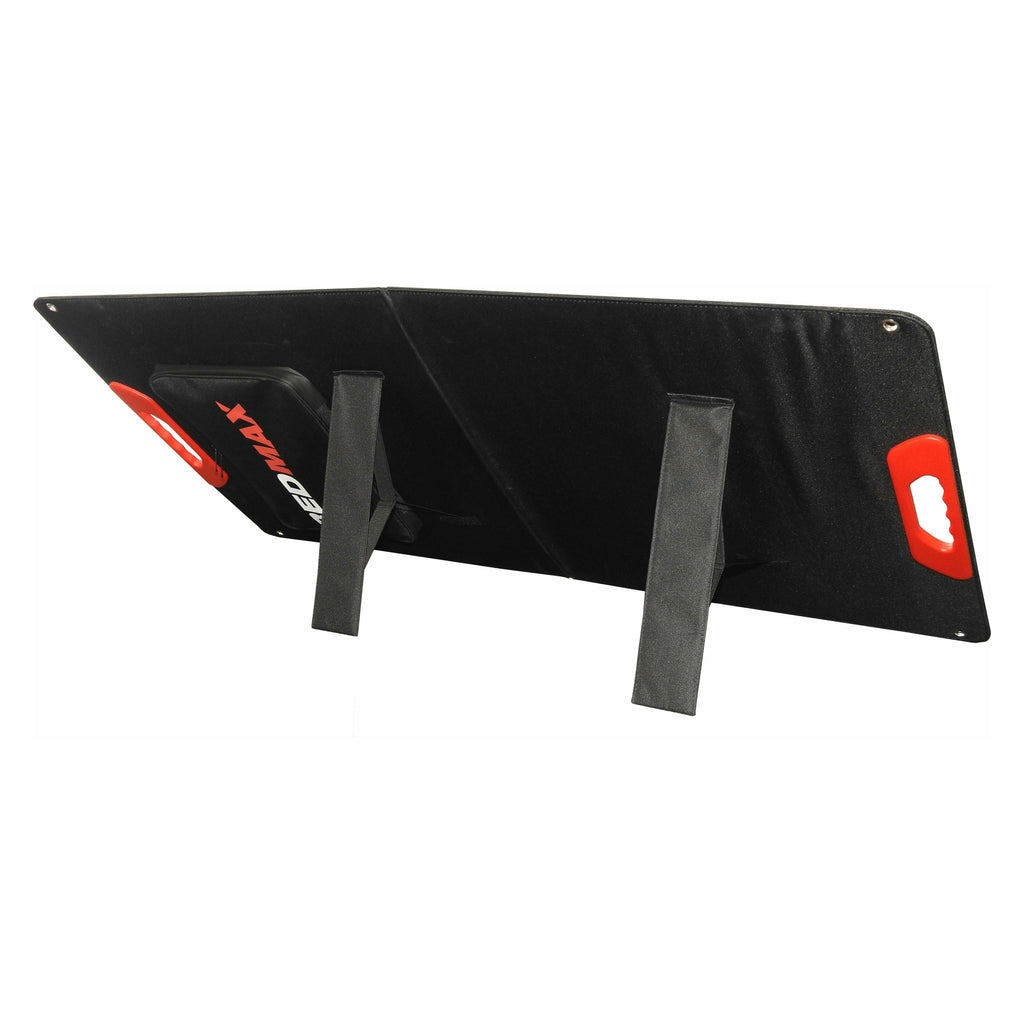

Built with a sturdy frame and reinforced rear legs, the panel is designed to stand independently to harness the power you need to replenish your battery system!

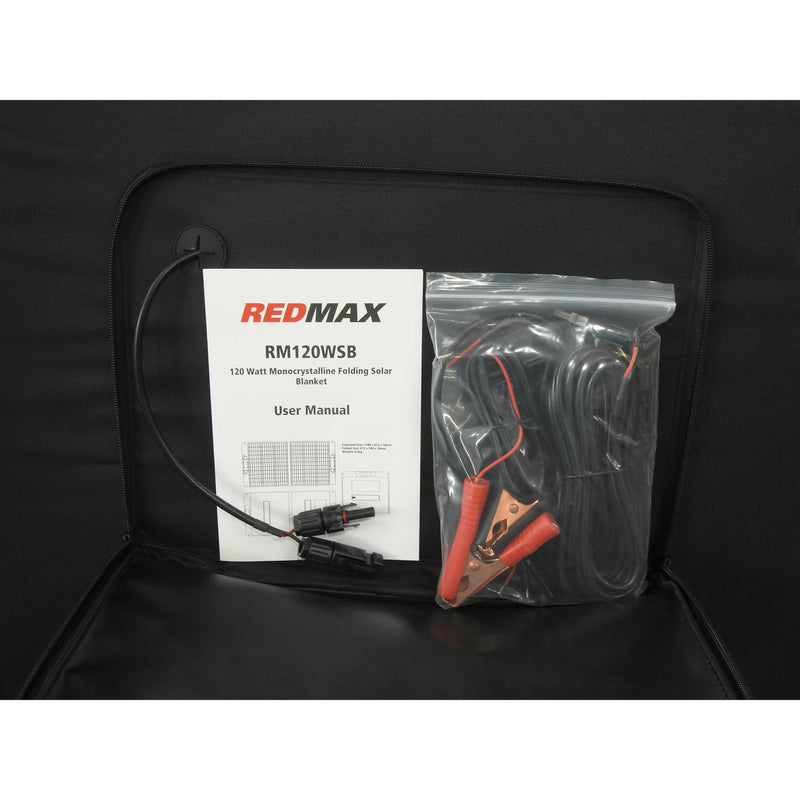

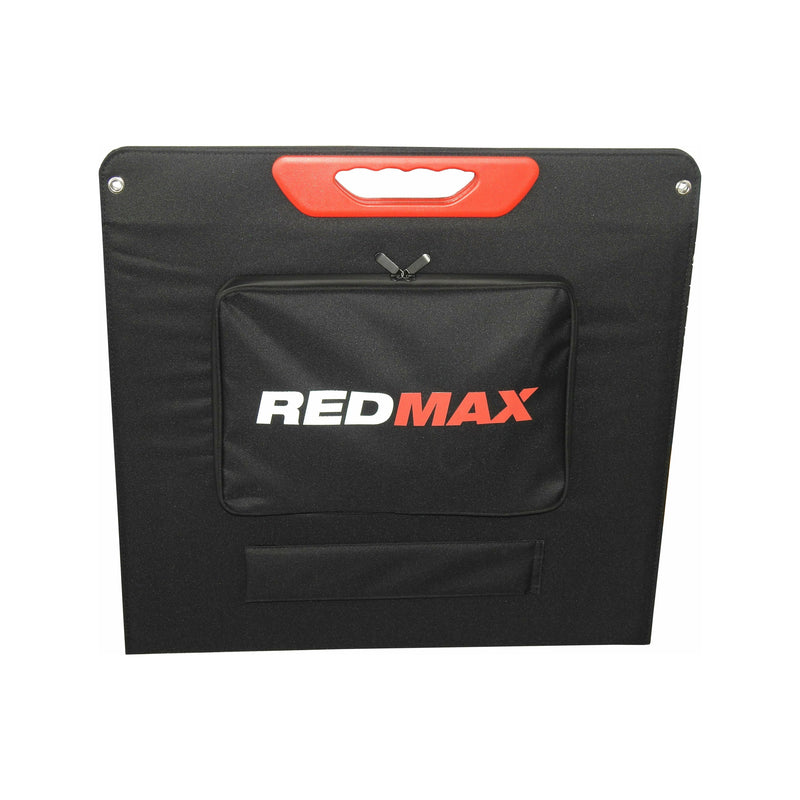

This smart design is equipped with a small pouch that will allow you to store all of your solar cables and regulator (sold separately).
The panel is fitted with MC4 connectors, however, it has been adapted to use 50 Amp Anderson connectors also.
The panel set up is 120 watts, equating to approx 6 - 7 Amps input per hour when in use.

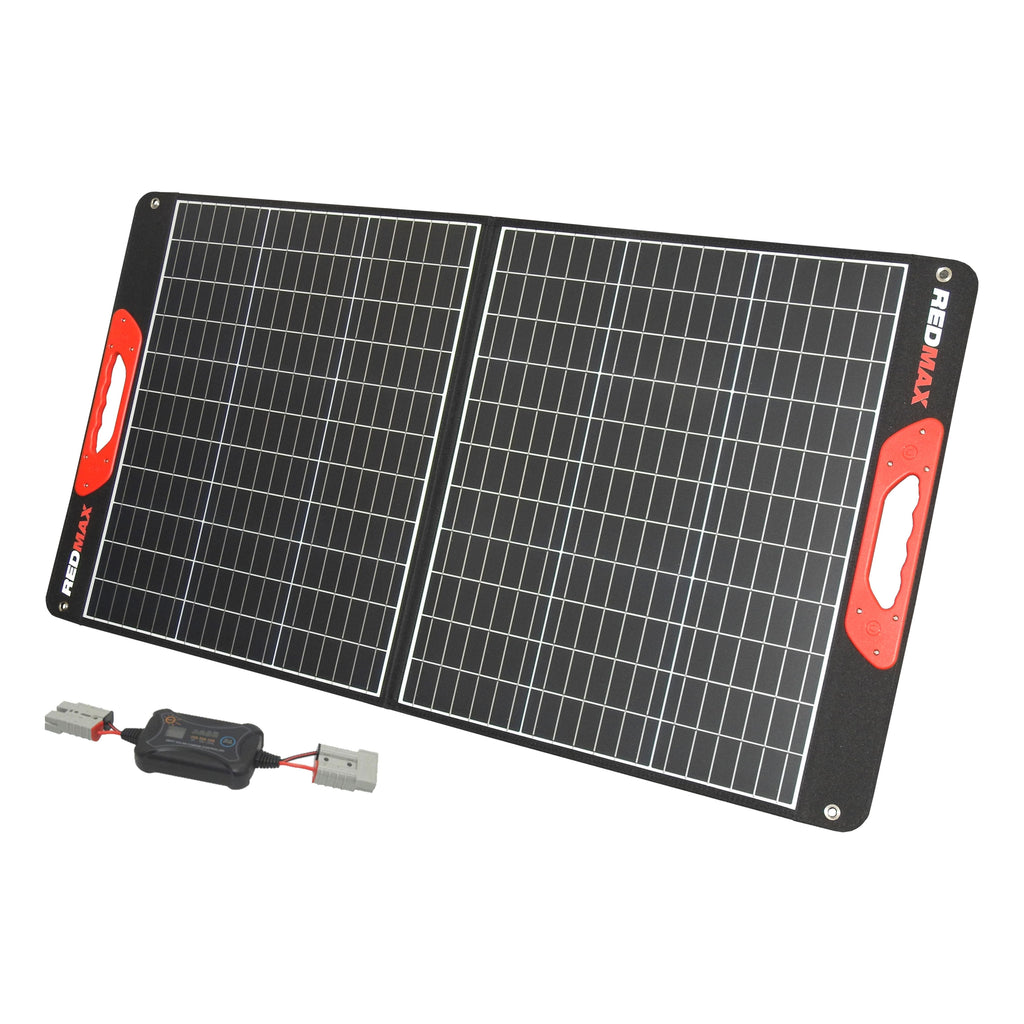

This particular set is provided with an in line Digital Solar Regulator!
Specifications:
Model No. |
RM120WSB |
Rated Max. Power (Pmax)
|
120 watts
|
Tolerance |
± 3%
|
Voltage at Pmax (Vmp) |
16.32 Volts |
Voltage at Pmax (Imp) |
7.35 Amps |
Open Circuit Voltage (Voc) |
20.32 Volts |
Short Circuit current (Isc) |
8.12 Amps |
Max Fuse rating |
10 Amp |
Operating Temperature |
- 40°c ~ + 85°c |
Folded Dimensions (L x W x H) |
590 x 615 x 20mm |
Open Dimensions (L x W x H) |
1180 x 615 x 10mm |
Weight |
4.5 kg |
Connections: |
MC4 / Anderson adaptor / 5mt lead |
Warranty |
2 year |
Download Spec Sheet for Remax 120watt

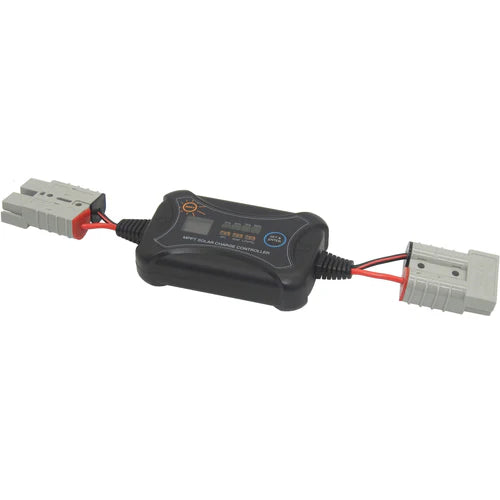

In line Solar Regulator | M1210P
-
This MPPT 10 Amp in line solar regulator is the perfect option for use with unregulated solar panels up to 150 watt capacity.
Fitted with Anderson connectors, the in line regulator is designed to easily connect to a portable solar set up and directly to your battery system.
Designed to suit multi-chemistry batteries such as AGM / GEL / LiFePO4, this regulator has 3 stage charging to optimise battery performance.
A user friendly key press operation makes for am more simple and easy operation of the regulator.
Specifications:
Part No. |
|
Battery Voltage
|
12 Volt |
Suit Battery Type |
GEL / AGM / LiFePO4 |
Max PV Voltage |
<30 Voc |
Max PV Working Voltage |
20Vmp |
Rated capacity |
10 Amps (150 watts) |
Connection |
50 Amp Anderson |
IP Rating |
IP45 |
Operating Temperature |
-35*C ~ + 45*C |
Net Weight |
145g |
Controller Dimensions |
96.4mm x 61.6mm x 27mm |
Warranty |
12 Month |
