Description

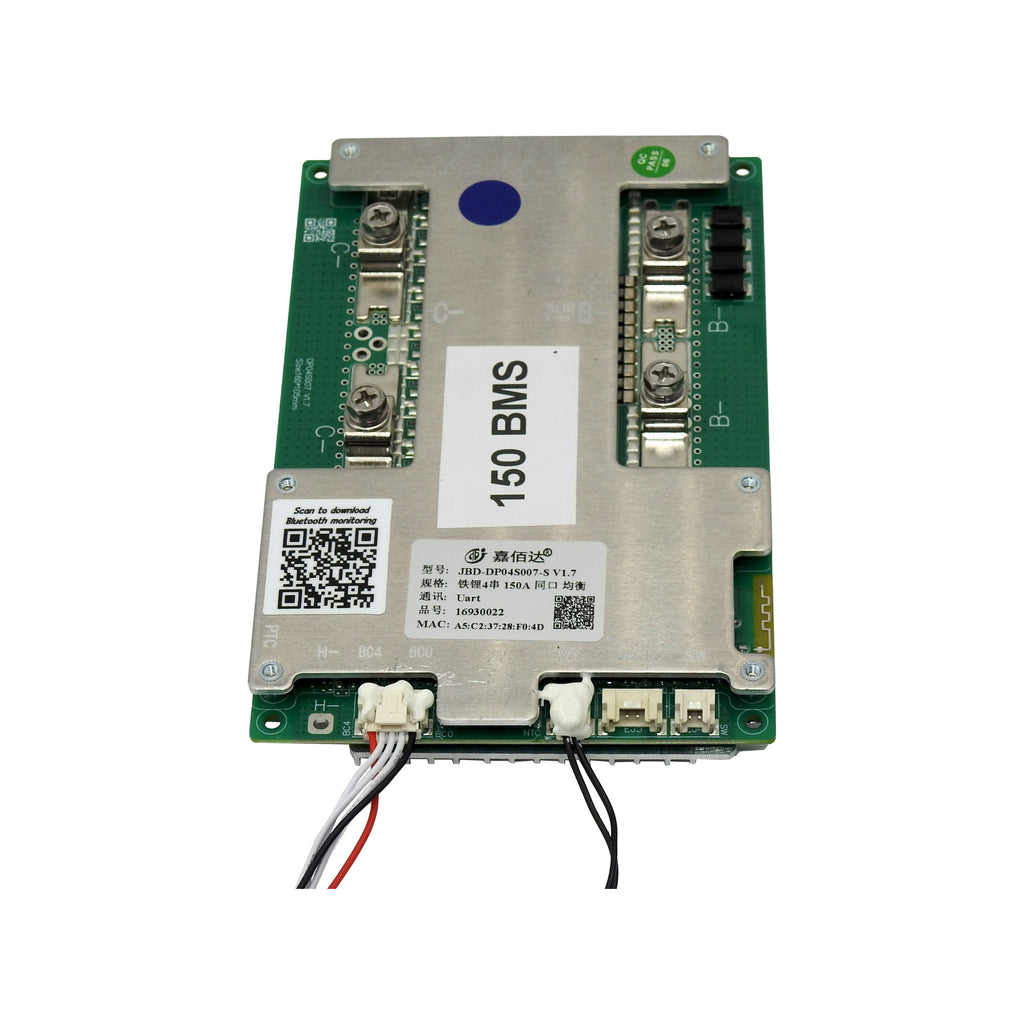

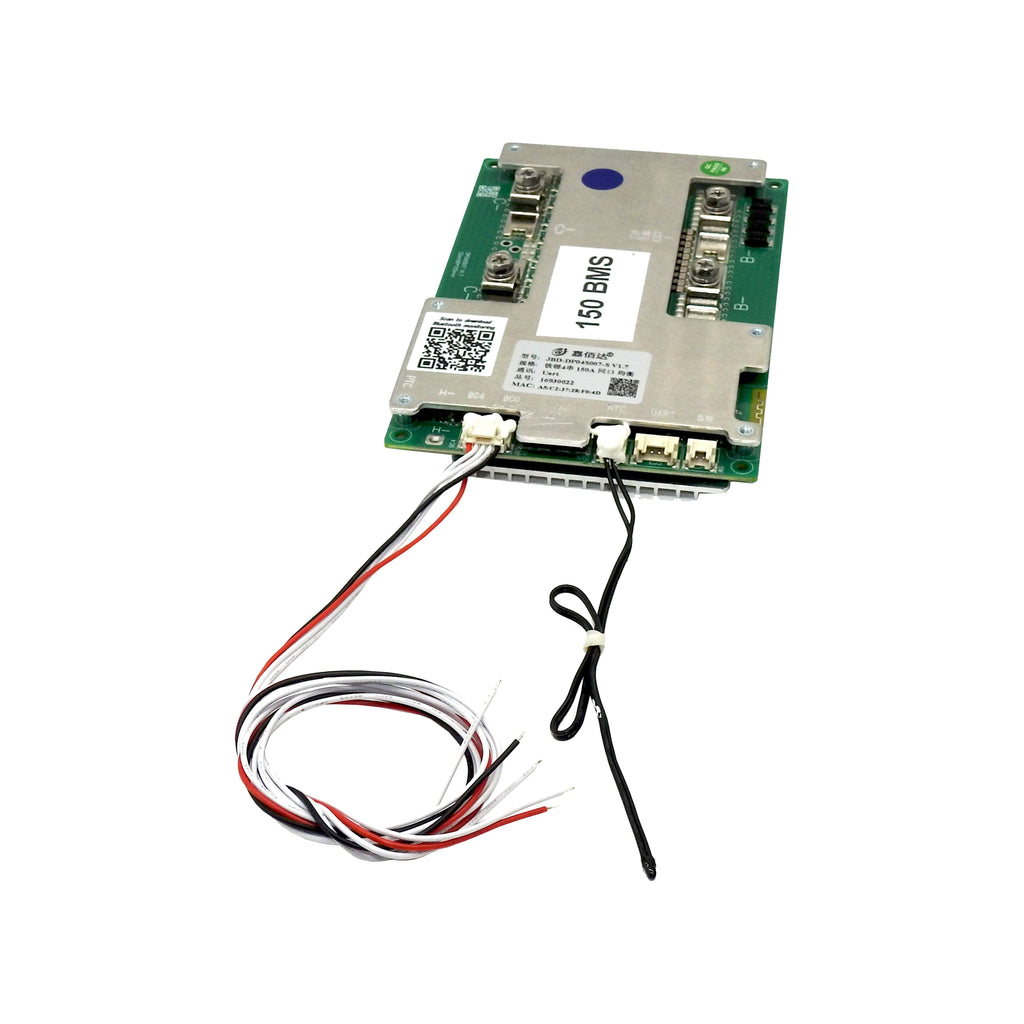

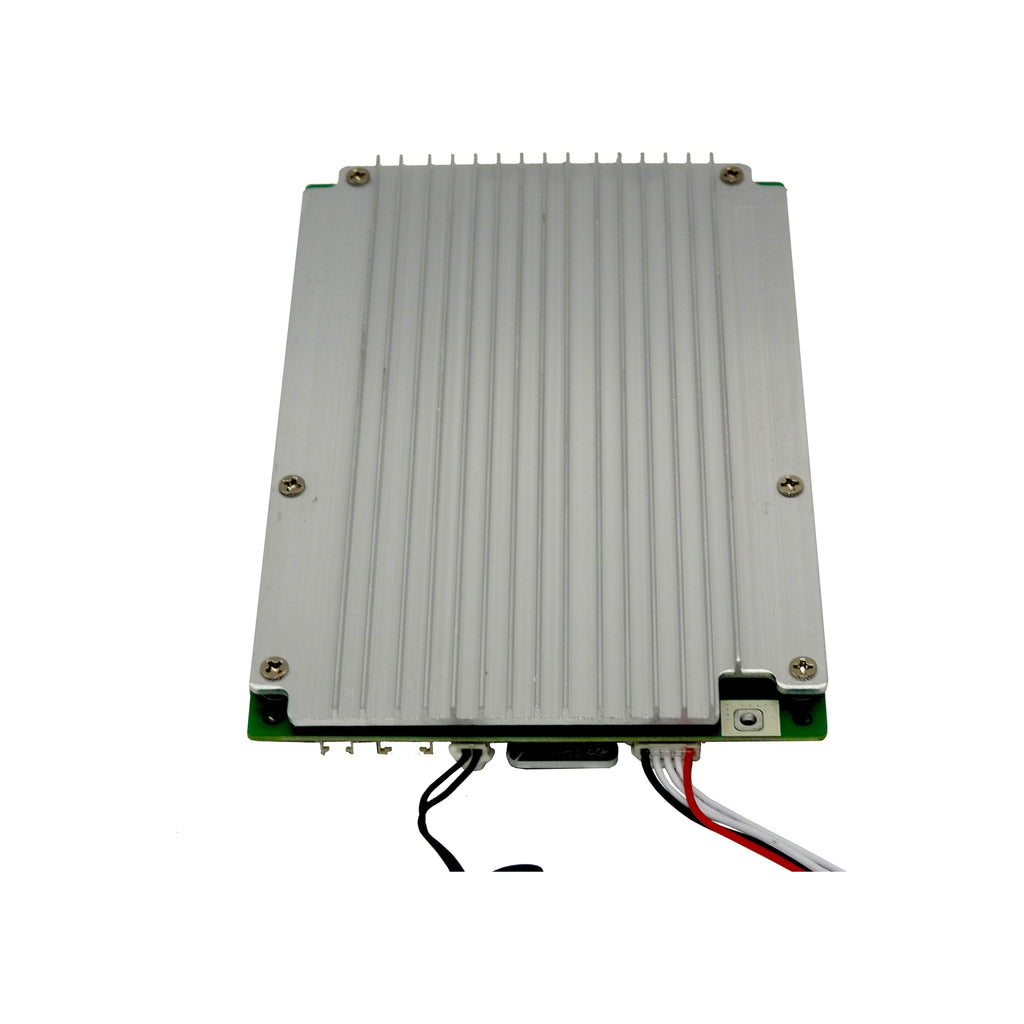

4S 12V 150A Bluetooth BMS LiFePO4 Australian Stock.

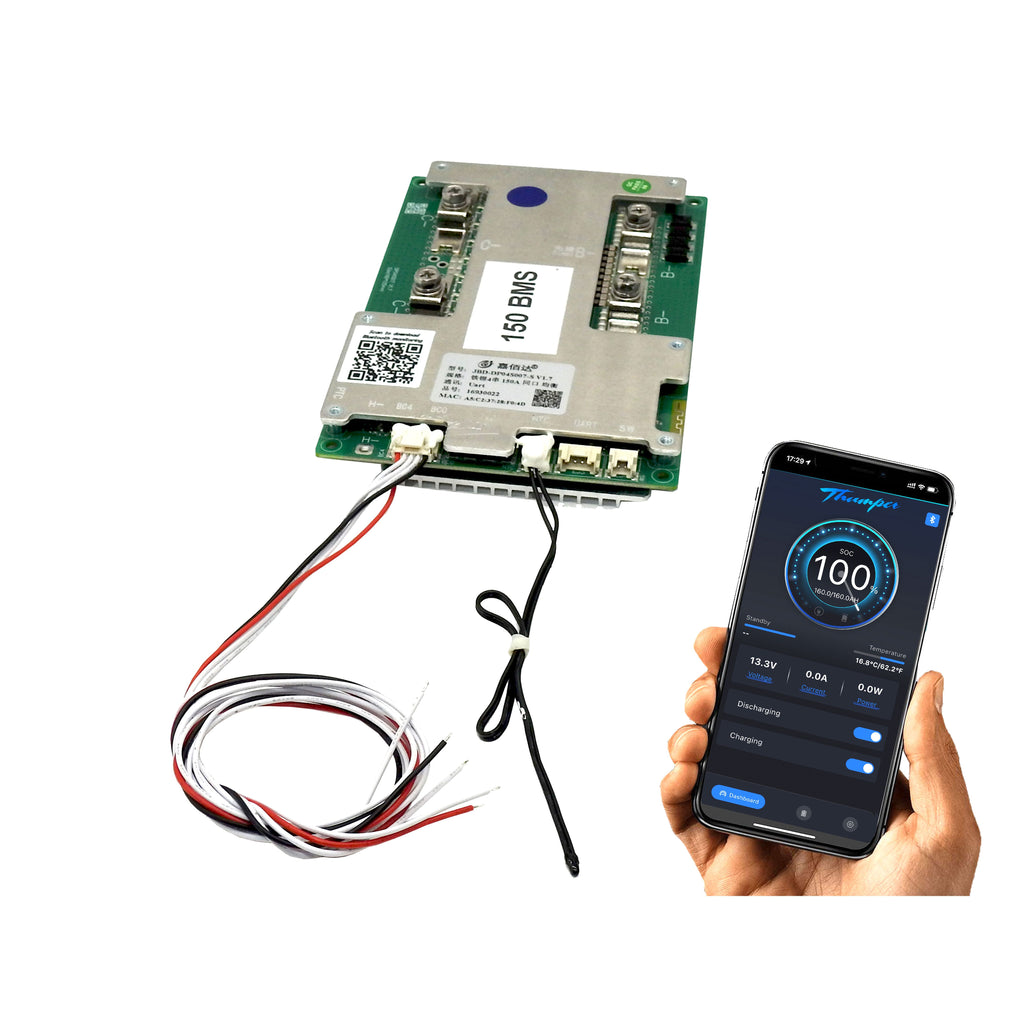

BLUETOOTH APP: Thumper Batteries
Suitable for batteries up to 400 AH capacity.
PARAMETERS
| Cell specifications | 4 string of Lithium Phosphate (LiFePO4) |
| Interface type | Charge and discharge are both at the same port |
| Charging voltage | 14.4V |
| Working voltage |
8.8~15.0V |
| Continuous charging current |
≤150A |
| Continuous discharging current) |
≤150A |
| Consumption of running |
≤10mA |
| Consumption of sleep | ≤800uA |
| Sleep conditions | Delay 65000s under no current \ communication \ protection state (settable) |
| Circuit resistance) | ≤10mR |
| Operating temperature | -30℃~75℃ |
| Discharge high temperature | 90±5℃ |
| Size | 160±0.5mm * 105±0.5mm * 10±1mm |
FUNCTIONS
- Overcharge protection and recovery
-
Over-discharge protection and recovery
- Charging overcurrent protection and recovery
- Discharge overcurrent protection and recovery
- Temperature Protection and Recovery
- Balance function
- Capacity calculation
- Communication
