Description

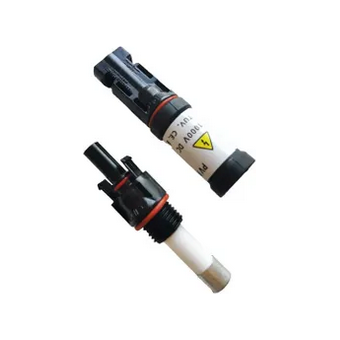

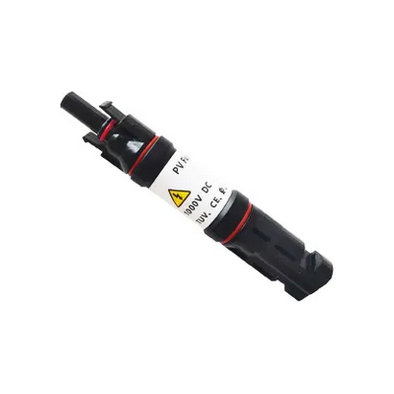

This solar fuse is the perfect, easy option to fuse individual solar panels directly at the panel.
Simply connect the in-line fuse holder directly to the positive MC4 connector on the solar panel and continue the cable run through to the solar charge controller.
Available in two sizes, 10 Amp and 15 Amp
Specifications:
| Part No. | MC4-FH10 / MC4-FH15 |
| Contact materials | Copper |
| Insulator Material | PC |
| Shape | Bar |
| Maximum working voltage | DC1000V |
| Current | 10 Amps / 15 Amps |
| Flame class | UL94-V0 |
| Pollution degree | 2 |
| Contact resistance | ≤ 5mm Ω |
| Shell Protection degree | IP65 |
| Specification of Connecting Line | 1.5~6mm2 |
| Ambient temperature range | -40 to +85 °C |
| Safety Level | Class II |
| Insertion force | ≤ 50N |
| Withdrawal force | ≤ 50N |
| Fuse Current | 10 Amp / 15 Amp |
| Dia of Pin | 4.0mm |
